Active full-range speaker
The Ld systems Stinger 8A g3 is an active 2-way bass reflex PA speaker, 8-inch woofer.
2-way active PA speaker with 15-inch woofer
Maximum sound pressure level 129 dB SPL, effective power 300 W, thanks to a high efficiency digital amplifier
Versatile model, perfect for use in Full Range, satellite and stage monitor mode.
Convenient presets for instant frequency response optimization based on usage
Homogeneous sound dispersion, thanks to a BEM-optimized waveguide for the tweeter
OEM 8 inch woofer, BMS tweeter
Absence of distortion even at the highest sound pressure levels, thanks to DSP DynX® technology

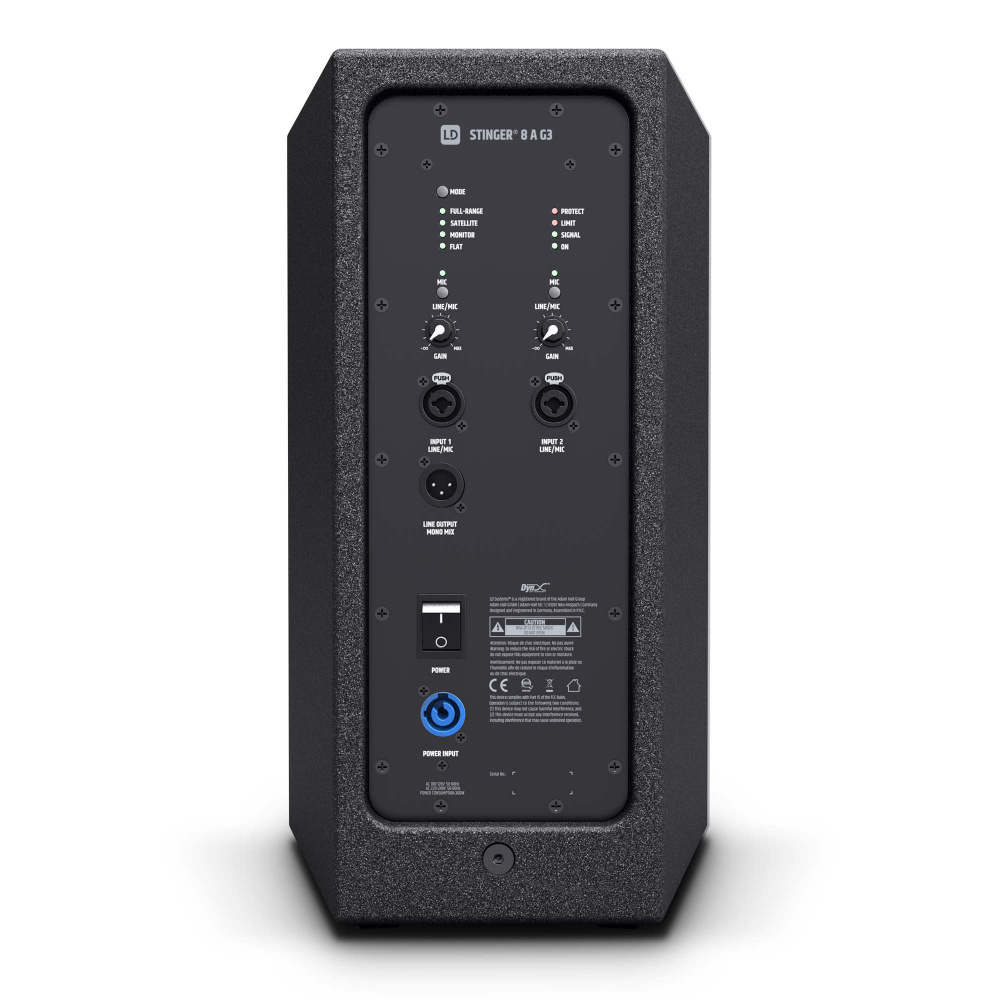

2 Line/Mic input channels, with individual gain trimmers, plus Mono Mix output

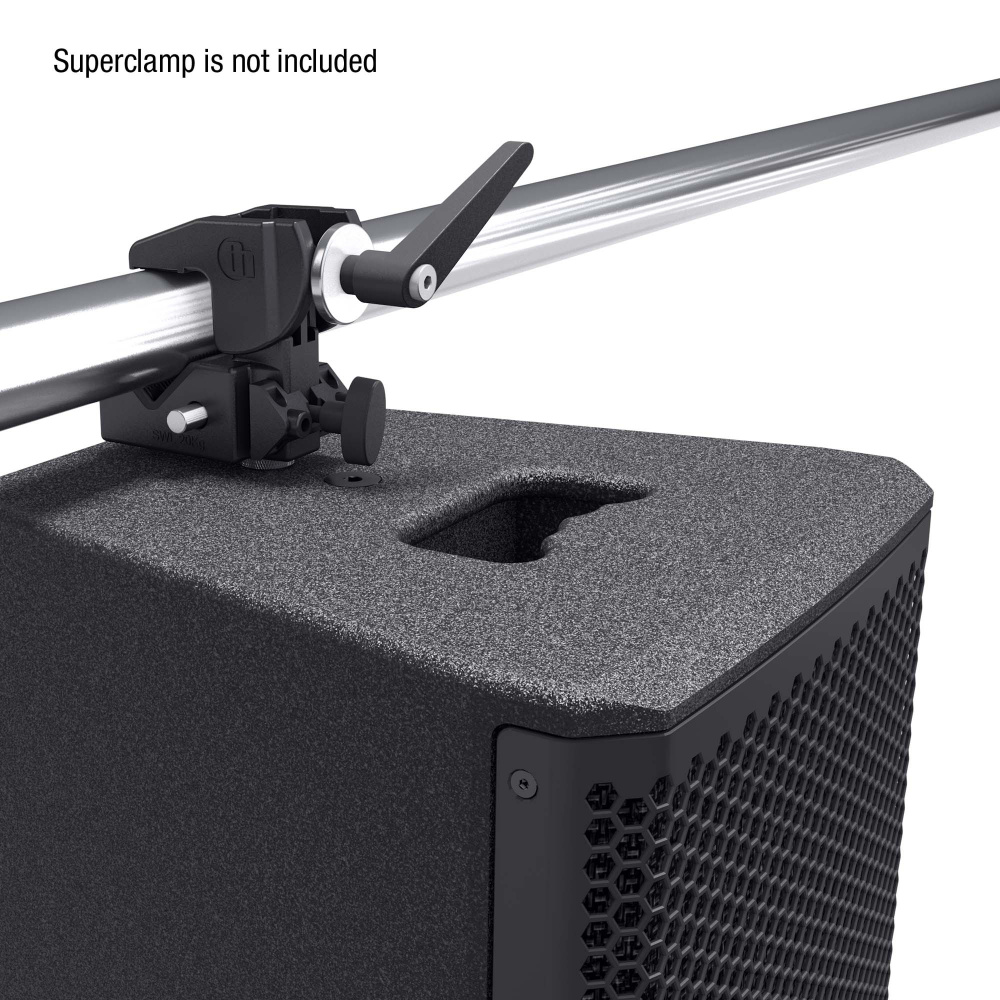

Box in 12 mm thick birch plywood, ultra-resistant Polyurea finish, M10 attachment points
Impact-resistant front grille guard for optimum protection of the transducers

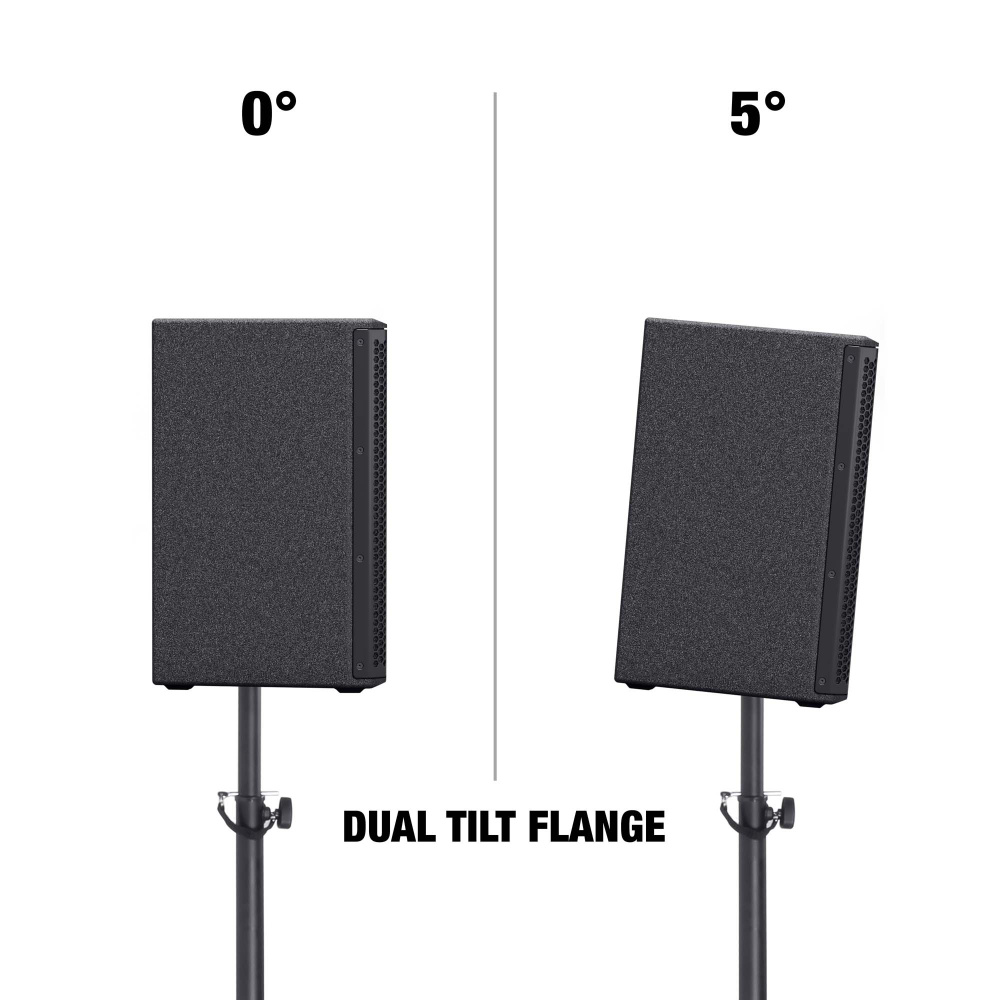

Well for 36 mm speaker stand, Dual-Tilt type, tilt angles 0° and 5°
Many ingenious accessories for installation and transport
2-way active PA speaker with 15-inch woofer
Maximum sound pressure level 129 dB SPL, effective power 300 W, thanks to a high efficiency digital amplifier
Versatile model, perfect for use in Full Range, satellite and stage monitor mode.
Convenient presets for instant frequency response optimization based on usage
Homogeneous sound dispersion, thanks to a BEM-optimized waveguide for the tweeter
OEM 8 inch woofer, BMS tweeter
Absence of distortion even at the highest sound pressure levels, thanks to DSP DynX® technology
2 Line/Mic input channels, with individual gain trimmers, plus Mono Mix output
Box in 12 mm thick birch plywood, ultra-resistant Polyurea finish, M10 attachment points
Impact-resistant front grille guard for optimum protection of the transducers
Well for 36 mm speaker stand, Dual-Tilt type, tilt angles 0° and 5°
Many ingenious accessories for installation and transport
Lire la suite
Technical sheet
- PA power speaker 151 to 300 watts RMS
- Type of PA speaker Stage & FOH monitor
- Type of product
- PA speaker
- Kind
- Active
- Diameter woofer/midrange
- 8"
- Boomer Diameter
- 203.2mm
- Boomer magnet
- Ferrite
- boomer brand
- Custom made
- woofer coil
- 2"
- Woofer coil (mm)
- 50.8mm
- Flag
- Optimized BEM horn with constant directivity
- Tweeter diameter
- 1"
- Tweeter Diameter
- 25.4mm
- Tweeter magnet
- Ferrite
- Tweeter brand
- BMS
- Tweeter coil
- 1"
- Tweeter Moving Coil Diameter
- 25.4mm
- Amplifier
- Class D
- Scatter angle (H x V)
- 90 x 50°
- Power (effective)
- 300W
- Power (peak)
- 600W
- Frequency response
- 70 - 20000
- Maximum SPL level (peak)
- 125dB
- Protective circuits
- Multi-band limiter, Overload, Overheating, Overvoltage
- Input sensitivity
- -9 dBu
- Settings
- 2 x Gain, 2 x Mic/Line, Mode
- Indicators
- Limit, Micro, Mode, On, Protect (protection circuit activated), Signal
- Line inputs
- 2
- Line Input Connectors
- 6.35mm jack, XLR
- Line outputs
- 1
- Line output connectors
- XLR
- Mains voltage
- 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching), Mains adapter
- Operating temperature
- 0 - 40°C
- Relative humidity rate
- < 80%, non-condensing
- Box material
- 12mm plywood
- Surface of the box
- Polyurea
- Box finish
- Bass Reflex
- Width
- 270mm
- Height (mm)
- 457mm
- Depth
- 290mm
- Weight
- 10.5kg
