Wireless handheld microphone

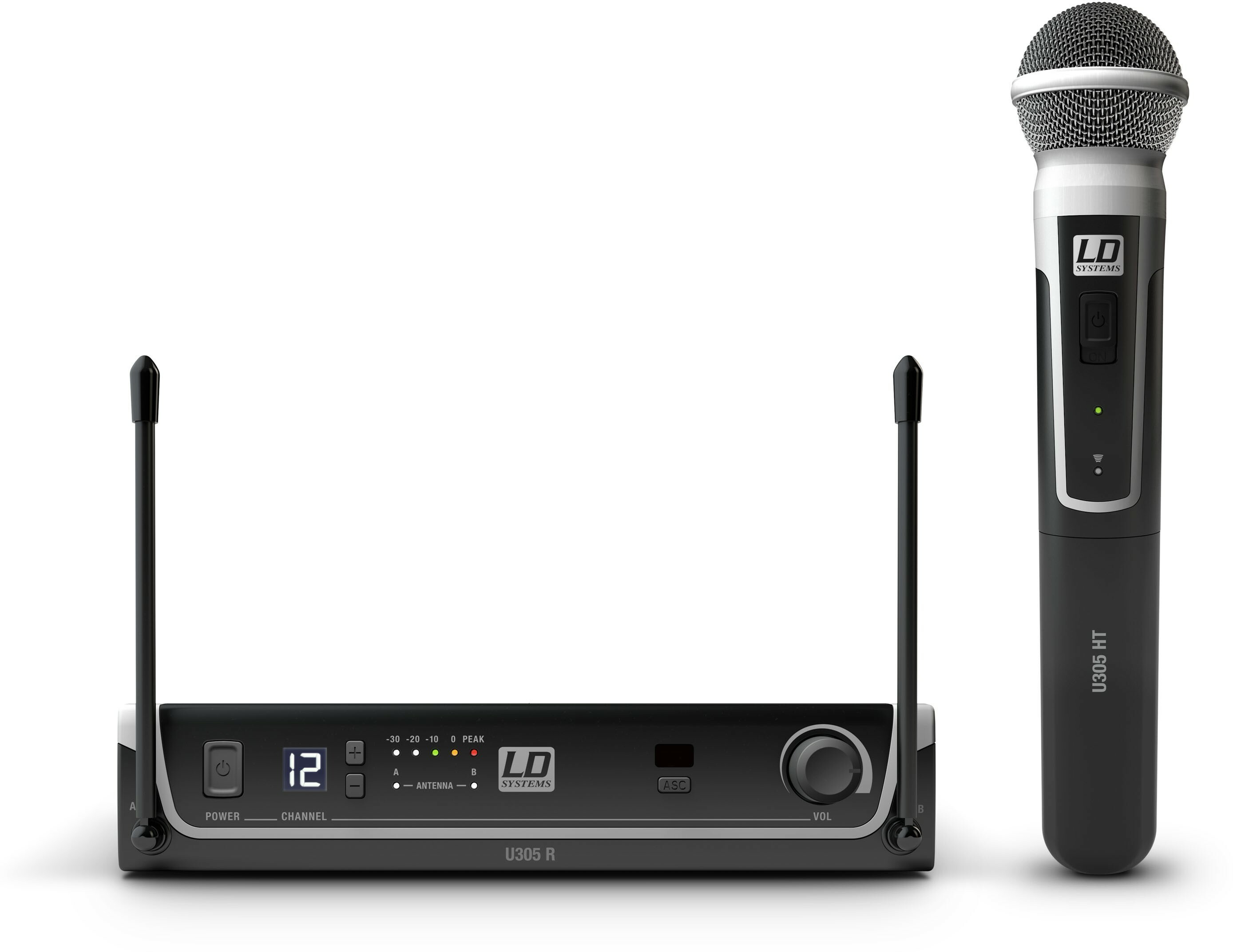

The Ld Systems U305 HHd is a wireless microphone system with handheld microphone.
UHF Diversity wireless systems with FM technology
12 selectable channels
Range of 100 meters under ideal conditions
Up to 6 systems can be used simultaneously
Synchronization of transmitter and receiver frequencies by ASC infrared
Pilot signal managed squelch circuit
10-hour transmitter life with two AA batteries
Receiver in a solid metal housing
Optional rack mounting kit as an accessory
Interchangeable U500 capsules also suitable for the U300 handheld microphone
UHF Diversity wireless systems with FM technology
12 selectable channels
Range of 100 meters under ideal conditions
Up to 6 systems can be used simultaneously
Synchronization of transmitter and receiver frequencies by ASC infrared
Pilot signal managed squelch circuit
10-hour transmitter life with two AA batteries
Receiver in a solid metal housing
Optional rack mounting kit as an accessory
Interchangeable U500 capsules also suitable for the U300 handheld microphone
Lire la suite
Technical sheet
- Digital transmission No
- Frequency HF Auto search
- Product type Wireless microphone systems
- Type Set
- Frequency range HF 584 - 608 MHz
- Weight 0.94 kg

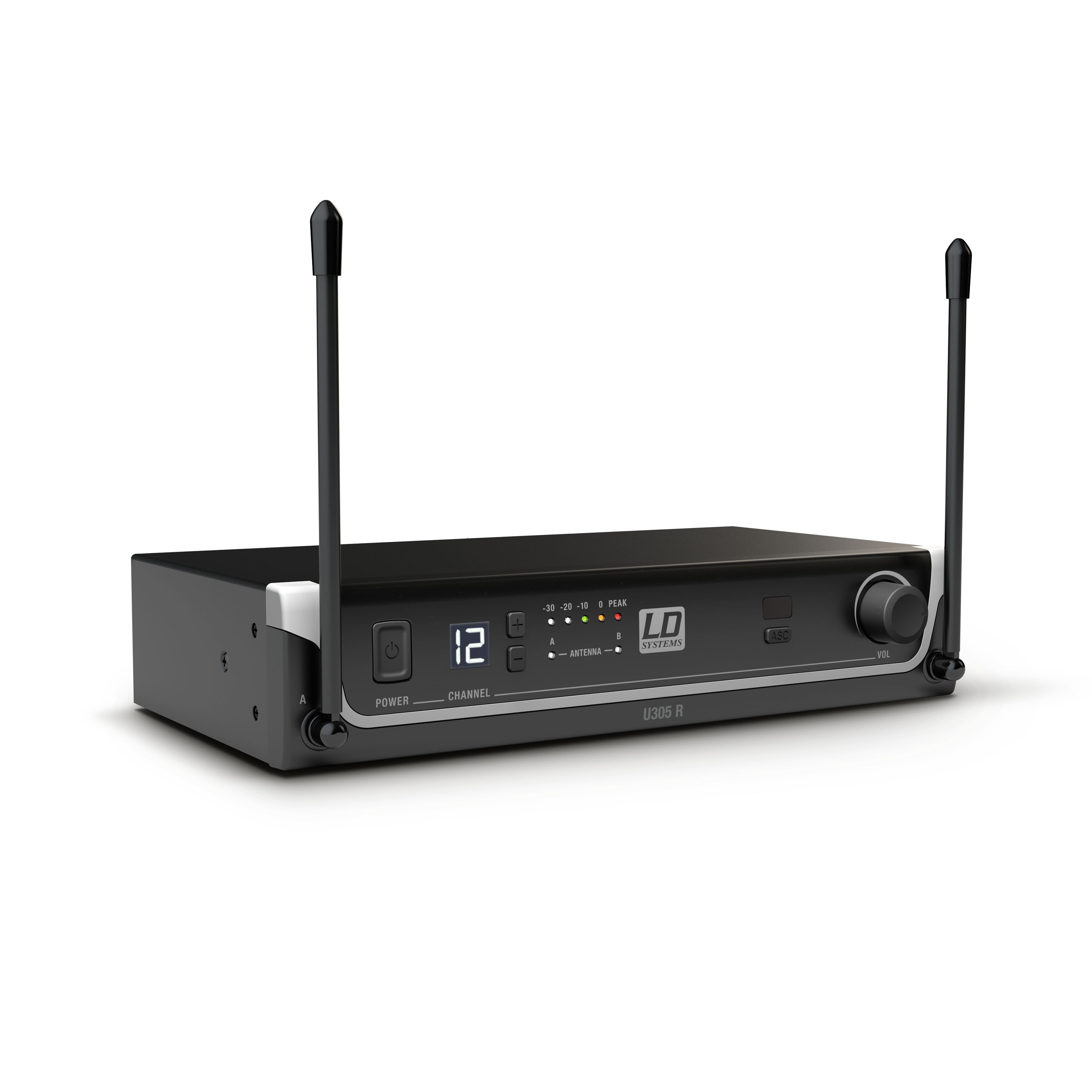

- LDU305R - LD Systems U305 R Empfänger
- Product type Accessories for wireless microphone systems
- Type Receivers
- FM modulation type
- Channels 12
- Groups 1
- Antenna inputs 2 x fixed antenna inputs
- Frequency response 25 - 16 000 Hz
- Squelch noise reduction
- Transmission optimization Pilot signal
- Distortion rate (THD) < 0.3% < 0.3
- Signal-to-noise ratio 104 dB
- Channel down, Channel up, - Line/instrument level, Power, ASC synchronization, Volume
- XLR balanced audio output
- Antenna A/B indicators, LCD display, 5 LED VU meter
- Unbalanced audio output 6.3 mm jack (level of - - - unbalanced switchable output)
- Mains voltage 12 V DC - 18 V DC (500 mA), external
- Maximum output level +10 dBu (balanced), +7 dBV (unbalanced, line), +2.5 dBV (unbalanced, instr.) dBu
- Weight 0.7 kg
- Other properties Synchronization of RF frequencies by infrared
- Width 211 mm
- Height (mm) 43 mm
- Depth 120 mm
- Accessories (included) 2 batteries LR06 (AA), Power supply unit, Audio cables

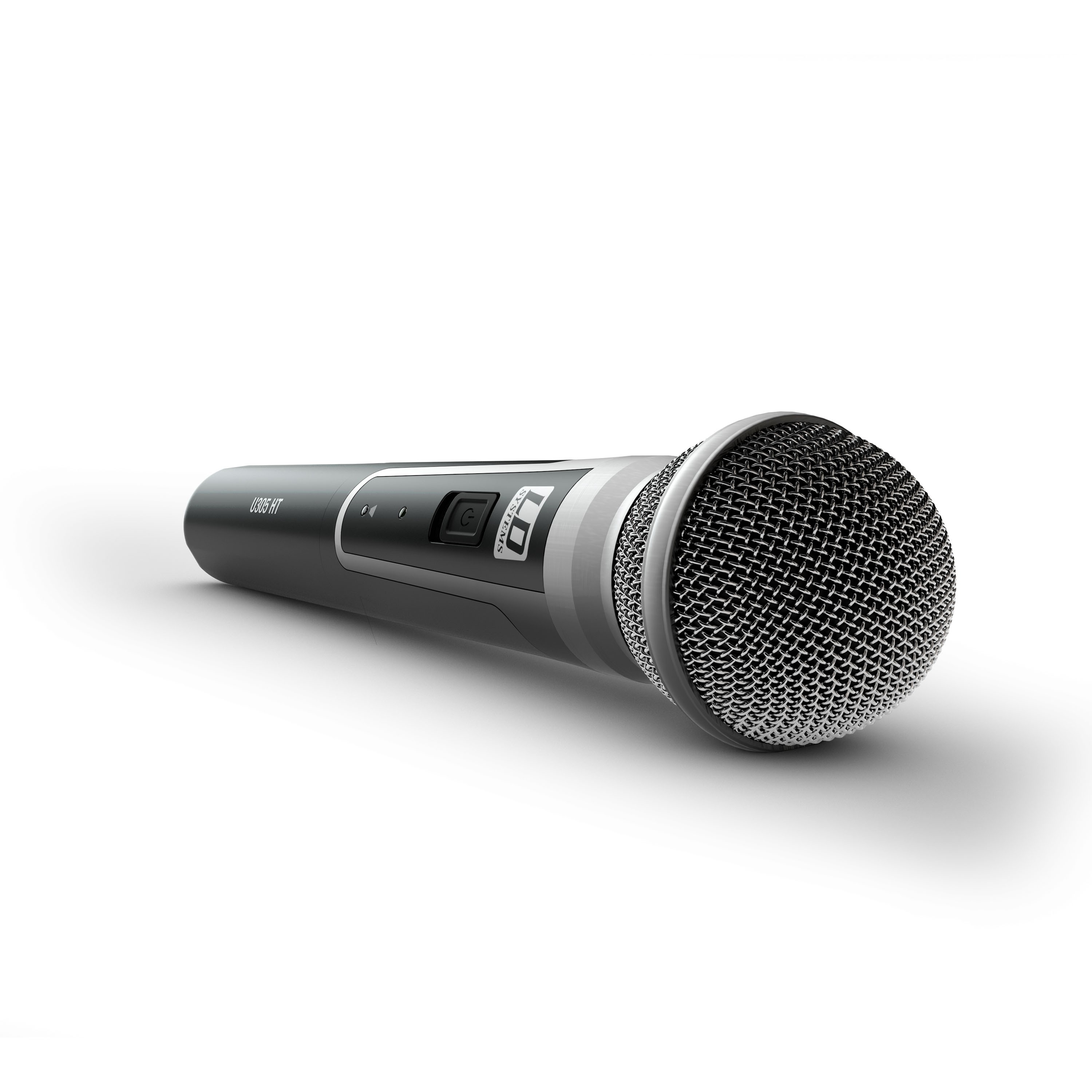

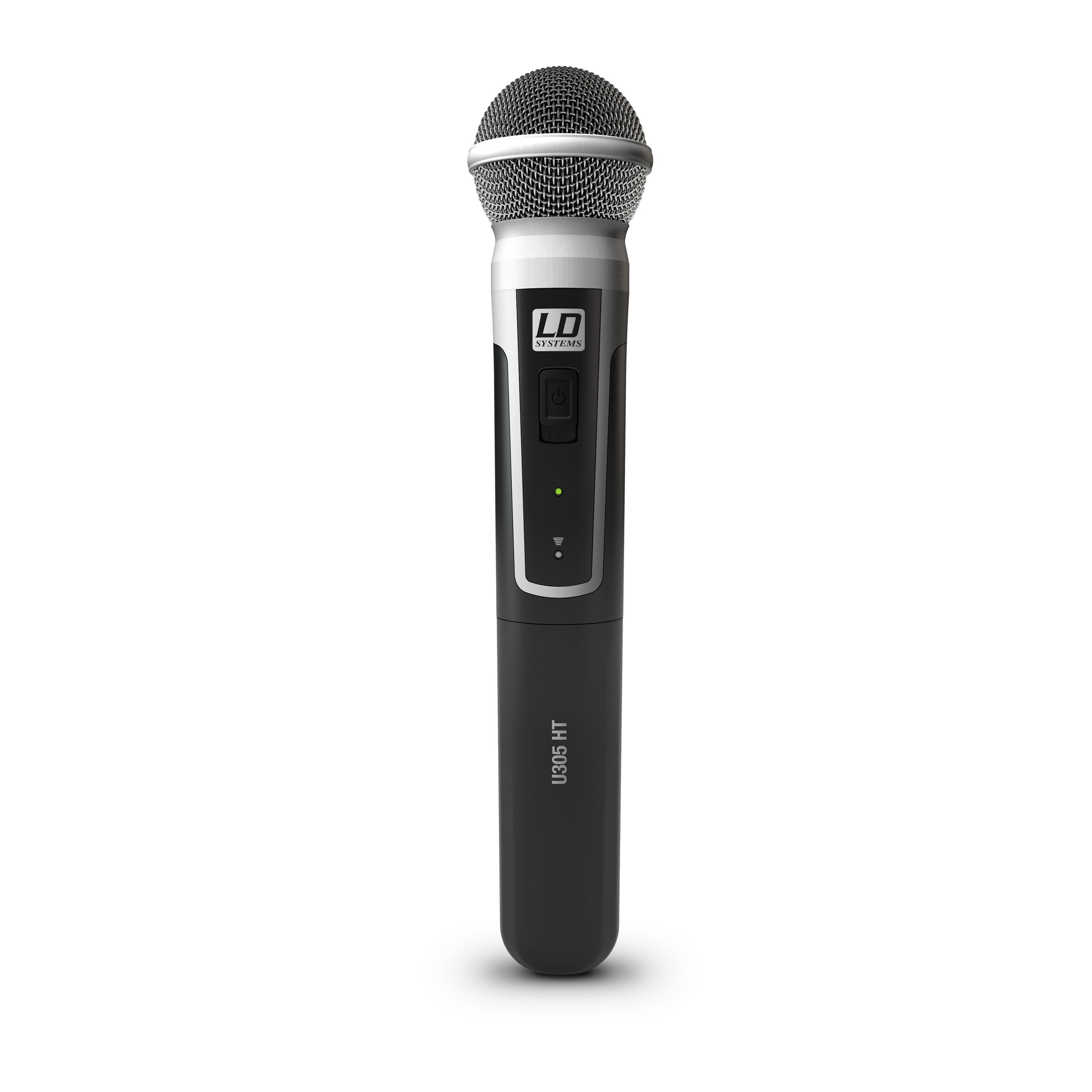

- LDU305MD - LD Systems U305 MD Handmikrofon dynamisch
- Microphone type Microphones
- Microphone type Dynamic
- Cardioid Directivity
- Frequency response 55 - 16 000 Hz
- HF output power 10 mW
- Power On/Off settings
- Battery LED indicators (battery to be changed: red), - Power (Power ON: green), IR ASC synchronization (green LED, flashing yellow)
- Mains voltage 2 batteries LR06 (AA)
- Battery life >10 hours
- Length (mm) 257 mm
- Diameter 50 mm
- Weight 0.235 kg
- Other properties Pilot signal
