Moving heads beam

The Mh10-Beamfx is a beamer from Martin By Harman.

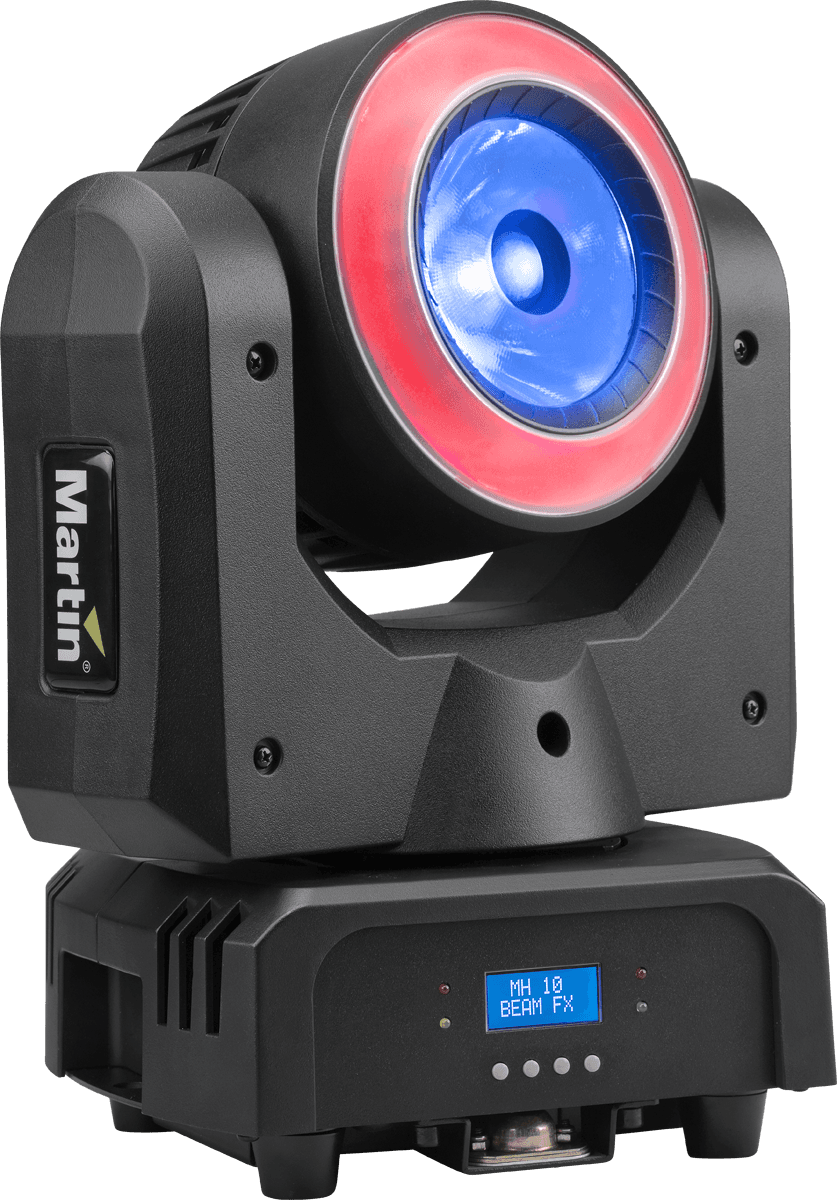

The RUSH MH 10 Beam FX from Martin is a compact 60W RGBW LED Beam with an integrated independent LED ring. With 24 individually controllable RGB LEDs surrounding a central beam lens, the RUSH MH 10 FX offers a variety of exciting visual effects possibilities at an affordable price.
The Martin RUSH MH 10 Beam FX uses a collimator lens design, creating a striking, high-intensity effect on stage. The OSRAM OSTAR LEDs in the MH 10 Beam provide excellent colour mixing with Martin's MAC Aura, RUSH MH 6 and RUSH Par 2 fixtures. Independent control of the ring LEDs also allows the fixture to blend easily with the LED video elements on stage.
Other features include the continuous pan and tilt and light weight of the fixture, which offers a number of interesting mounting possibilities and high-speed looks. The Martin RUSH MH 10 is ideal for nightlife venues, places of worship, cruise ships and small to medium-sized tours and rentals.
Collimator lens for a super tight 4.5° high intensity beam.
LED ring with 24 independently controllable LEDs
Continuous pan/tilt for unrestricted movement and high speed viewing

Technical sheet

DMX compatible Yes

Physical data
Dimensions: 275 x 188 x 325 mm
Weight: 7.5 kg
Dynamic effects
Color composition, beam: RGBW
Color composition, ring: RGB, grouped or 24 individual pixels
Virtual color wheel: 33 colors, virtual rotation effect, random colors (independent ring and beam)
Pre-programmed effects: FX (macros) on the ring at programmable speed and direction, synchronization and dowels on multiple devices
Dimming: 0-100%, fast and fine adjustment (ring
and independent beam)
Electronic shutter: Strobe, pulsations, black and full dry light (independent ring and beam)
Pan: Continuous rotation or indexing on 540°.
Tilt: Continuous rotation or indexing by 270°
Stroboscope: Adjustable 3 - 20 Hz, pulse and random mode
Electronic dimmer: 0 - 100%, 4 dimming curves
Optics
Beam source: Osram 60 W RGBW LE RTDUW S2WP
Ring sources: 24 LED 0.25 W RGB
Beam Width: 4.4°.
LED life: 20,000 h (>70% of initial flux)*
*Values obtained under manufacturer's test conditions
Control and programming
Control options: DMX, RDM, standalone mode, Master/Slave
DMX channels: 24 or 93
Autonomous mode options: Musical or autonomous
Capacity of the autonomous mode: 4 animations
Addressing and configuration: Backlit LCD control panel
Pan & Tilt speed: Adjustable by DMX or control menus
DMX compatibility: USITT DMX512/1990
RDM compatibility: ANSI/ESTA E.120
Construction
Color: Black
Body: Fire-resistant thermoformed plastic
Protection class: IP 20
Installation
Mounting point: 1/4 turn base for standard hook
Placement : Dry places only. Attached to a structure or surface
Orientation: All
Minimum distance to illuminated surfaces: 200 mm
Minimum distance to combustible materials: 100 mm (4 in.)
Minimum space around vents and ventilations: 100 mm
Connections
Power supply (input and recopy): Neutrik powerCON TRUE1
DMX/RDM input/recording: XLR 3 and 5 pin
Electricity
Mains: 100-240 V nominal, 50/60 Hz
Power supply: Self-adaptive switching electronics
Fuse: T 2.0 A
Typical current and power: 0.49 A, 108W. FP 0.99
Measurements at nominal voltage, all LEDs at full current. Consider a deviation of +/- 10%.
Approvals
EU Safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
CEM EU: IN 55015; IN 55032; IN 55103-1,-2; IN 61000-3-2,-3; IN 61000-4-2, -4, -5; IN 61547
Thermal data
Cooling : Forced air (regulated temperature, silent)
Maximum ambient temperature: 40° C
Minimum ambient temperature: 0°C
Supplied accessories
Power cable, 1.5 m (4.9 ft.) 18AWG/0.75mm2 without plug
Omega base for standard hook
Accessories Accessories
Power supply cables, 16 A, for mains connection
Power cable, H07RN-F, 2.5 mm2, 14 AWG, Neutrik TRUE1 NAC3FX-W without plug, 1.5 m : P/N 91611797
Power cable, H07RN-F, 2.5 mm2, 14 AWG, Neutrik TRUE1 NAC3FX-W without plug, 5 m: P/N 91611786
Power cable, SJOOW, AWG 12, Neutrik TRUE1 NAC3FX-W without plug, 1.5 m : P/N 91610173
Power cable, SJOOW, AWG 12, Neutrik TRUE1 NAC3FX-W without plug, 5m : P/N 91610174
Copy cables, 16 A, for cascade wiring
Power cable, H07RN-F, 2.5 mm2, Neutrik TRUE1 to TRUE1, 0.45 m : P/N 91611784
Power cable, H07RN-F, 2.5 mm2, Neutrik TRUE1 to TRUE1 1.2 m : P/N 91611785
Power cable, H07RN-F, 2.5 mm2, Neutrik TRUE1 to TRUE1 2.5 m : P/N 91611796
Power cable, SJOOW, AWG 12, Neutrik TRUE1 to TRUE1, 0.45 m : P/N 91610170
Power cable, SJOOW, AWG 12, Neutrik TRUE1 to TRUE1, 1.2 m : P/N 91610171
Power cable, SJOOW, AWG 12, Neutrik TRUE1 to TRUE1, 2.5 m : P/N 91610172
Power connectors for cable mounting
Neutrik PowerCON TRUE1 NAC3MX-W (male) : P/N 91611788
Neutrik PowerCON TRUE1 NAC3FX-W (female) : P/N 91611789
Mounting accessories
Jaw collar: P/N 91602005
Hook in G*: P/N 91602003
Quick-trigger* hook: P/N 91602007
Safety sling, CMU 60 kg, black : P/N 91604006
Safety sling, CMU 60 kg, silver plated: P/N 91604007
*Use only for vertical suspensions
