Ortofon 2M MONO

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Ortofon 2m Mono - Cartridge - Main picture
389,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 109675
In stock
shipped under 5/7 days
Stock in store
Not available in store
Other version(s) or associated product(s)

The brand Ortofon

Learn more about the Ortofon brand and discover the entire catalog.

DJ cartridge buying guide

Follow our DJ cartridge buying guide to find a reference that meets your expectations: audiophile listening, mix, scratch

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Cartridge

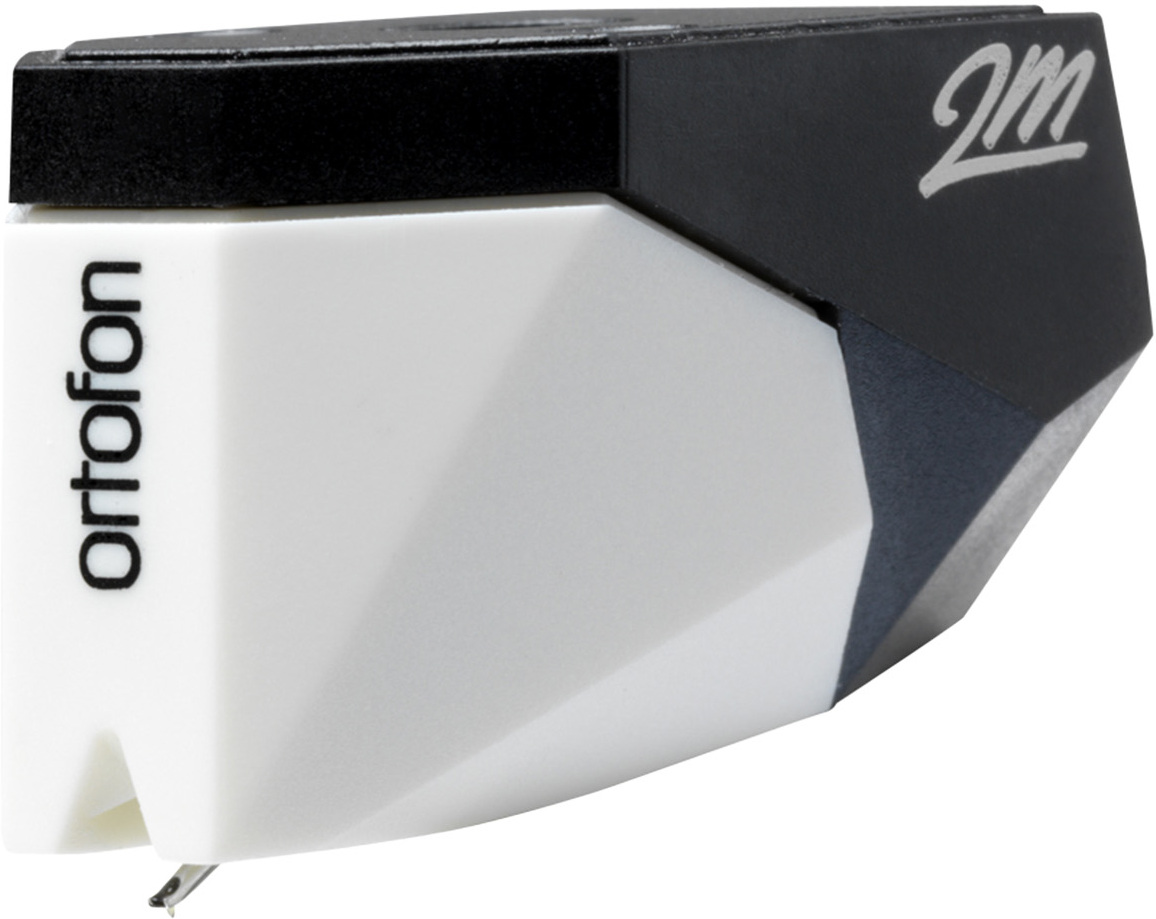

The Ortofon 2M mono is a 2M MONO cell with spherical diamond.

The 2M Mono is equipped with an improved motor, offering exceptional sonic precision. Its tip is fitted with an 18?m R Spherical Diamond, an optimal solution for playing LP mono LP records. The body of the cell is made of Hopelex, ensuring great rigidity while eliminating unwanted resonances.
Lire la suite

Technical sheet

  • Type: MM (Moving magnet)
  • Diamond : Spherical
  • Output voltage at 1000 Hz, 5 cm/sec. : 4 mV
  • Frequency response : 20-20,000 Hz (+3 / -1 dB)
  • Readability (315 Hz at recommended hold force): 70 ?m
  • Compliance, dynamic, lateral: 18 ?m/mN
  • Pen tip radius: R18 ?m
  • Bearing force range: 1.6-2.0 g (16-20 mN)
  • Recommended holding force: 1.8 g (18 mN)
  • Reading angle: 20
  • Internal impedance: 700 Ohms
  • Internal inductance: 350 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 150-300 pF
  • Colour of sensor and pen: Black/White
  • 2MR cell weight: 6 g
  • Weight of 2M and 2M Verso cells: 7.2 g
  • Weight of 2M pre-mounted cell: 16.7 g
  • Replacement pen: 2M Mono (interchangeable with 2M 78)
  • Diamond life : With proper care, up to 1,000 hours can be achieved without any degradation in performance.
