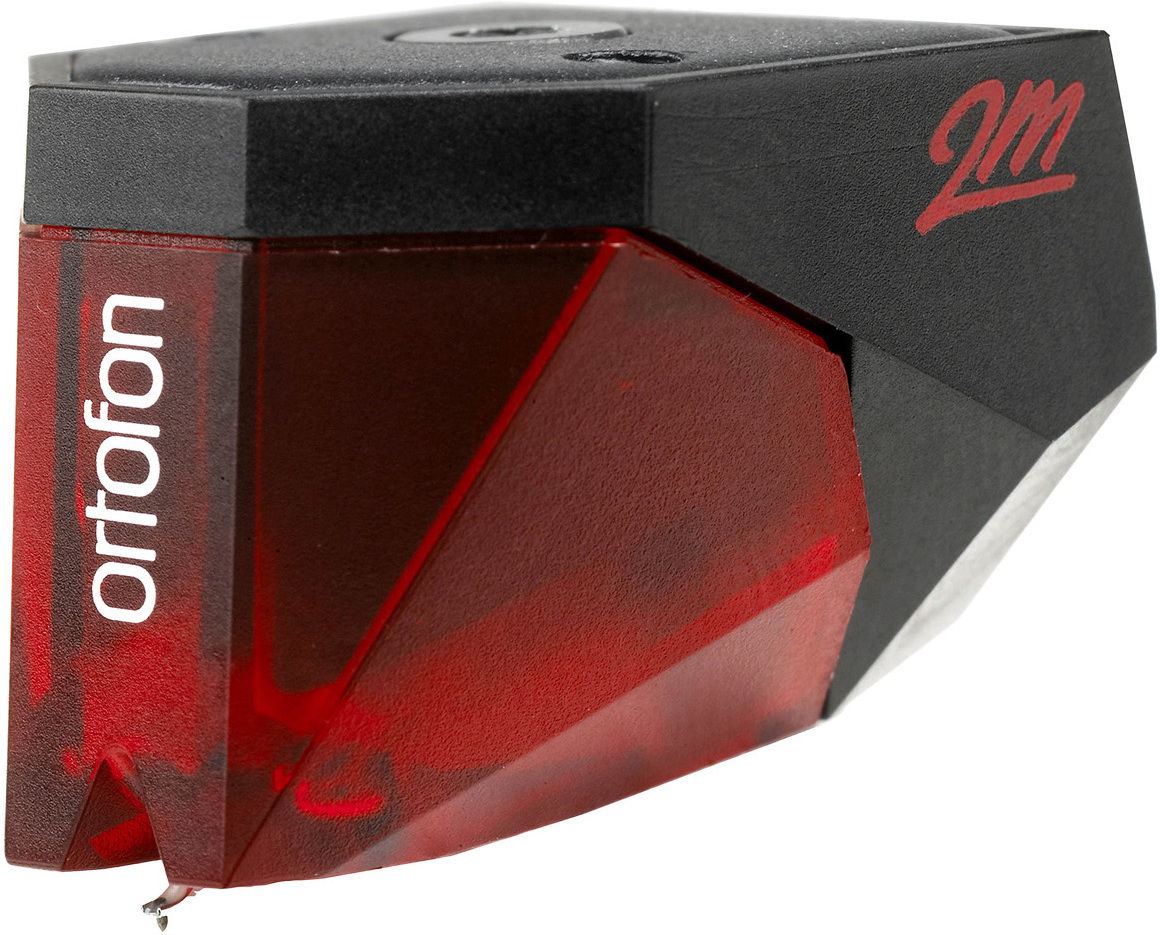

Ortofon 2M RED
- Read reviews (0)
- Related accessories
- Similar products
- Free delivery
- Low prices guaranteed
- Satisfied or refunded
- 3-years warranty
- Ref : 17110
In stock
shipped under 5/7 days
Stock in store
Not available in store
Other version(s) or associated product(s)
The brand Ortofon
Learn more about the Ortofon brand and discover the entire catalog.
DJ cartridge buying guide
Follow our DJ cartridge buying guide to find a reference that meets your expectations: audiophile listening, mix, scratch
Contact an expert
Our musician and enthusiast tele-consultants are here to answer all your questions.
Cartridge
Cell for Ortofon 2M Red hi-fi turntable.
The 2M Red cartridge is specifically designed to fit most common turntables in today's market. Its weight and size make for easy installation on most tonearms. This cartridge provides excellent compatibility with a variety of playback systems and phono preamps.
The elliptical diamond of the 2M Red ensures an open, dynamic sound with a subtle touch of warmth, adding a new dimension to your listening experience.
To further enhance your musical experience, you have the option to upgrade this cartridge by replacing the original diamond with a STYLUS SILVER or a STYLUS BLUE. These options are fully compatible in terms of motor, coils, and magnets, allowing you to customize your sound according to your preferences.
Don't wait any longer to discover the exceptional quality of the 2M Red, the perfect cartridge for discerning audiophiles seeking optimal sound performance.
Lire la suite
Technical sheet
- Type: MM (Moving magnet)
- Diamond: Elliptical
- Output voltage at 1000 Hz, 5 cm/sec: 5.5 mV
- Channel balance at 1 kHz: 1.5 dB
- Channel separation at 1 kHz: 22 dB
- Channel separation at 15 kHz: 15 dB
- Frequency response: 20-20,000 Hz (+3 / -1 dB)
- Readability (315 Hz with recommended contact force): 70 ?m
- Compliance, dynamic, lateral: 20 ?m/mN
- Stylus tip radius: r/R 8/18 ?m
- Bearing force range: 1.6 to 2.0 g (16 to 20 mN)
- Recommended holding force: 1.8 g (18 mN)
- Reading angle: 20°.
- Internal impedance: 1.3 ohms
- Internal inductance: 700 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 150-300 pF
- Cell and pen color: Black/Red
- 2MR cartridge weight: 6 g
- Weight of Verso 2M and 2M cartridges: 7.2 g
- Weight of 2M pre-mounted cartridge: 16.7 g
- Replacement diamond: 2M Red (interchangeable with 2M Blue and 2M Silver)
