Cartridge

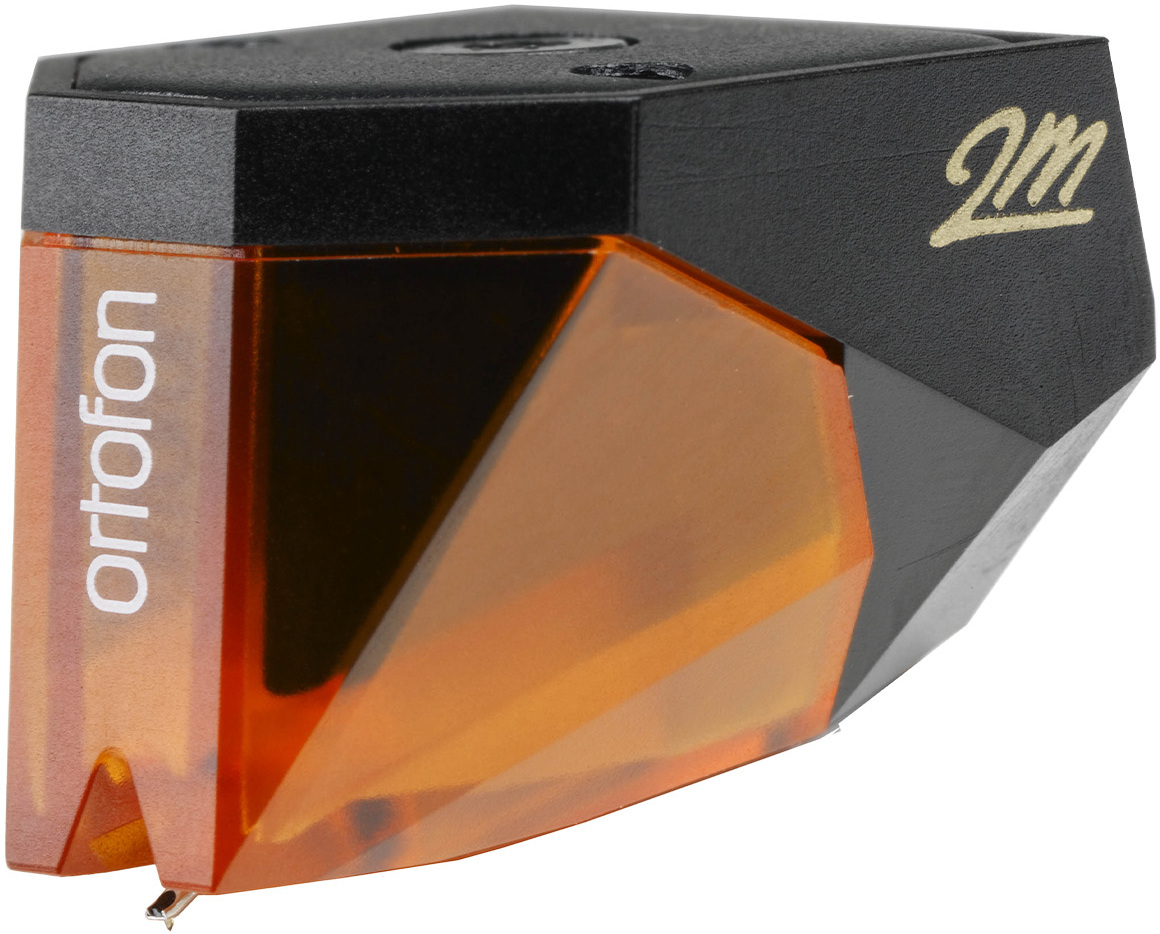

The Ortofon 2M Bronze is a 2M BRONZE cell with Diamond Fine Line.
The 2M Bronze is equipped with a fine tip cut from diamond, specially adapted to meet the most demanding requirements. The slim profile of Fine Line diamond enables it to track the highest frequency information, while its larger footprint ensures reduced distortion and disc wear. The 2M Bronze's special enhanced motor features split-pole spindles with silver-plated copper wire.
The 2M Bronze is equipped with a fine tip cut from diamond, specially adapted to meet the most demanding requirements. The slim profile of Fine Line diamond enables it to track the highest frequency information, while its larger footprint ensures reduced distortion and disc wear. The 2M Bronze's special enhanced motor features split-pole spindles with silver-plated copper wire.
Lire la suite
Technical sheet
- Type: MM (Moving magnet)
- Diamond : Bare Point / Line Contact
- Output voltage at 1000 Hz, 5 cm/sec : 5 mV
- Channel balance at 1 kHz: 1 dB
- Channel separation at 1 kHz: 26 dB
- Channel separation at 15 kHz: 15 dB
- Frequency response: 20-20,000 Hz (+2 / - 0 dB)
- Readability (315 Hz at recommended pressure): 80 ?m
- Flexibility, dynamic, lateral: 22 ?m/mN
- Pen tip radius: r/R 8/40 ?m
- Bearing force range: 1.4-1.7 g (14-17 mN)
- Recommended holding force: 1.5 g (15 mN)
- Reading angle: 20
- Internal impedance: 1.2 ohms
- Internal inductance: 630 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 150-300 pF
- Colour of cell and pen: Black/Bronze
- 2MR cell weight: 6 g
- Weight of Verso 2M and 2M cells: 7.2 g
- Weight of 2M pre-mounted cell: 16.7 g
- Replacement diamond: 2M Bronze (interchangeable with 2M Black and 2M Black LVB 250)
