Cartridge

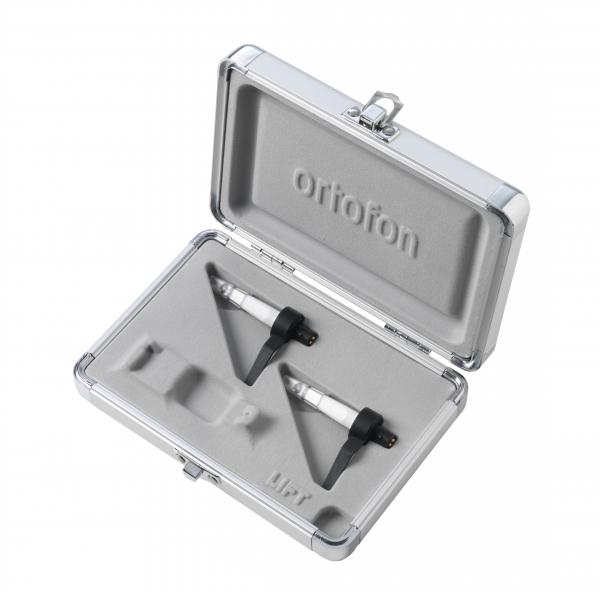

The Concorde MKII Twin Digital is an Ortofon DJ cell optimized for timecode vinyl.
Concorde MKII Twin Digital highlights
- Extends the life of timecode vinyl, reducing decoding errors.
- High-quality output at 10 mV, maximizing signal-to-noise ratio.
- Adjusted frequency range (20-18,000 Hz) to limit crackling.
- Recommended tracking force of 4 g, for optimum accuracy and stability.
Lire la suite
Technical sheet
- Cell type
- MM (Moving Magnet)
- Recommended contact force
- 4 g (range 3 to 5 g)
- Pen type
- Spherical
- Cell weight
- 18,5 g
- Dynamic compliance
- 14 ?m/mN
- Output voltage
- 10 mV
- Channel separation
- 22 dB at 1 kHz, 15 dB at 15 kHz
- Channel balance
- ±1 dB at 1 kHz
- tone arm compatibility
- Universal
- Tip material
- Diamond
- Tip dimensions
- 18 ?m
- Maximum support force
- 5 g
- Recommended use
- Digital use, ideal for mixing and scratching
- Connectivity
- 4-pin
