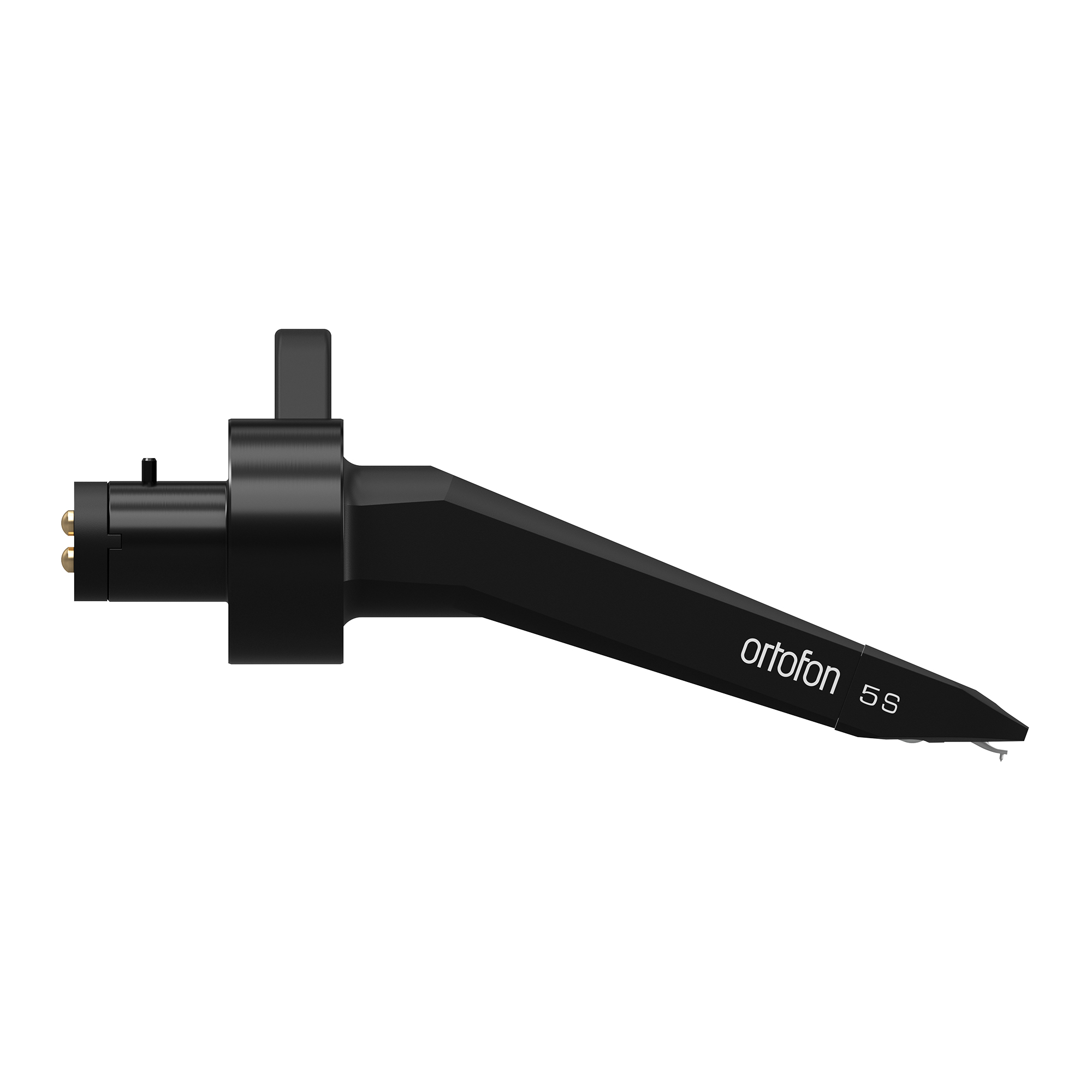

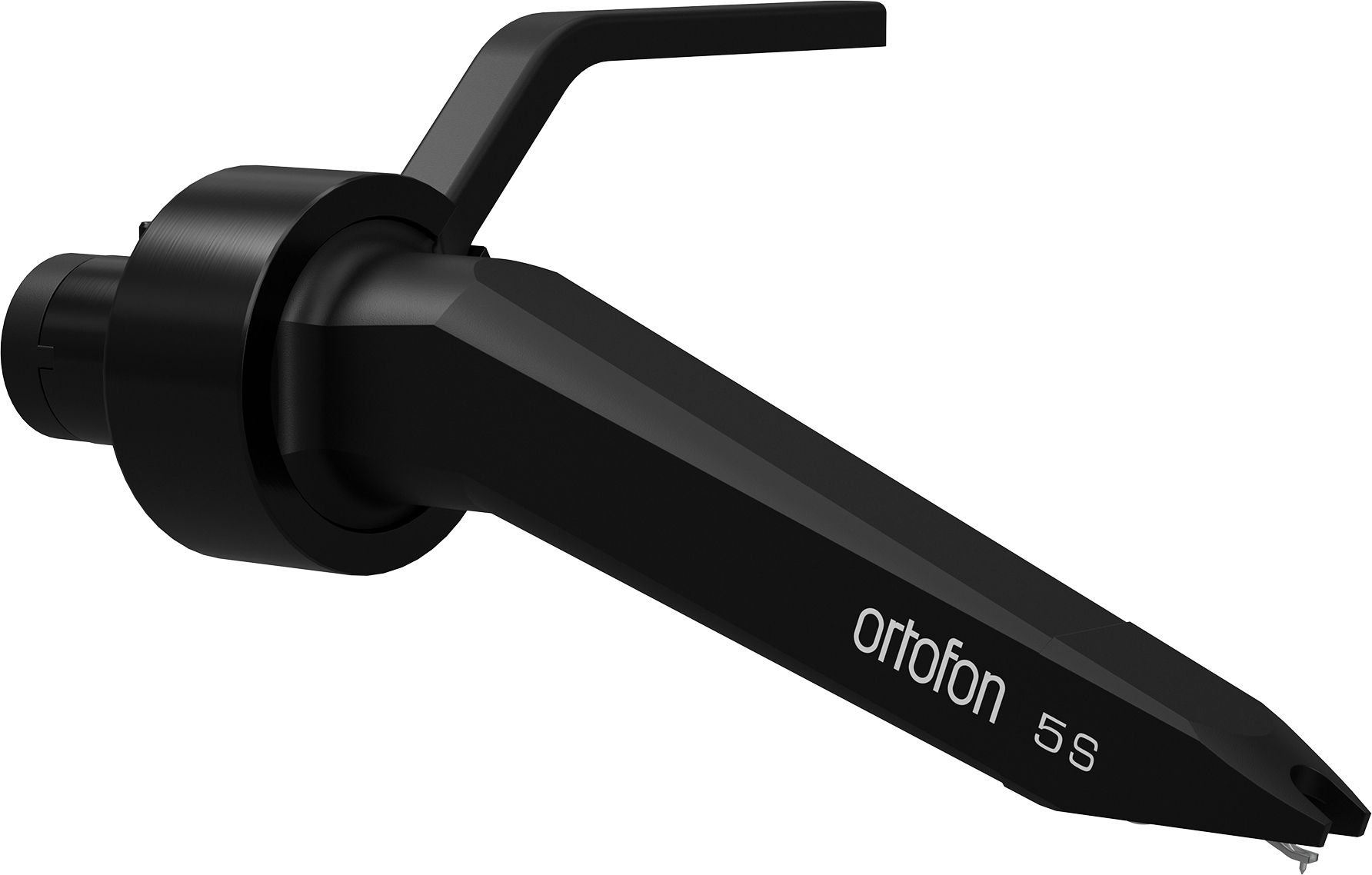

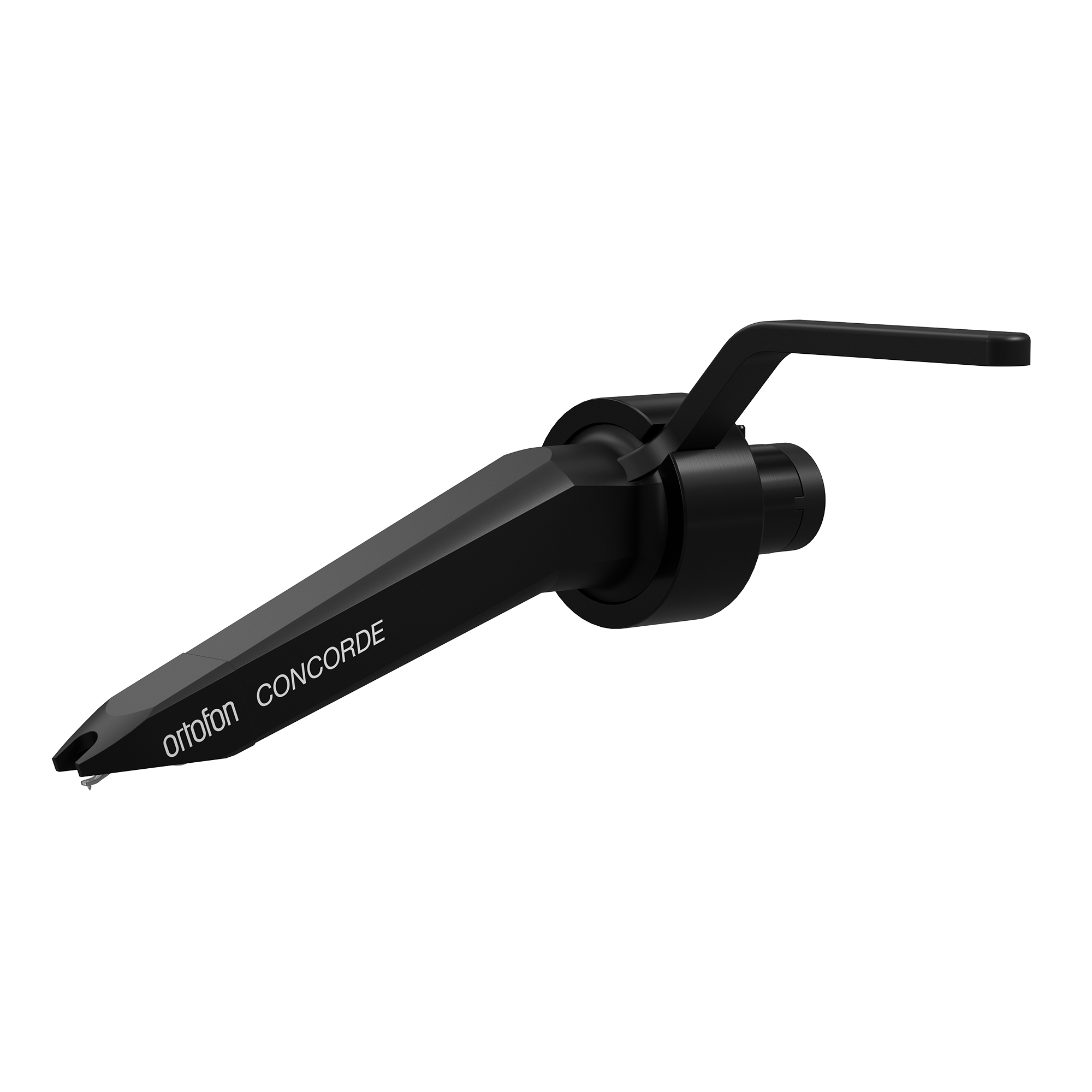

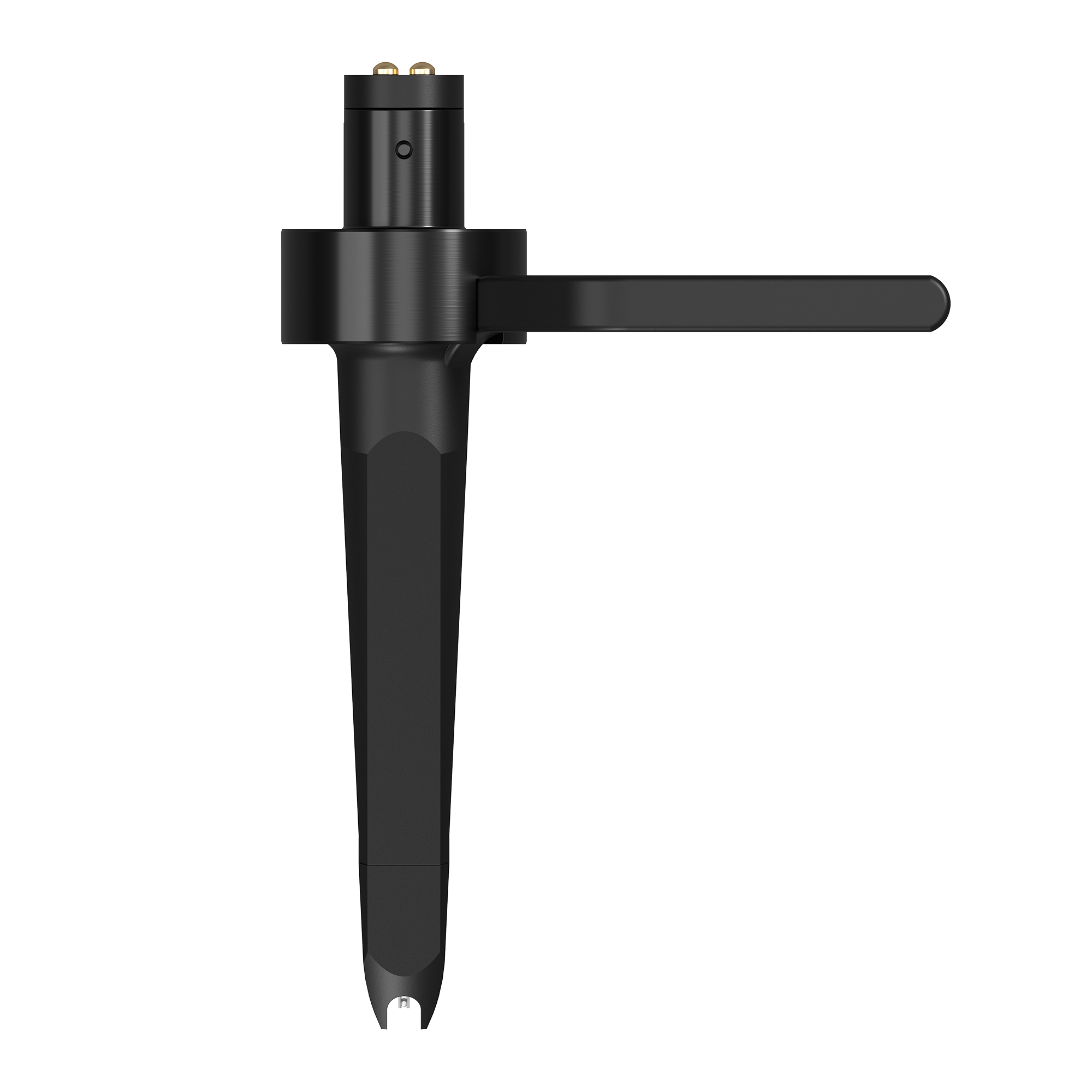

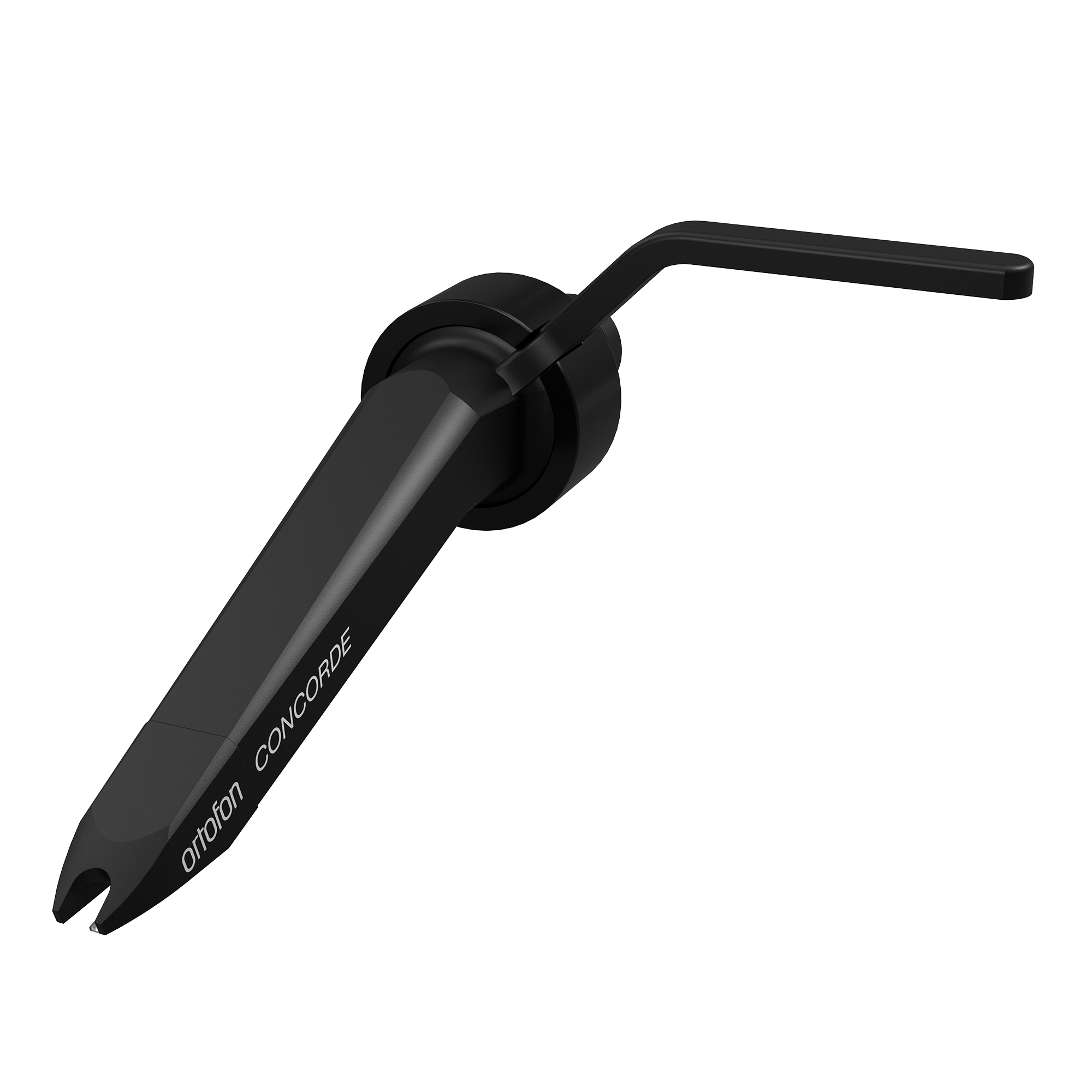

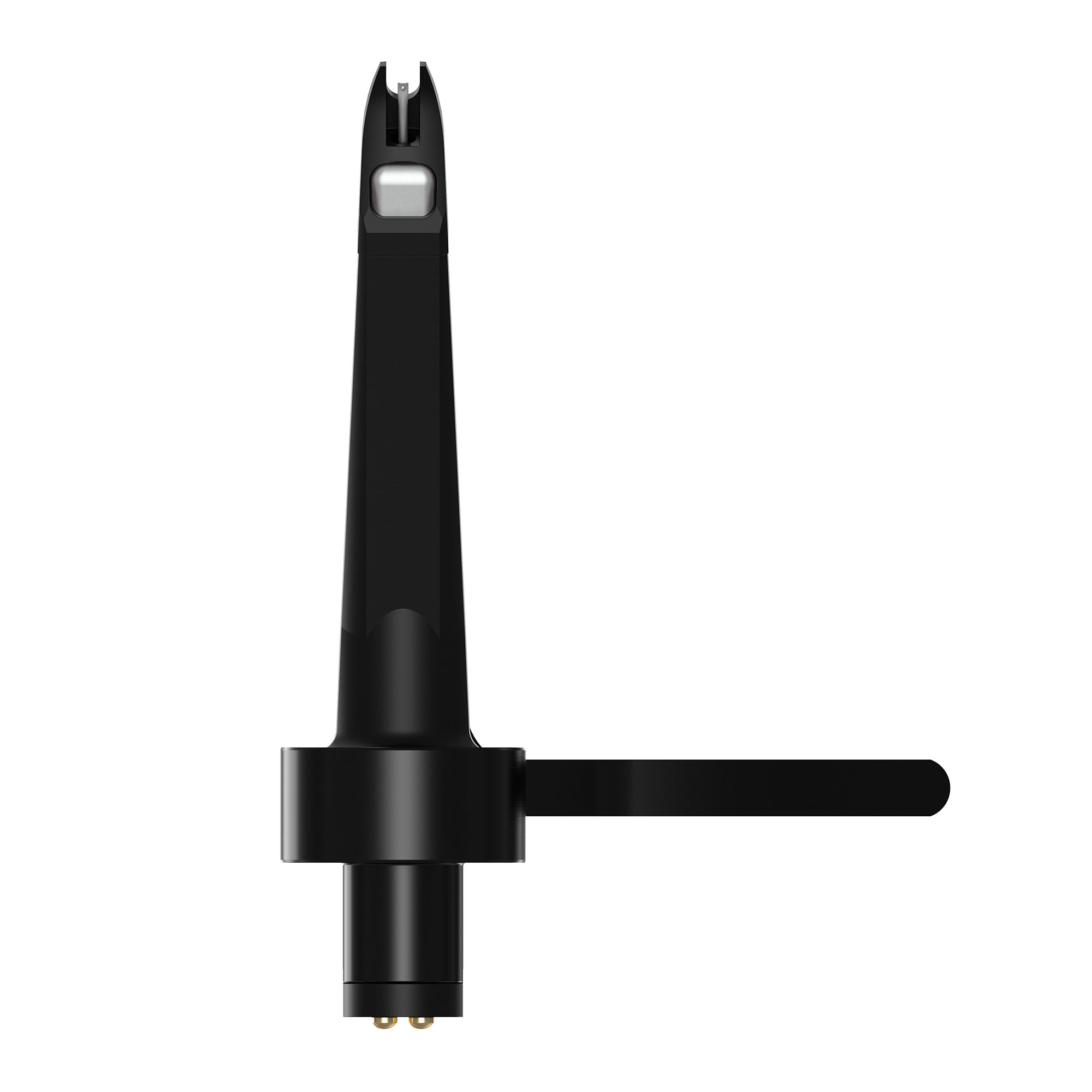

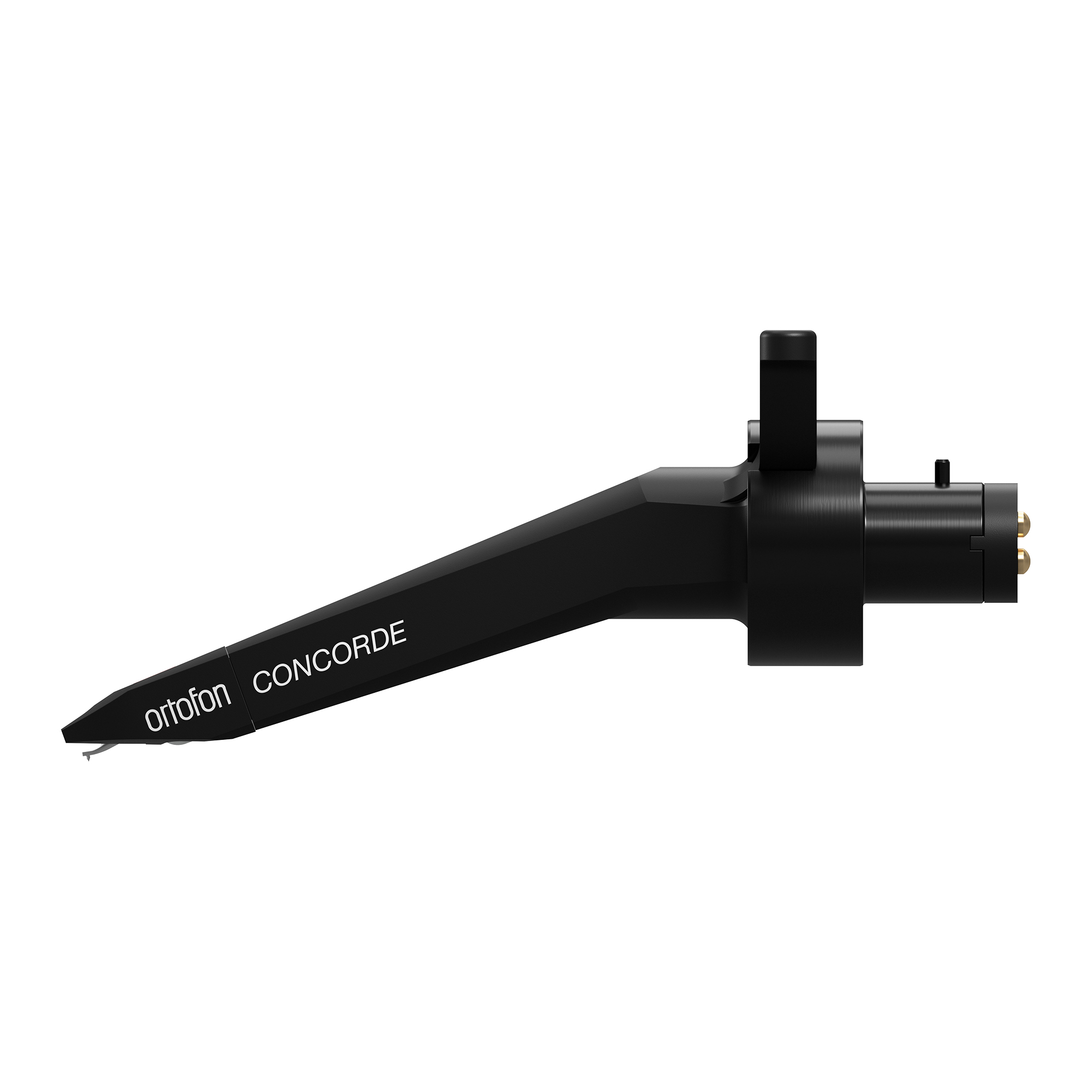

Ortofon Cellule Concorde 5E

Read reviews (0)
Related accessories
Similar products

Ref : 117259

81,00 €

Low prices guaranteed
Satisfied or refunded
3-years warranty

In stock

shipped under 5/7 days

Stock in store

See availability. Store

Star's Music Lyon

Variation(s) of this product.

The brand Ortofon

Learn more about the Ortofon brand and discover the entire catalog.

Discover

DJ cartridge buying guide

Follow our DJ cartridge buying guide to find a reference that meets your expectations: audiophile listening, mix, scratch

To consult

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

Cartridge

With their iconic design inherited from the legendary Concorde MKI, Ortofon Concorde 5E and 5S cells embody the perfect balance between simplicity, reliability and audio performance.

Positioned just below the Concorde Music series, these two models offer an ideal gateway to quality vinyl listening, whether you're a curious audiophile or an everyday music lover.

Easy to use and extremely robust, the Concorde 5S is perfect for casual vinyl listening, without compromising on quality.

Its spherical diamond provides stable, forgiving playback, even if your installation is not perfectly optimized.

Technical sheet

Hi-Fi phono cell - Technical specifications
- High-efficiency stereo phono cell, ideal for Hi-Fi turntables
Output voltage
- 4 mV at 1000 Hz, 5 cm/sec
Pen type
- Spherical
Cantilever
- Aluminum
Pen tip radius
- R 18 µm
Coils
- 4 coils on split-pole supports (2+ and 2-)
Coil wire
- OFC (oxygen-free copper)
Channel balance
- 2 dB at 1 kHz
Channel separation
- 20 dB at 1 kHz
Frequency response
- 20 Hz - 20 kHz ±3 dB
Lateral dynamic compliance
- 20 µm/mN
Recommended bearing force
- 1,8 g
Reading angle
- 20° (typical value)
Recommended load resistance
- 47 kΩ
Recommended load capacitance
- 200 - 500 pF
Color
- Black / Black (cell and pen)
Weight
- 18 g
