Cartridge

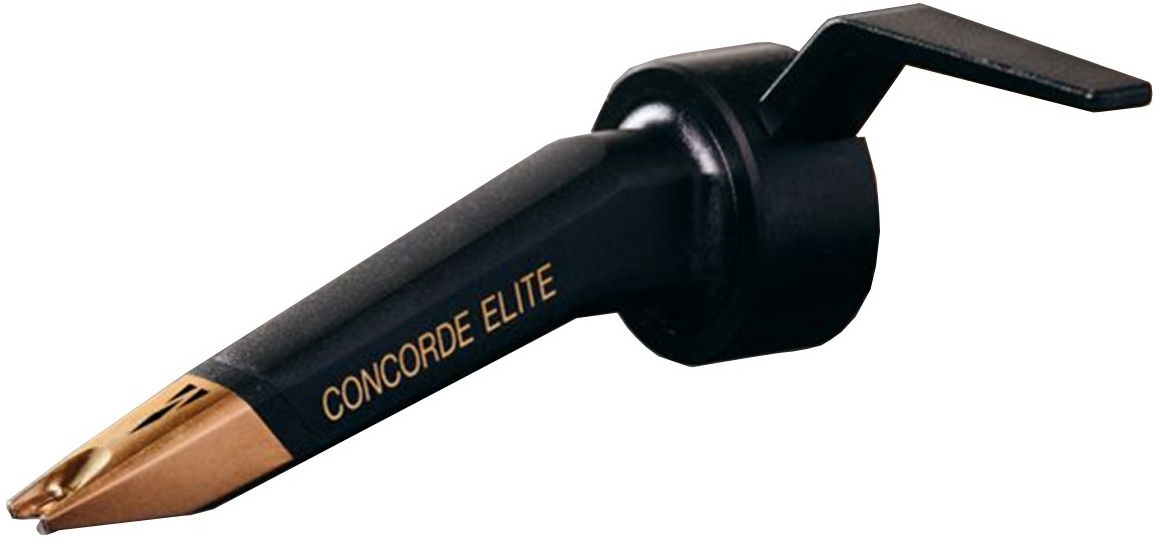

The Ortofon Concorde MKII Elite is a high-end cartridge.
The Concorde Elite is equipped with a brand new gold plated stylus, custom moulded, bringing nobility and sobriety to the well-known design of the Concorde range. In this gold case and mounted on a 750µm rigid aluminium-magnesium alloy cantilever, we find an integral elliptical diamond guaranteeing a stable and precise tracking of the record groove and bringing more details than a classic diamond. To ensure the excellent performance of this cell, Ortofon has developed a new rubber suspension and a unique coil system, guaranteeing a quality of signal reproduction unheard of for a Dj diamond.
The Concorde Elite is equipped with a brand new gold plated stylus, custom moulded, bringing nobility and sobriety to the well-known design of the Concorde range. In this gold case and mounted on a 750µm rigid aluminium-magnesium alloy cantilever, we find an integral elliptical diamond guaranteeing a stable and precise tracking of the record groove and bringing more details than a classic diamond. To ensure the excellent performance of this cell, Ortofon has developed a new rubber suspension and a unique coil system, guaranteeing a quality of signal reproduction unheard of for a Dj diamond.
Lire la suite
Technical sheet
- Output level: 8.5 mV
- Channel balance (1 kHz): 1 dB
- Channel separation (1 kHz): 25 dB
- Channel separation (15 kHz): 15 dB
- Frequency range at -3 dB: 20 Hz - 20 kHz
- Readability at 315 Hz at recommended holding force: 100 µm
- Lateral dynamic flexibility: 13 µm/mN
- Diamond type : Nude elliptical (cut from the ground)
- Bearing force: 2.0 - 4.0 g
- Recommended contact force: 3.0 g
- Reading angle: 20°.
- Internal impedance: 1.2 kOhms
- Internal inductance: 800 pF
- Weight: 18.5 g
- Colour: Gold / Black
