Audio technica AT-XP3/H

Cartridge
89.00 €
+
-
ON ORDER - contact us
INFORM ME OF ITS ENTRY IN STOCK
BIEN REÇU, MERCI!
OK
Please enter a valid email address
  • Need help +33 1 81 930 900

  • Fast delivery

  • Guarantee : 3-years warranty

    days refund guarantee : within 30 days

Share

Description

The At-xp3/h, is a Mobile Dual Magnet Stereo Cell with HS6BK Cell Holder.

AT-XP3/H
Mobile Dual Magnet Stereo Cell with Cell Holder

The XP Series cells provide high quality sound for DJs using vinyl discs. Offering all the features of a DJ cell, combined with Hi-Fi sound, the XP series is ideal for DJs who want to focus on sound quality.

Audiophile DJ cell equipped with a conical reading tip
VM Dual Magnet construction
Rigid and reliable design for high quality DJ playback
Cantilever made of carbon fibre reinforced ABS and suspension of the links to ensure precise support

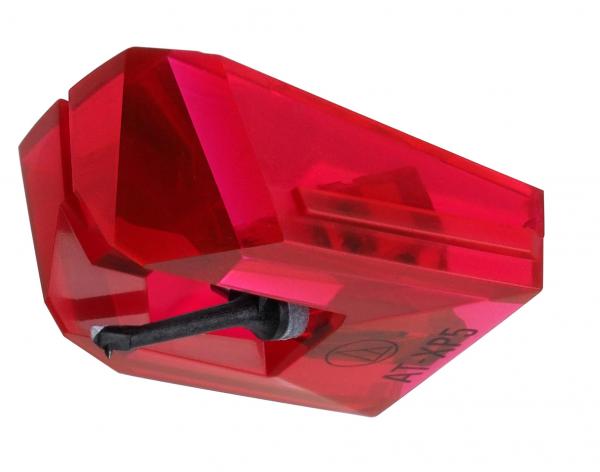

Compatible with ATN-XP5 and ATN-XP7 read peaks
Available configurations: cell (AT-XP3), read tip (ATN-XP3) and combined cell mounted on the AT-HS6BK cell holder (AT-XP3/H).


VM95 Series compatibility with AT-XP Series DJ cells

The XP Series electromagnetic generator is fully compatible with all replacement VM95 Series read peaks, but will provide a higher output voltage than VM95 Series cells. Thus, the adaptation is optimized for the phono inputs of professional DJ consoles with less gain than Hi-Fi devices.
The VM95 Series electromagnetic generator is also compatible with the three replacement read peaks of the XP Series DJ cells, however, the VM95 Series electromagnetic generator will provide a lower output voltage than the XP Series cell to ensure better compatibility with the phono inputs of Hi-Fi equipment.
Note that the recommended support force when using XP series read peaks is 3g, compared to 2g for VM95 series read peaks.
The suspension design and compliance of the XP series read-only tips have been adapted for DJ use, with manual front and rear locating capability. Note: its use is not adapted to intensive scratching due to the Dual Magnet VM architecture.
The VM95 series suspensions and their compliance characteristics have been designed to provide optimal audiophile reproduction.

Characteristics

Ref : 86115
Model AT-XP3/H
Half-inch assembly
Frequency Response 20 to 18,000 Hz
Channel Separation 20 dB (1 kHz)
Output Channel Balance 2.0 dB (1 kHz)
Output Voltage 5.5 mV (at 1 kHz, 5 cm/sec)
Vertical Track Angle 20 degrees
Vertical Support Force 2.0 to 4.0g (standard 3.0 g)
Conical Diamond Type
Diamond Cutting 0.6 mil
Bonded Round Shank Diamond Mounting
Cantilever Carbon reinforced ABS
Coil Impedance 6,700 ohms (1 kHz)
Coil inductance 550 mH (1 kHz)
Static Compliance 20 x 10 - 6 cm / dyne
Dynamic Compliance 6.0 x 10 - 6 cm / dyne (100 Hz)
Recommended Load Impedance 47,000 Ω
Recommended Load Capacity 100-200 pF
Cell Weight 15.6g
Dimensions 21.2 × 21.4 × 62.4 ( H x W x D mm)

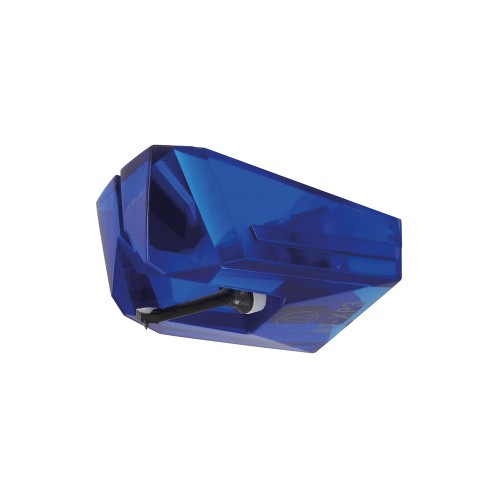

Replacement Reading Point ATN-XP3
