Usb audio interface
Presonus Studio1824 is a USB2.0 audio interface with 8 inputs.
The Studio1824 incorporates high quality digital converters, as well as the famous XMAX prémaplis
Operates up to 192 kHz for mixing and ultra-high definition recording.
High quality converters at each input and output provide a dynamic range of 115 dB to capture complex musical harmonics smoothly and naturally without audible distortion.

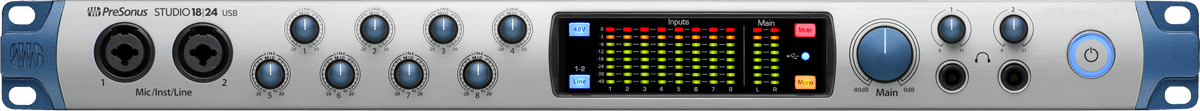

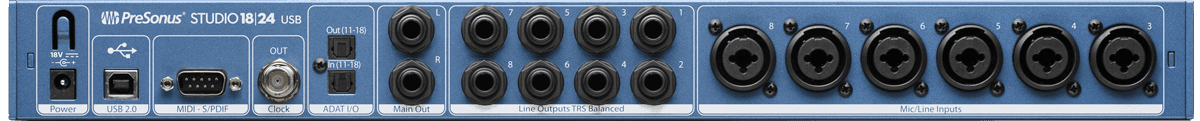

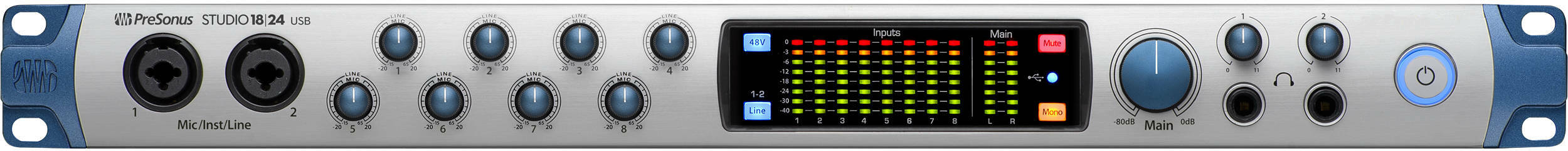

The Studio 1824 is equipped with two switchable mic / line inputs on the front panel and switchable line / instrument inputs and six mic / line inputs on the rear panel, all with + 48V phantom power for condenser mics.
Its eight channels of ADAT optical I / O (four channels at 96 kHz) allow you to expand the unit with a multichannel preamp / ADC, such as our high quality DigiMax DP88.
In addition to the main L / R outputs with the Mute, Mono and front panel level controls, there are eight balanced line outputs for the monitor mix plus stereo S / PDIF digital I / O and two stereo headphone outputs.
All line level outputs are DC coupled, allowing them to send control voltages.
The built-in DSP processor allows you to create four mix-ups of near-zero stereo latency monitoring.
A BNC word clock output allows synchronization with other digital devices. Studio 1824's MIDI I / O also allows you to connect a keyboard, sound module, or control surface, making it a true hub for your studio.
The Studio1824 incorporates high quality digital converters, as well as the famous XMAX prémaplis
Operates up to 192 kHz for mixing and ultra-high definition recording.
High quality converters at each input and output provide a dynamic range of 115 dB to capture complex musical harmonics smoothly and naturally without audible distortion.
The Studio 1824 is equipped with two switchable mic / line inputs on the front panel and switchable line / instrument inputs and six mic / line inputs on the rear panel, all with + 48V phantom power for condenser mics.
Its eight channels of ADAT optical I / O (four channels at 96 kHz) allow you to expand the unit with a multichannel preamp / ADC, such as our high quality DigiMax DP88.
In addition to the main L / R outputs with the Mute, Mono and front panel level controls, there are eight balanced line outputs for the monitor mix plus stereo S / PDIF digital I / O and two stereo headphone outputs.
All line level outputs are DC coupled, allowing them to send control voltages.
The built-in DSP processor allows you to create four mix-ups of near-zero stereo latency monitoring.
A BNC word clock output allows synchronization with other digital devices. Studio 1824's MIDI I / O also allows you to connect a keyboard, sound module, or control surface, making it a true hub for your studio.
Lire la suite
Technical sheet
- DSP No
- USB 2.0 audio interface
- Internal sampling frequency (kHz): 44.1 - 48 - 88.2 - 96 -176.4 - 192 kHz / 24-bit
- 2 mic / instrument / line inputs and 6 mic / line inputs XMAX Class A preamps
- 8 channels via the ADAT input (4 channels at 96 kHz)
- 2 balanced TRS 6.35 mm jack outputs with DC power supply for the Main output
- 8 balanced TRS 6.35 mm jack outputs with DC power supply
- 2 independent headphone outputs
- LED meter for each analog input and the hand output
- Midi I / O
- S / PDIF I / O
- BNC Word Clock Output
- External power supply included
- Included a Studio One Artist V3 license
