Active full-range speaker

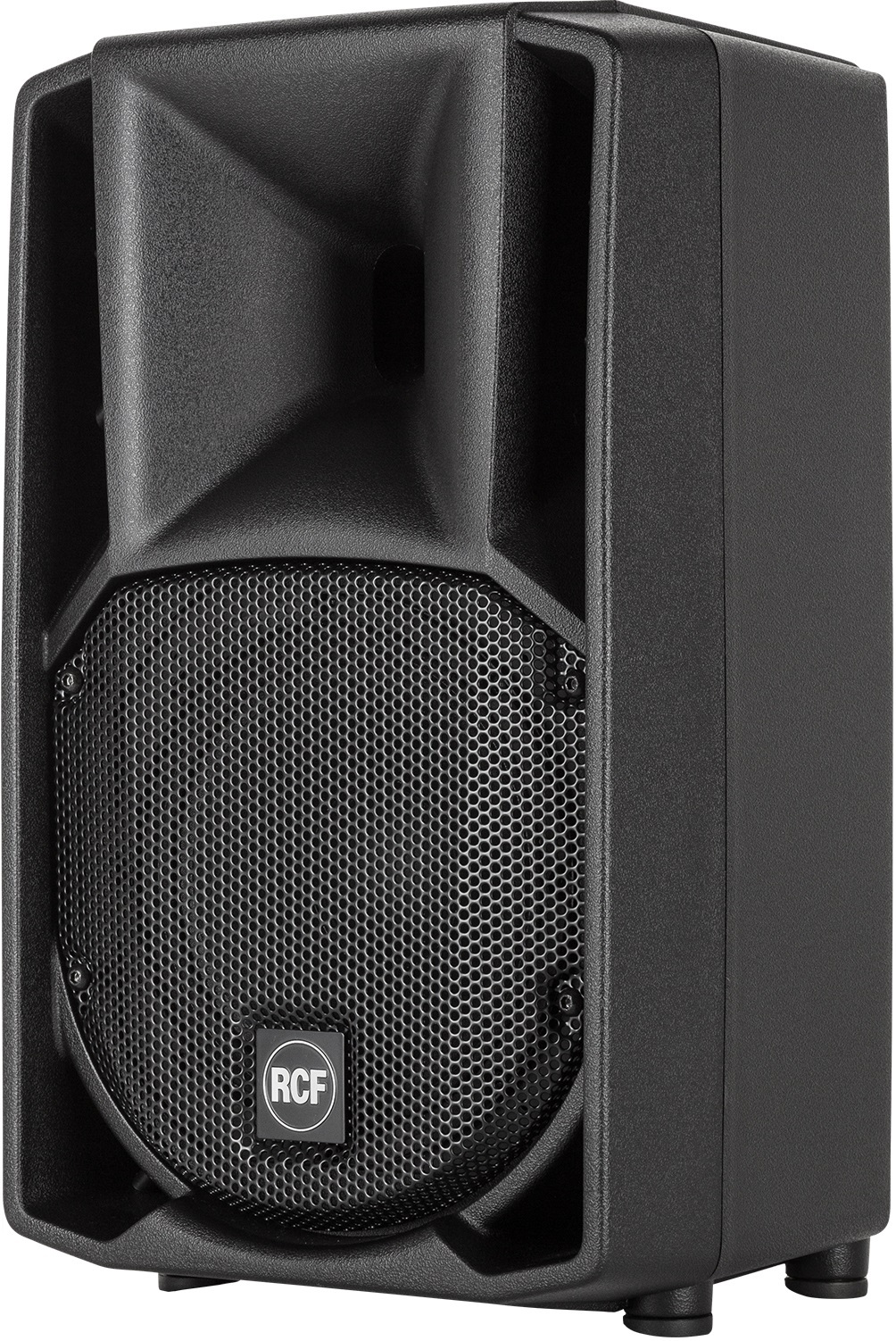

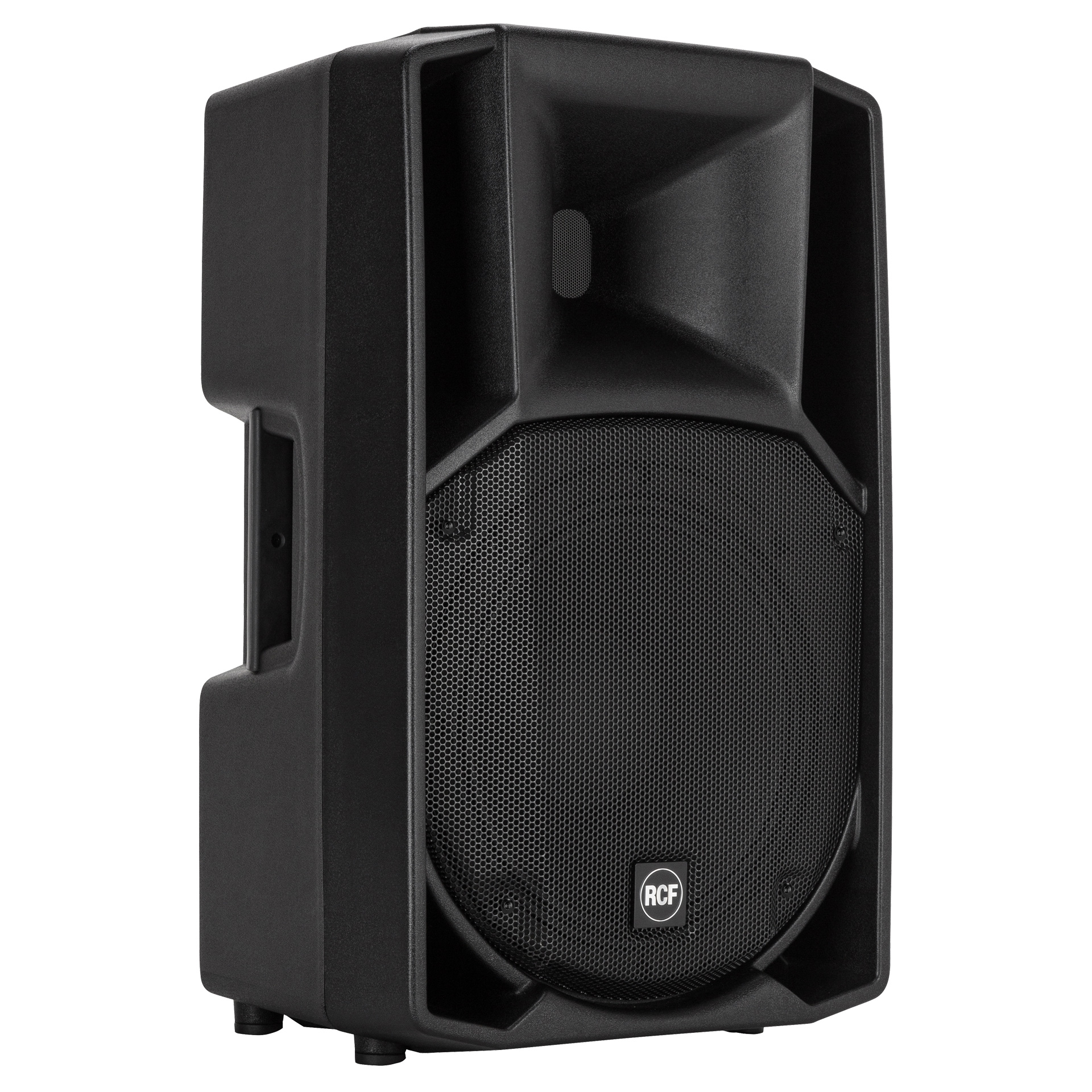

The RCf Art 732-a MK4 is a two-way active loudspeaker with a peak power of 1400 Watts.
The neodymium compression driver with moving coil (76.2 mm) and titanium dome offers exceptional sound production and vocal precision. The 381mm neodymium woofer offers perfect response linearity and precise low-frequency control. The transducers are produced using state-of-the-art assembly technology. The 1400-watt amplifier is controlled by a DSP that provides crossover, equalization, phase control, soft limiting and speaker protection.
SPL MAX: 131 DB
Innovative DSP treatment
Woofer 305 mm
700 Hz crossover point for perfect voice reproduction
Constant directivity and wide dispersion horn, 90° x 60°.
FIRPHASE Technology
The neodymium compression driver with moving coil (76.2 mm) and titanium dome offers exceptional sound production and vocal precision. The 381mm neodymium woofer offers perfect response linearity and precise low-frequency control. The transducers are produced using state-of-the-art assembly technology. The 1400-watt amplifier is controlled by a DSP that provides crossover, equalization, phase control, soft limiting and speaker protection.
SPL MAX: 131 DB
Innovative DSP treatment
Woofer 305 mm
700 Hz crossover point for perfect voice reproduction
Constant directivity and wide dispersion horn, 90° x 60°.
FIRPHASE Technology
Lire la suite
Technical sheet
- PA power speaker 601 to 1000 watts RMS
- Type of PA speaker Stage & FOH monitor
- Acoustic Specifications
- FREQUENCY RESPONSE :
- 50 Hz ÷ 20000 Hz
- SPL MAX. @ 1M: 131 dB
- HORIZONTAL COVERAGE ANGLE: 90°.
- VERTICAL DETECTION ANGLE: 60°.
- Speakers
- COMPRESSOR DRIVER: 1 x 1.4'' neo, 3.0'' v.c.
- WOOFER: 12'', 3.0'' v.c.
- Input/output sections
- INPUT SIGNAL :
- bal/unbal
- INPUT CONNECTORS :XLR, Jack
- OUTPUT CONNECTORS: XLR
- INPUT SENSITIVITY: -2 dBu/+4 dBu
- MICRO: INPUT SENSITIVITY: -32 dBu
- Size
- HEIGHT:
- 637 mm
- TOTAL WIDTH :
- 384 mm
- PACK DEPTH :
- 363 mm deep
- WEIGHT OF THE PACK :
- 17.8
