The brand Rcf
Learn more about the Rcf brand and discover the entire catalog.
How to choose your PR System Buying guide
Power, loudspeaker size, price, efficiency, dimensions, passive or active version... Choosing a loudspeaker is no easy task! In this guide, you will find several ways to help you make your choice acco
Contact an expert
Our musician and enthusiast tele-consultants are here to answer all your questions.

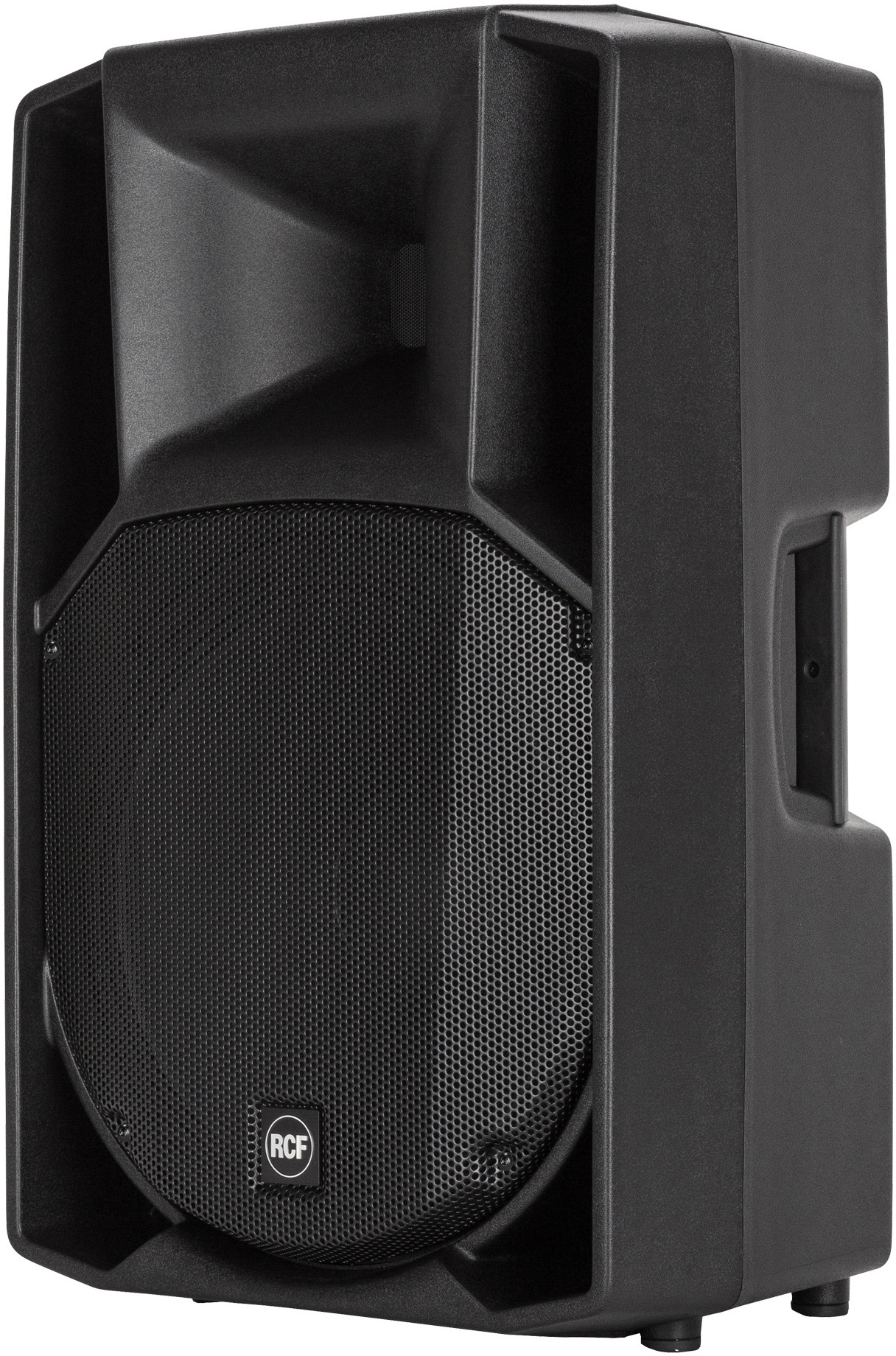

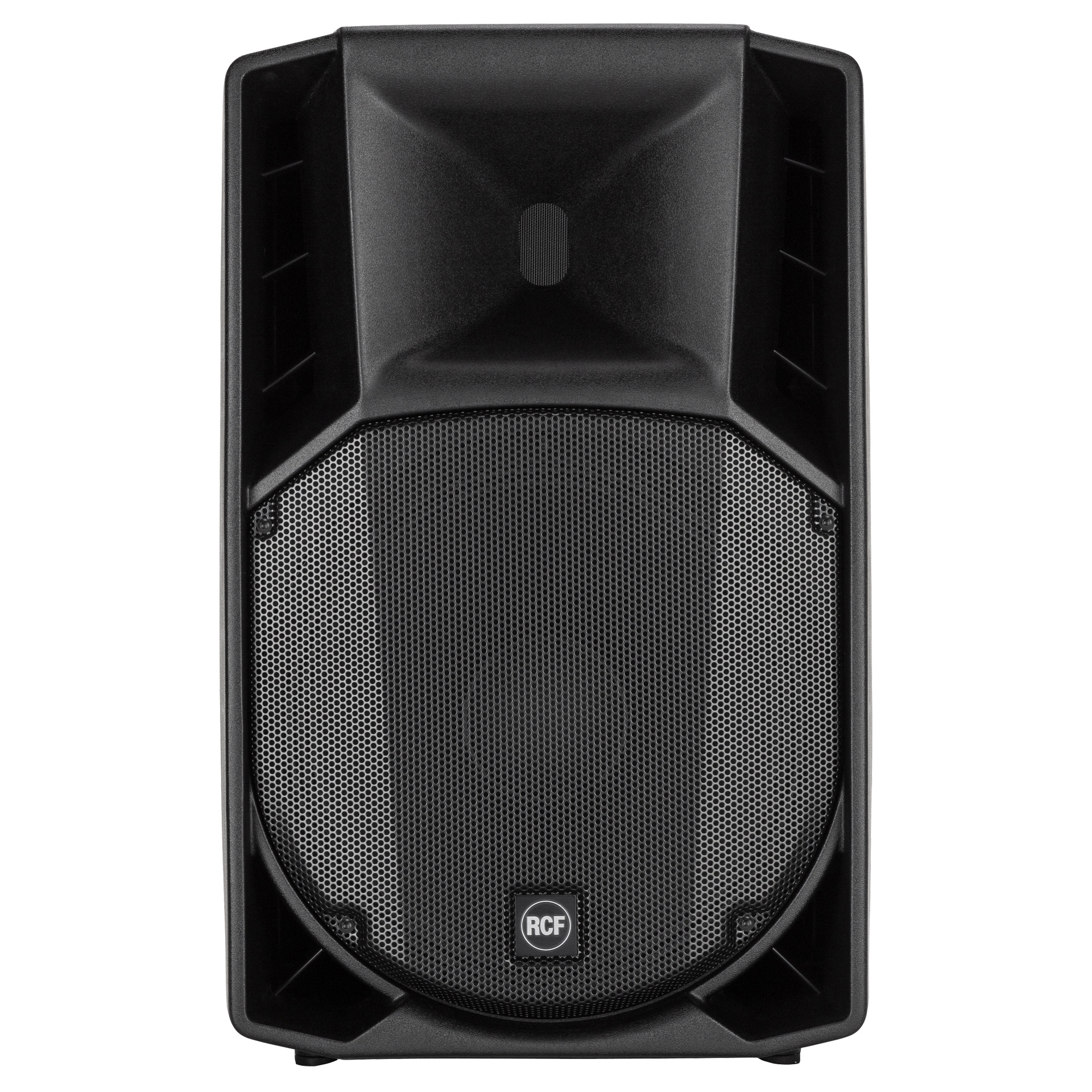

Active full-range speaker
The RCF Art 745-a MK4 is an active loudspeaker with 1400 Wtts peak power.
ART 745-A MK4 is the flagship product in its category.
The 381 mm neodymium woofer offers perfect linearity of response and precise control of low frequencies.
The transducers are produced using state-of-the-art assembly technology. The 1400-watt amplifier is controlled by a DSP that provides crossover, equalization, phase control, soft limiting and speaker protection.
- Max SPL: 133 dB
- Peak power 2 channels 1400 WATTS
- Innovative DSP treatment
- 35,5 mm titanium dome motor; V.C. 101,6 mm NEODYME
- Neodymium woofer 381 mm
- 650 Hz crossover point for perfect voice reproduction
Constant directivity and wide dispersion horn, 90° x 60°.
FIRPHASE Technology
ART 745-A MK4 is the flagship product in its category.
The 381 mm neodymium woofer offers perfect linearity of response and precise control of low frequencies.
The transducers are produced using state-of-the-art assembly technology. The 1400-watt amplifier is controlled by a DSP that provides crossover, equalization, phase control, soft limiting and speaker protection.
- Max SPL: 133 dB
- Peak power 2 channels 1400 WATTS
- Innovative DSP treatment
- 35,5 mm titanium dome motor; V.C. 101,6 mm NEODYME
- Neodymium woofer 381 mm
- 650 Hz crossover point for perfect voice reproduction
Constant directivity and wide dispersion horn, 90° x 60°.
FIRPHASE Technology
Lire la suite
Technical sheet
- PA power speaker 601 to 1000 watts RMS
- Type of PA speaker Stage & FOH monitor
- Acoustic Specifications
- FREQUENCY RESPONSE :
- 45 Hz ÷ 20000 Hz
- SPL MAX. @ 1M :
- 133 dB
- HORIZONTAL COVER ANGLE :
- 90°
- VERTICAL DETECTION ANGLE :
- 60°
- Speakers
- COMPRESSION DRIVER :
- 1 x 1.4'' neo, 4.0'' v.c.
- WOOFER :
- 15'' neo, 3.5'' v.c.
- Input/output sections
- INPUT SIGNAL :
- bal/unbal
- INPUT CONNECTORS :
- XLR, Jack
- OUTPUT CONNECTORS :
- XLR
- INPUT SENSITIVITY :
- -2 dBu/+4 dBu
- MICROPHONE: INPUT SENSITIVITY :
- -32 dBu
- Power section
- TOTAL POWER :
- 1400 W Peak, 700 W RMS
- HIGH FREQUENCIES :
- 400 W Peak, 200 W RMS
- LOW FREQUENCIES :
- 1000 W Peak, 500 W RMS
- COOLING SYSTEM :
- Convection
- UNIT CONNECTIONS :
- VDE
- Size
- HEIGHT:
- 708 mm / 27.87 inches
- TOTAL WIDTH :
- 437 mm / 17.2 inches
- PACK DEPTH :
- 389 mm / 15.31 inches
- WEIGHT OF THE PACK :
- 18.8 kg / 41.45 lbs.
