Line array

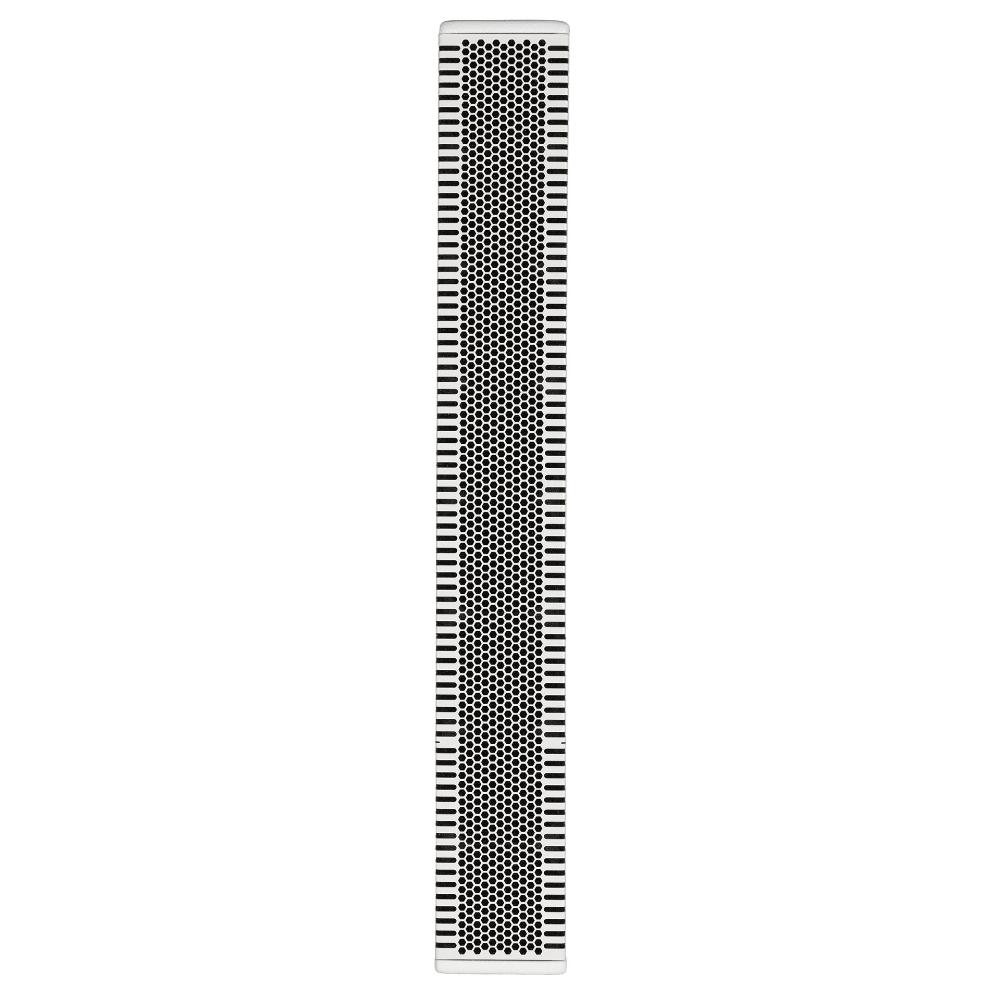

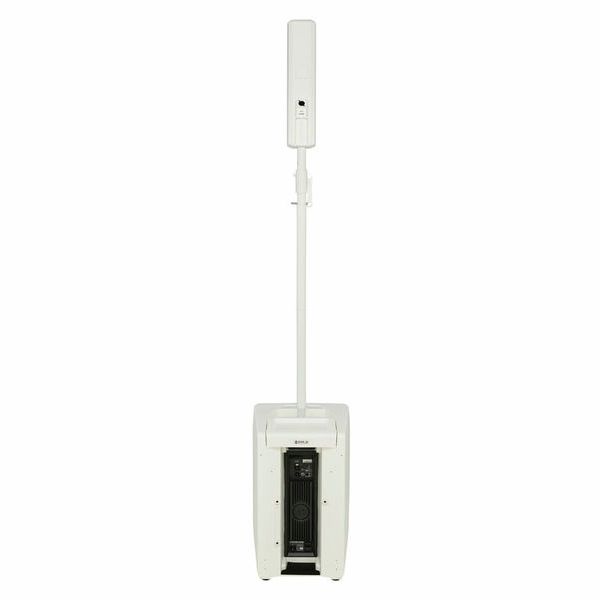

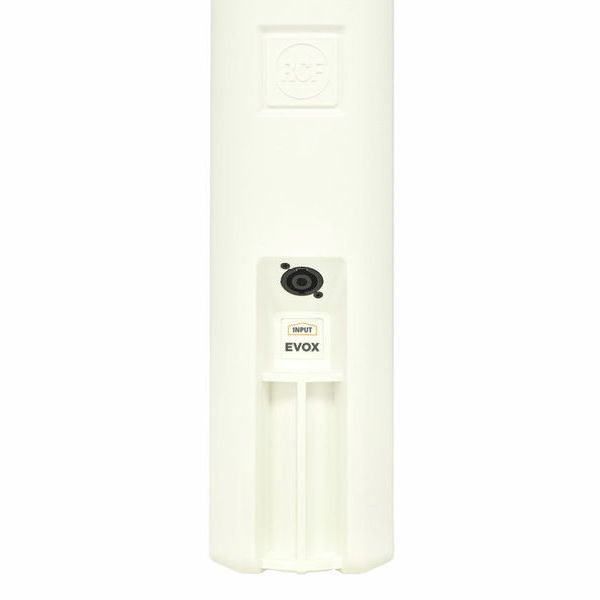

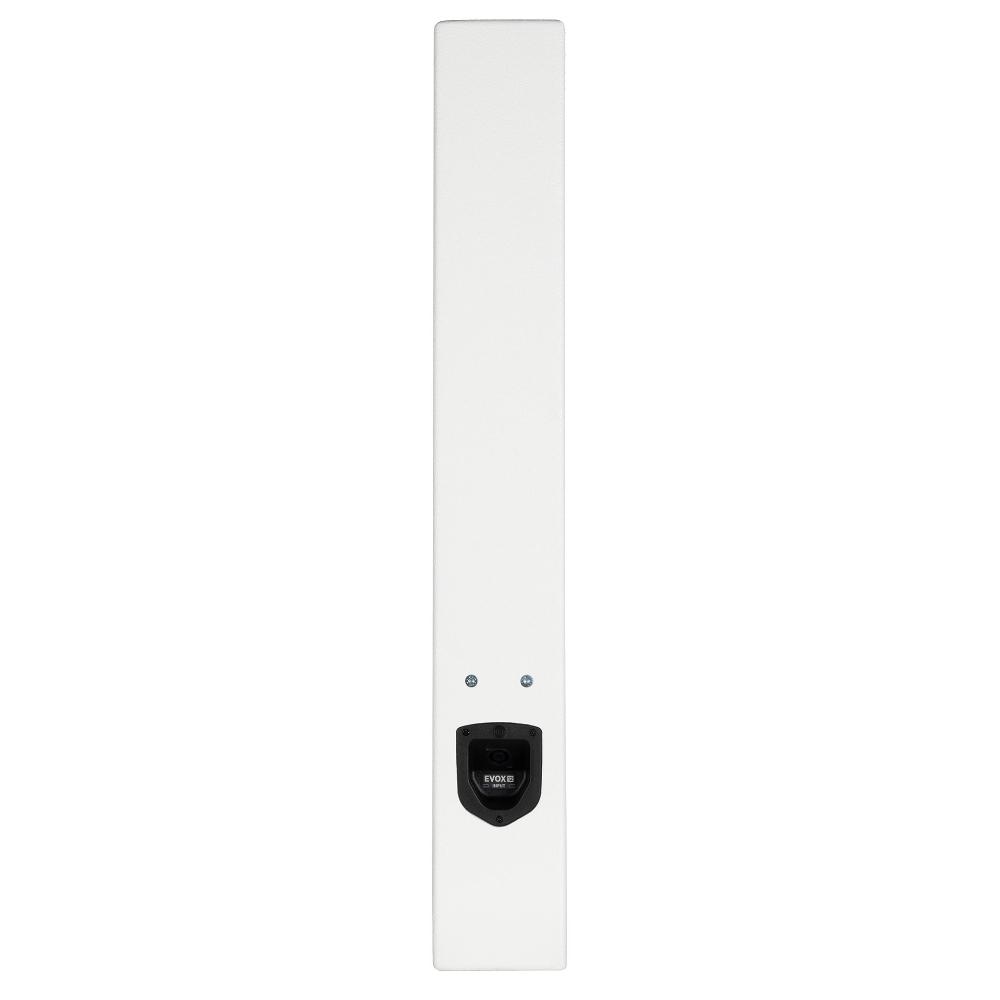

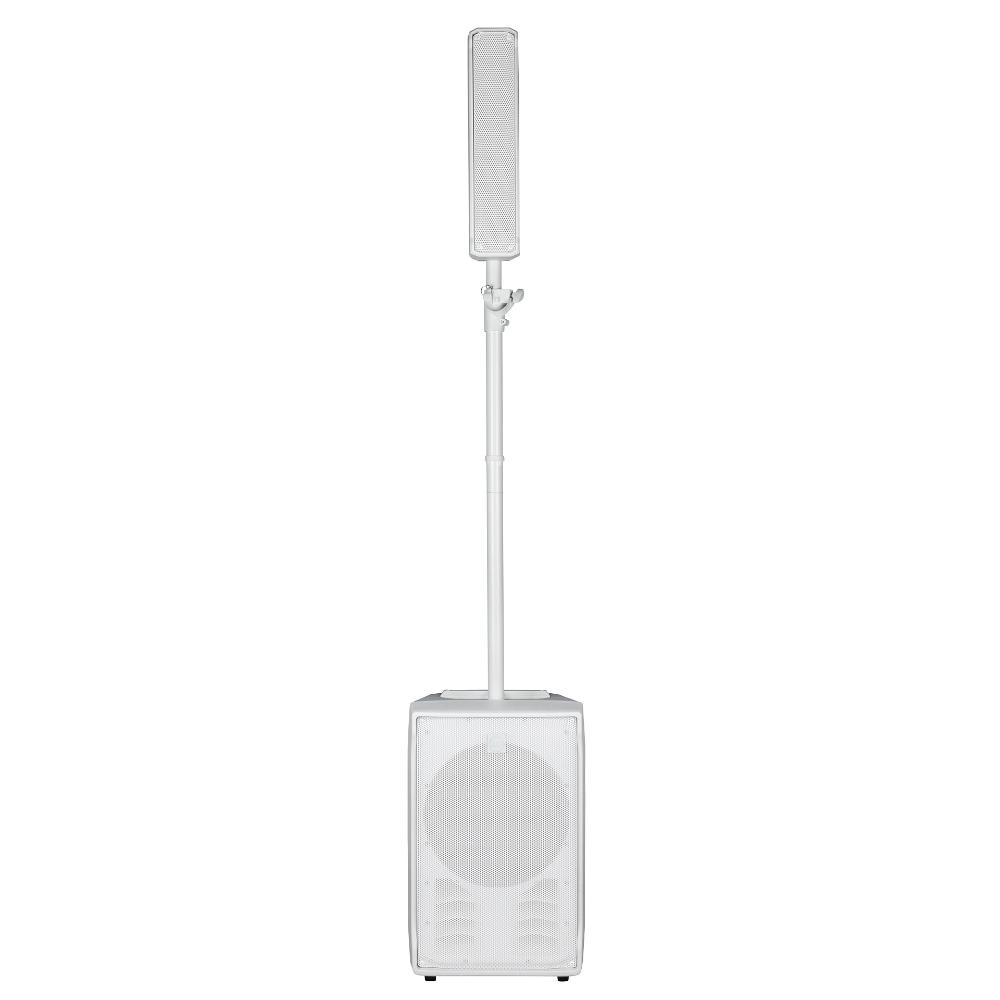

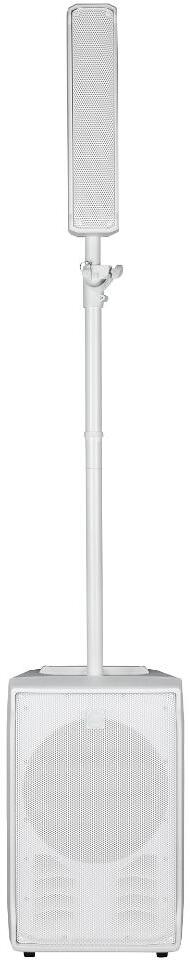

The Rcf EVOX J8 W is a portable line array system.
RCF's EVOX J8 W system offers an exceptional sound experience, ideal for a variety of applications, from solo performances to lively DJ parties. With a portable design and advanced features, this set redefines audio quality and versatility.
Key features
The integrated 1400 W Class D amplifier guarantees optimum performance with high energy efficiency. This technology ensures realistic transient response, ultra-fast attack, and outstanding sonic performance.
Superior transducers
High frequencies
RCF 50.8 mm full-range drivers offer exceptional SPL and power handling, ensuring outstanding acoustic performance.
Low frequencies

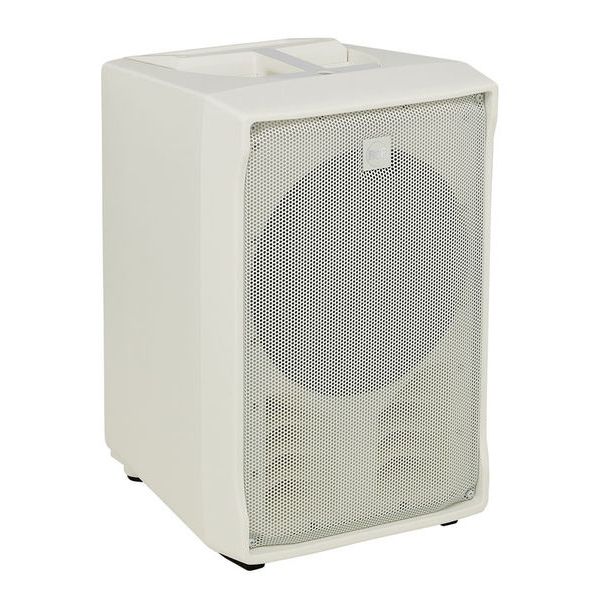

The RCF 304.8 mm high-excursion woofer guarantees fast, precise punch, extended to the lowest frequencies. The bass-reflex port minimizes distortion, ensuring constant sound coverage of 120° x 30° (HxV).
Easy transport and assembly
The portable design is reinforced by a handle on top of the woofer cabinet and an optional cart integrated into the cover. Mounting is simplified with a secure metal pole on the cart, allowing easy transport.
J System configurations
From solo musicians to DJ events, the flexibility of the EVOX J system facilitates multiple configurations. Multiple outputs and FIRPHASE processing with 0° phase response guarantee an optimal sound experience.
Lire la suite
Technical sheet
- Frequency response
- 40 Hz ÷ 20000 Hz
- SPL Max @ 1m
- 128 dB
- Horizontal coverage angle
- 120°
- Vertical coverage angle
- 30°
- Input signal
- Balanced / Unbalanced
- Input connectors
- XLR
- Jack
- Output connectors
- XLR
- Input sensitivity
- -2 dBu / +4 dBu
- Total power
- 1400 W Peak
- 700 W RMS
- High frequencies
- 400 W Peak
- 200 W RMS
- Low frequencies
- 1000 W Peak
- 500 W RMS
- Cooling system
- Convection
- Connections
- VDE
- Height
- 2285 mm / 89.96" Width
- Width
- 400 mm / 15.75" Width
- Depth
- 460 mm / 18.11" Width
- Weight
- 20.2 kg / 44.53 lbs
