Usb dj controller

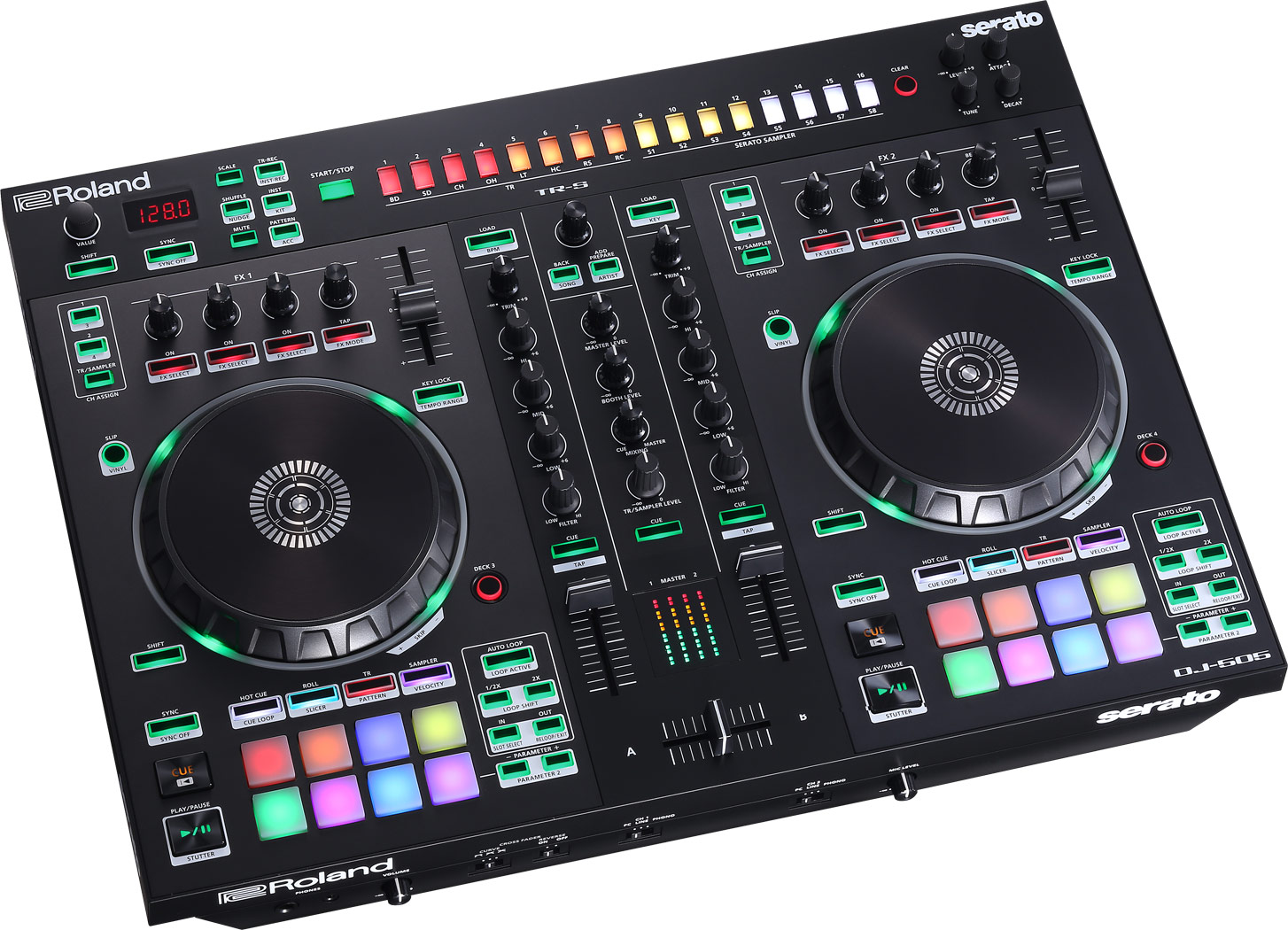

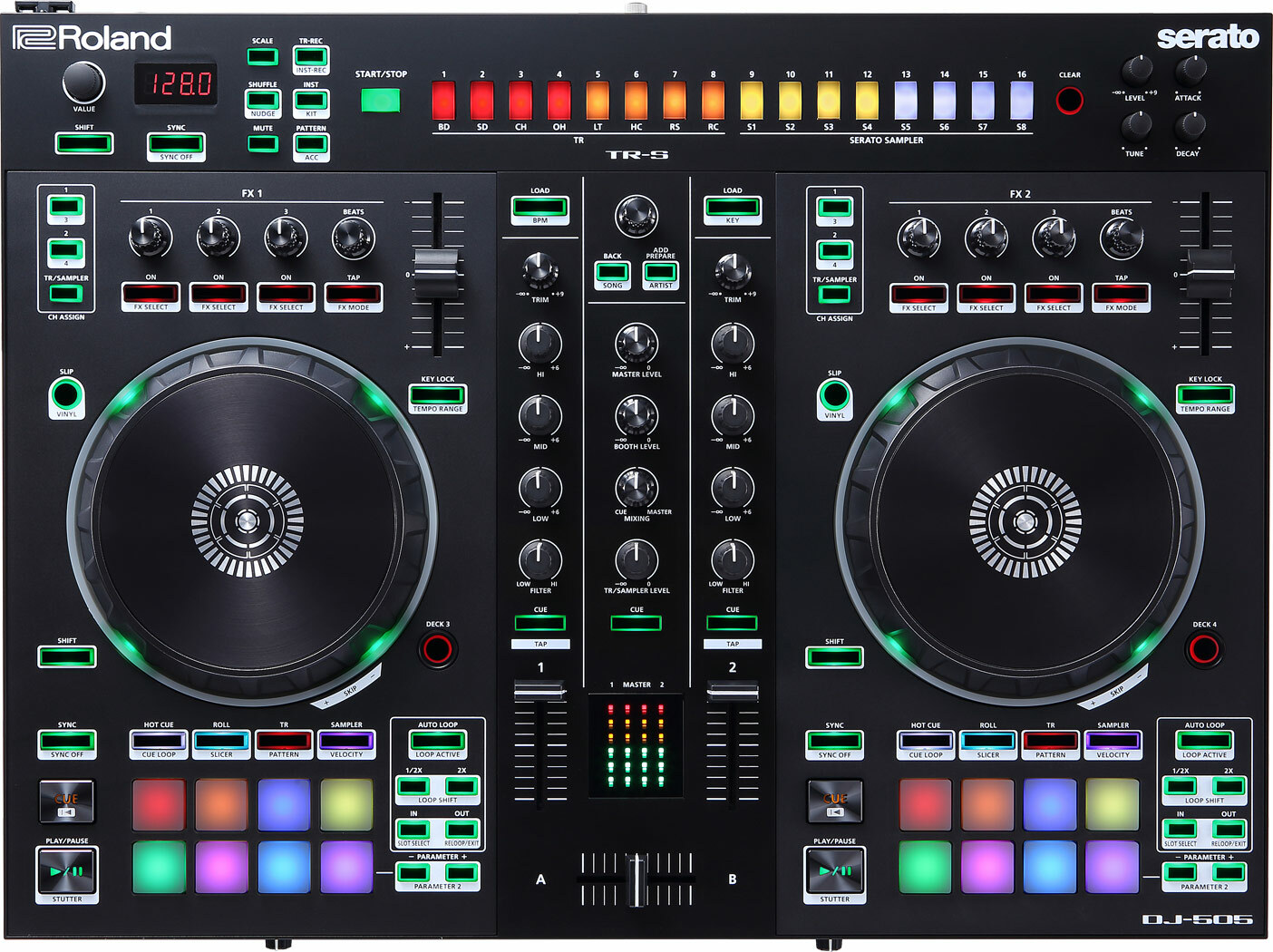

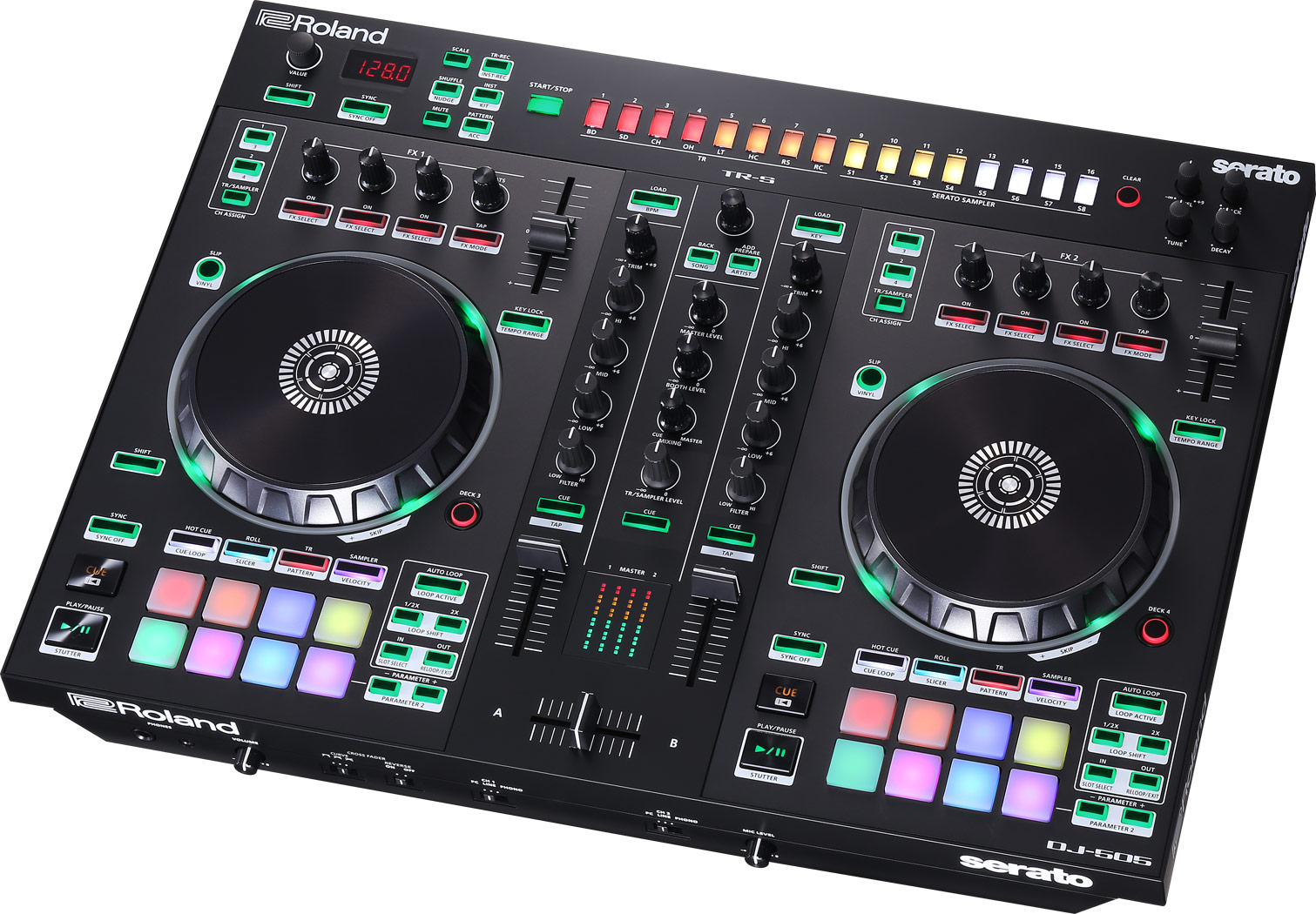

The Roland DJ-505 is a two-channel, four-deck Serato DJ controller, combining great performance capabilities and legendary sounds from ROland's TR-808, 909 & 606.
Lire la suite
Technical sheet
- IOS compatibility Not compatible IOS
- Signal processing
- Sampling Frequency: 48 kHz
- Nominal input level
- INPUT (1–4) (RCA phono type, LINE): -12 dBu
- INPUT (1, 2) (RCA phono type, PHONO): -39 dBu
- MIC IN (1/4-inch phone type): -60 dBu
- Nominal output level
- MASTER OUT 1: +6 dBu (balanced)
- MASTER OUT 2: +0 dBu
- BOOTH OUT: +6 dBu (balanced)
- Input impedance
- INPUT (1–4) (RCA phono type): 47 k ohms or greater
- MIC IN (Combo type): 7 k ohms or greater
- Output impedance
- MASTER OUT 1: 600 ohms (balanced)
- MASTER OUT 2: 1 k ohm (unbalanced)
- BOOTH OUT: 600 ohms (balanced)
- PHONES: 44 ohms
- Frequency response
- 48.0 kHz: 20 Hz–22 kHz (+0/-2 dB)

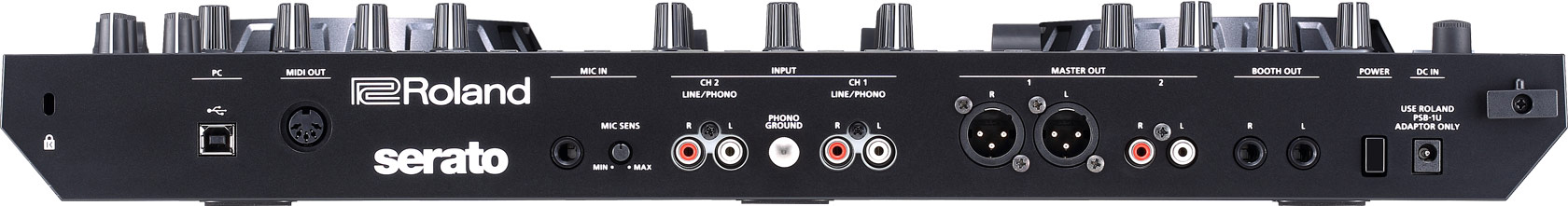

- Connectors
- INPUT (1–2) jacks: RCA phono type
- MIC IN jack: 1/4-inch phone type
- MASTER OUT 1 connectors: XLR type (balanced)
- MASTER OUT 2 jacks: RCA phono type
- BOOTH OUT jacks: TRS phone type (balanced)
- PHONES jacks: stereo 1/4 inch phone type, miniature phone type
- PC port: USB type B
- MIDI OUT connector
- DC IN jack
- PHONO GROUND terminal
- Power supply
- AC adaptor
- Current draw 2,000 mA
- Accessories
- Startup Guide
- Leaflet "USING THE UNIT SAFTY"
- AC Adaptor
- Power code
- USB cable
- Serato TOOL KIT VOUCHER
- Size & Dimensions
- Width 530 mm 20-7/8 inches
- Depth 402 mm 15-7/8 inches
- Height 73 mm 2-7/8 inches
- Weight 3.5 kg 7 lbs 12 oz
