Roland Aira MX-1

Name: Aira MX-1
Brand: Roland
SKU: 62622
Availability: OutOfStock
Rating: 4.3 (6 reviews)

Read reviews (6)
Related accessories
Similar products

VIDEO

577,00 €

Free delivery
Low prices guaranteed
Satisfied or refunded
3-years warranty
Ref : 62622

Not available at this moment

Stock in store

Not available in store

INFORM ME OF ITS ENTRY IN STOCK

I want to be notified by email

Other version(s) or associated product(s)

The brand Roland

Learn more about the Roland brand and discover the entire catalog.

Discover

MIDI controller buying guide

Everything you need to know about MIDI controllers and master keyboards before making your first purchase!

To consult

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

Midi controller

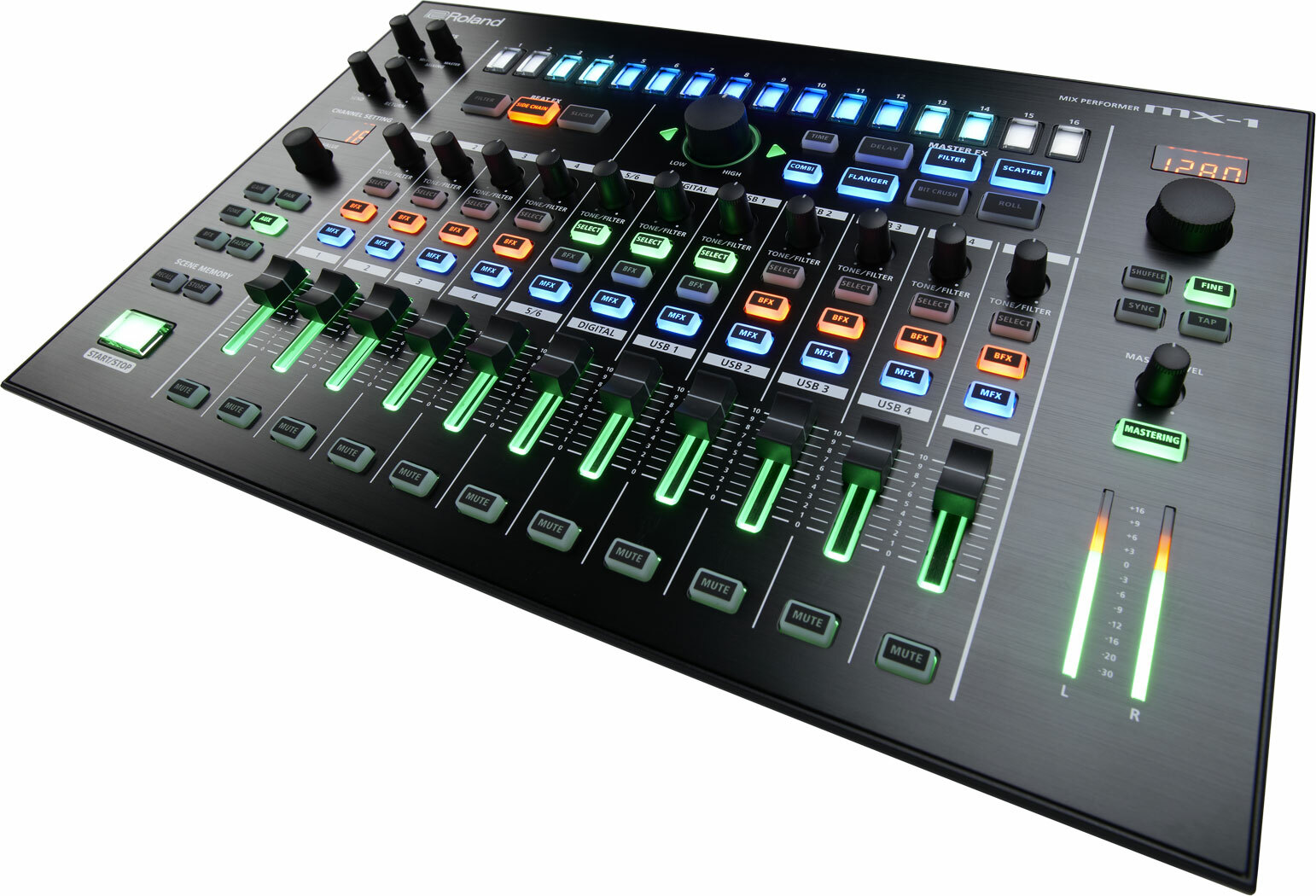

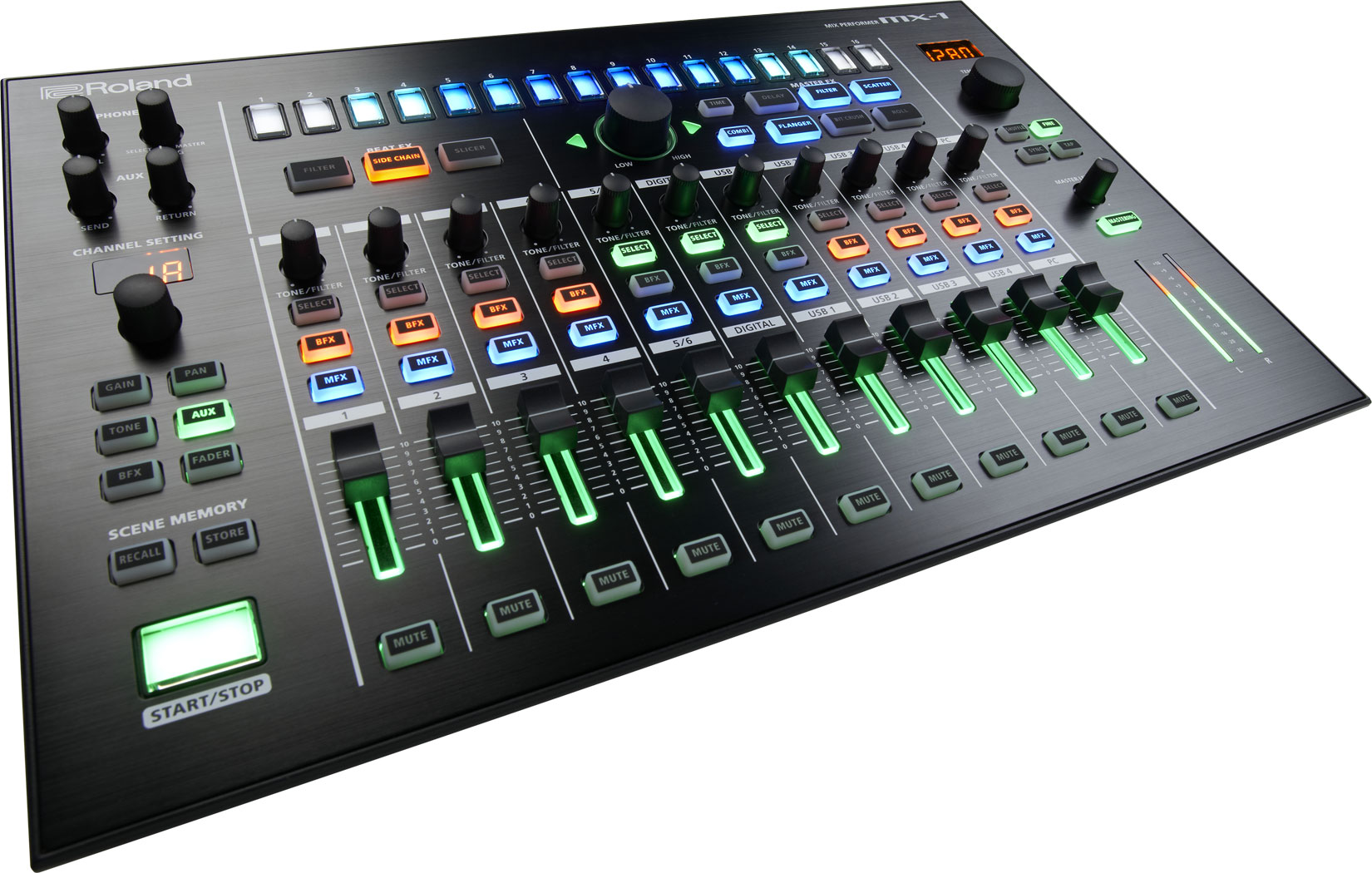

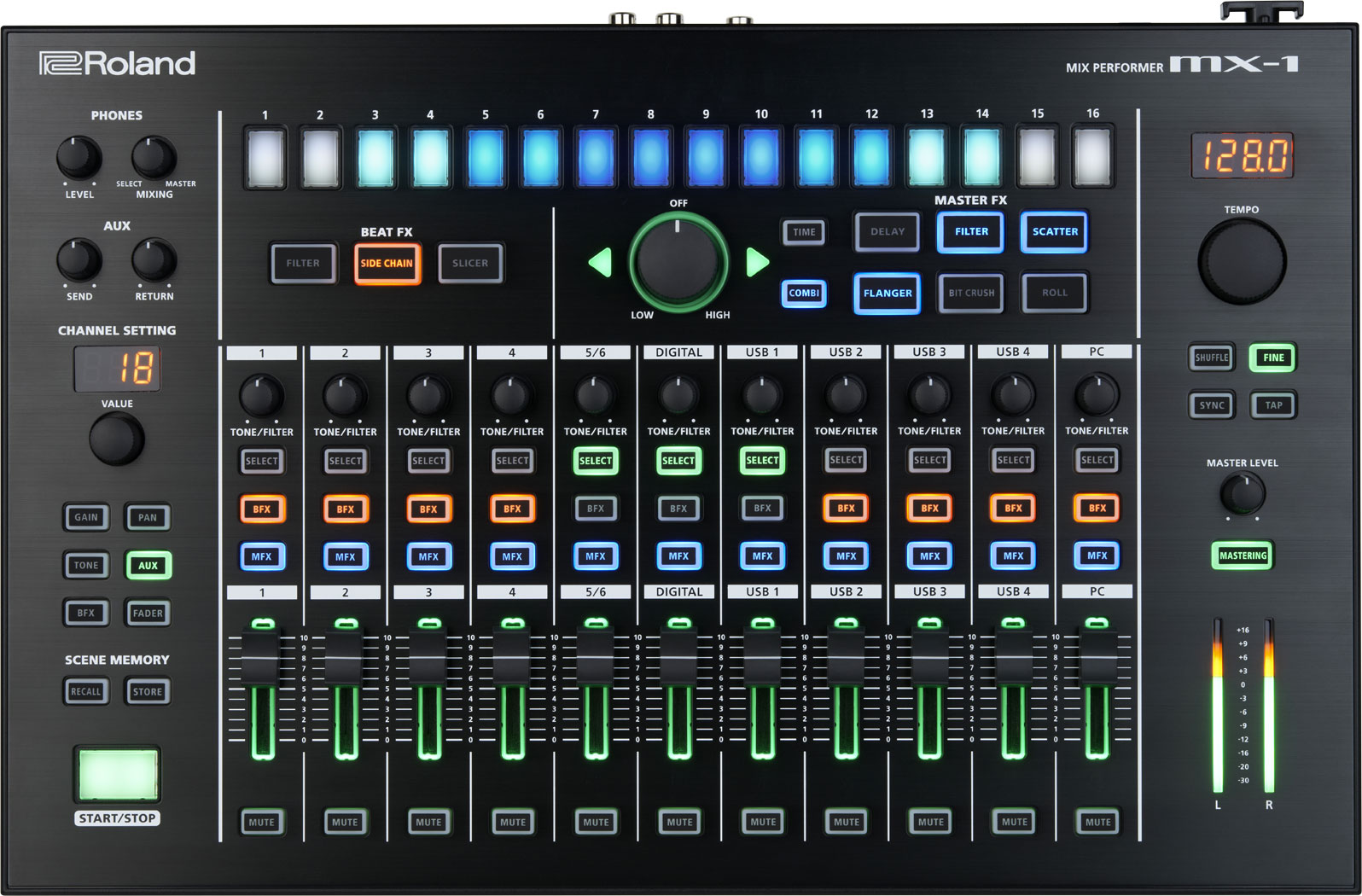

The Roland MX-1 Mix Performer brings together your synths, drum machines, loops, DAW tracks, and more into a single performance-optimized mixing instrument.

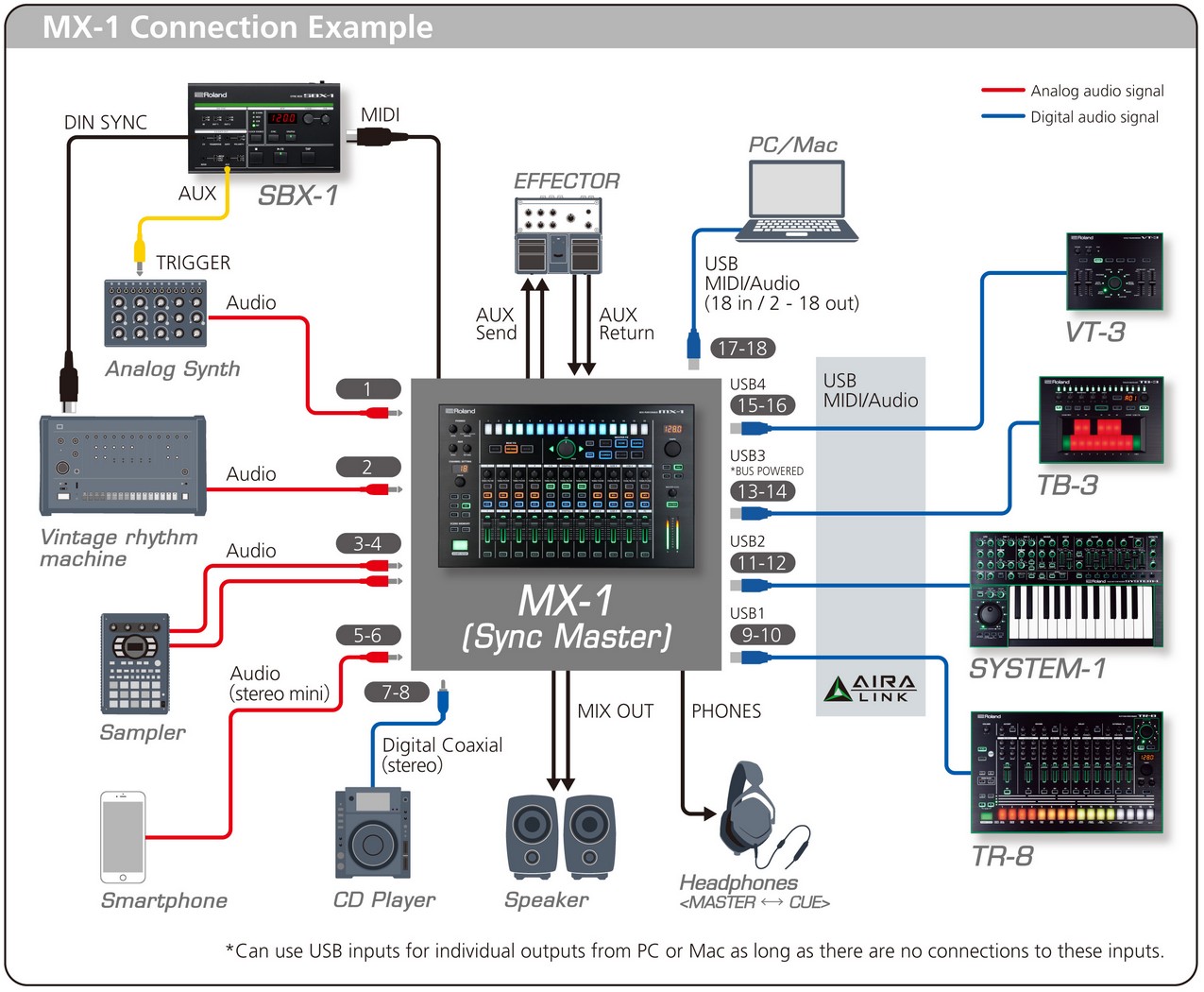

With six analog inputs, four AIRA Link USB ports, digital I/O, send and return jacks, and the ability to stream 18 channels to and from your DAW, the MX-1 brings together a wide range of musical sources and puts them directly under your fingertips.Not only do the MX-1’s effects sound great, they’re designed for ready manipulation and rhythmic sensibility, thanks to the MX-1’s tempo awareness and the TR-style step interface.

Technical sheet

Tempo
40–300
Scene Memory
16 x 4 (Bank A, B)
BEAT FX
FILTER: 5 types
SIDE CHAIN: 5 types
SLICER: 5 types
MASTER FX
DELAY: 8 types
FILTER: 8 types
SCATTER: 8 types
FLANGER: 8 types
BIT CRUSH: 8 types
ROLL: 8 types
MASTERING
10 types
Number of USB Audio Max Input/Output Channels
Sampling frequency: 96 kHz, 48 kHz, 44.1 kHz
Input: 18 channels
Output: 18 channels
Signal Processing
PC interface: 24 bits
AD/DA conversion: 24 bits
Sampling Frequency
AD/DA conversion: 96, 48, 44.1 kHz
DIGITAL (IN, OUT): 96, 48, 44.1 kHz
Nominal Input Level (variable)
Input 1–4: -26– +4 dBu
Input 5/6: -26– +4 dBu
Nominal Output Level
MIX OUT: +4 dBu
Head Room: 18 dB
Input Impedance
Input 1–4: 100 k ohms
Input 5/6: 100 k ohms
Output Impedance
MIX OUT: 1 k ohm
PHONES: 24 ohms
Frequency Response
96.0 kHz: 20 Hz–40 kHz (+0/-2 dB)
48.0 kHz: 20 Hz–22 kHz (+0/-2 dB)
44.1 kHz: 20 Hz–20 kHz (+0/-2 dB)
Dynamic Range
AD block INPUT 1–4: 100 dB typ.
AD block INPUT 5/6: 100 dB typ.
DA block MIX OUT: 108 dB typ.
Connectors
PHONES jack: 1/4-inch stereo phone type
MIX OUT (L/MONO, R) jacks: 1/4-inch phone type (unbalance)
INPUT 1–4 (L/MONO, R/MONO) jacks: 1/4-inch phone type (unbalance)
INPUT 5/6 jack: Stereo miniature phone type
AUX RETURN (L, R) jacks: RCA phono type
AUX SEND (L, R) jacks: RCA phono type
USB FUNCTION Port: USB type B (Audio, Midi)
USB HOST 1–4 ports: USB type A (Audio, Midi, for only TB-3/VT-3/TR-8/SYSTEM-1)
USB HOST 3 port can supply USB Bus power
COAXIAL IN/OUT jack
MIDI (IN, OUT) connectors
DC IN jack
Interface
Hi-Speed USB
Digital input, output: Coaxial type (conforms to IEC60958)
MIDI IN/OUT
Power Supply: AC adaptor
Current Draw: 1.7 A
Accessories
Owner's manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Size and Weight
Width
400 mm
15-3/4 inches
Depth
264 mm
10-7/16 inches
Height
65 mm
2-9/16 inches
Weight
1.81 kg
3 lbs. 16 oz.

More specifications

Fewer specifications

MX-1
Video presentation
