Rush by martin
PAR 1 RGBW
Par
Please enter a valid email address
Description

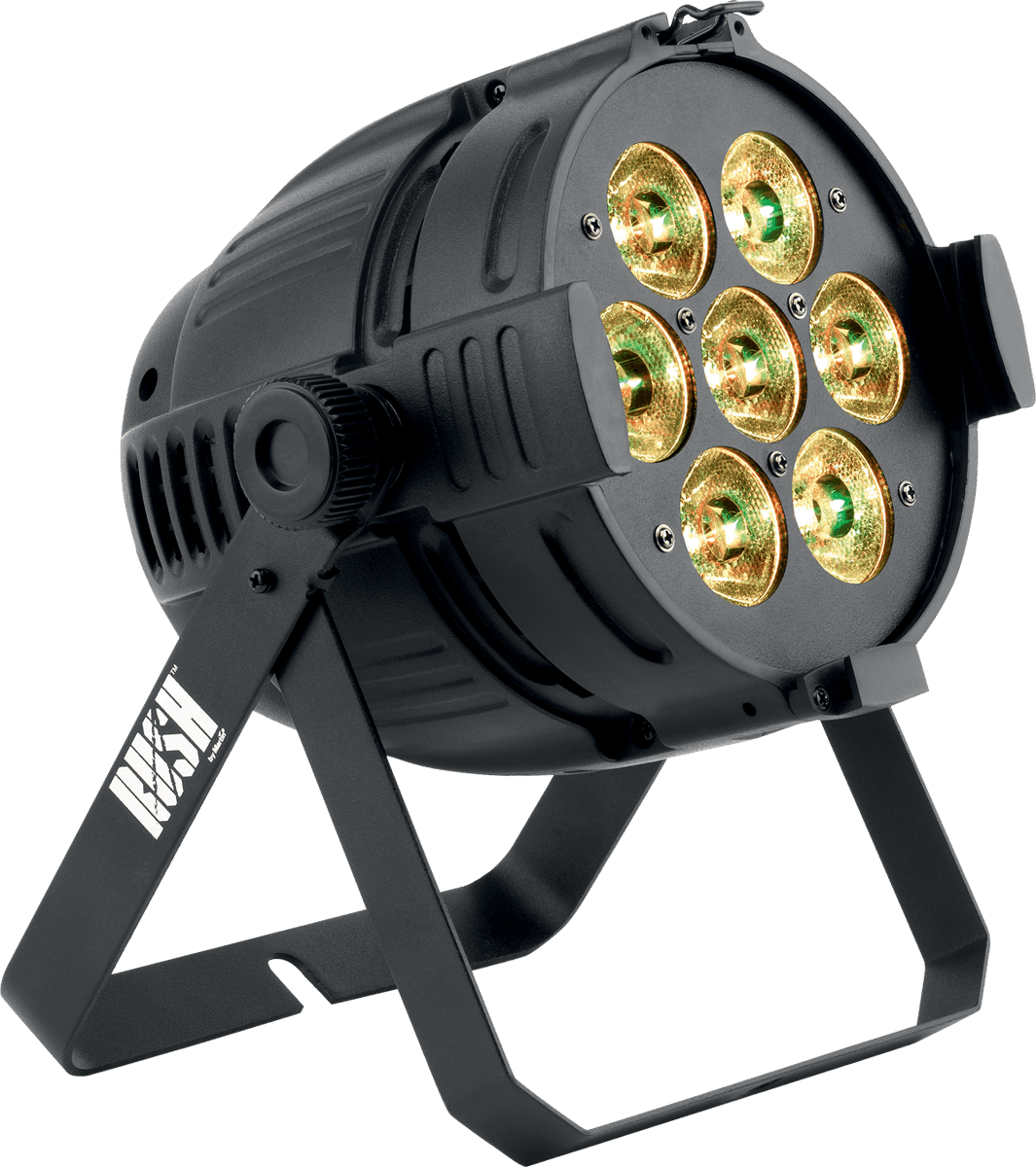

The Par1 LMR is one per Led 56 from Martin BY Harman.
Characteristics
Ref : 85925
- Dmx compatible : yes
- Inside / outside : internal use only
- Type of par : led par
Physical data
- Weight: 3.6 kg
- Dimensions: 260 x 195 x 195 x 293 mm
Dynamic effects
- Color composition: RGBW
- Color selection: 32 pre-programmed colors
- Electronic dimmer: 0 - 100%.
- Stroboscope and pulsation effects: Adjustable speed and random mode
- Electronic shutter: Black and full dry fire
Control and programming
- Control options: DMX, standalone mode
- DMX channels: 4/5/7
- Standalone mode options: Automatic or music mode
- Integrated programs: Random, fixed colors or scrolling
- Settings, addressing and programming: Control panel with integrated LED display
- Music mode: Built-in microphone with adjustable sensitivity
- White control: RGB correction
- DMX standard: USITT DMX512/1990
Optics and photometry
- Sources: 7 LEDs 10 W RGBW CREE MC-E
- Opening: 20°.
- Minimum service life*: 50,000 h (flow >70% of the original)
*Manufacturer data obtained under manufacturer test conditions
Construction
- Color: Black
- Protection class: IP20
Installation
- Mounting: Adjustable and foldable bracket, under-suspension installation
- Orientation: All
- Investment: Indoor only
Connections
- AC power supply, input and recopy: Neutrik PowerCon
- DMX, input and copy: XLR 5-pin locking XLR
Electricity
- AC power supply: 100-240 V, 50/60 Hz
- Power consumption: 78 W
- Fuse: T 6.3 A
Typical current and power
- 110 V, 60 Hz : 78 W, 1.1 A
- 230 V, 50 Hz : 78 W, 0.62 A
Measurements made under nominal voltage, all LEDs at full power. Consider a variation of +/-10%.
Thermal data
- Maximum ambient temperature (Ta max): 40° C
- Minimum ambient temperature (Ta min): 0°C
- Total dissipation*: 270 BTU/h
*Calculated, +/-10% at full intensity, in white
Approvals
- EU Safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
- CEM EU: IN 55015, IN 55103-1, IN 55103-1, IN 55103-2, IN 61000-3-2, IN 61000-3-3-3, IN 61547
Supplied accessories
- Power cable, 1.5 m, without mains plug
Accessories Accessories
- 16 A power supply cables for cascade power supply
- Power cable, 14 AWG, SJT, 1.5 mm2, H05VV-F, 3 m (98 ft) with PowerCon P/N connector 11541508
- Power supply cable, 14 AWG, SJT, 1.5 mm2, H05VV-F, 1.4 m (46 ft) with PowerCon P/N 11541509 connectors
- Power supply cable, 14 AWG, SJT, 1.5 mm2, H05VV-F, 2.25 m (74 ft) with PowerCon P/N connector 11541510
- Power supply cable, 14 AWG, SJT, 1.5 mm2, H05VV-F, 3.25 m (107 ft) with PowerCon P/N connector 11541511
Power supply connectors
- Neutrik PowerCon NAC3FCA Neutrik PowerCon connector for cable mounting, power supply, blue P/N 05342804
- Neutrik PowerCon NAC3FCB Neutrik PowerCon connector cable mount, power output, grey P/N 05342805
Related accessories
- RUSH Software Uploader 1™ P/N 91611399
Order codes
- RUSH BY 1 RGBW™ delivered in cardboard P/N 9048000
