Wireless handheld microphone

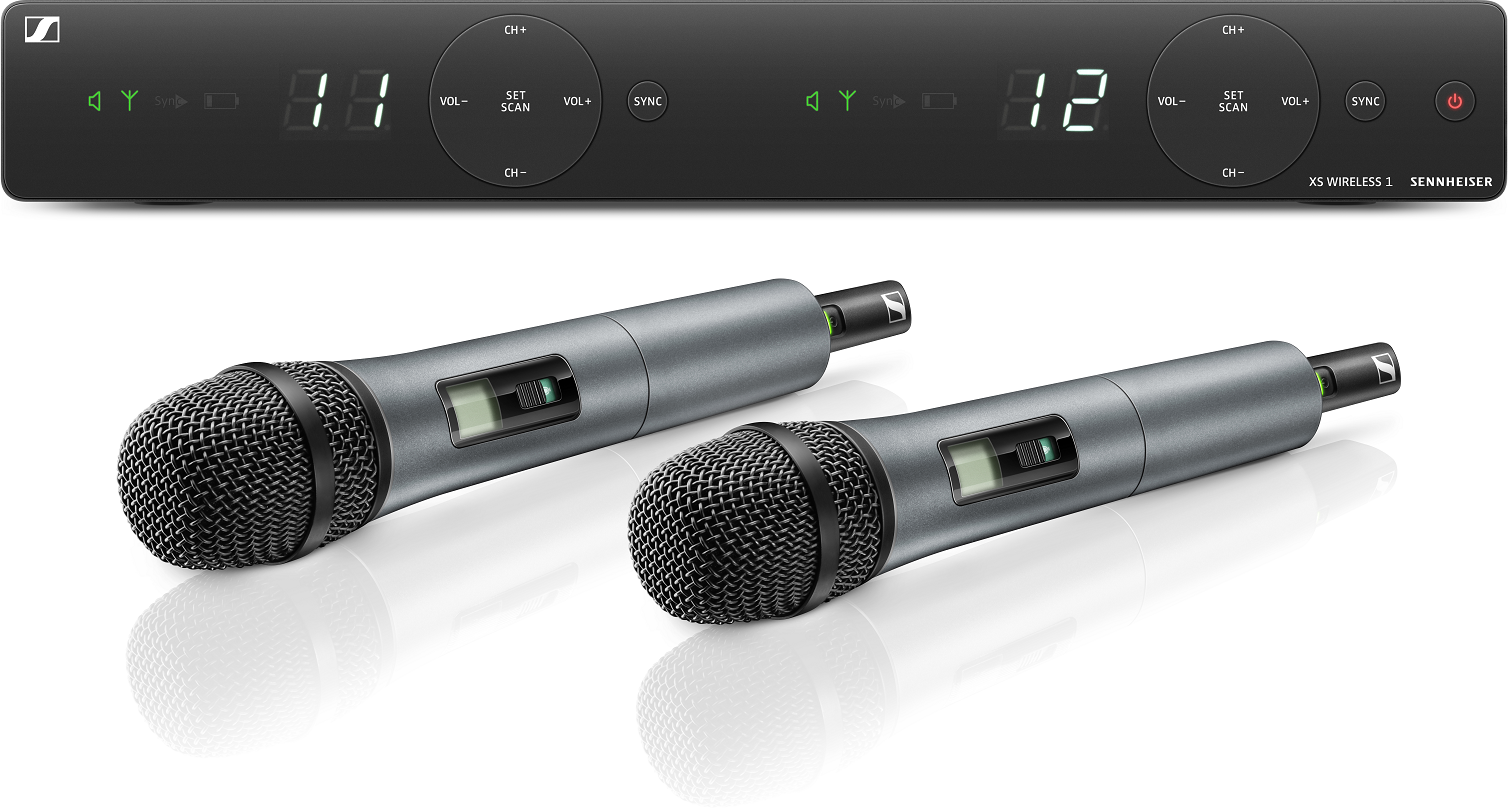

XSW1-835 DUAL is a two-channel wireless system from Sennheiser.
These analog UHF systems are equipped with a dual channel receiver, with integrated antennas and the simplified interface of XS Wireless 1 single-channel channel sets.
This system integrates two transmitters with dynamic capsules E835 cardiodes and double receiver with integrated antennas.
Automatic frequency management and remote channel synchronization for easy configuration.
UHF frequencies selectable over a wide bandwidth.
Up to 10 compatible channels
These analog UHF systems are equipped with a dual channel receiver, with integrated antennas and the simplified interface of XS Wireless 1 single-channel channel sets.
This system integrates two transmitters with dynamic capsules E835 cardiodes and double receiver with integrated antennas.
Automatic frequency management and remote channel synchronization for easy configuration.
UHF frequencies selectable over a wide bandwidth.
Up to 10 compatible channels
Lire la suite
Technical sheet
- Digital transmission No
- Frequency HF Auto search
- 2x SKM 835-XSW Portable Transmitters with Mute Switch and e835 Cardioid Dynamic Capsules.
- 2x Microphone clips MZQ 1 -EM-XSW 1 DUAL stationary 2-channel receiver with internal antennas.
- NC 12-5 CW power supply.
- 2x AA batteries.
- frequencies:
- A (548 - 572 MHz)
- GB (606 - 630 MHz)
- B (614 - 638 MHz)
- C (766 - 790 MHz)
- E (821 - 832/863 - 865 MHz)
- EM-XSW 1 DUAL
- Principle of diversity A Antenna switching diversity via internal antennas Sensitivity (out of peak) <3? V to 52 dB (A) rms S / N
- AF frequency response from 50 to 16,000 Hz (-3 dB)
- Max. AF output voltage (in peak deviation, 1 kHz AF) 1/4 "(6.3 mm) jack (unbalanced): +6 dBu
- XLR (balanced) jack: +12 dBu
- 45 dB audio adjustment range, adjustable in 5 dB increments
- Power supply 12 V DC name. / 300 mA
- Line / Mic level 20 dB, switchable
- Housing material Rugged ABS housing
- Dimensions (W x H x D) approx. 320 x 126.5 x 42 mm
- Weight approx. 620 g
- SKM 835 XSW
- RF output power 10 mW
- Frequency response AF 80-16 000 Hz
- Power supply 2 AA batteries, 1.5 V
- Operating time approx. 10 hours
- Dynamic microphone type
- cardioid
- Input sensitivity (capsule) 1.5 mV / Pa
- Transmitter sensitivity from 0 to -30 dB, adjustable in 10 dB increments
- Housing material Rugged ABS housing
- Dimensions (L x Ø) Approx. 260 x 50 mm
- Weight approx. 245 g
