Sennheiser Xsw-D Instrument Base set

  • Read reviews (2)
  • Related accessories
  • Similar products
  • Sennheiser Xsw-d Instrument Base Set - Wireless system - Main picture
  • Sennheiser Xsw-d Instrument Base Set - Wireless system - Variation 1
  • Sennheiser Xsw-d Instrument Base Set - Wireless system - Variation 2
  • Sennheiser Xsw-d Instrument Base Set - Wireless system - Variation 3
  • Sennheiser Xsw-d Instrument Base Set - Wireless system - Variation 4
  • Sennheiser Xsw-d Instrument Base Set - Wireless system - Variation 5
  • Sennheiser Xsw-d Instrument Base Set - Wireless system - Variation 6
  • Sennheiser Xsw-d Instrument Base Set - Wireless system - Variation 7
  • Sennheiser Xsw-d Instrument Base Set - Wireless system - Variation 8
  • Sennheiser Xsw-d Instrument Base Set - Wireless system - Variation 9
VIDEO
VIDEO
305,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 84806
In stock
shipped under 5/10 days
Stock in store
Not available in store
Other version(s) or associated product(s)

The brand Sennheiser

Learn more about the Sennheiser brand and discover the entire catalog.
Logo Sennheiser

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Wireless system

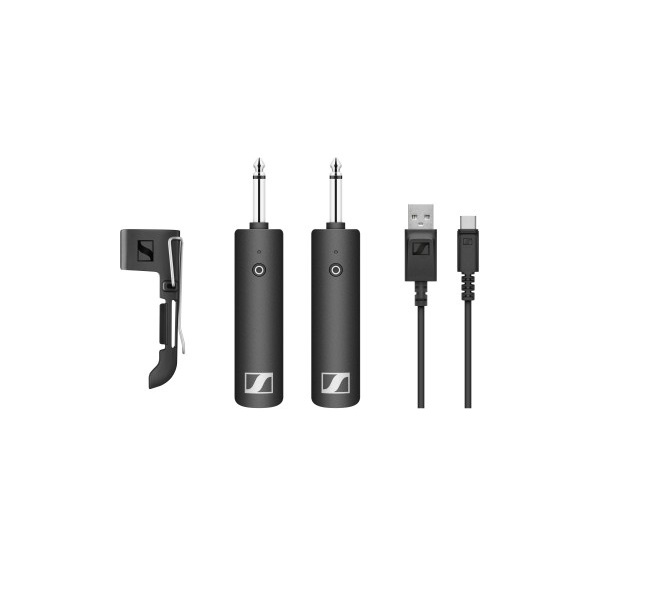

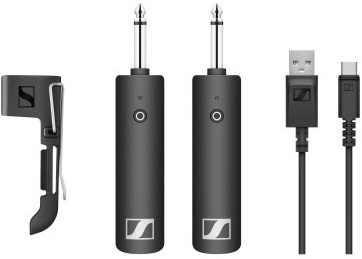

The XSW-D Instrument Base Set is a wireless system that includes 1 XSW-D INSTRUMENT Transmitter (6.3mm Jack), 1 XSW-D INSTRUMENT Receiver (6.3mm Jack), 1 Pocket Transmitter Clip, 1 extension cable (6.3 mm jack), and 1 USB charging cable.


An easy-to-use, easy-to-use wireless audio package that uses digital transmission to seamlessly link audio sources. This elegant solution makes using wireless instruments easier than ever, while maintaining a reliable connection.


Easy to use with one touch
- 2.4 GHz digital transmission for worldwide use
- Range of 75 m under optimal conditions
- Battery life up to 5 hours with a single charge
- Switching between several transmitters connected to a receiver
- Mix and match different types of connectors
- Mute of the transmitter or receiver
Lire la suite

Technical sheet

  • Digital transmission No
  • Frequency HF Manual search
  • XSW-D 6.3 mm (1/4") transmitter
  • XSW-D 6.3 mm (1/4") receiver

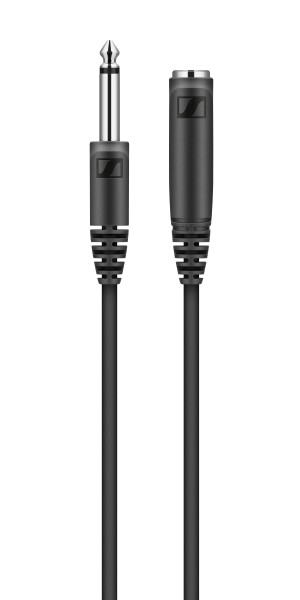

  • Extension cable 6.3 mm (1/4")

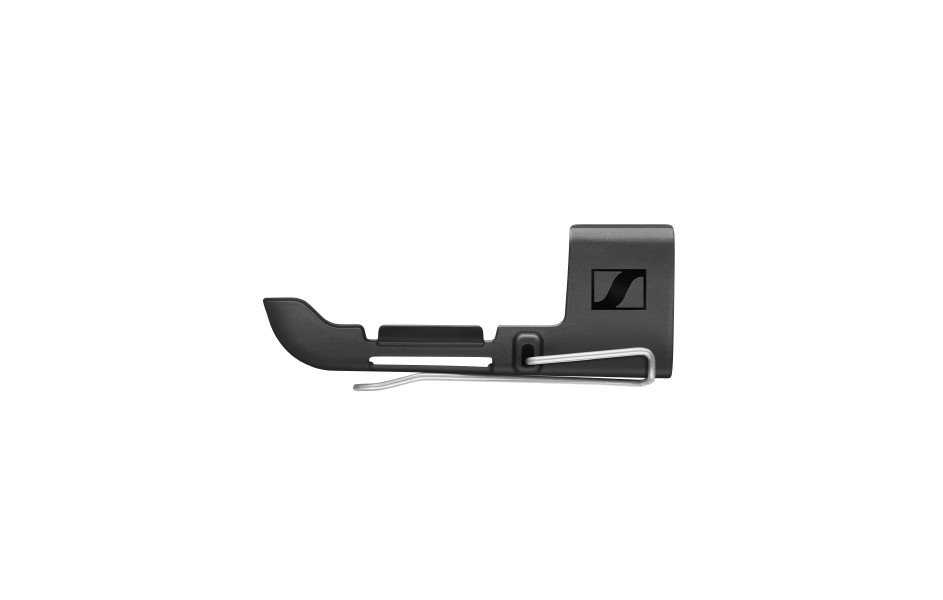

  • Belt clip
  • USB-A to USB-C charging cable
  • Colored stickers for labelling
  • Quick guide
  • Safety guide
  • USB interface C to load:
  • Input voltage typ. 5.0 V
  • Charging temperature 0 ° C - 60 ° C - Charging time typ. 3 h
  • Drums:
  • Li-Ion cell type Rated voltage 3.7 V
  • Capacity of the 850 mAh cell
  • operating time up to 5 h
  • AF characteristics:
  • aptX® Live codec
  • Audio frequency response Jack 3.5mm / XLR:
  • 80 - 18,000 Hz
  • 6.3 mm jack:
  • 18,000 Hz
  • Max. Audio output 12 dBu
  • Signal to noise ratio? 106 dB THD <0.1% Audio Latency <4 ms
  • Dimensions:
  • XSW-D XLR FEMALE TX approx. 102 x 24 x 28 mm
  • XSW-D MINI JACK TX approx. 86 x 24 x 28 mm
  • XSW-D INSTRUMENT TX approx. 122 x 24 x 28 mm
  • XSW-D XLR MALE RX approx. 109 x 24 x 28 mm
  • XSW-D MINI JACK RX approx. 86 x 24 x 28 mm
  • XSW-D INSTRUMENT RX approx. 122 x 24 x 28 mm
  • XSW-D PEDALBOARD RX approx. 130 x 82 x 51 mm
  • Frequency range 2400 - 2483.5 MHz
  • Transmission power (EIRP) max. 10 mW
  • GFSK modulation with TDMA
  • Environmental conditions:
  • Operating temperature -10 ° C to + 55 ° C (14 ° F to 131 ° F)
  • 95% relative humidity (without condensation)
More specifications
