Sennheiser Xsw-D Pedalboard Set
- Read reviews (2)
- Related accessories
- Similar products
VIDEO
VIDEO
- Free delivery
- Low prices guaranteed
- Satisfied or refunded
- 3-years warranty
Not available at this moment
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go
Variation(s) of this product.
The brand Sennheiser
Learn more about the Sennheiser brand and discover the entire catalog.
The largest network of stores in France
Find all the information on our superstores and our specialized boutiques.
Contact an expert
Our musician and enthusiast tele-consultants are here to answer all your questions.
Wireless system
the Xsw-D Pedalboard set is a set of wireless digital system.

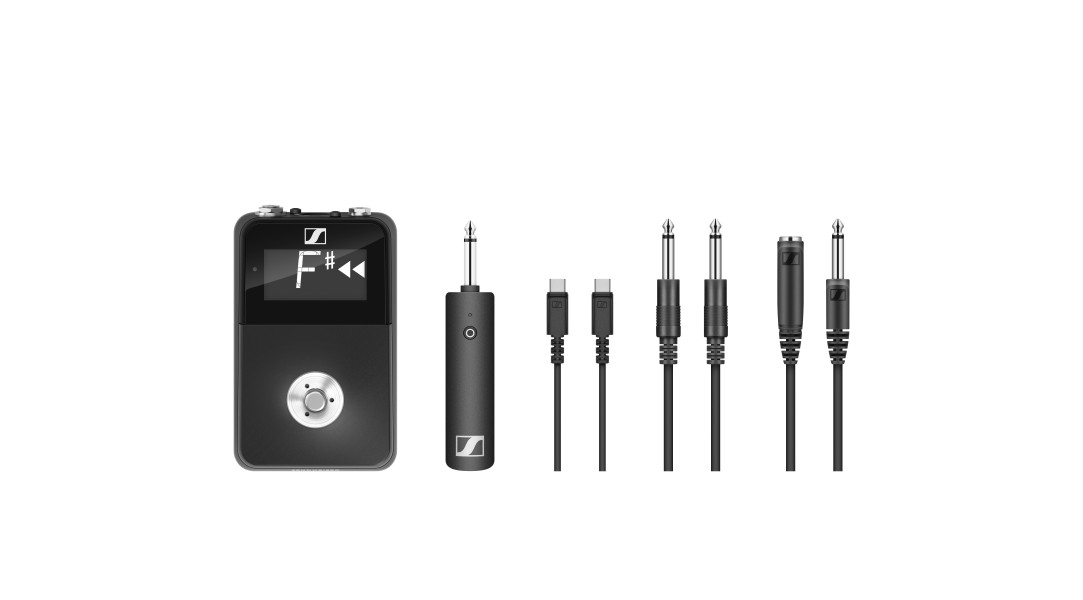

Digital Wireless XSW-D Pedalboard Set with

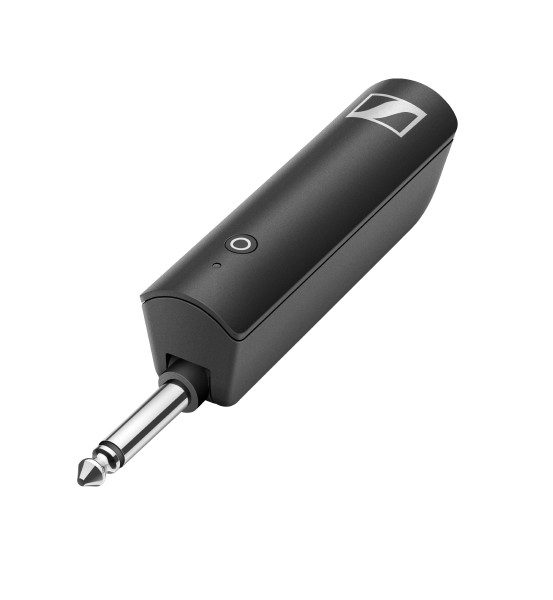

1 transmitter XSW-D INSTRUMENT TX (6.35 mm jack),
1 XSW-D Pedalboard RX receiver (6.35 mm jack),
1 belt clip,
1 extension cable (6.35 mm jack),
1 USB charging cable and
1 RX power adapter
Digital Wireless XSW-D Pedalboard Set with
1 transmitter XSW-D INSTRUMENT TX (6.35 mm jack),
1 XSW-D Pedalboard RX receiver (6.35 mm jack),
1 belt clip,
1 extension cable (6.35 mm jack),
1 USB charging cable and
1 RX power adapter
Lire la suite
Technical sheet
- Digital transmission No
- Frequency HF Manual search
- XSW-D INSTRUMENT TX (6.35 mm jack)
- XSW-D PEDALBOARD RX
- Belt clip
- Extension cable (6.35 mm jack)
- USB charging cable
- RX power adapter
- USB interface C to load:
- Input voltage typ. 5.0 V
- Charging temperature 0 ° C - 60 ° C - Charging time typ. 3 h
- Drums:
- Li-Ion cell type Rated voltage 3.7 V
- Capacity of the 850 mAh cell
- operating time up to 5 h
- AF characteristics:
- aptX® Live codec
- Audio frequency response Jack 3.5mm / XLR:
- 80 - 18,000 Hz
- 6.3 mm jack:
- 18,000 Hz
- Max. Audio output 12 dBu
- Signal to noise ratio? 106 dB THD <0.1% Audio Latency <4 ms
- Dimensions:
- XSW-D XLR FEMALE TX approx. 102 x 24 x 28 mm
- XSW-D MINI JACK TX approx. 86 x 24 x 28 mm
- XSW-D INSTRUMENT TX approx. 122 x 24 x 28 mm
- XSW-D XLR MALE RX approx. 109 x 24 x 28 mm
- XSW-D MINI JACK RX approx. 86 x 24 x 28 mm
- XSW-D INSTRUMENT RX approx. 122 x 24 x 28 mm
- XSW-D PEDALBOARD RX approx. 130 x 82 x 51 mm
- Frequency range 2400 - 2483.5 MHz
- Transmission power (EIRP) max. 10 mW
- GFSK modulation with TDMA
- Environmental conditions:
- Operating temperature -10 ° C to + 55 ° C (14 ° F to 131 ° F)
- 95% relative humidity (without condensation)
