Wireless system
The XSW-D portable eng set is XSW-D digital wireless set.

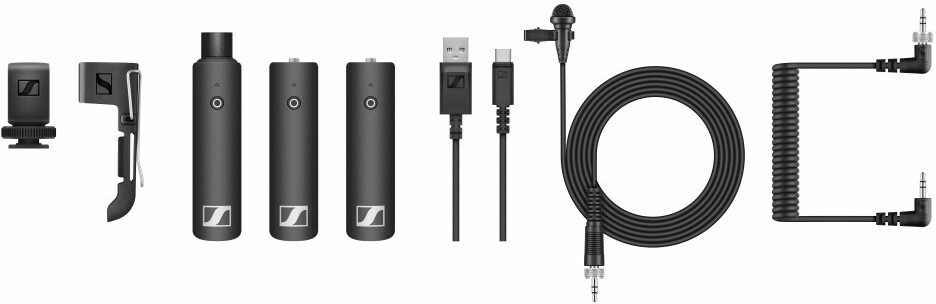

It includes 1 ME2-II Lavalier microphone (omni, capacitor), 1 XSW-D MINI JACK transmitter (3.5 mm), 1 XSW-D XLR FEMALE transmitter, 1 XSW-D MINI JACK receiver (3.5 mm), 1 pocket transmitter, 1 camera stand, 1 twisted 3.5mm jack cable and 1 USB charging cable.
It includes 1 ME2-II Lavalier microphone (omni, capacitor), 1 XSW-D MINI JACK transmitter (3.5 mm), 1 XSW-D XLR FEMALE transmitter, 1 XSW-D MINI JACK receiver (3.5 mm), 1 pocket transmitter, 1 camera stand, 1 twisted 3.5mm jack cable and 1 USB charging cable.
Technical sheet
- Digital transmission No
- Frequency HF Manual search
- 1 micro tie ME2-II (omni, capacitor).
- 1 XSW-D MINI JACK transmitter (3.5 mm).
- 1 transmitter XSW-D XLR FEMALE,
- 1 XSW-D MINI JACK receiver (3.5 mm).
- 1 pocket transmitter clip,
- 1 camera support,

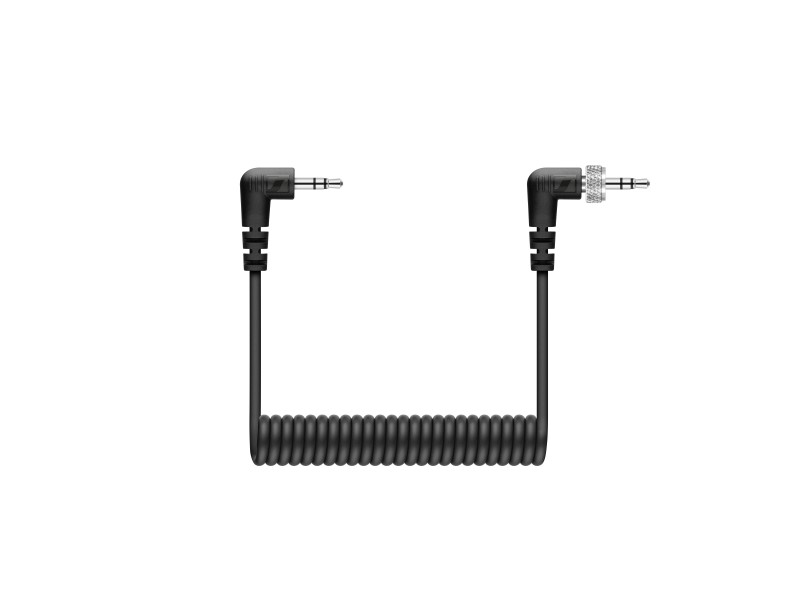

- 1 twisted 3.5mm jack cable and 1 USB charging cable.
- USB interface C to load:
- Input voltage typ. 5.0 V
- Charging temperature 0 ° C - 60 ° C - Charging time typ. 3 h
- Drums:
- Li-Ion cell type Rated voltage 3.7 V
- Capacity of the 850 mAh cell
- operating time up to 5 h
- AF characteristics:
- aptX® Live codec
- Audio frequency response Jack 3.5mm / XLR:
- 80 - 18,000 Hz
- 6.3 mm jack:
- 18,000 Hz
- Max. Audio output 12 dBu
- Signal to noise ratio? 106 dB THD <0.1% Audio Latency <4 ms
- Dimensions:
- XSW-D XLR FEMALE TX approx. 102 x 24 x 28 mm
- XSW-D MINI JACK TX approx. 86 x 24 x 28 mm
- XSW-D INSTRUMENT TX approx. 122 x 24 x 28 mm
- XSW-D XLR MALE RX approx. 109 x 24 x 28 mm
- XSW-D MINI JACK RX approx. 86 x 24 x 28 mm
- XSW-D INSTRUMENT RX approx. 122 x 24 x 28 mm
- XSW-D PEDALBOARD RX approx. 130 x 82 x 51 mm
- Frequency range 2400 - 2483.5 MHz
- Transmission power (EIRP) max. 10 mW
- GFSK modulation with TDMA
- Environmental conditions:
- Operating temperature -10 ° C to + 55 ° C (14 ° F to 131 ° F)
- 95% relative humidity (without condensation)
