Description

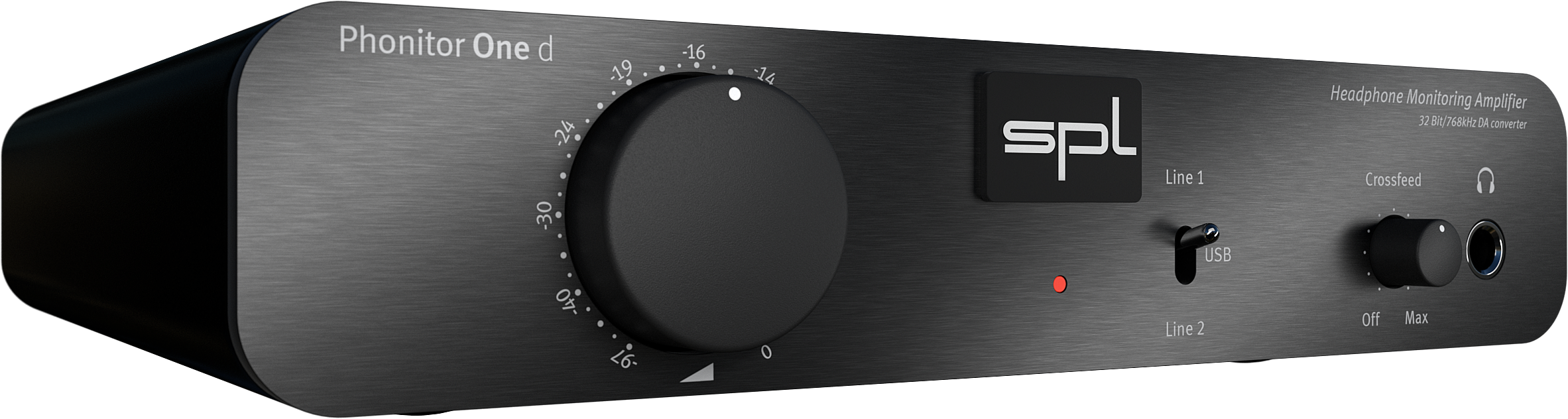

The Phonitor One d is a headphone amplifier offered by the SPL brand.
For preamplification, two Burr-Brown OPA 2134 SoundPlus operational amplifiers have been specially designed to meet the requirements of audiophiles.
Their remarkable performance results in extremely low noise and minimal distortion, measured at just 0.00008%. Featuring an integrated FET stage, these OPA 2134s deliver an impressive slew rate of 20 V/µs, making them a high-speed operational amplifier.
This characteristic results in dynamic and lively sound reproduction.
Additionally, to ensure accurate transmission of high-frequency signals, low-capacitance film capacitors have been integrated into the signal path, acting as bypass capacitors for the coupling capacitors. Panasonic "Electric Double Layer" coupling capacitors were chosen, known to offer the highest storage capacity of all capacitor technologies.
These component choices guarantee faithful and detailed audio reproduction, while preserving the integrity of the original signal.
For preamplification, two Burr-Brown OPA 2134 SoundPlus operational amplifiers have been specially designed to meet the requirements of audiophiles.
Their remarkable performance results in extremely low noise and minimal distortion, measured at just 0.00008%. Featuring an integrated FET stage, these OPA 2134s deliver an impressive slew rate of 20 V/µs, making them a high-speed operational amplifier.
This characteristic results in dynamic and lively sound reproduction.
Additionally, to ensure accurate transmission of high-frequency signals, low-capacitance film capacitors have been integrated into the signal path, acting as bypass capacitors for the coupling capacitors. Panasonic "Electric Double Layer" coupling capacitors were chosen, known to offer the highest storage capacity of all capacitor technologies.
These component choices guarantee faithful and detailed audio reproduction, while preserving the integrity of the original signal.
Lire la suite
Technical sheet
- Continuously Adjustable Crossfeed Function
- Crosstalk between the two stereo channels for a more realistic surround sound
- Digital Input with 32-bit DAC
- Class Compliant (no drivers required)
- Support for sampling frequencies up to 768 kHz PCM and DSD playback (DSD4 or DSD256)
- Pre-amplification by 2 Burr-Brown OPA 2134 SoundPlus operational amplifiers for extremely low noise and minimal distortion
- THD + N (0 dBu, 10 Hz 22 kHz, 600 Ω): 0.002%
- Max Input Level: +22.5 dBu
- Noise (A-weighted, 600 Ω): -97 dBu
- Max Output Power (600 Ω): 2x 190 mW
- Max Output Power (250 Ω): 2x 330 mW
- Max Output Power (47 Ω): 2x 400 mW
- Headphone Output Frequency Response (-3 dB): 10 - 200,000 Hz
- Three switchable stereo inputs: balanced 6.3 mm TRS jack, unbalanced RCA, and USB
- Headphone Output: 6.3 mm stereo jack
- Dimensions (W x H x D):
- 210 x 49.6 x 220 mm
- Weight:
- 1.45 kg
