Ssl UMD 192

Solid State Logic UMD192 is aimed at live, broadcast and studio engineers working with massive audio streams and mission-critical environments. It centralizes MADI, Dante and USB in a single, compact ½ rack interface. You'll simplify your connections, secure your flows and gain in efficiency. A high-end solution designed for demanding professional configurations.

Features

The central bridge between USB, MADI and Dante

Freely connect your MADI equipment, your Dante network and your computer via USB 3.0. UMD192 enables bidirectional audio between two formats, while the third can receive a duplicated stream. In other words, you can connect a MADI system to a Dante network, or record over USB without changing your architecture.

Extremely high channel capacity for complex setups

Up to 192 channels at 44.1 / 48 and 96 kHz, or 128 channels at 192 kHz. Manage large consoles, broadcast systems or heavy studio sessions with a single interface. Less hardware, fewer points of failure, greater stability.

Native Dante, ready for modern audio networks

UMD192 integrates seamlessly into Dante infrastructures, with AES67 and ST 2110 support and latency as low as 0.25 ms. You can work in real time, even with critical streams, with complete interoperability between equipment and IP audio networks.

MADI redundancy for live and broadcast applications

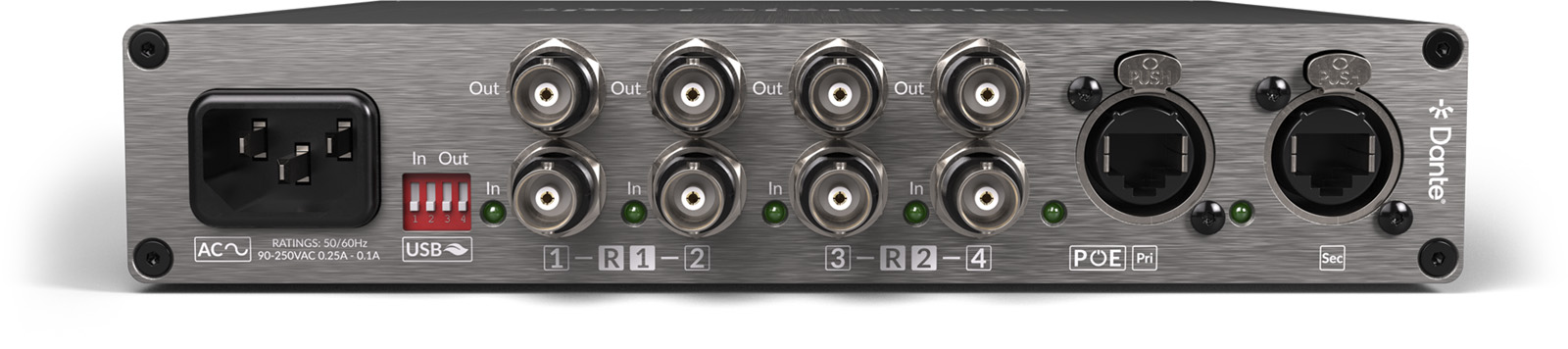

The six MADI BNC pairs can be configured in redundant mode, offering three doubly-secure MADI connections. In the event of a problem on one link, the stream remains active. Essential for broadcast, live and performance environments.

Flexible clocking and reliable synchronization

You choose your clock source from MADI or Dante. UMD192 covers sample rates from 44.1 to 192 kHz. You can easily adapt the interface to your existing configuration, without compromising on synchronization.

Ideal interface for professional consoles and systems

UMD192 integrates seamlessly with SSL System T, Oracle and ORIGIN systems, as well as Harrison 32Classic Dante consoles. It also functions as a central interface for non-SSL consoles in live, studio or post-production applications.

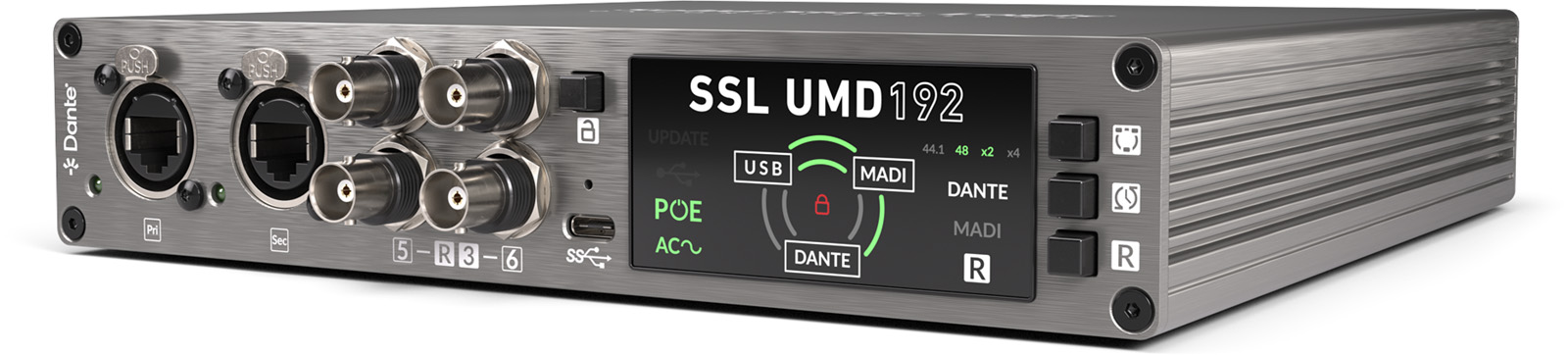

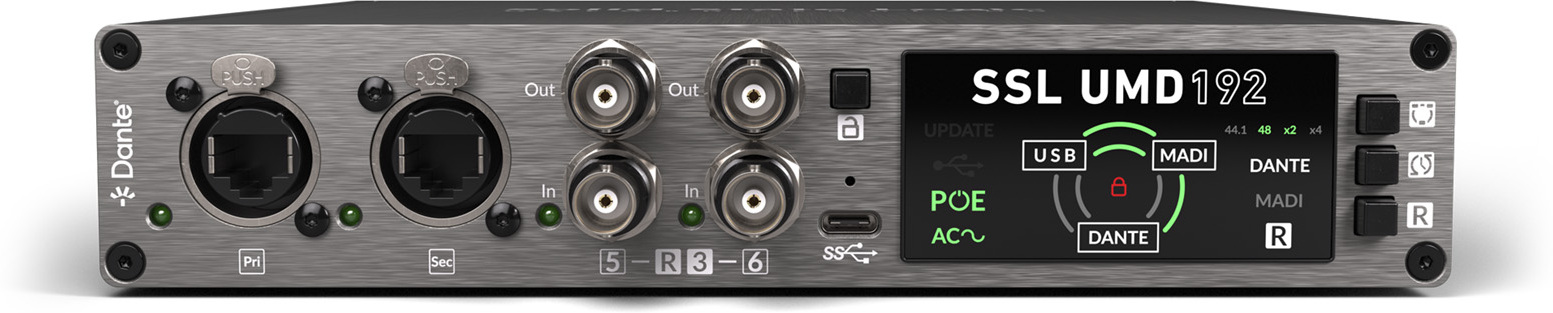

Clear, secure front-panel control

The front panel displays real-time signal flow, synchronization, power status and network connectivity. Controls are locked by default to prevent errors. Unlock only when you need to intervene, even in stressful situations.

Simple controls for field use

One button changes the signal flow mode. Another selects the clock source. MADI redundancy is activated on the front panel. Every action is voluntary, visible and secure, for reliable use in professional conditions.

Flexible, secure power supply

UMD192 can be powered by mains, Power over Ethernet or USB. Sources can be combined to create a redundant power supply. A real advantage for fixed installations, mobile racks and mission-critical live configurations.

Friction-free Mac and Windows compatibility

On the Mac, UMD192 works natively with Core Audio. Just plug in, select the interface and you're ready to go. On Windows, multi-client SSL ASIO drivers ensure stable integration with professional software.

What we like / What we need to know

• All-in-one interface for USB, MADI and Dante.
• Extremely high channel capacity in a compact format.
• Reassuring MADI redundancy and power supply for live and broadcast applications.
• Native operation on Mac, drivers required on Windows.
• Clearly aimed at advanced professional users.

FAQ

Who is the UMD192 designed for?

Live, broadcast, post-production and studio engineers working with high channel volumes and professional audio networks.

Can it be used as a main audio interface?

Yes, it can be used as a high-capacity USB interface or as a central bridge between MADI and Dante.

Is it suitable for home studios?

Only for advanced projects. It is designed for highly complex professional environments.

Is the latency suitable for live use?

Yes, Dante latency can be as low as 0.25 ms, perfectly suited to real-time situations.

How can I secure my power supply?

By combining mains, PoE and USB to create a reliable, redundant power supply.
