Tascam Sonic View 16

  • Read reviews (0)
  • Related accessories
  • Similar products
  • Tascam Sonic View 16 - Digital mixing desk - Main picture
  • Tascam Sonic View 16 - Digital mixing desk - Variation 1
  • Tascam Sonic View 16 - Digital mixing desk - Variation 2
  • Tascam Sonic View 16 - Digital mixing desk - Variation 3
  • Tascam Sonic View 16 - Digital mixing desk - Variation 4
  • Tascam Sonic View 16 - Digital mixing desk - Variation 5
VIDEO
VIDEO
  • 6449.00 €
  • Ref : 107429
5299,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
Not available at this moment
contact us
Stock in store
Not available in store
INFORM ME OF ITS ENTRY IN STOCK
I want to be notified by email
Go

The brand Tascam

Learn more about the Tascam brand and discover the entire catalog.
Logo Tascam

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Digital mixing desk

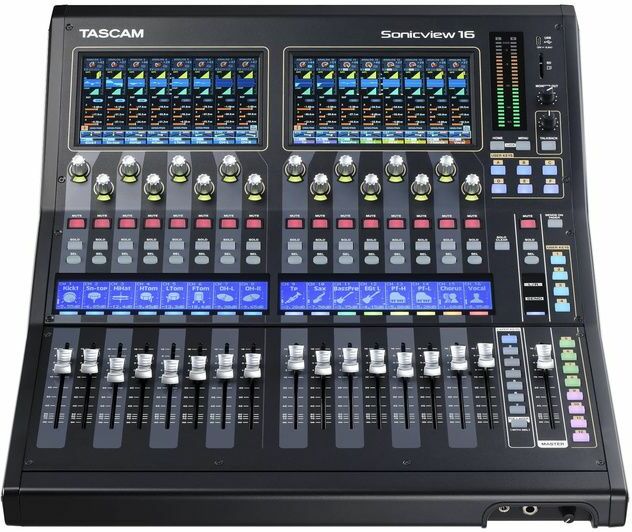

The Tascam Sonic View 16 is a 16-channel digital mixer.

Sonicview consoles integrate elegantly with the rest of your system, thanks to Dante networking capabilities, a multi-channel USB audio interface working in 96 kHz/32-bit and all integrated inputs/outputs. Uncompromising audio quality, an FPGA-based 54-bit floating-point mixing engine, extensive signal processing functions, an expansion card slot for increased connectivity, wireless remote control: Sonicview consoles are the next-generation choice for recording studios, mobile studios, touring, fixed installation and broadcast.
Lire la suite

Technical sheet

  • Number of channel mixing desk 10 to 22 channels
  • Number of channels 16 channels
  • Number of inputs 52 audio channels
  • (40 mono, 2 stereo, 4 stereo effect returns)
  • Number of buses 32
  • (22 switchable Aux/Group mix buses, 1 stereo main bus, 4 stereo output buses)
  • Built-in effects 4
  • Number of managed input sources
  • At 96 kHz Maximum 152
  • At 48 kHz Maximum 248
  • Microphone/Line (XLR) 16
  • Line (RCA/cinch) 4 (2 × stereo)
  • Dante 32 (96 kHz), 64 (48 kHz)
  • Expansion cards 2 × 32 (96 kHz), 2 × 64 (48 kHz)
  • Audio player 32
  • Built-in USB 2 (1 × stereo)
  • Oscillator 1
  • Talkback (commands) 1
  • Selectable output targets
  • At 96 kHz Maximum 148
  • At 48 kHz Maximum 244
  • Line (XLR) 16
  • Dante 32 (96 kHz), 64 (48 kHz)
  • Expansion cards 2 × 32 (96 kHz), 2 × 64 (48 kHz)
  • USB audio 32
  • Monitor output (analog) 2 (1 × stereo)
  • Built-in recorder 2 (1 × stereo)
  • Inserts
  • Analog insert points 2 (Mic/Line input 7–8)
  • Digital signal processing
  • Mixing engine 54-bit floating-point, 96 kHz
  • A/D converters 32 channels, at 96 kHz
  • D/A converters 24 channels, at 96 kHz
  • Digital inputs/outputs sampling frequency 48 kHz, 96 kHz
  • Mic/Line inputs (balanced, MIC/LINE) XLR-3-31 (1: ground, 2: hot, 3: cold)
  • Maximum input level +12 dBu (TRIM at minimum, PAD disabled)
  • +32 dBu (TRIM at minimum, PAD enabled)
  • Minimum input level –62 dBu (TRIM at maximum, PAD disabled)
  • –42 dBu (TRIM at maximum, PAD enabled)
  • Input impedance ?5 kΩ
  • Line inputs (LINE IN (BAL)) 6.35 mm jack connector (TRS)
  • (Tip: hot, Ring: cold, Sleeve: ground)
  • Maximum input level +12 dBu (TRIM at minimum, PAD disabled)
  • +32 dBu (TRIM at minimum, PAD enabled)
  • Minimum input level –62 dBu (TRIM at maximum, PAD disabled)
  • –42 dBu (TRIM at maximum, PAD enabled)
  • Input impedance ?5 kΩ
  • Insert points (INSERT) 6.35 mm jack connector (TRS)
  • (Tip: hot, Ring: cold, Sleeve: ground)
  • Maximum input level (return) +18 dBu
  • Nominal input level (return) –2 dBu
  • Input impedance (return) ?5 kΩ
  • Maximum output level (departure) +18 dBu
  • Maximum output level (departure) –2 dBu
  • Output impedance (departure) ?100 Ω
  • TALKBACK input XLR-3-31 (1: ground, 2: hot, 3: cold)
  • Maximum input level +10 dBu
  • Minimum input level –65 dBu
  • Gain adjustment 0–55 dB
  • Input impedance ?5 kΩ
  • Phantom power +48 V available
  • Stereo inputs (ST IN 1–2 L/R) RCA connectors
  • Maximum input level +6 dBV (1.995 V rms)
  • Nominal input level –10 dBV (0.316 V rms)
  • Dynamic range 16 dB
  • Input impedance ?10 k
