Digital mixing desk

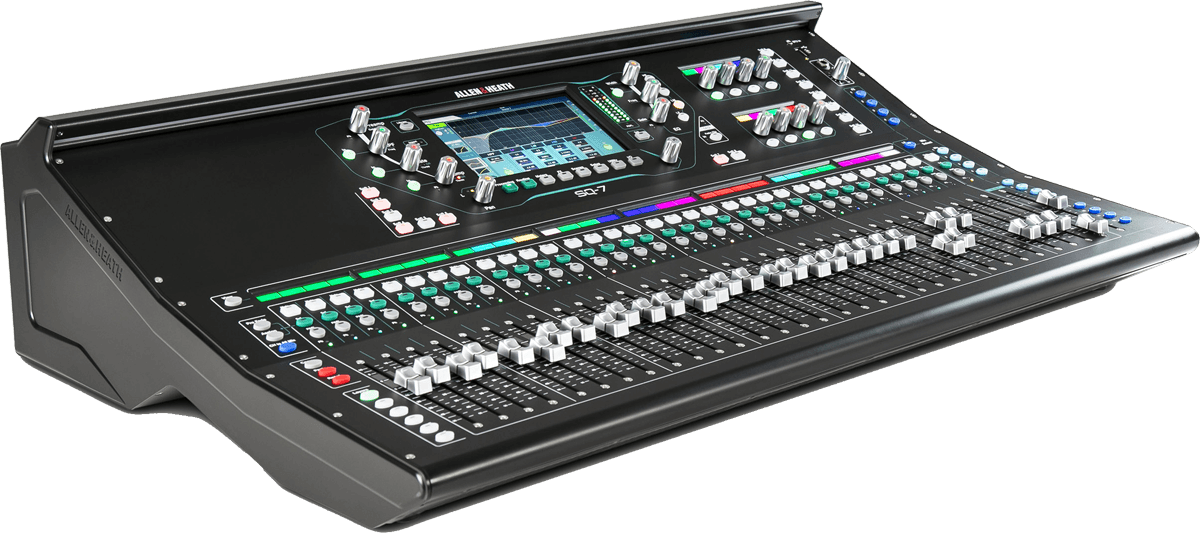

Sq-7 is a 32-input digital console from Allen & heath.
With the revolutionary 96 kHz FPGA XCVI FPGA engine developed by Allen & Heath for its high-end dLive systems, the latest generation SQ digital consoles have been developed to excel in the most complex situations.
Enjoying high-resolution 96 kHz sound on 48 inputs and 36 outputs, while offering ultra-low latency below 0.7 ms, making it a perfect console for broadcast or audio-visual applications.
Equipped with an I / O port capable of hosting DANTE or WAVES cards and inter-compatible with dLive systems, the SQ inherits the famous DEEP plugins from the dLive, the RackExtra effects library and 8 stereo effects engines. stereo with dedicated returns.
the SQs can also be expanded up to 48 microphone inputs in total, via the family of digital stage enclosures and 48 kHz (AR2412, AR84 & AB168) and 96 kHz (DX168) expanders, allowing it to offer a flexible and combinable solution for users of other Allen & Heath digital systems.
The DEEP plugin processing architecture allows users to precisely select shop compressors and preamp emulations based on their style and needs. DEEP plugins can be integrated directly into the input and mix channels of the console, without adding latency or configuration issues.
The SQ's dashboard is centered around a 7 "high-resolution capacitive touch screen, flanked by a set of high-adhesion, illuminated rotates to create a combination of visual feedback and intuitive, integrated manual controls.
Each slice has a chromatic bar graph giving an indication of the level at a glance, thanks to the LEDs with variable brightness and color. The SQs also offer user keys (8 for SQ-5/16 + 4 rotary with dedicated LCD screens for SQ-6) that can be assigned key functions at hand, as well as a Mix button "Channel to all "allowing instant access to all departures of a selected channel.
Allen & Heath has a well established reputation for creating emulations of effects that compete with the best plugins, without the hassles associated with them.
With the revolutionary 96 kHz FPGA XCVI FPGA engine developed by Allen & Heath for its high-end dLive systems, the latest generation SQ digital consoles have been developed to excel in the most complex situations.
Enjoying high-resolution 96 kHz sound on 48 inputs and 36 outputs, while offering ultra-low latency below 0.7 ms, making it a perfect console for broadcast or audio-visual applications.
Equipped with an I / O port capable of hosting DANTE or WAVES cards and inter-compatible with dLive systems, the SQ inherits the famous DEEP plugins from the dLive, the RackExtra effects library and 8 stereo effects engines. stereo with dedicated returns.
the SQs can also be expanded up to 48 microphone inputs in total, via the family of digital stage enclosures and 48 kHz (AR2412, AR84 & AB168) and 96 kHz (DX168) expanders, allowing it to offer a flexible and combinable solution for users of other Allen & Heath digital systems.
The DEEP plugin processing architecture allows users to precisely select shop compressors and preamp emulations based on their style and needs. DEEP plugins can be integrated directly into the input and mix channels of the console, without adding latency or configuration issues.
The SQ's dashboard is centered around a 7 "high-resolution capacitive touch screen, flanked by a set of high-adhesion, illuminated rotates to create a combination of visual feedback and intuitive, integrated manual controls.
Each slice has a chromatic bar graph giving an indication of the level at a glance, thanks to the LEDs with variable brightness and color. The SQs also offer user keys (8 for SQ-5/16 + 4 rotary with dedicated LCD screens for SQ-6) that can be assigned key functions at hand, as well as a Mix button "Channel to all "allowing instant access to all departures of a selected channel.
Allen & Heath has a well established reputation for creating emulations of effects that compete with the best plugins, without the hassles associated with them.
Lire la suite
Technical sheet
- Number of channel mixing desk 24 channels and more
- Compact digital mixing console 48 channels / 36 buses for live, studio and installation.
- Features specific to SQ-7
- 32 + 1 motorized faders 100 mm
- 6 layers for 192 assignable slots
- 32 XLR local microphone inputs
- 32 LEDs with assignable color and customizable name for each channel
- 18 assignable local outputs (16 XLR + 2 TRS)
- 16 customizable buttons (SoftKeys)
- 8 rotary and 8 buttons with configurable functionality, with 4 dedicated LED screens
- Full features
- inputs
- 48 input channels in combination with the stage boxes
- 32 + 1 motorized faders 100 mm
- 6 layers for 192 assignable slots
- 32 XLR local microphone inputs
- 3 stereo inputs: 2 TRS jack, 1 minijack
- dedicated XLR talkback input
- Exits
- 36 buses
- 12 stereo mix + LR
- 18 assignable local outputs (16 XLR + 2 TRS)
- 3 stereo matrices
- PAFL bus
- AES digital output
- Jack headphone output with dedicated level control
- 8 Mute groups
- 8 groups of DCAs
- 8 stereo effects engines with dedicated returns
- Sound processing
- 96 kHz XCVI FPGA processor from the famous dLive systems
- DEEP Ready Emulations, faithfully simulating industry standard modules (reverb, gated reverb, modulations ...)
- Input processing: Preamp, high pass, parametric equalizer, gate, compressor and delay
- Output processing: Equalizer parametric graphic equalizer, gate, compressor and delay
- Linking input channels for stereo sources
- Advanced connectivity
- EtherCON SLink connector: remote audio via dSnake, DX or GigaACE protocols (64x64)
- Compatible with DX168 (96 kHz) stage rack and AR84, AR2412 and AB168 (48 kHz) audioracks
- 64x64 I / O port for dedicated option board: Dante, Waves ...
- 32x32 USB audio streaming and direct recording on USB media via SQ-Drive
- Inter-compatible with another SQ and dLive systems via SLink port or an optional board
- Advanced features
- Motorized faders: recall of scenes and fader flip of the graphic equalizer
- 16 customizable buttons (SoftKeys)
- Compatible with ME systems
- Automatic Microphone Mixer (AMM) coming soon
- Real time analyzer 31 bands
- Patchable insert points
- Copy / paste / reset settings
- 300 scene memories by Show
- Controls and displays
- Capacitive 7 "touchscreen for exceptional readability and control
- 32 LEDs with assignable color and customizable name for each channel
- 8 assignable coding wheels with dedicated LCD screens
- Channel allocation on slices via a simple drag and drop
- Chromatic level indicator designed by Allen & Heath
- Surface illumination integrated into the chassis
- Dedicated physical controls for each input channel: Gain, HPF Frequency, Gate Threshold, Compressor Threshold, Pan, Gain / Frequency / EQ Width.
- Wireless control via an iPad or Android tablet (Application SQ MixPad, requires a router not included)
- DAW control drivers for MIDI control via USB or TCP / IP
- Single / double footswitch control
- Weight and dimensions
- 80.4 x 51.5 x 19.8 cm (W x D x H)
- 17.8 kg
- Accessories
- Removable tablet / iPad stand: SQ-BRACKET
