Tascam US-1X2HR

  • Read reviews (0)
  • Related accessories
  • Similar products

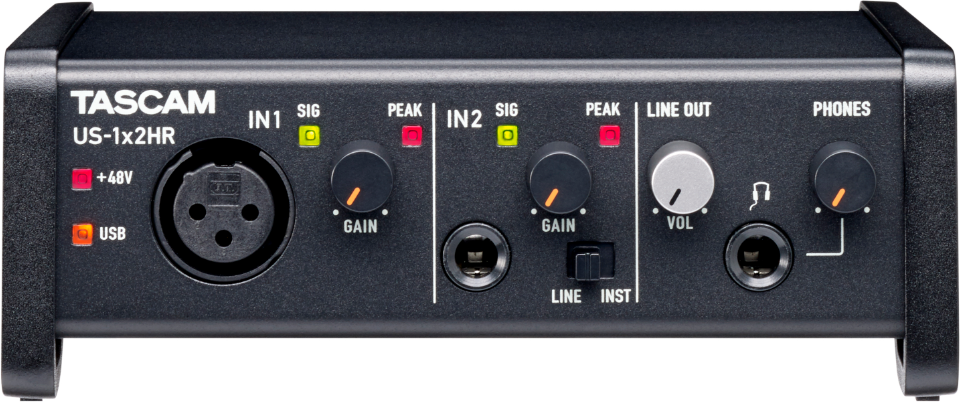

  • Tascam Us-1x2hr - USB audio interface - Main picture
  • Tascam Us-1x2hr - USB audio interface - Variation 1
  • Tascam Us-1x2hr - USB audio interface - Variation 2
  • 118.80 €
  • Ref : 98202
99,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
In stock
shipped under 2/3 days
Stock in store
See availability. Store
Star's Music Lille
Star's Music Paris

The brand Tascam

Learn more about the Tascam brand and discover the entire catalog.

Sound card buying guide audio interface

Through this buying guide, you will find all the information you need to make your first audio interface purchase.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Usb audio interface

The US-1x2HR is the smallest model in the Tascam US-HR Series of high-resolution USB audio interfaces. It has both a microphone and an instrument input, making it ideal for simple and intuitive computer-based voice/guitar recording. In addition, the built-in loopback function and compatibility with OBS Studio (formerly Open Broadcaster Software) make it an excellent choice for podcasting and live streaming. Finally, it is a perfect solution for sending music from a computer to a PA system with high audio quality, for example for a birthday party.

Less background noise and distortion - better sound than ever
The compact US-1x2HR audio interface is packed with features: high-resolution audio (up to 24-bit/192kHz), ultra-low latency with a Windows buffer size starting at 4 samples, Ultra-HDDA microphone preamps with 48-volt phantom power for excellent sound quality with extremely low background noise, a robust USB-C connector, and a rich collection of bundled software to get you started with audio production immediately. The lightweight interface is ideal for iPhone or iPad* based mobile recording and production with the included Cubasis LE software. You can take it with you to your rehearsal room, use it for live reporting from an event site, or for capturing natural sounds on location.

All US-HR Series models feature an exclusive cast aluminum honeycomb physical structure for the sides, with a slight upward slope. This design results in a sleek and attractive look, and provides sufficient footing so that the interface does not shift when connecting or disconnecting cables. Another important aspect is that the upward tilt results in better ergonomics, as the angle makes the interface easier to use.

If you need a clean, easy-to-use 2-in/2-out audio interface with low noise, low distortion and superb sound quality, the Tascam US-1x2HR can be your reliable partner for many years.

* A battery pack or AC adapter (optional) is required when used with an iPhone or iPad.
Lire la suite

Technical sheet

  • DSP No
  • Audio resolution
  • Sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
  • Digital resolution: 24 bits
  • Analog audio inputs
  • Mic input (balanced, IN 1): XLR-3-31
  • Input impedance: 2.4 kΩ
  • Nominal input level (input level on maximum): ?65 dBu (0.0004 Vrms)
  • Nominal input level (input level on minimum): ?8 dBu (0.0775 Vrms)
  • Maximum input level: +10 dBu (2.449 Vrms)
  • Maximum gain 58 dB
  • Line/instrument input (balanced/unbalanced, IN2)
  • 1/4" stereo jack (TRS)
  • Input selector switch to LINE (balanced)
  • Input impedance: 10 kΩ
  • Nominal input level (input level on maximum): ?41 dBu (0.0069 Vrms)
  • Nominal input level (input level on maximum): +4 dBu (1.228 Vrms)
  • Maximum input level: +20 dBu (7.75 Vrms)
  • Maximum gain: 45 dB
  • Input selector switch to INST (unbalanced)
  • Input impedance ?1 MΩ
  • Nominal input level (input level on maximum): ?51 dBV (0.0028 Vrms)
  • Nominal input level (input level on maximum): -6 dBV (0.5015 Vrms)
  • Maximum input level: +3 dBV (1.4125 Vrms)
  • Maximum gain: 45 dB
  • Line input L/R (unbalanced)
  • RCA connector
  • Input impedance: 10 kΩ
  • Maximum input level: +6 dBV (1.995 Vrms)
  • Analog Audio Outputs
  • L/R line output (unbalanced)
  • RCA connector
  • Impedance: 100 Ω
  • Maximum output level: +6 dBV (1.995 Vrms)
  • Headphone output
  • 1/4" stereo jack connector
  • Maximum output power: 18 mW + 18 mW or more (THD+N ?0.1%, at 32 Ω)
  • Other inputs and outputs
  • USB : USB type C, 4 points
  • Transfer rate : USB 2.0 'High speed' (480 Mbit/s)
  • Power supply (DC IN 5V)
  • Micro-B type USB connector
  • Audio features
  • Equivalent Input Noise Level (EIN) : ?128 dBu or less (at 150 Ω, input level on maximum)
  • Frequency response
  • Mic input:
  • 44.1/48 kHz: 20 Hz - 20 kHz, +0 dB/-0.4 dB (JEITA)
  • 88.2/96 kHz : 20 Hz - 40 kHz, +0 dB/-0.4 dB (JEITA)
  • Line input:
  • 44.1/48 kHz: 20 Hz - 20 kHz, +0.2 dB/-0.1 dB (JEITA)
  • 88.2/96 kHz: 20 Hz - 40 kHz, +0.2 dB/-0.4 dB (JEITA)
  • Line output:
  • 44.1/48 kHz: 20 Hz - 20 kHz, +0.2 dB/-0.1 dB (JEITA)
  • 88.2/96 kHz: 20 Hz - 40 kHz, +0.2 dB/-0.4 dB (JEITA)
  • Signal-to-noise ratio
  • Mic input to computer: 109 dB (Input level on minimum, low pass filter at 20 kHz, A-weighted)
  • Line input to computer: 105 dB (Input level to minimum, 20 kHz low-pass filter, A-weighted)
  • Computer to line output: 110 dB (Potentiometer - -MONITOR set to maximum, 20 kHz low pass filter, A-weighted)
  • Distortion (THD+N)
  • Microphone input to computer: 0.0013% (Input level on minimum, -5 dBFS, 1 kHz sinusoidal, 20 kHz low pass filter)
  • Line input to computer: 0.0027% (Input level on minimum, -5 dBFS, 1 kHz sinusoidal, 20 kHz low pass filter)
  • Computer to line output: 0.0015% (MONITOR potentiometer on maximum, -4 dBFS, 1 kHz sinusoidal, 20 kHz low pass filter)
  • Channel separation: 95 dB or more (Mic/line input to line output, 1 kHz sinusoidal, input level on minimum)
  • Computer configuration
  • Windows
  • System Requirements: Windows compatible computer with USB 2.0 port
  • CPU/Processor Frequency: 2 GHz or higher, dual core (x86)
  • RAM 2 GB or more
  • Compatible audio driver formats: ASIO 2.0, WDM
  • Mac
  • System requirements: Apple Mac computer with USB 2.0 port
  • CPU/Processor Frequency: 2 GHz or higher, dual core
  • RAM: 2 GB or more
  • Compatible audio driver formats: Core Audio
  • iOS device
  • iOS device running iOS 7 or later
  • Compatible audio driver formats: Core Audio
  • Power and other features
  • Power supply
  • When used with a computer: USB bus power supply
  • When used with an iOS device: USB adapter (which can provide 5V and at least 700mA of power)
  • External battery pack (which can supply 5V and at least 700mA)**
  • Power consumption: 1.8 W
  • Dimensions (H × W × D, excluding protrusions): 146 mm × 55 mm × 120 mm
  • Weight: 623 g
  • Operating temperature: 5 to 35 °C
