Tascam US-2X2HR

  • Read reviews (0)
  • Related accessories
  • Similar products

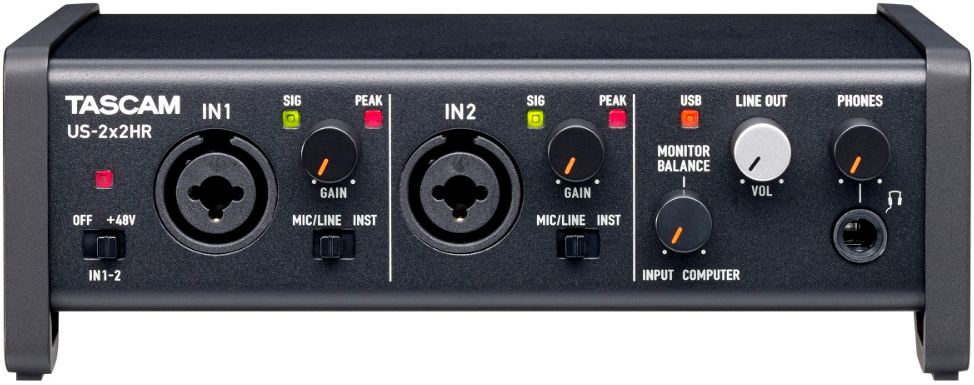

  • Tascam Us-2x2hr - USB audio interface - Main picture

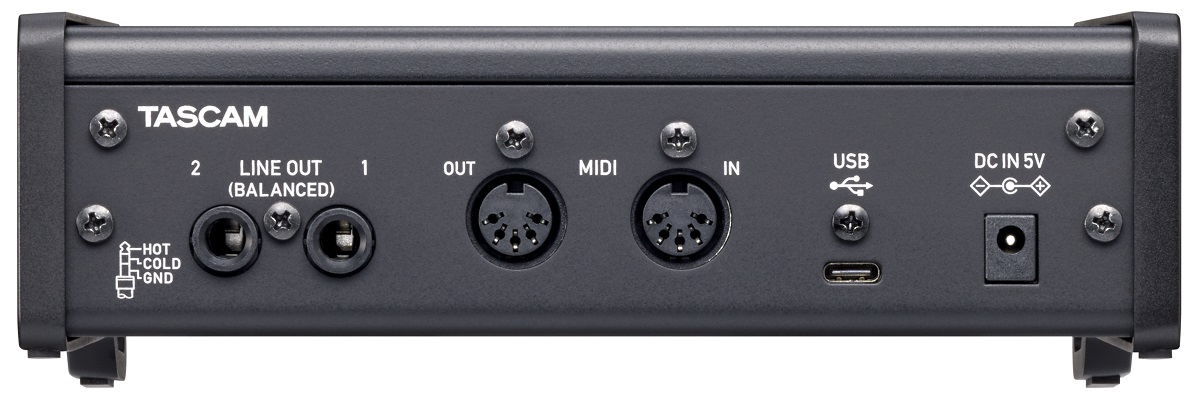

  • Tascam Us-2x2hr - USB audio interface - Variation 1

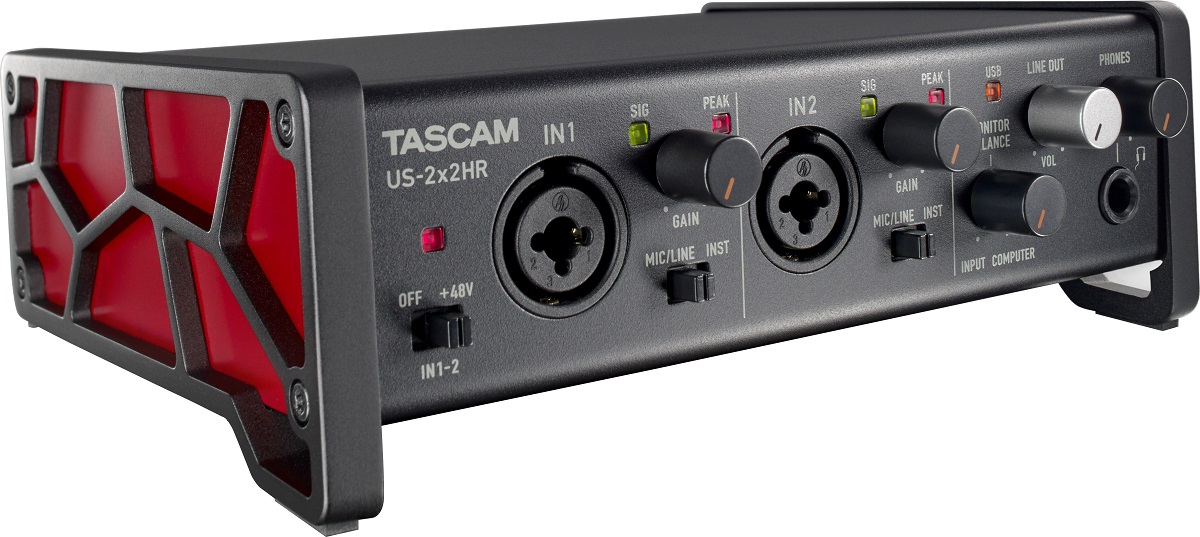

  • Tascam Us-2x2hr - USB audio interface - Variation 2
174.00 €
141,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 98203
In stock
1 piece available.
shipped under 8/10 days
Stock in store
See availability. Store
Star's Music Lyon

The brand Tascam

Learn more about the Tascam brand and discover the entire catalog.

Sound card buying guide audio interface

Through this buying guide, you will find all the information you need to make your first audio interface purchase.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Usb audio interface

The US-2x2HR is part of the Tascam US-HR Series of high-resolution USB audio interfaces. It equips your macOS or Windows computer or iPhone/iPad with two switchable mic/line/instrument inputs and two balanced line-level outputs, plus MIDI input/output. This interface is ideal for music creation and home studio recording. It meets high standards, is easy to use and provides studio-quality sound. In addition, the built-in loopback function and compatibility with OBS Studio (formerly Open Broadcaster Software) make it an excellent choice for podcasting and live streaming.

Less background noise and distortion - better sound than ever
The compact US-2x2HR audio interface is packed with features: high-resolution audio (up to 24-bit/192kHz), ultra-low latency with a Windows buffer size starting at 4 samples, Ultra-HDDA microphone preamps with 48-volt phantom power for excellent sound quality with extremely low background noise, a rugged USB-C connector, and a rich collection of bundled software to get you started with audio production immediately. It can also be used for mobile production or live streaming using your iPhone or iPad* with the included Cubasis LE software. Simply put, the US-2x2HR helps you create and distribute great sound wherever you go.

Keyword: versatility
All US-HR Series models feature an exclusive cast aluminum honeycomb physical structure for the sides, with a slight upward slope. This design results in a sleek and attractive look, and provides sufficient footing so that the interface does not shift when connecting or disconnecting cables. Another important aspect is that the upward tilt results in better ergonomics, as the angle makes the interface easier to use.

If you're a musician, producer or home studier looking for a rugged, sleek and easy-to-use audio interface with superb sound quality, the Tascam US-2x2HR will be a reliable partner for many years.

* A battery pack or AC adapter (optional) is required when used with an iPhone or iPad.
Lire la suite

Technical sheet

  • DSP No
  • Audio resolution
  • Sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
  • Digital resolution: 24 bits
  • Analog inputs
  • Mic inputs (balanced): XLR-3-31
  • Input impedance: 2.2 kΩ
  • Nominal input level: -7 dBu (0.346 Vrms)
  • Maximum input level: +10 dBu (2.449 Vrms)
  • Gain range: 56 dB
  • Instrument inputs (unbalanced, MIC/LINE INST switch in INST position)
  • 6.35 mm jack (TS)
  • Input impedance: ?1 MΩ
  • Nominal input level: -6 dBV (0.501 Vrms)
  • Maximum input level: +10 dBV (3.162 Vrms)
  • Gain range: 56 dB
  • Line inputs (balanced, MIC/LINE INST switch in MIC/LINE position)
  • 6.35 mm stereo jack (TRS)
  • Input impedance: 10 kΩ
  • Nominal input level: +4 dBu (1.228 Vrms)
  • Maximum input level: +20 dBu (7.75 Vrms)
  • Gain range: 56 dB
  • Analog Outputs
  • Line outputs (balanced)
  • 6.35 mm stereo jack (TRS)
  • Output impedance: 210 Ω
  • Nominal output level: +4 dBu (1.228 Vrms)
  • Maximum output level: +20 dBu (7.746 Vrms)
  • Headphone output (PHONES)
  • 6.35 mm stereo jack connector
  • Maximum output power: 18 mW + 18 mW or more (THD+N 0.1% or less, at 32 Ω)
  • Other inputs and outputs
  • MIDI IN connector: 5-pin DIN
  • MIDI OUT connector: DIN 5-pin
  • USB : USB type C, 4 points
  • Transfer rate : USB 2.0 'High speed' (480 Mbit/s)
  • Audio Characteristics
  • Equivalent input noise:?-128 dBu (at 150 Ω, input level at maximum)
  • Frequency response, mic/line input:
  • 44.1 kHz / 48 kHz: 20 Hz - 20 kHz, +0/-0.4 dB (JEITA)
  • 88.2 kHz / 96 kHz: 20 Hz - 40 kHz, +0/-0.4 dB (JEITA)
  • Frequency response (line input)
  • 44.1 kHz / 48 kHz : 20 Hz - 20 kHz, +0.2/-0.1 dB (JEITA)
  • 88.2 kHz / 96 kHz: 20 Hz - 40 kHz, +0.2/-0.4 dB (JEITA)
  • S/N ratio:
  • 110 dB (mic input, input level on minimum, SPCL low pass filter in 20 kHz, A-weighted)
  • 108 dB (line input, input level on minimum, SPCL low-pass filter in 20 kHz, A-weighted)
  • 110 dB (line output, MONITOR potentiometer set to maximum, 20 kHz SPCL low pass filter, A-weighted)
  • Distortion (THD+N) :
  • 0.0013 dB (mic input, 1 kHz sinusoidal, -5 dBFS, input level on minimum, 20 kHz SPCL low pass filter)
  • 0.0011 dB (line input, 1 kHz sinusoidal, -5 dBFS, input level on minimum, SPCL low pass filter in 20 kHz)
  • 0.0012 dB (line output, 1 kHz sinusoidal, -4 dBFS, input level on minimum, 20 kHz SPCL low pass filter)
  • Channel separation: ?95 dB (mic/line input to line output, 1 kHz sinusoidal, input level on minimum)
  • Computer configuration
  • Windows
  • System requirements: Windows-based computer with a USB 2.0 port
  • CPU/Processor Frequency: 2 GHz or higher, dual core (x86)
  • RAM: 2 GB or more
  • Important Note: This interface has been tested on standard computers meeting the above criteria. However, it is not guaranteed to work properly on all computers that meet the above criteria. Even computers that meet the same system requirements may have different processing capabilities depending on their settings and operating conditions.
  • Compatible audio driver formats: ASIO 2.0, WDM, MIDI
  • macOS
  • CPU/processor frequency: 2 GHz or higher, dual-core
  • RAM: 2 GB or more
  • Compatible audio driver formats: Core Audio, Core MIDI
  • iOS
  • Compatible audio driver formats: Core Audio
  • Important Note: An Apple Lightning to USB camera adapter (sold separately) is required to connect an iOS device with a Lightning connector.
  • Power and Miscellaneous Features
  • Power supply
  • When used with a computer: Power via USB bus or dedicated power adapter (see below)
  • When used with an iOS device: Dedicated power adapter (Tascam PS-P520E, DC 5 V)
  • Power consumption: 1.75 W
  • Dimensions (W x H x D, overall): 186 mm x 65 mm x 160 mm
  • Weight: 1.1 kg
  • Operating temperature: 5 to 35 °C
