Preamp

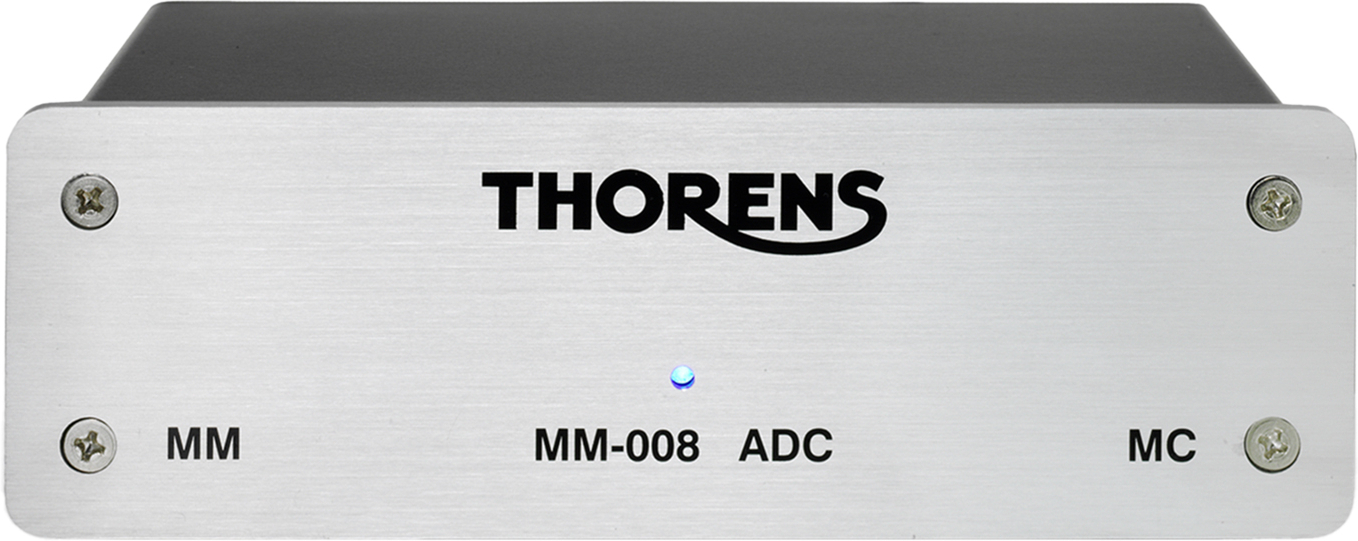

The Thorens MM-008 ADC is an RIAA Pre-Amplifier.
The MM-008 ADC phono pre-amplifier is the successor of the famous MM-008, and thus remains an easy to use and connect product, and also very efficient. In the form of a metal case with a brushed aluminium front panel, the MM-008 remains sober and discreet, but above all very functional: designed for MM and MC cells, it offers both an external power supply, but above all - its strong points - an analogue/digital converter and a USB output for digitising vinyl records on a computer.
The MM-008 ADC phono pre-amplifier is the successor of the famous MM-008, and thus remains an easy to use and connect product, and also very efficient. In the form of a metal case with a brushed aluminium front panel, the MM-008 remains sober and discreet, but above all very functional: designed for MM and MC cells, it offers both an external power supply, but above all - its strong points - an analogue/digital converter and a USB output for digitising vinyl records on a computer.
Lire la suite
Technical sheet
- Type of preamp Transistor
- General
- Anti-resonance and anti-interference enclosure
- Aluminium front panel
- Mode: MM/MC (switchable)
- Built-in A/D converter (Tenor TE7022L 24Bit Delta Sigma)
- Sampling: 8, 16, 32, 44.1, 48, 96 kHz
- Compatible operating systems: Windows® 8, Windows® 7, Vista, XP, Mac OS®, etc.
- Measurements
- Amplification at 1 kHz: 40 dB (MM) / 60 dB (MC)
- Input impedance (MM): 47 kΩ + 220 pF fixed
- Input impedance (MC): 47 kΩ + 1 nF (changeable with external load plugs)
- Frequency response (flat): 20 Hz - 20 kHz ±0.3 dB
- Frequency response (-3 dB): 10 hZ - 50 kHz
- RIAA compliance: ±0.3 dB
- Signal-to-noise ratio : >86 dB (MM) / >72 dB (MC)
- Crosstalk: ?40 dB
- Input sensitivity (MM): 3.29 mVrms for -10 dBV output (316 mVrms)
- Input sensitivity (MC): 0.325 mVrms at -10 dBV output (316 mVrms)
- Max. output voltage 482 mVrms at 5 mVrms input (1 kHz)
- Output impedance: 47 Ω

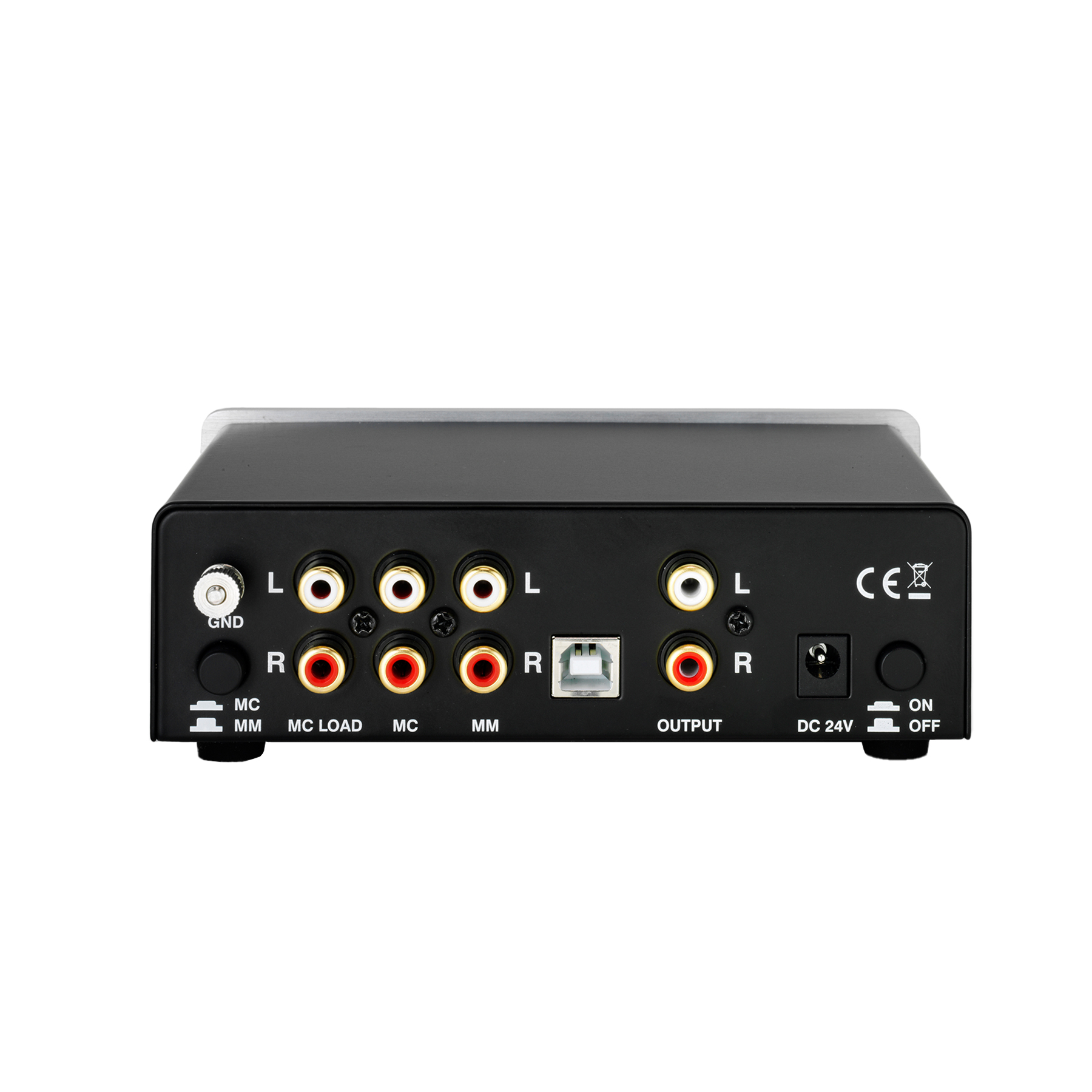

- Connections
- 1 MM input (RCA left/right)
- 1 MC input (RCA left/right)
- 1 grounding terminal
- 1 MC Load input (RCA left/right)
- 1 stereo line output (RCA left/right)
- USB 2.0 output, USB 1.1 backwards compatible
- Power supply
- Power supply: 24 V DC
- Power consumption: 3.4 W/15 mA
- Supplied accessories
- External power supply
- 3 pairs of external load plugs for MC cell (10 Ω, 100 Ω, 1 kΩ)
- Logistic data
- Dimensions (W x H x D): 150 x 50 x 117 mm
- Weight: 511 g (excluding power supply)
