Tom oberheim TEO-5 MODULE

Read reviews (0)
Related accessories
Similar products

Ref : 117707

1299,00 €

Free delivery
Low prices guaranteed
Satisfied or refunded
3-years warranty

Pre-order

Stock in store

Not available in store

INFORM ME OF ITS ENTRY IN STOCK

I want to be notified by email

The brand Tom oberheim

Learn more about the Tom oberheim brand and discover the entire catalog.

Discover

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

find out more

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

Synthesizer

The TEO-5 is Oberheim's compact synthesizer module, designed to deliver the brand's iconic sound in a desktop format accessible to all creative types.

TEO-5 Desktop highlights

Authentic analog sound with analog oscillators and legendary SEM™ filter.
Compact format ideal for smaller studios or modular setups.
Front-panel controls inspired by the keyboard version for intuitive real-time operation.
Advanced modulation possibilities: linear FM, Through-Zero, etc.
Access to all TEO-5 keyboard presets and synthesis functions.

TEO-5 Desktop Key Features

Classic Oberheim in a smaller format

The TEO-5 Desktop features classic Oberheim analog circuitry and sounds in a package half the size of the TEO-5 keyboard. It's perfect for producers seeking sonic authenticity without sacrificing space.

Legendary analog sound

Thanks to its true analog oscillators and multimode SEM™ filter, the TEO-5 Desktop recreates the warm textures and rich bass characteristic of the Oberheim synths that shaped the history of electronic music.

Powerful modulations

Explore innovative sound textures with advanced modulation options: linear FM, Through-Zero modulation and more. These features open the door to limitless creativity.

Intuitive controls

The layout of buttons and parameters on the TEO-5 Desktop front panel mirrors that of the keyboard version, providing direct access to essential settings. So you can sculpt your sound on the fly without complex menus.

Easy integration into your studio

Designed for musicians with limited space, TEO-5 Desktop slips easily into any configuration. It's a powerful and flexible addition to any creative studio.

Presets and built-in memory

Access the same sound banks as the keyboard version, with carefully designed presets ready to use or modify as you wish. Ideal for moving quickly from inspiration to production.

Expert advice

A compact module that retains all the power of Oberheim sound.
Perfect for live or studio setups thanks to its portability and intuitiveness.

Technical sheet

Number of keys Less than 49 keys
Touch Semi-light touch
Type of synthesizer Numerical modeling

Type
- 5-voice polyphonic synthesizer with VCO/VCF
Oscillators
- Two analog VCOs per voice
- Waveforms: triangle, sawtooth, variable pulse
- Oscillator 1 synchronizable to oscillator 2
- X-Mod control for linear FM synthesis
- Keyboard tracking deactivated by oscillator
- Integrated white noise generator
Filter
- Variable-state SEM filter
- Continuous morphing between low-pass, notch and high-pass
- Keyboard tracking and velocity-sensitive envelope modulation
- Bipolar envelope level
Filter envelope
- 5-segment DADSR generator
- Velocity-modulated envelope level
- Assignable modulation destinations
Amplifier envelope
- 5-segment DADSR generator
- Velocity modulation
Low-frequency oscillators (LFOs)
- 5 waveforms: triangle, sawtooth, inverted sawtooth, square, random (sample & hold)
- Tempo synchronization
- Initial modulation level control
- Assignable modulation destinations
Modulation matrix
- 19 slots, 19 sources, 64 destinations
- Flexible architecture, including audio modulations
Analog behavior
- Vintage potentiometer: simulation of classic analog components
Aftertouch
- Mono aftertouch with bipolar control
- Assignable destinations
Clock
- Internal clock with tap tempo
- Tempo display
- MIDI synchronization
Arpeggiator
- Divisions: sixteenth note to dotted quarter note
- Range: 1 to 3 octaves
- Modes: ascending, descending, round-trip, random, play order
Sequencer
- Polyphonic step-by-step sequencer with up to 64 steps
- Link function and silences included
Integrated effects
- Reverb: size, pre-delay, decay, timbre settings
- Multi-effects: stereo delay, BBD, tape, chorus, flanger, vintage rotary, distortion, Lo-Fi, phase shifter, ring modulator
- Dedicated overdrive
Playing controls
- Hold switch
- Polyphonic glide
- Monodic unison (1 to 5 voices, multiple modes)
- Deactivatable "Factory" mode
Patch memory
- 256 user presets + 256 factory presets
- 32 banks of 16 programs
- Direct access to 16 active programs

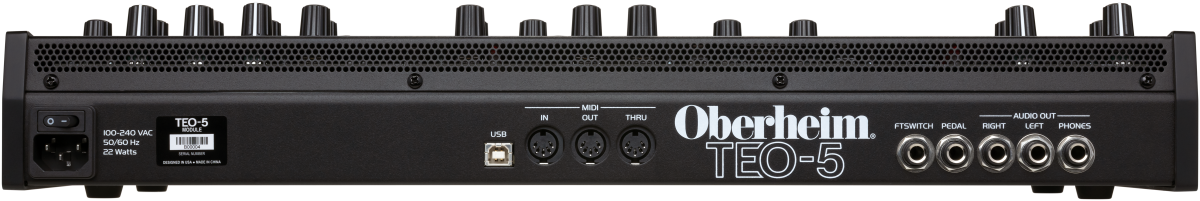

Connection
- L/R audio outputs (6.35 mm jacks)
- Stereo headphone output (6.35 mm jack)
- MIDI In/Out/Thru, USB MIDI
- Expression pedal input
- Sustain pedal or footswitch input
Power supply
- IEC connector, internal power supply
- Voltage: 100-240 V, 50/60 Hz
- Power consumption: 14 W max.
Dimensions and weight
- Dimensions: 53.3 × 17.8 × 8.9 cm
- Weight: 3.08 kg
