Preamp

The Warm Audio JUDE-MP2 is the ideal microphone preamp for sound engineers looking for vintage audio quality in their studio.

Overview

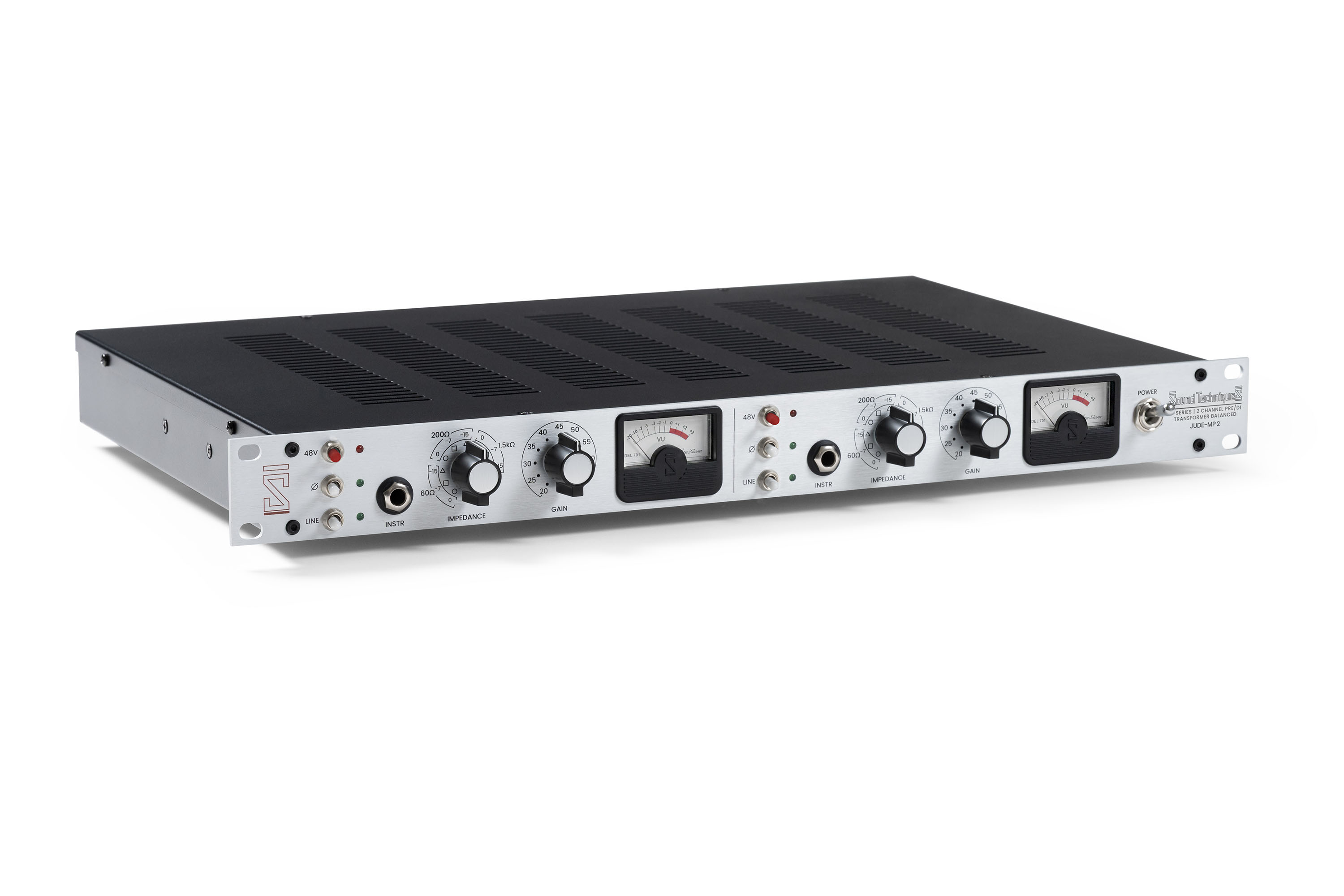

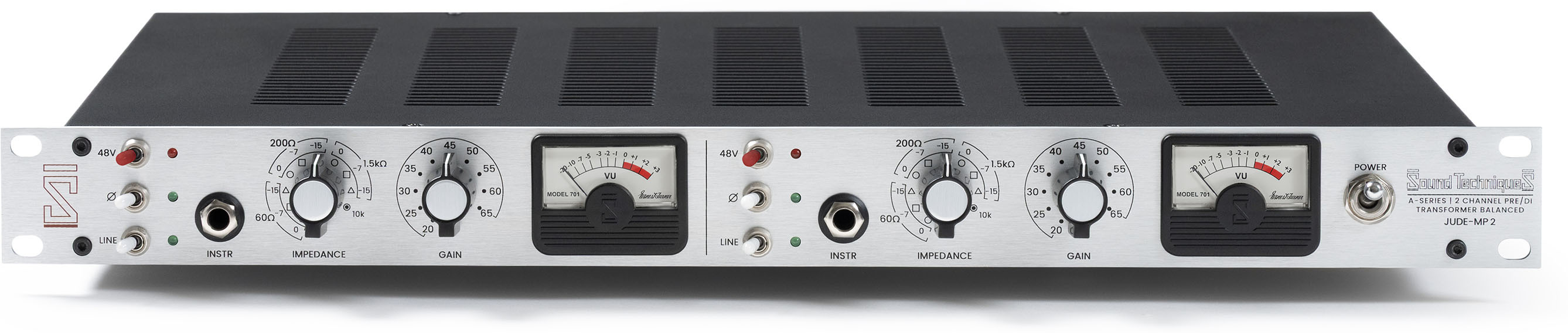

The Warm Audio JUDE-MP2 is a two-channel microphone preamp inspired by the famous A-Range consoles of the 1960s and 1970s. Designed in collaboration with Sound Techniques, this unit delivers a rich, musical sound suitable for a variety of audio sources, including vocals, guitars, pianos, drums, and stereo recordings.

High-End Design for Exceptional Sound

Each channel of the JUDE-MP2 features a 3035 discrete Class A amplifier paired with custom-wound CineMag USA transformers. This combination delivers unmatched sound quality.

Z-Match control for precise performance adjustment

The JUDE-MP2 preamp features an independent 9-position Z-Match control on each channel. This allows you to modify the interaction between the microphone and the preamp by adjusting the input impedance, offering total flexibility in setting gain, transient response, frequency balance, and harmonic character, depending on the microphone and source being used.

Comprehensive Features for Versatile Recording

The JUDE-MP2 offers up to 76 dB of gain per channel and includes 48 V phantom power, polarity reversal, a line-level switch, and analog VU meters. These features make it a comprehensive tool for mono, dual-mono, or stereo studio recordings.

Technical sheet

Type of preamp Transistor

Type
- Type: Dual-channel microphone preamplifier
Technical Specifications
- Number of channels: 2
- Circuit: Sound Techniques A-Range
- Amplification: Dual-discrete 3035 Class A circuit on each channel
- Z-Match: Independent 9-position impedance selector on each channel
- Input gain: Variable depending on the Z-Match setting
- Preamp gain: 65 to 76 dB per channel (40 Ω source impedance)
- Microphone input impedance: 60 Ω / 200 Ω / 1.5 kΩ
- Input transformers: Custom-wound CineMag USA, 3 impedances
- Output transformers: Custom-wound CineMag with high-purity nickel cores
- Capacitors: Audio-grade Nichicon and Wima
- EIN: -128 dBu (A-weighted)
- Self-noise: -99 dBu (A-weighted)
- THD: 0.008%
- Frequency response: 10 Hz – 25 kHz (+/- 2 dB)
- Phantom power: 48 V
- Polarity reverser: Yes
- Line-level switch: Yes
- Level indicators: Analog VU meters

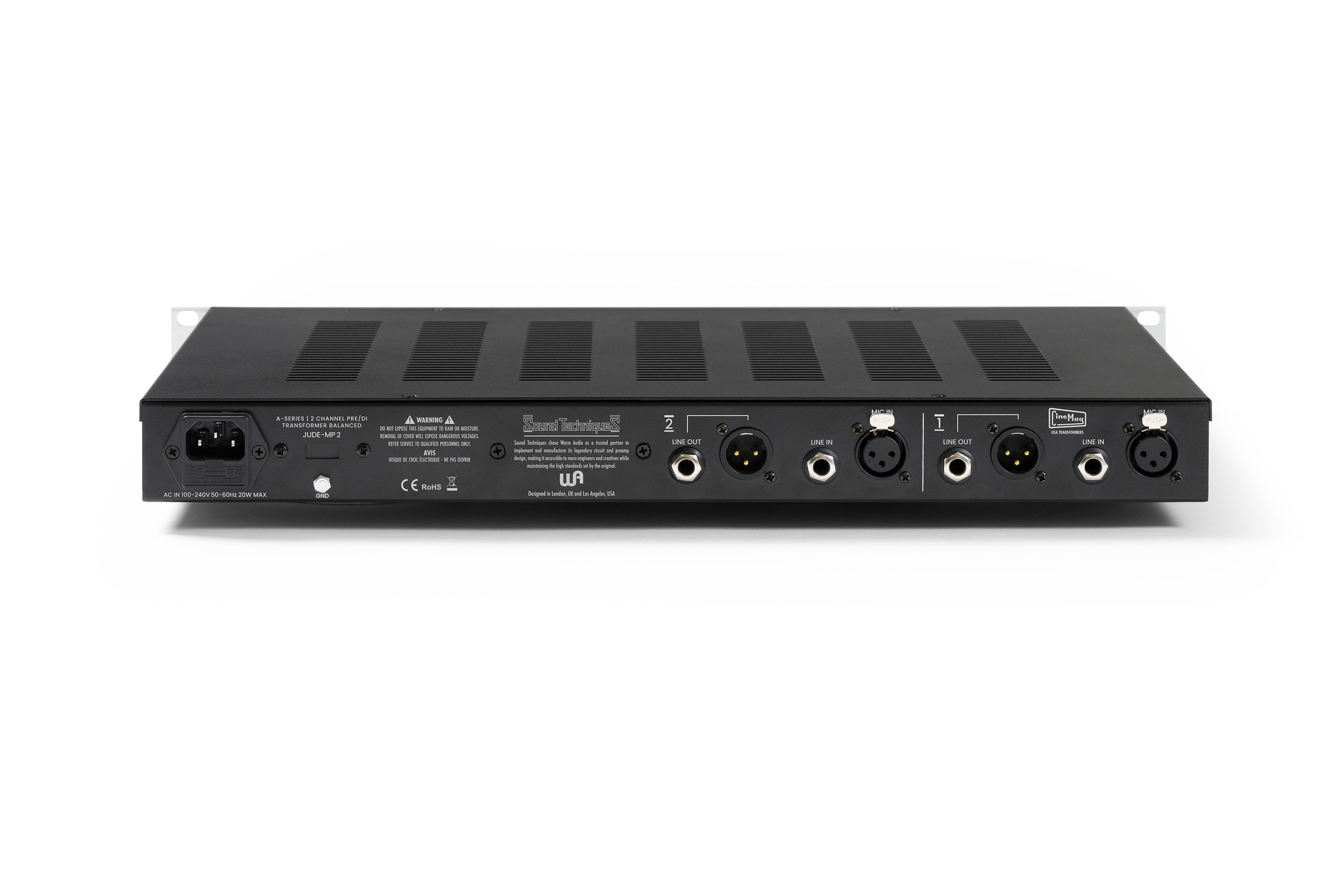

Connections
- Microphone inputs: XLR
- Jack inputs: 6.35 mm TS/TRS jacks
- Outputs: XLR and 6.35 mm TRS line-level jacks
Dimensions & Weight
- Dimensions: 483 x 44 x 305 mm
- Weight: 5.22 kg
- Front Panel: Aluminum
- Chassis: Steel
- Format: 19-inch rack / 1U
