Description

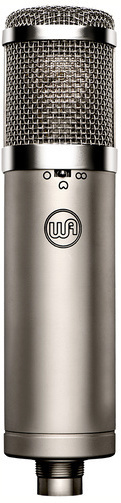

The WA-47jr is an FET transformerless version of the highly renowned classic ‘47 microphone that has been used on countless hit records for the last 50+ years. The WA-47jr is fully discrete, has 3 polar patterns and is designed for pro studio, home studio, live, and broadcast applications. The WA-47jr sounds great on vocals, acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass/woodwind instruments, and an array of other sources.
Lire la suite
Technical sheet
- FET transformerless '47 style condenser microphone.
- Custom true '47 capsule reproduction (k47 style) - Model# WA-47-B-80v.
- Capsule makeup: Gold sputtered, dual large diaphragm, single backplate, 6 microns NOS mylar (PET film).
- Fully discrete signal path, Toshiba FET’s, Wima film capacitors, Panasonic electrolytic capacitors.
- Polar Patterns: Cardioid, figure-of-eight, and omnidirectional.
- High-pass filter: 70Hz
- Pad: -10db
- Self-noise: 9dBA
- Dynamic range: 138dBA
- Maximum SPL: 147/157dB (@1kHz 1kOhms 0.5% THD, 0/-10dB)
- Frequency Range: 20 Hz~20 kHz
- Sensitivity: 10mV/Pa or -40dB
- Output Impedance: 100 ohms
- Rated Load Impedance: ?1kOhms
- Maximum output: 16dBu @1kHz, 1kOhms, 0.5% THD
- S/N Ratio: 85dBA (IEC651)
- Equivalent Noise: 9dBA (IEC651)
- Dynamic Range: 138dBA (IEC651)
- 48v phantom powered
- 3-Pin Gold-Plated XLR
- Includes: Shockmount, hardmount, zipper storage pouch
- Nickel Plated
- Weight: 1.1 lbs
- Diameter: 52mm
- Length: 210mm
