Warm audio WA76-A2

  • Read reviews (0)
  • Related accessories
  • Similar products

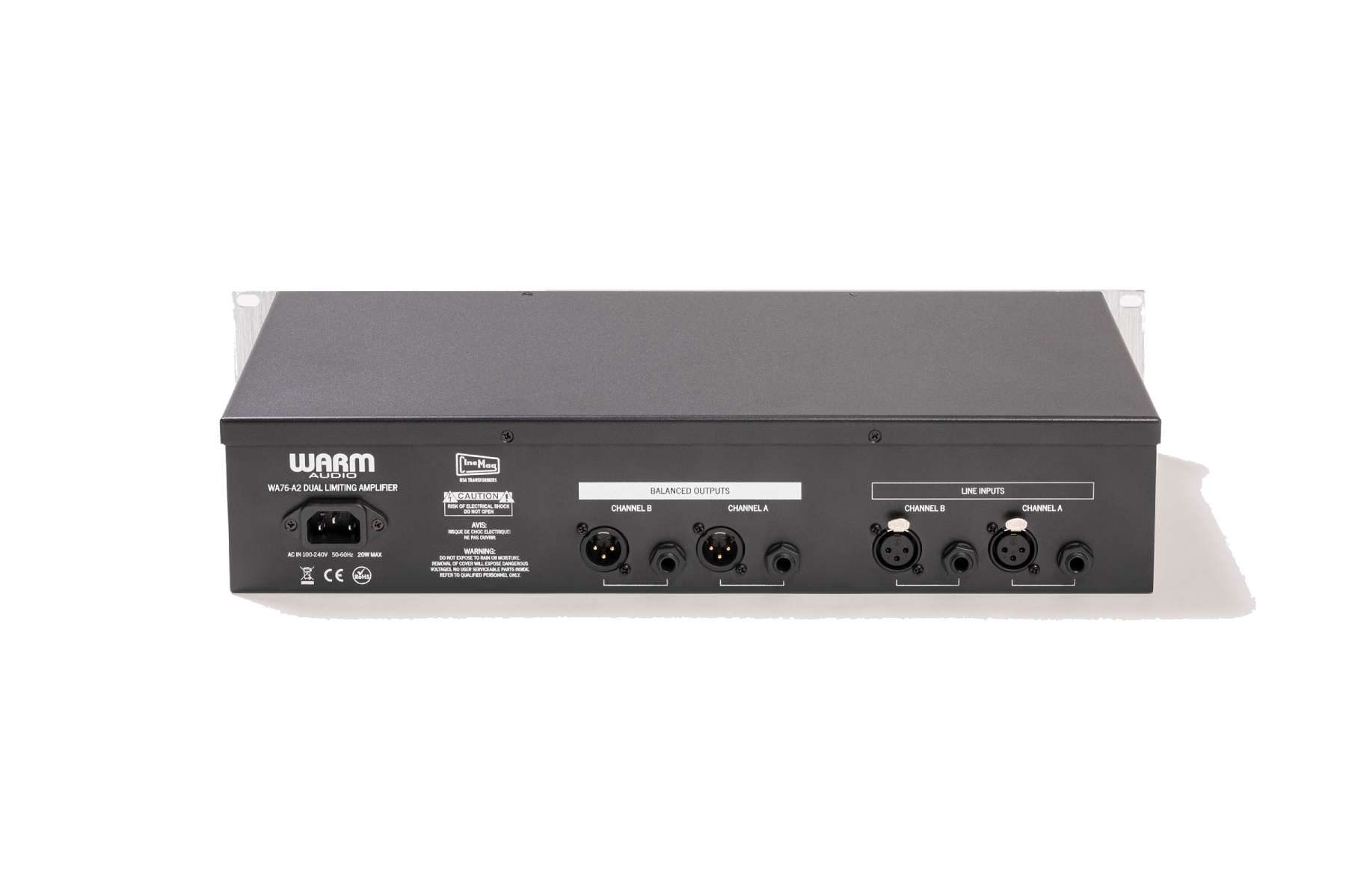

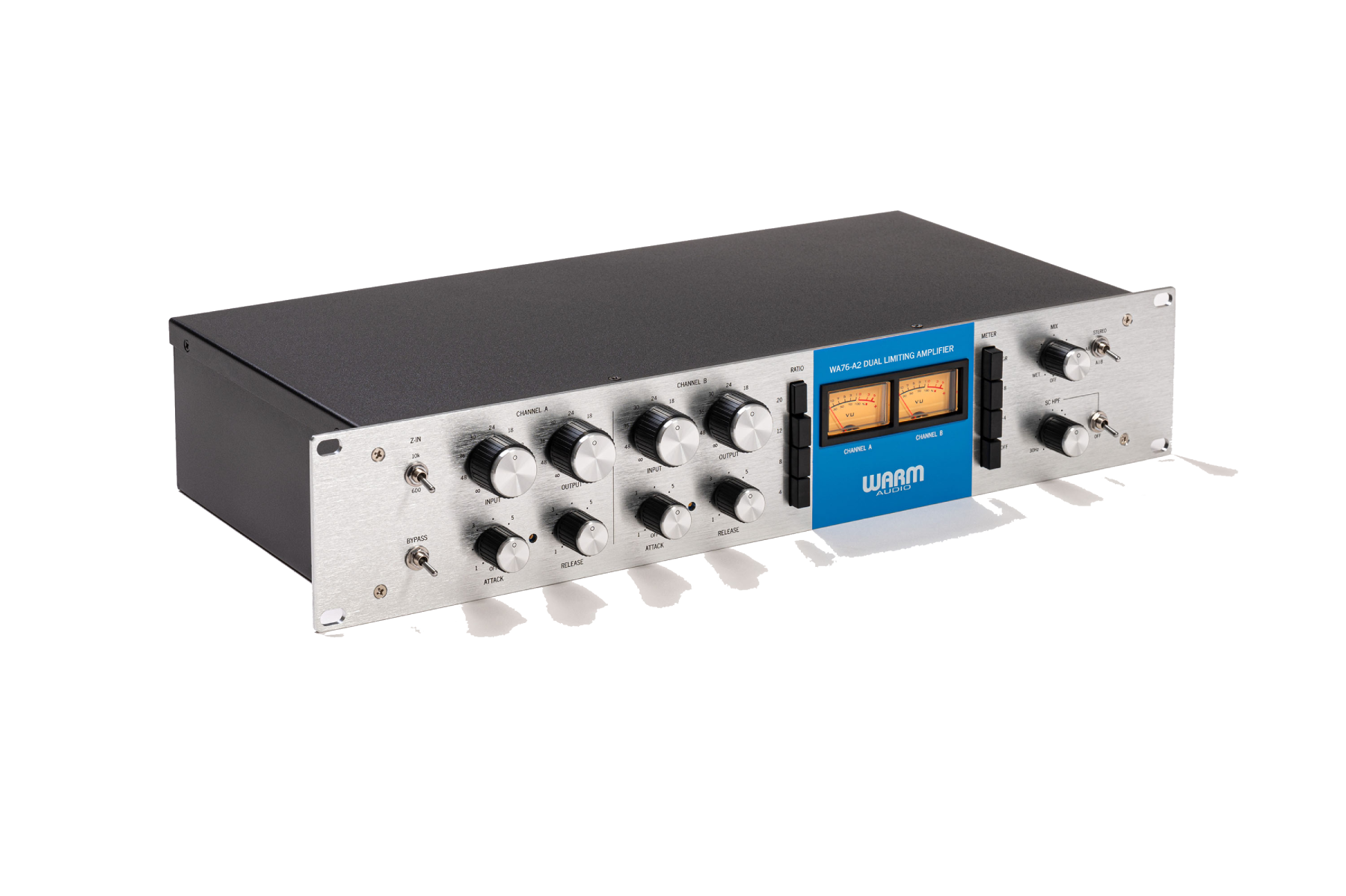

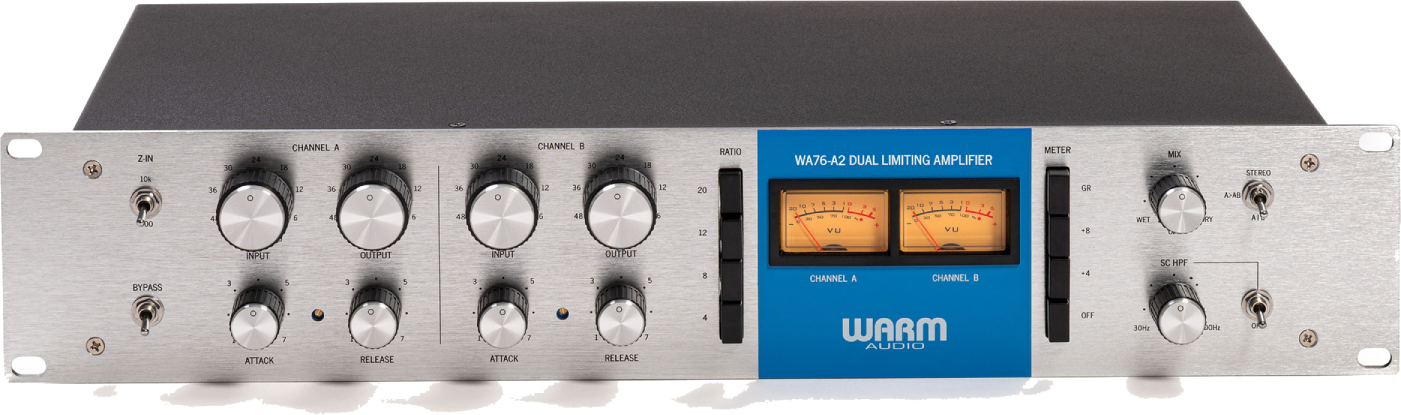

  • Warm Audio Wa76-a2 - Kompressor Limiter Gate - Main picture
  • Warm Audio Wa76-a2 - Kompressor Limiter Gate - Variation 1
  • Warm Audio Wa76-a2 - Kompressor Limiter Gate - Variation 2
  • Ref : 114558
1349,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
In stock
shipped under 2/3 days
Stock in store
Not available in store

The brand Warm audio

Learn more about the Warm audio brand and discover the entire catalog.

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Kompressor limiter gate

The WA76-A2 is the 2-channel version of the WA76-A, with 3 operating modes: Stereo Linked | Primary:Secondary | Dual-Monoun offered by the Warm Audio brand.

The WA76-A2 faithfully reproduces one of the fastest and most powerful studio compressors, renowned for its striking attack response, precise dynamics control and characteristic grain.

Using high-end components such as the CineMag O-12 (input) and 5002 (output) transformers, the WA76-A2 captures the essence of the “blue stripe” compression, renowned for the inimitable analog grain of its preamp. Modern features have been added, including parallel compression, bypass, selectable input impedance and flexible side-chain options.

Ideal for adding a vintage touch to contemporary recordings, the WA76-A recreates the iconic sound of studios frequented by Jack White, The Beatles, David Bowie, Led Zeppelin and many more.
Lire la suite

Technical sheet

  • 3 operating modes
    • Stereo Linked | Primary:Secondary | Dual-Monoun
  • VU meter
    • Options: gain reduction, +8 dB output, +4 dB output, "Off" mode to deactivate device
  • Output amplifier
    • Class A line level
  • Signal path
    • Fully discrete audio
  • Transformers
    • CineMag USA input and output transformers (models O-12 input and 5002 output)
  • Input impedance
    • Selectable: 600 Ω or 10 kΩ to optimize compatibility with modern audio interfaces
  • Mixing function
    • Possibility of mixing dry and processed signals
  • High-pass filter
    • Variable for side-chain: from 30 to 300 Hz, 12 dB/octave slope
  • Inputs and inserts
    • Stereo link and insert inputs on 6.35 mm jacks
  • Bypass
    • Active bypass for use as a line amplifier and True Bypass option for A/B comparison
  • Attack settings
    • From 20 microseconds to 800 microseconds
  • Release settings
    • From 50 ms to 1.1 s
  • Compression ratios
    • 4:1, 8:1, 12:1, 20:1 and "All-Buttons-In" mode for limiting function
  • Frequency response
    • ± 1 dB from 20 Hz to 20 kHz
  • Connections
    • Balanced on XLR and TRS jacks
  • Total gain
    • 58 dB
  • Signal-to-noise ratio (SNR)
    • 84 dB
  • Total harmonic distortion (THD)
    • -58 dB (at -18 dBu)
  • Format
    • 19" 2U rack
