Kompressor limiter gate

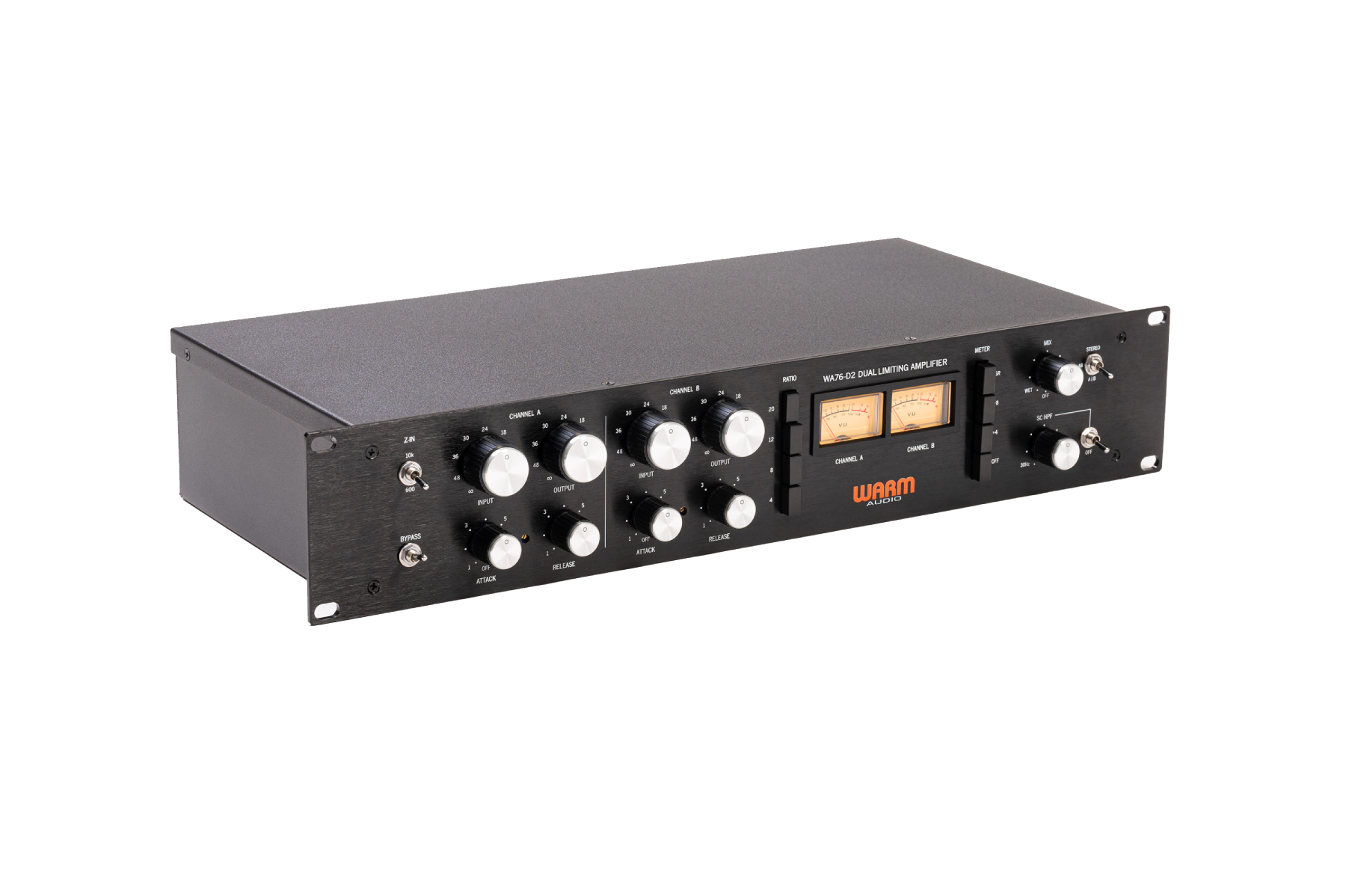

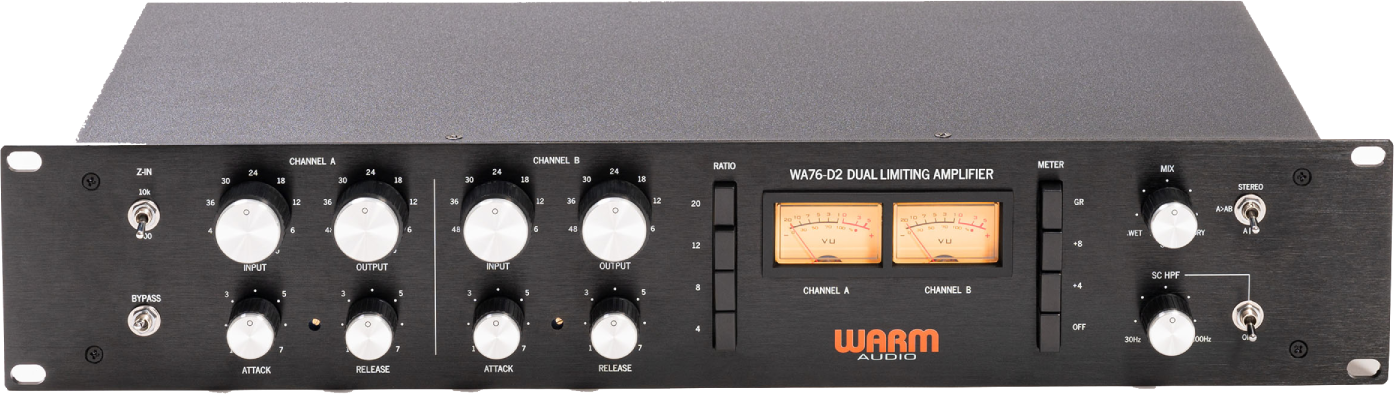

The WA76-D2 is the 2-channel version of the WA-76-A, with 3 operating modes: Stereo Linked - Primary / Secondary - Dual-Mono. It is a faithful reproduction of the analog FET compressor "Revision D" with additional recording features offered by the Warm Audio brand.
The WA76-D2 accurately reproduces one of the most legendary studio compressors, renowned for offering generous headroom, ultra-fast dynamic control and rich sonic texture.
Thanks to the use of high-quality components such as CineMag's O-12 input and 5002 output transformers, the WA76-D reproduces the famous 76 Rev-D compression, known for its low-noise preamp and unique analog character.
Modern controls have been incorporated, including parallel compression, bypass, input impedance selection, and flexible sidechain options.
Ideal for adding a vintage touch to contemporary recordings, the WA76-D2 recreates the iconic sound adopted by artists and producers such as Chris Lord-Alge, Missy Elliott, Timbaland, Van Halen, Rick Rubin, and Daft Punk.
The WA76-D2 accurately reproduces one of the most legendary studio compressors, renowned for offering generous headroom, ultra-fast dynamic control and rich sonic texture.
Thanks to the use of high-quality components such as CineMag's O-12 input and 5002 output transformers, the WA76-D reproduces the famous 76 Rev-D compression, known for its low-noise preamp and unique analog character.
Modern controls have been incorporated, including parallel compression, bypass, input impedance selection, and flexible sidechain options.
Ideal for adding a vintage touch to contemporary recordings, the WA76-D2 recreates the iconic sound adopted by artists and producers such as Chris Lord-Alge, Missy Elliott, Timbaland, Van Halen, Rick Rubin, and Daft Punk.
Lire la suite
Technical sheet
- Version
- 2-channel WA-76-A
- Operating modes
- Stereo Linked - Primary / Secondary - Dual-Mono
- Vumeter
- Gain reduction, +8 dB output, +4 dB output, "Off" mode for switching off the unit
- Output amplifier
- Class A for optimum line level
- Audio signal path
- 100% discrete
- Transformers
- Input CineMag USA O-12, Output CineMag USA 5002
- Input impedance
- Selectable (600 Ω or 10 kΩ)
- Mixing
- Mixing between dry and compressed signals
- High-pass filter
- Variable on side-chain (30-300 Hz, 12 dB/octave slope)
- Inputs
- Stereo Link and insert on 6.35 mm jack
- Bypass
- Active for use as a line amplifier, True Bypass option for A/B comparisons
- Attack time
- Adjustable from 20 microseconds to 800 microseconds
- Release time
- From 50 ms to 1.1 s
- Compression ratios
- 4:1, 8:1, 12:1, 20:1, and "All Buttons In" mode for limiter effect
- Frequency response
- ±1 dB from 20 Hz to 20 kHz

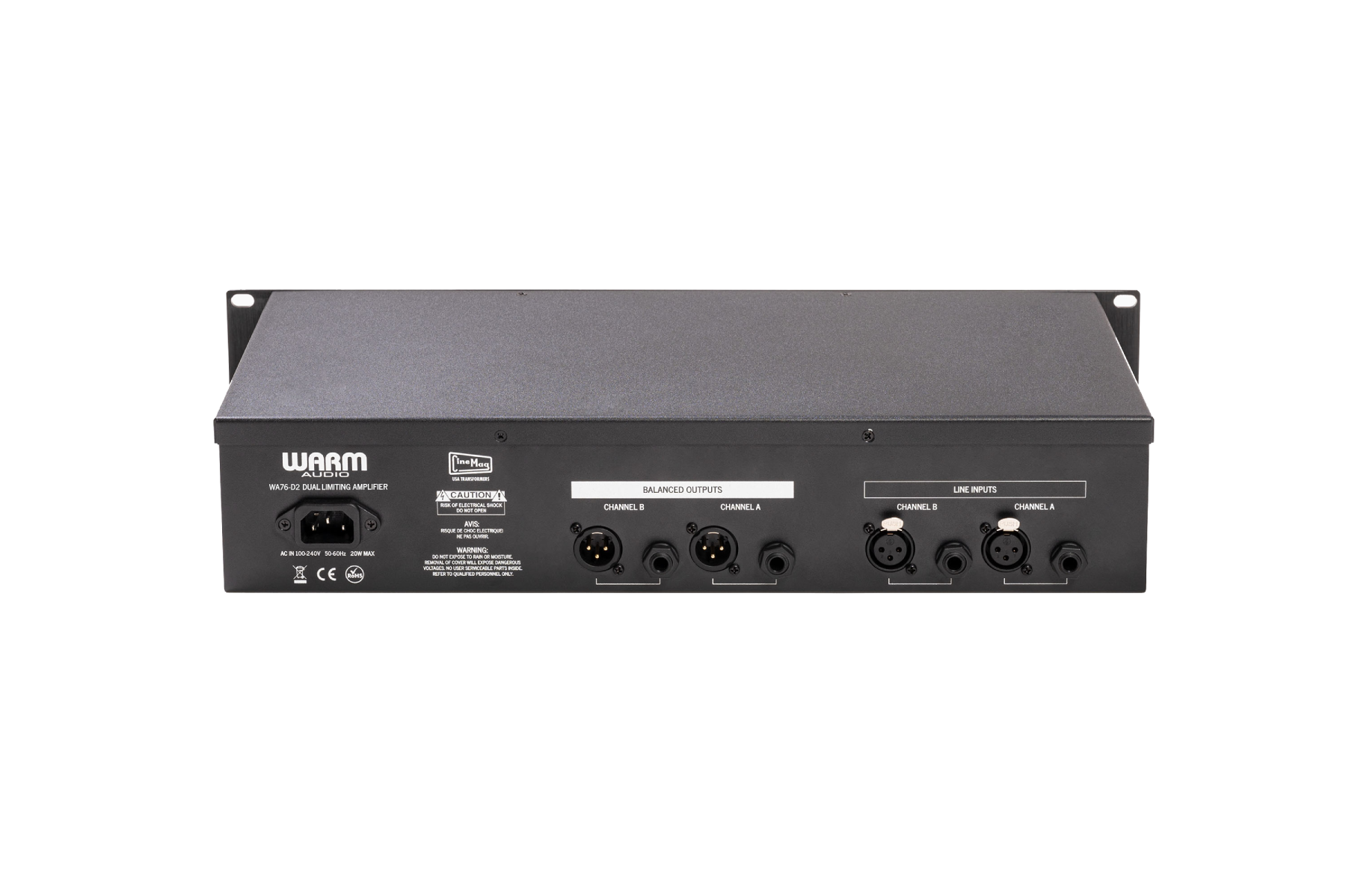

- Connections
- Balanced on XLR and TRS jacks
- Maximum gain
- 53 dB
- Signal-to-noise ratio (SNR)
- 86 dB
- Total harmonic distortion (THD)
- -64 dB (at -18 dBu)
- Format
- 19" 2U rack
