Yamaha DBR15

Name: DBR15
Brand: Yamaha
SKU: 37942
Availability: InStock
Rating: 4.7 (4 reviews)

Read reviews (4)
Related accessories
Similar products

VIDEO

844.80 €

619,00 €

Free delivery
Low prices guaranteed
Satisfied or refunded
4 Years warranty
Ref : 37942

In stock

1 piece available.

shipped under 3/5 days

Stock in store

Not available in store

Other version(s) or associated product(s)

The brand Yamaha

Learn more about the Yamaha brand and discover the entire catalog.

Discover

How to choose your PR System Buying guide

Power, loudspeaker size, price, efficiency, dimensions, passive or active version... Choosing a loudspeaker is no easy task! In this guide, you will find several ways to help you make your choice acco

To consult

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

Active full-range speaker

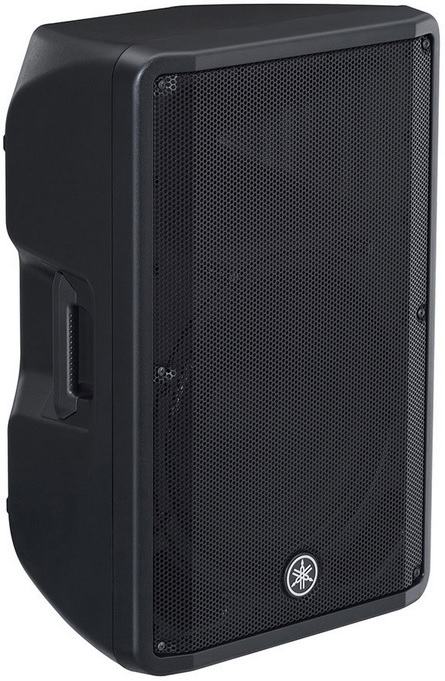

Active full-range speaker YAMAHA Dbr15.

Technical sheet

PA power speaker 301 to 600 watts RMS

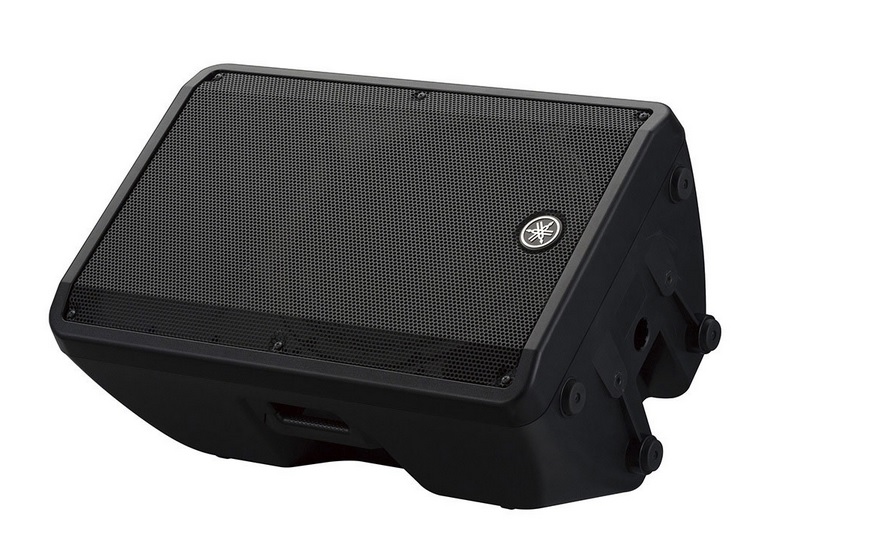

Type of PA speaker Stage & FOH monitor

2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) 50Hz – 20kHz
Crossover 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Output power Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
Maximum output level (1m; on axis) 132dB SPL

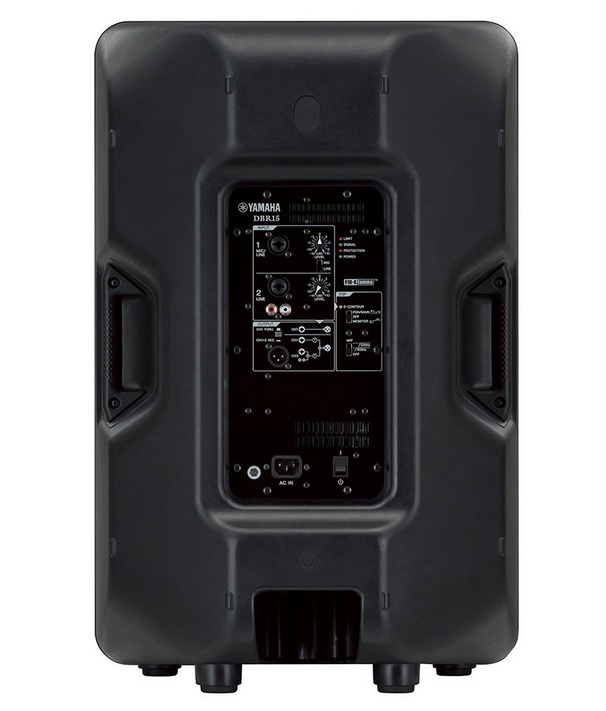

I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipation Fan cooling, 4 speeds
Power requirements 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power consumption 74W(1/8 Power Consumption), 18W(Idle)
Cabinet material Plastic
Finish Black
Handle Side x 2
Flying and mounting hardware Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)

More specifications

Fewer specifications

User reviews : 4 notice

4,7 5
