Analog mixing desk

The LiveTrak L6max is much more than just an audio mixer: it's an all-in-one recording, production and broadcast solution from Zoom.

Zoom LiveTrak L6max highlights

Audio mixer, multitrack recorder, 32-bit USB audio interface and MIDI controller in a single compact unit.
4 XLR/jack combo inputs with two Hi-Z inputs for guitar or bass, and 4 stereo line inputs with ?20 dB pad.
3-band EQ per channel with parametric mids, 2 AUX pre/post-fader sends and built-in effects (delay, reverb, echo with TAP tempo).
Multitrack recording (12 inputs + stereo mix) in 32-bit float / 48 kHz directly to SD card.
Multi-channel USB-C audio interface with 14 inputs and 4 outputs.

Zoom LiveTrak L6max Key Features

A versatile mixer

With its XLR/jack combo and stereo inputs, the L6max easily handles vocals, guitars, bass, synths or drum machines. It's equally suited to live performance and home studio recording.

Advanced multitrack recording

Simultaneously capture 12 inputs plus the stereo mix in 32-bit float for distortion- and clipping-free sound. The bounce function frees up space to continue recording while keeping your projects intact.

High-performance USB audio interface

Connected via USB-C, the L6max becomes a multi-channel audio interface with 14 inputs and 4 outputs. Ideal for working with a computer, smartphone or DAW.

Integrated effects and sound processing

Each track features 3-band EQ, compressor and internal effects (reverb, delay, echo with TAP tempo). Mixing quality is professional, with total control over your takes.

Control and comfort

Enjoy 2 independent headphone outputs with custom mixes, assignable pads for jingles and samples, plus AI noise reduction for optimum vocal clarity.

MIDI compatibility

Easily synchronize your instruments, sequencers and software with MIDI in/out connections. The L6max becomes a true music production hub.

L6 Editor application

With the free L6 Editor application (Mac/Windows), you can customize your effects, pads and routings for tailor-made configuration.

Expert advice

Complete, intuitive solution for live, podcast and home studio use.
32-bit float audio quality guarantees uncompromisingly professional results.

Technical sheet

Mixer connectivity USB
Number of channel mixing desk 10 to 22 channels
Number of channels 12 channels

Zoom LiveTrak L6max
- Digital mixer - Audio interface - Multitrack recorder
Channels
- 12 channels: 2 mic/line (mono), 4 line (stereo), 2 AUX send (mono), Master (stereo), Monitor (stereo)
Pads
- 4 assignable pads with volume control
Recording
- Internal recording of up to 14 tracks (12 tracks + stereo master)
Main outputs
- 1 master output on 2x 6.35mm TRS jacks
Auxiliary outputs
- 2 AUX sends on 6.35mm mono jacks
Headphones
- 1 monitor headphone output on 6.35mm stereo jack with independent volume control
- 1 additional SUB-OUT headphone output with Master or Sub-mix listening selector
Playback
- Simultaneous playback of 2 tracks
Effects
- 5 built-in effects: Delay, Echo, Spring, Room, Hall
Sampling frequency
- 48 kHz
Scene memories
- 4 memories available
Configuration options
- Stereo to 2x Mono switch on channels 3 and 4
- USB return switch on channels 5 and 6
Dynamic processing
- Compressor on master output with intensity control
- Vumeter from 0 to -48 dB
Audio interface
- 32-bit USB interface with 14 inputs and 4 outputs
Connections

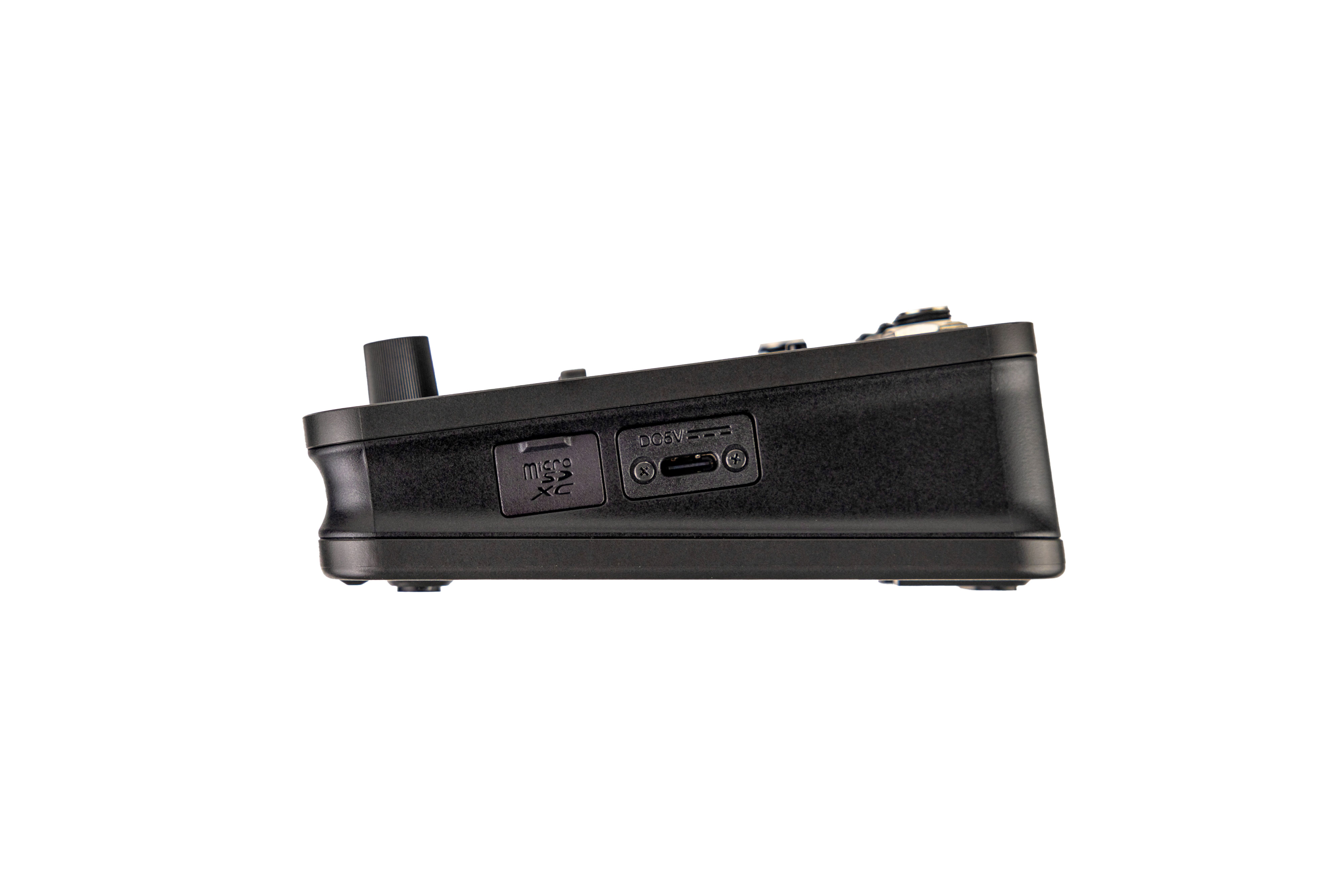

- USB 2.0 Type C port
- SDHC and SDXC card port up to 2 TB
Power supply

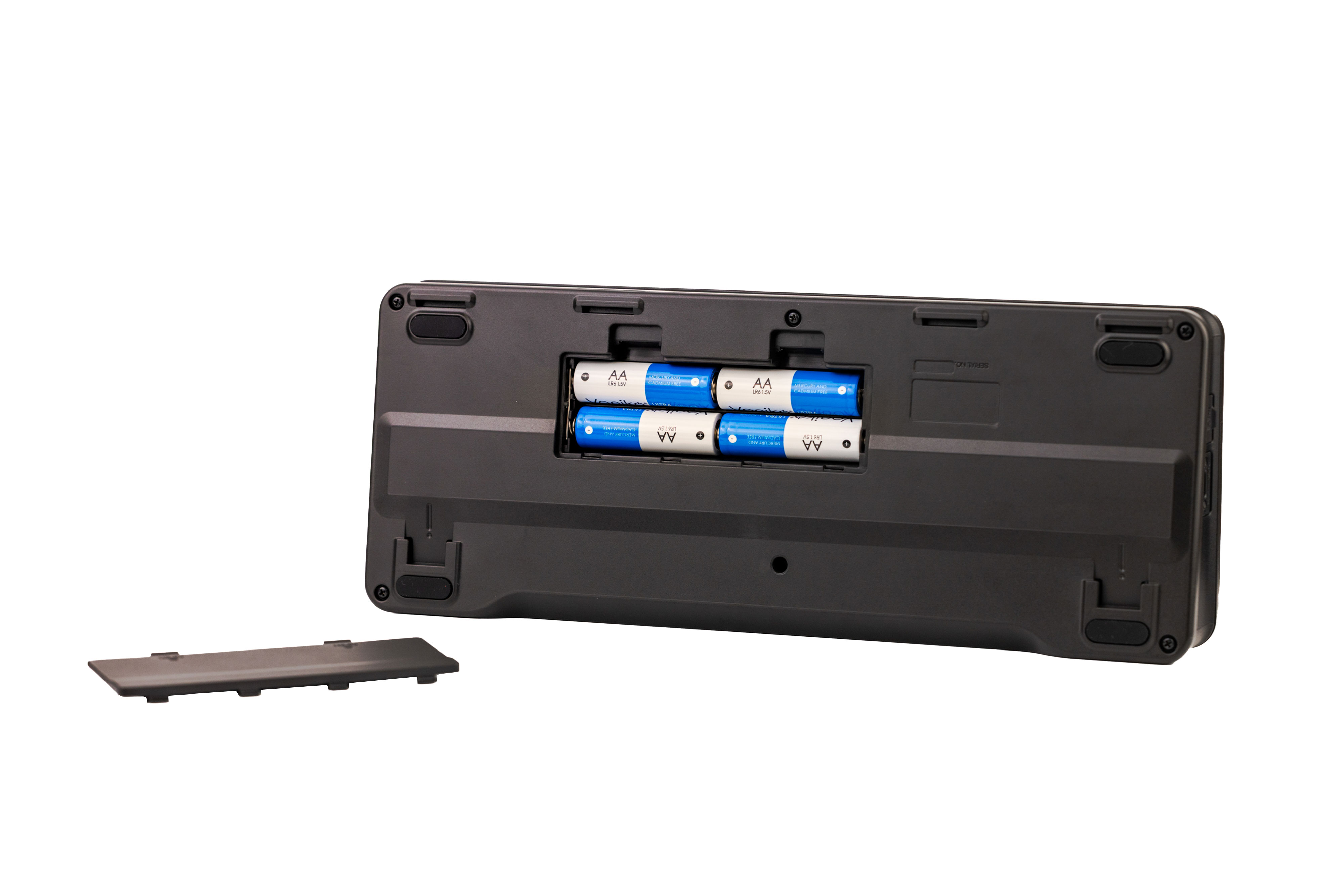

- 4 AA batteries (not included) or via USB port
Included accessories
- USB cable and AD-17 power adapter
Dimensions
- 284 x 114 x 46.5 mm
Weight
- 673 g (with batteries)
