Turntable

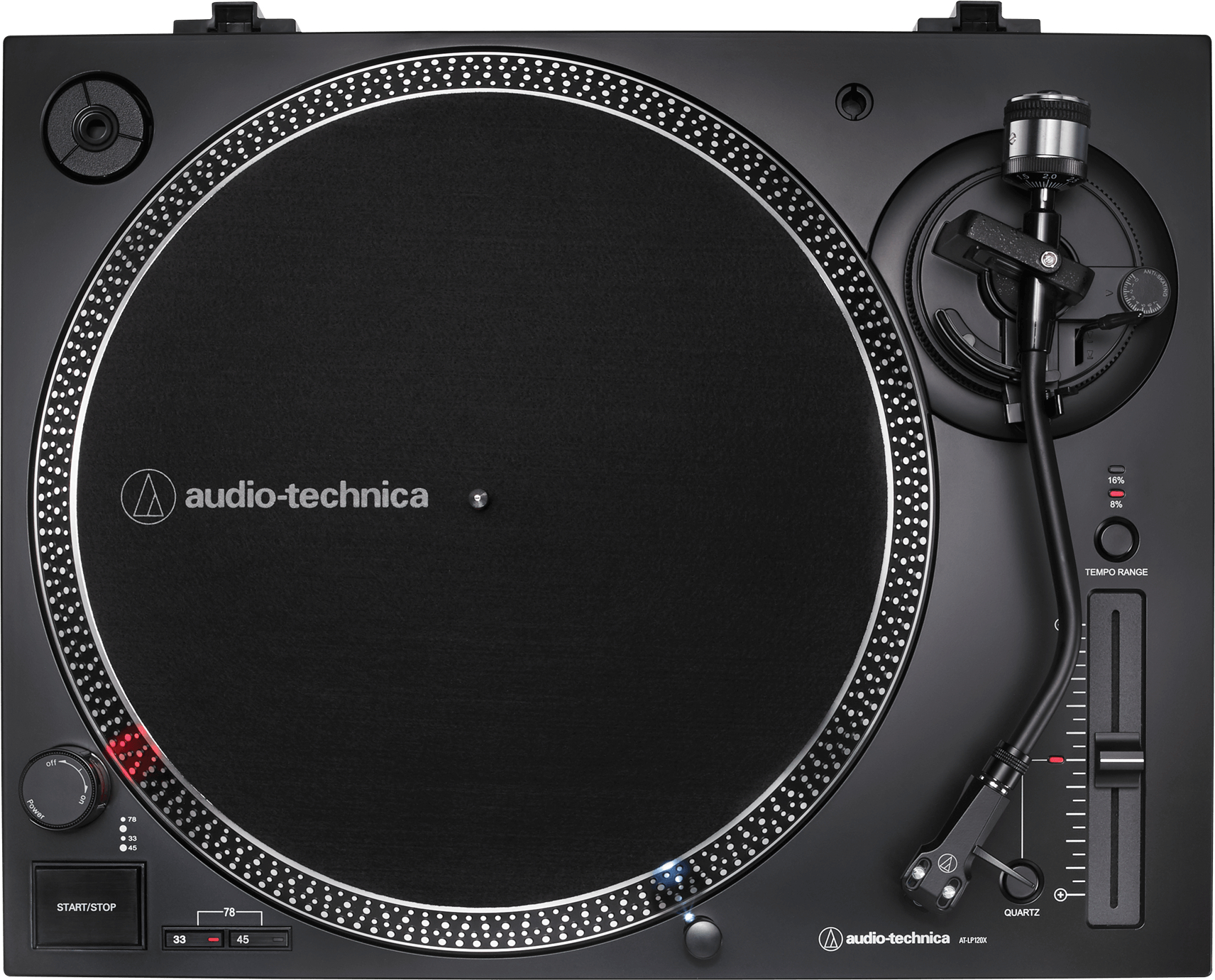

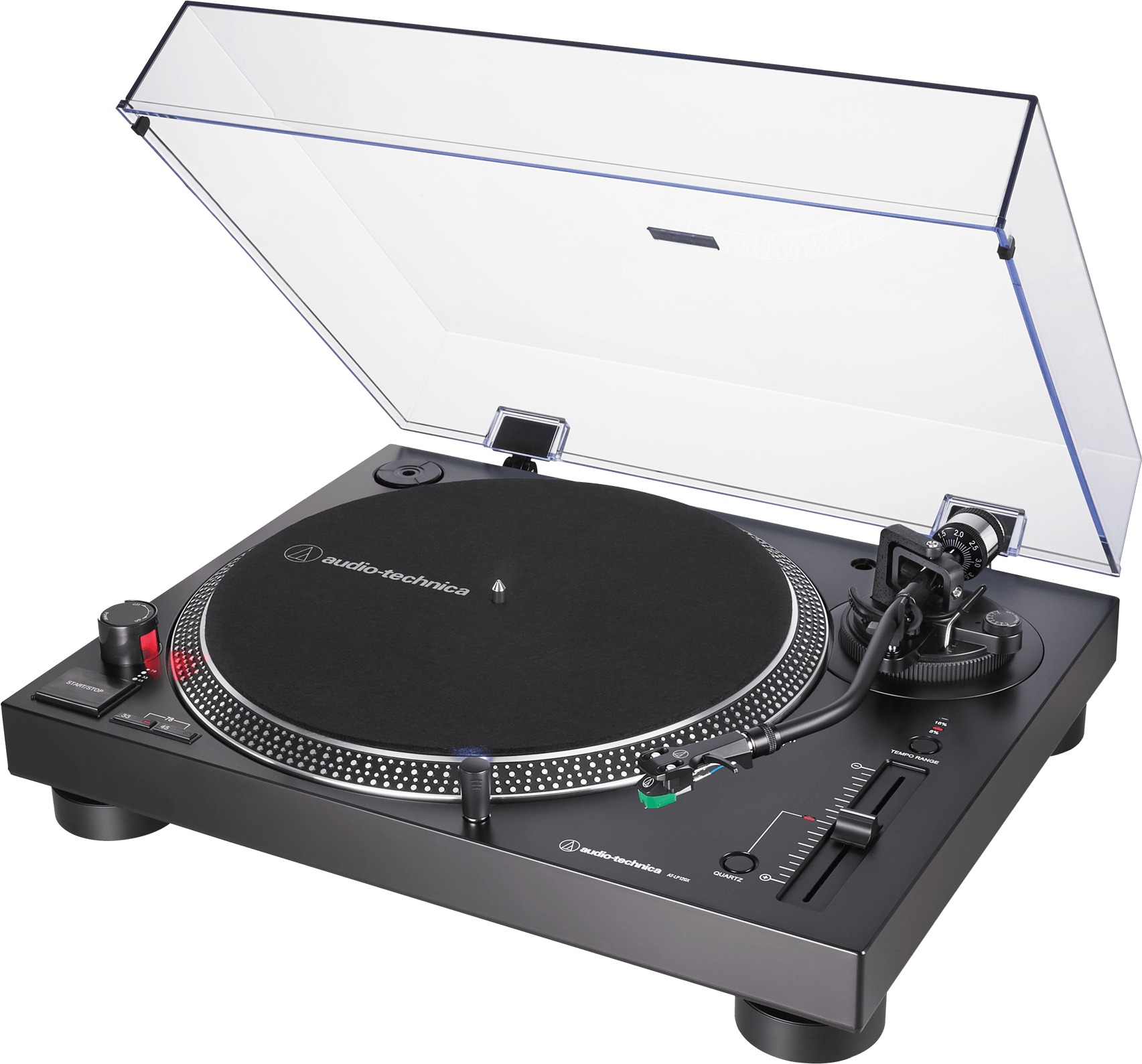

The Audio technica AT-LP120 XUSB BK is a turntable.
This updated version of the AT-LP120-USB record player features a new DC direct drive servo motor as well as an adjustable dynamic centripetal force compensation control and a selectable phono preamplifier.
The fully manual record player plays 33-1/3, 45 and 78 rpm records and is equipped with a USB output for direct connection to a computer.
Whether you use your home stereo system or your computer, the AT-LP120XUSB's professional controls let you define your high-fidelity listening experience.
This updated version of the AT-LP120-USB record player features a new DC direct drive servo motor as well as an adjustable dynamic centripetal force compensation control and a selectable phono preamplifier.
The fully manual record player plays 33-1/3, 45 and 78 rpm records and is equipped with a USB output for direct connection to a computer.
Whether you use your home stereo system or your computer, the AT-LP120XUSB's professional controls let you define your high-fidelity listening experience.
Technical sheet
- USB plug Yes
- Type of operation:3 speeds, fully manual operation.
- Motor: DC servo control
- Drive mechanism:Direct drive
- Speeds:33-1/3 rpm, 45 rpm, 78 rpm
- Disc: Cast aluminum
- Starting Torque >1.0 kgf/cm
- Brake System Electronic brake
- Speed Fluctuations <0.2% (WTD) at 3 kHz (JIS)
- Signal to Noise Ratio > 50 dB
- Output Level " PHONO " Preamplifier : 4 mV nominal at 1 kHz, 5 cm/s
- LINE " preamplifier: 240 mV nominal at 1 kHz, 5 cm/s
- Phono preamp gain 36 dB nominal with RIAA equalization
- USB A/D, D/A function - 16 bit/44.1 kHz or 48 kHz USB selectable;
- Computer Interface - USB 1.1 compatible with Windows 7 and higher, or MAC OS X and higher
- Power Requirements 100 to 240 V, 50/60 Hz, 1.5 A max.
- Dimensions 452.0 mm (W) x 352.0 mm (D) x 141.6 mm (H)
- Weight 8 kg, without dust cover

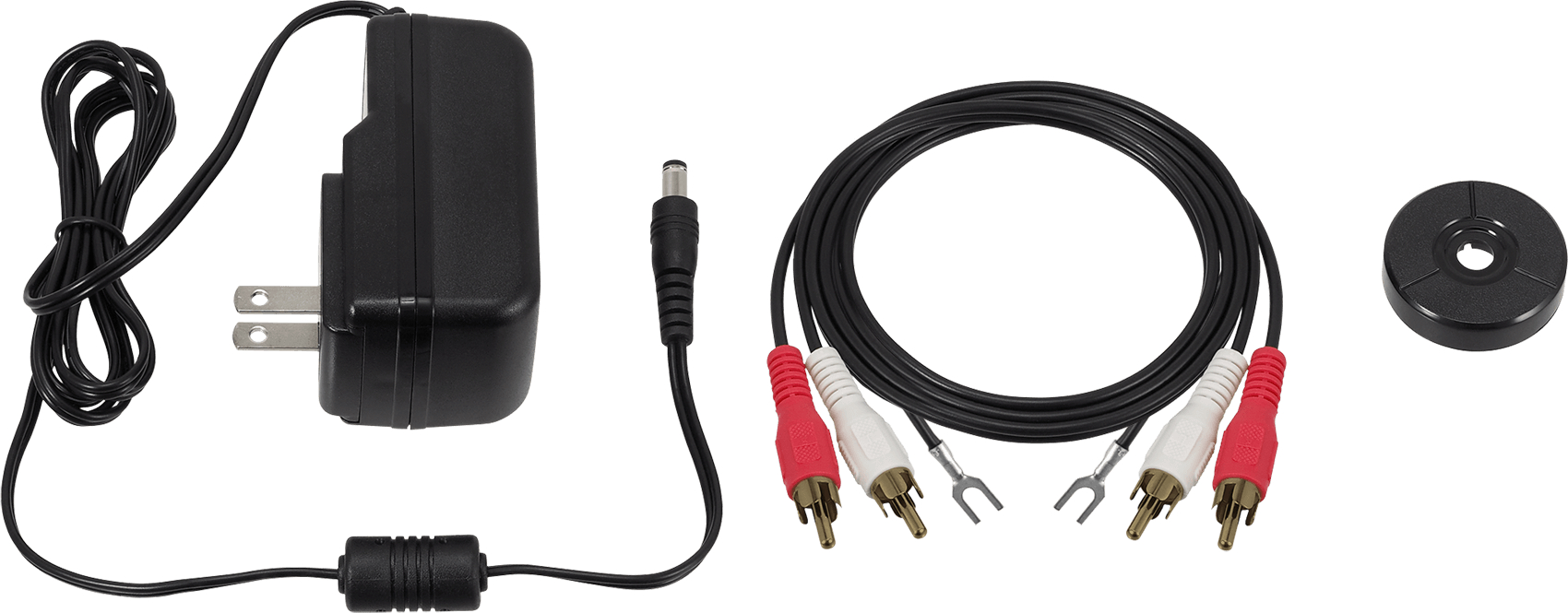

- Accessories Included AT-VM95E phono cell; AT-HS6 pickup; 1.9 m USB cable; dual RCA (male) - dual RCA (male) cable with ground wire; counterbalance; non-slip mat; dust cover; 45 rpm adapter; positioning light of
- Accessories Included AT-VM95E phono cartridge; AT-HS6 pickup; 1.9m USB cable; dual RCA (male) - dual RCA (male) cable with ground wire; counterbalance; non-slip mat; dust cover; 45RPM adapter; detachable plug-type stylus positioning light
- Notes Pick-up arm type: symmetrical S-shaped pick-up arm with removable pick-up head
- Effective arm length: 230.5 mm
- Overhang: 16 mm
- Track error angle: less than 3 degrees
- Applicable cell weight: 3.5-8.5 g
- Centripetal force range: 0-4 g
- Replacement stylus: AT-VMN95E
- System requirements for USB operation
- PC or Mac with available USB port (USB 1.1 or higher)
- Windows 7 or higher, or Mac OS X or higher
