Turntable

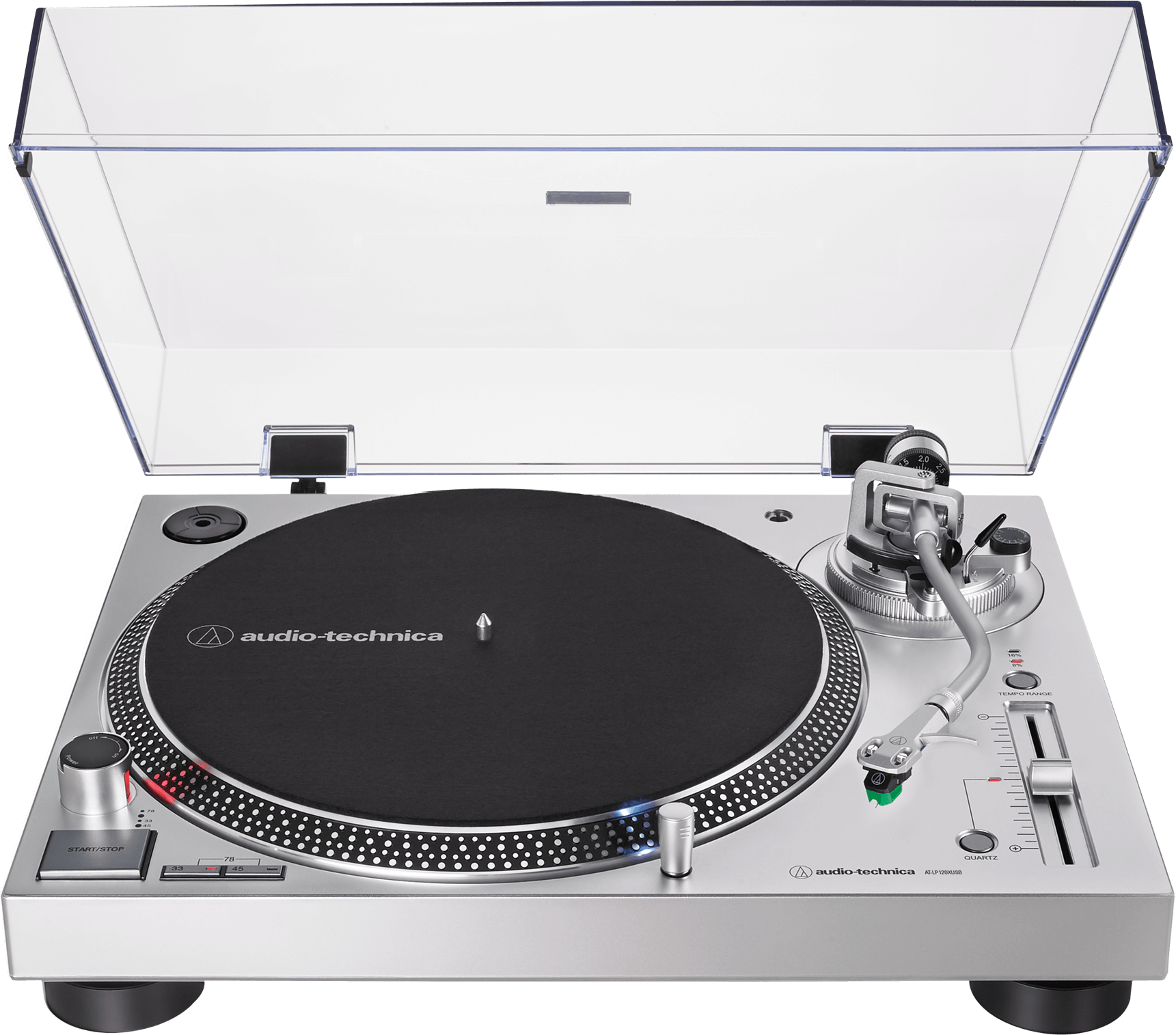

The Audio technica At-lp120x usb sv is a direct drive turntable.
This updated version of the AT-LP120-USB record player features a new direct-drive DC servo motor as well as an adjustable dynamic centre of gravity compensation control and a selectable phono preamplifier.
The fully manual record player plays 33-1/3, 45 and 78 rpm records and is equipped with a USB output for direct connection to a computer. Simply download the free Mac and PC compatible Audacity recording software (or any other software of your choice) to start converting records into digital audio files.

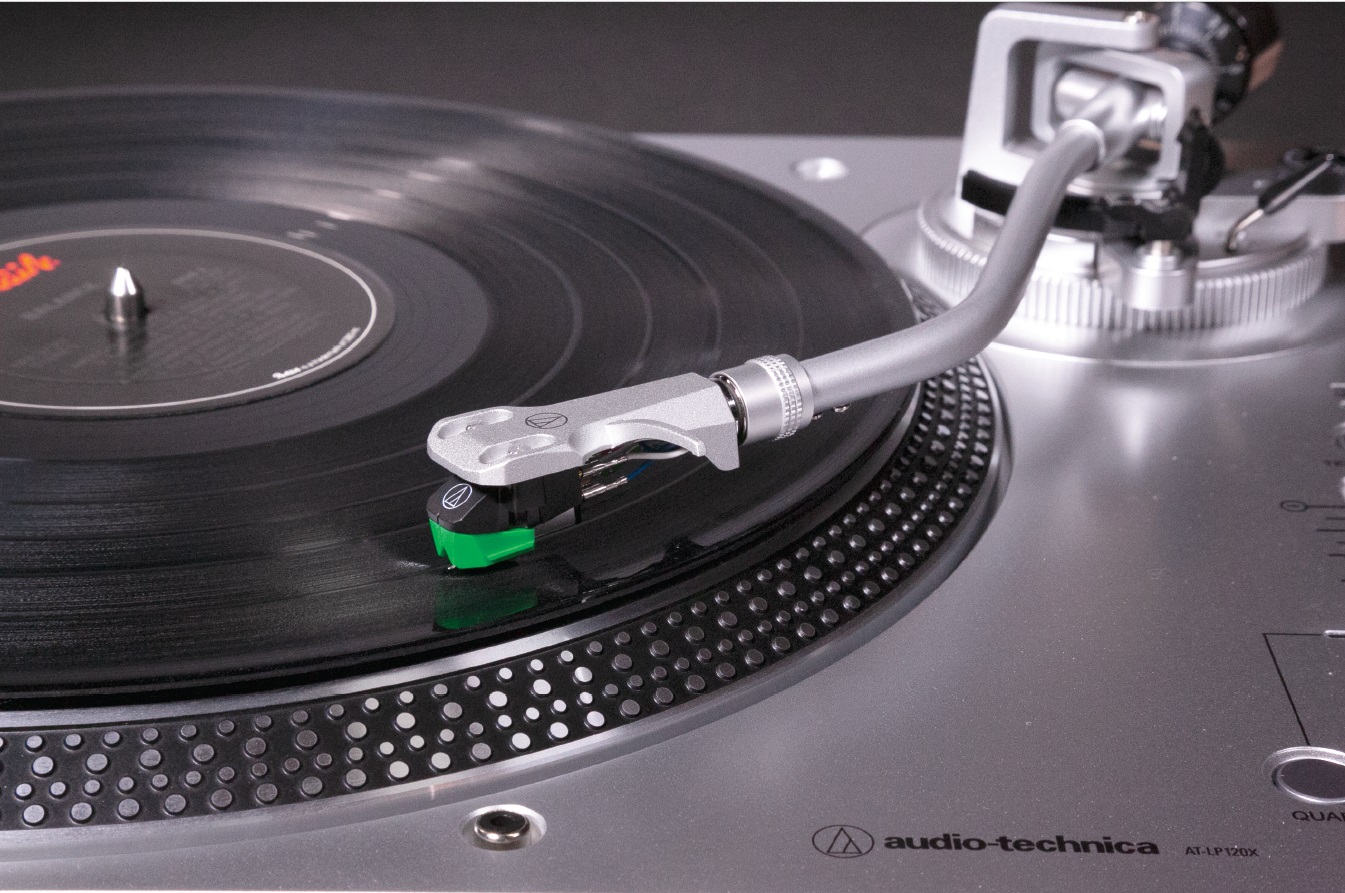

The record player features an S-shaped tone arm with adjustable pressure force and a universal ½" AT-HS6 pickup with AT-VM95E Dual Magnet™ phono cell.
This updated version of the AT-LP120-USB record player features a new direct-drive DC servo motor as well as an adjustable dynamic centre of gravity compensation control and a selectable phono preamplifier.
The fully manual record player plays 33-1/3, 45 and 78 rpm records and is equipped with a USB output for direct connection to a computer. Simply download the free Mac and PC compatible Audacity recording software (or any other software of your choice) to start converting records into digital audio files.
The record player features an S-shaped tone arm with adjustable pressure force and a universal ½" AT-HS6 pickup with AT-VM95E Dual Magnet™ phono cell.
Technical sheet
- USB plug Yes
- Type of operation 3 speeds, fully manual operation.
- DC servo motor
- Drive mechanism Direct drive
- Speeds 33-1/3 rpm, 45 rpm, 78 rpm
- Cast aluminium disc
- Starting Torque >1.0 kgf/cm
- Brake System Electronic brake
- Speed Fluctuations <0.2% (WTD) at 3 kHz (JIS)
- Signal to Noise Ratio > 50 dB
- Output Level "PHONO" Preamplifier: 4 mV nominal at 1 kHz, 5 cm/s
- LINE preamplifier: 240 mV nominal at 1 kHz, 5 cm/s
- Phono preamp gain 36 dB nominal with RIAA equalization
- USB A/D, D/A - 16 bit/44.1 kHz or 48 kHz USB selectable
- Computer Interface - USB 1.1 compatible with Windows 7 and above, or MAC OS X and above
- Power Requirements 100 to 240 V, 50/60 Hz, 1.5 A max.
- Dimensions 452.0 mm (W) x 352.0 mm (D) x 141.6 mm (H)
- Weight 8 kg, without dust cover
- Supplied Accessories AT-VM95E phono cell; AT-HS6 pickup; 1.9 m USB cable; dual RCA (male) - dual RCA (male) cable with ground wire; counterweight; anti-slip mat; dust cover; 45 rpm adapter; positioning light of
- Supplied Accessories AT-VM95E phono cartridge; AT-HS6 pickup; 1.9 m USB cable; dual RCA (male) - dual RCA (male) cable with ground wire; counterweight; anti-slip mat; dust cover; 45 rpm adapter; removable plug-type stylus positioning light
- Notes Pick-up arm type: symmetrical S-shaped pick-up arm with detachable pick-up head
- Effective tone arm length: 230.5 mm
- Overhang: 16 mm
- Track error angle: less than 3 degrees
- Applicable cell weight: 3.5-8.5 g
- Centripetal force range: 0-4 g
- Replacement stylus: AT-VMN95E
- System requirements for USB operation
- PC or Mac with available USB port (USB 1.1 or higher)
- Windows 7 or later, or Mac OS X or later
