Usb audio interface

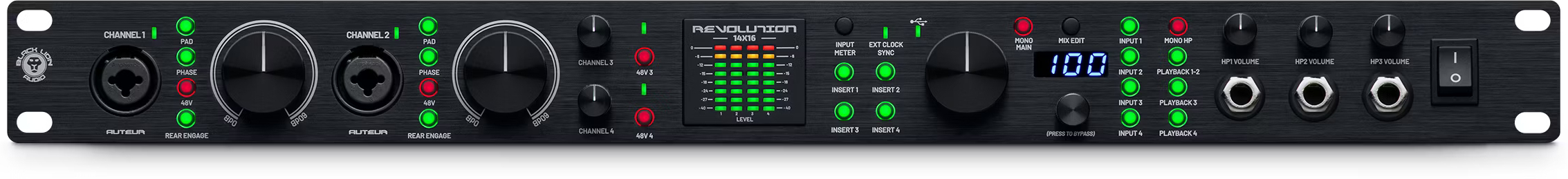

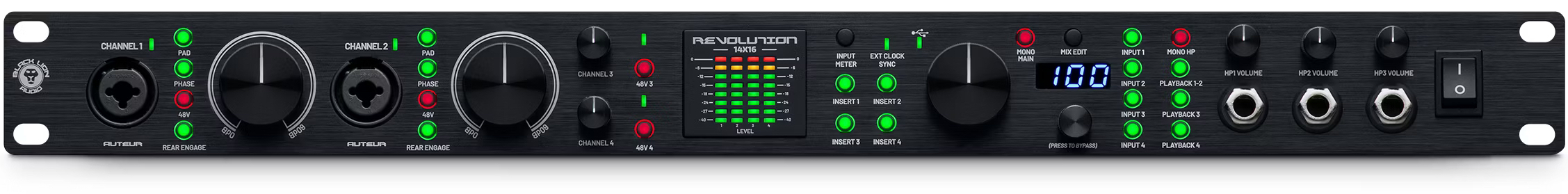

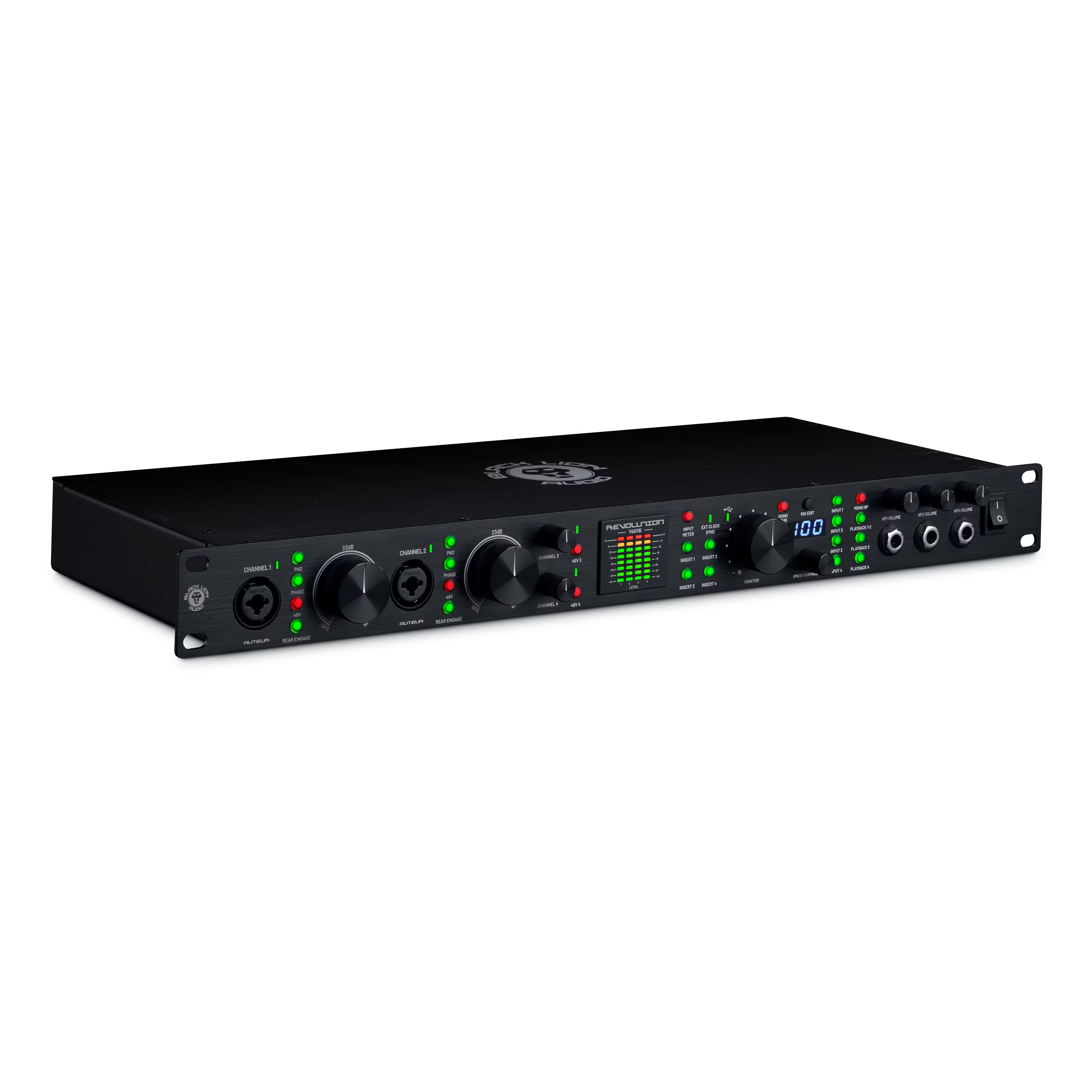

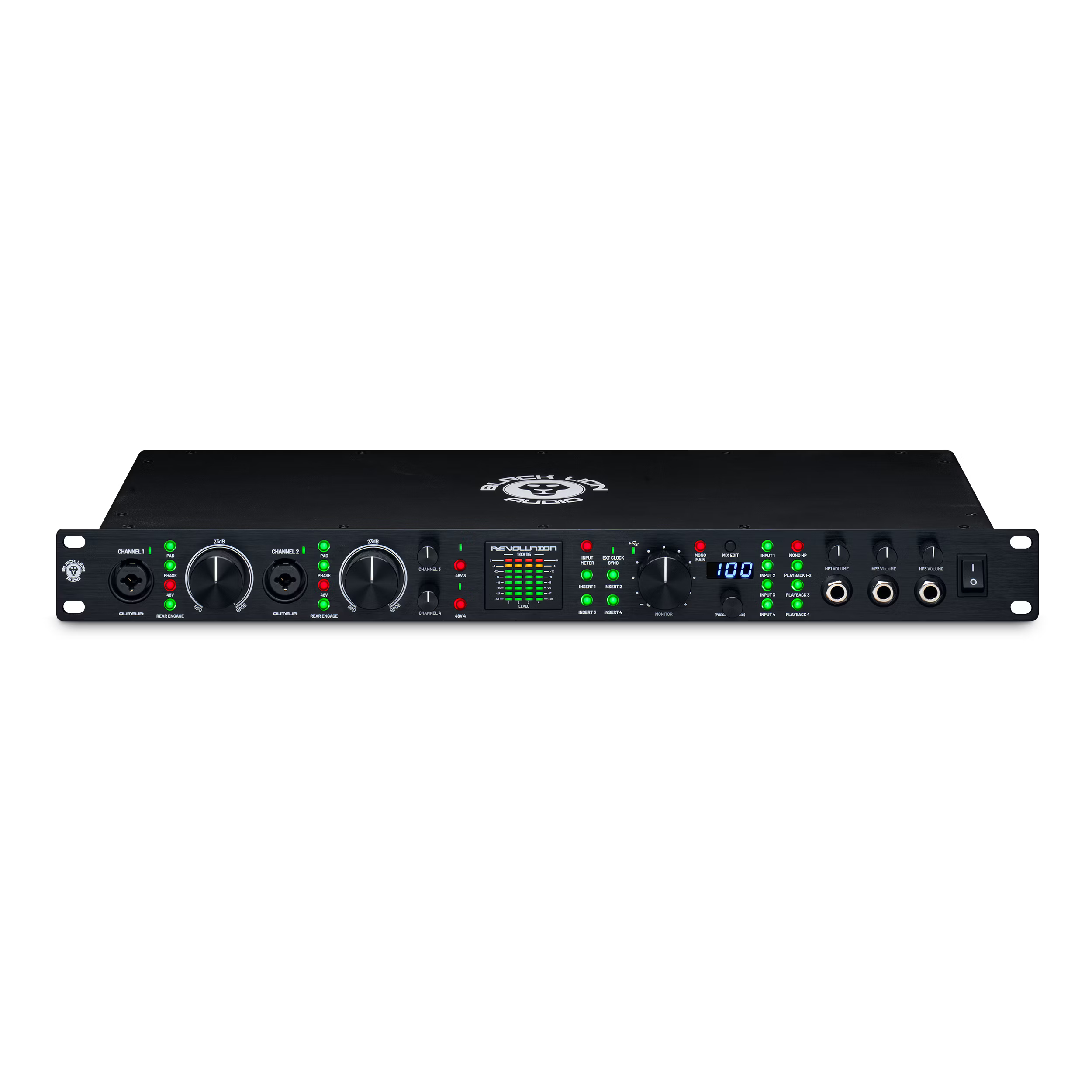

Black Lion Audio's Revolution 14x16 is an exceptional USB-C audio interface, offering 14 inputs and 16 outputs, unrivalled sound quality, advanced synchronization and advanced monitoring features, all in a 1U audio interface.

Revolution 14x16 highlights

1U audio interface with 14 inputs and 16 outputs.
Scalability via ADAT for additional inputs/outputs.
Black Lion Audio authoring preamps for superior sound quality.
Macro-MMC technology for perfect synchronization of connected devices.
Mix Edit function to create customized headphone mixes.
Premium connectivity to integrate your external processors.

Revolution 14x16 Key Features

Integrated authoring preamps

Channels 1 and 2 are equipped with Black Lion Audio's Auteur preamps, offering low gain for fast, American-style response and high gain for warm, colorful sounds. These preamps feature Cinemag transformers for harmonic richness and musical saturation when pushed.

Unrivalled connectivity and expandability

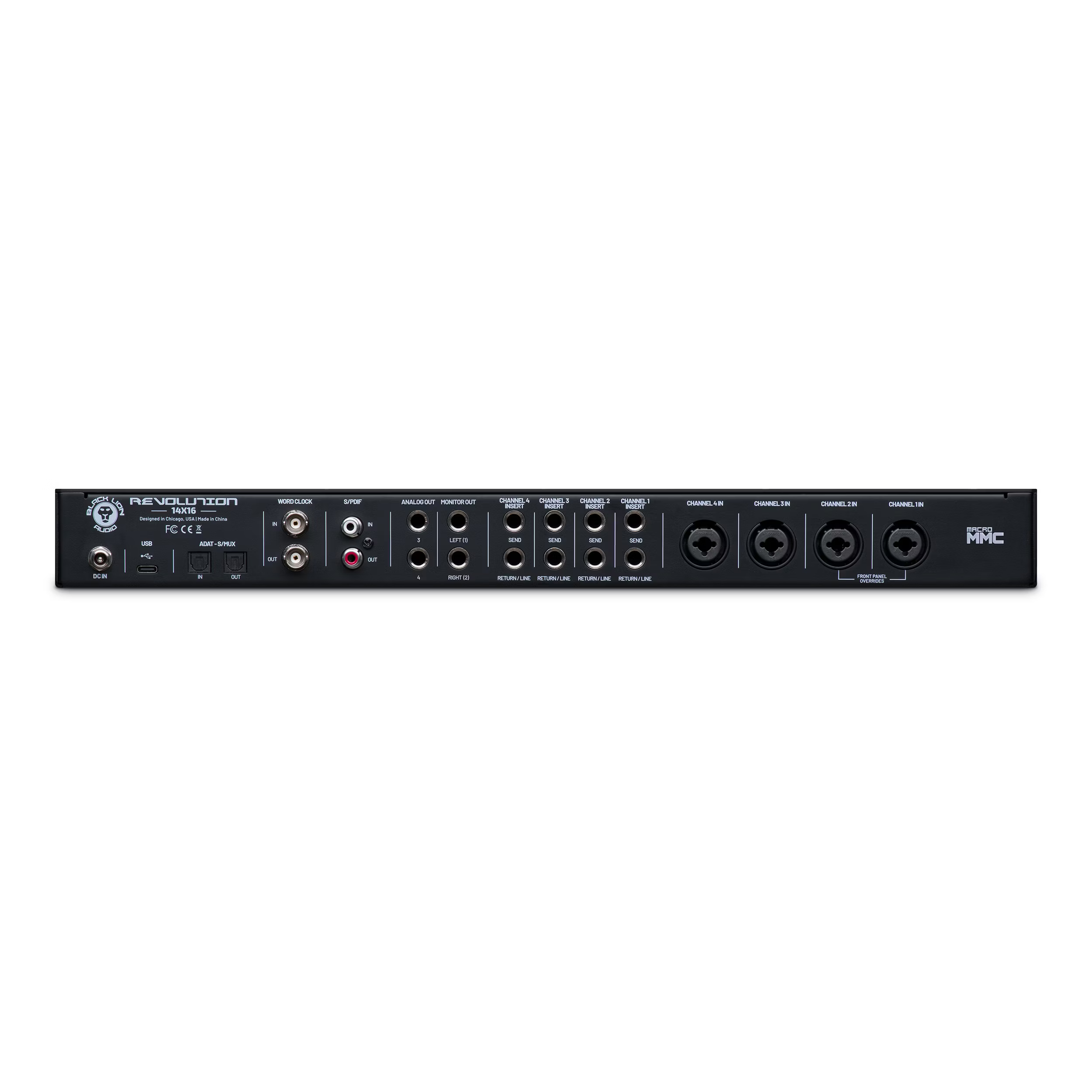

The Revolution 14x16 offers four mic/instrument preamps, accessible from the front or rear, switchable inserts/returns, S/PDIF connections and the option of adding additional inputs/outputs via ADAT (Revolution EXP extension).

Versatile monitoring and display

Three powerful headphone amps ensure high-quality monitoring. The Mix Edit function enables ultra-low-latency custom mixing, combining hardware inputs and software playback. A bright 8-segment display monitors input and output levels.

Precise synchronization

Patented Macro-MMC technology delivers optimum synchronization with low phase distortion and ultra-low jitter, guaranteeing high-frequency clarity. It also accepts clock input via BNC for those using an external clock.

Uncompromising construction

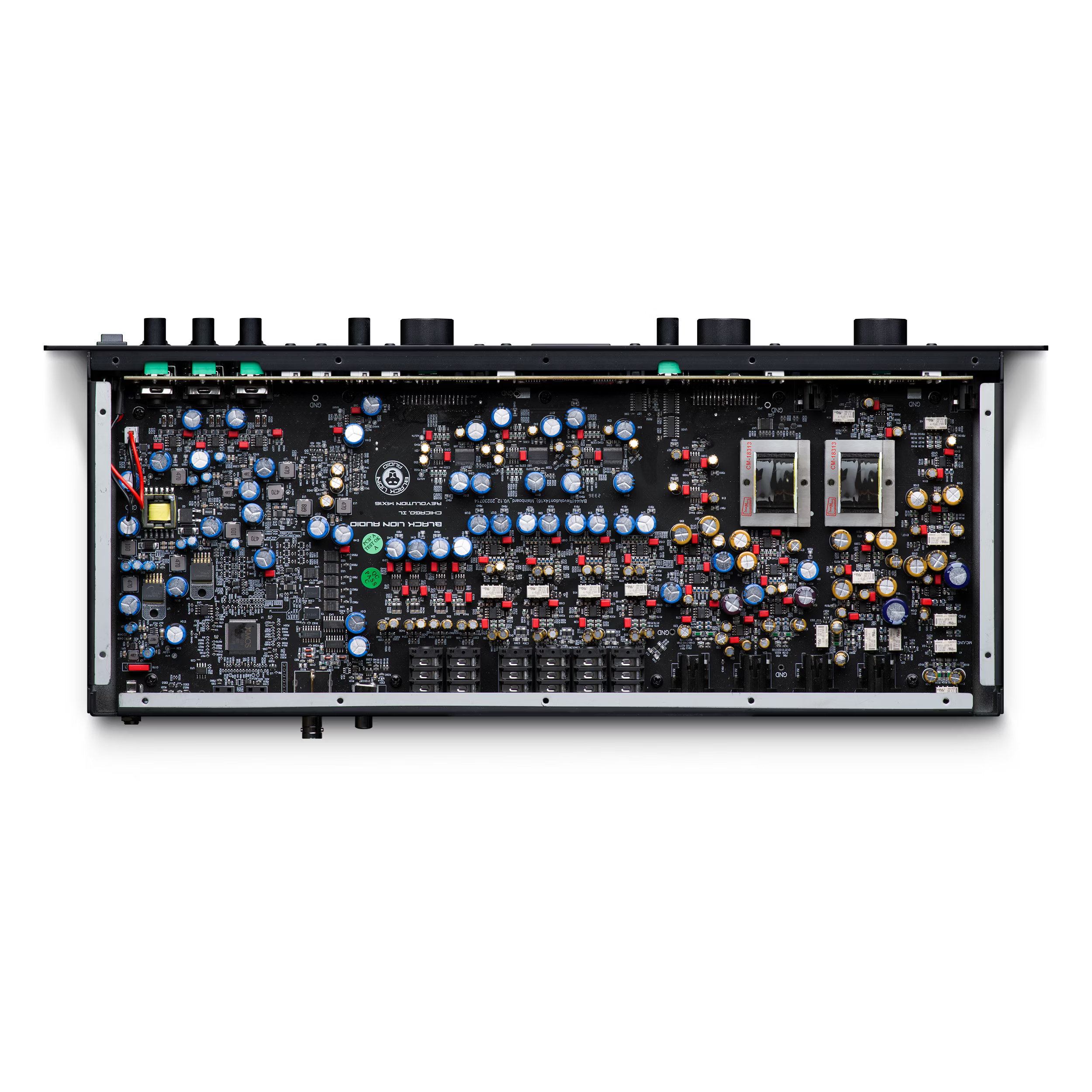

High-end components (Vishay, Nichicon, Wima) for optimum signal-to-noise ratio, low-noise power supply and complete disconnection of analog inputs/outputs to minimize noise.

Software suite included

The Revolution Software Suite includes PreSonus Studio One Pro+ (90 days), Sonarworks SoundID Reference (90 days), Audified GK Amplification 3 LE, Audified Mixchecker, and Psychic Modulation EchoMelt3.

Expert opinions

Professional-quality audio interface with outstanding preamps.
Perfect synchronization and monitoring, with impressive scalability.

Technical sheet

DSP Yes

USB-C audio interface
- 14 inputs and 16 outputs, including Word Clock and Author preamps
Expandability
- Via ADAT (+8 inputs/outputs)
Preamps
- 4 mic/instrument preamps with switchable inserts, analog stereo outputs, 3 headphone amps
Synchronization technology
- Patented Macro-MMC
Design
- Optimized for clear sound and audiophile performance
Microphone inputs
- Authoring preamps (Channels 1 & 2)
Connections (Inputs)
- 2x Combo XLR/Jack TS front, 4x Combo XLR/Jack TS rear
Input impedance (Channels 1 & 2)
- 6.1 kΩ
Max input level @ min gain (Channels 1 & 2)
- +6.487 dBu
Max input level @ max gain (Channels 1 & 2)
- -53.513 dBu
Frequency response (20 Hz - 20 kHz, @ min gain, input level -1 dBFS)
- +/- 0.052 dB
Frequency response (20 Hz - 20 kHz, @ max gain, input level -1 dBFS)
- +/- 0.143 dB
THD + N (@ 1 kHz, @ min gain, bandwidth 20 Hz-20 kHz, unweighted, input level -1 dBFS)
- 0.0023653%
Signal-to-noise ratio (SNR) (@ 1 kHz, @ min gain, bandwidth 20 Hz-20 kHz, A-weighted, input level 0 dBFS)
- 111.263 dB
Dynamic range (@ min gain, bandwidth 20 Hz-20 kHz, A-weighted, input level 0 dBFS)
- 106.998 dB
Crosstalk (Channels 1 & 2)
- -90.991 dB
Revolution preamps
- Channels 3 & 4
Input impedance (Channels 3 & 4)
- 2.08 kΩ
Max input level @ min gain (Channels 3 & 4)
- +8.116 dBu
Max input level @ max gain (Channels 3 & 4)
- -46.54 dBu
Frequency response (20 Hz - 20 kHz, @ min gain, input level -1 dBFS, Channels 3 & 4)
- +/- 0.021 dB
Frequency response (20 Hz - 20 kHz, @ max gain, input level -1 dBFS, Channels 3 & 4)
- +/- 0.022 dB
THD + N (@ 1 kHz, @ min gain, bandwidth 20 Hz-20 kHz, unweighted, input level -1 dBFS, Channels 3 & 4)
- 0.0010273%
Signal-to-noise ratio (SNR) (@ 1 kHz, @ min gain, bandwidth 20 Hz-20 kHz, A-weighted, input level 0 dBFS, Channels 3 & 4)
- 107.975 dB
Dynamic range (@ min gain, bandwidth 20 Hz-20 kHz, A-weighted, input level 0 dBFS, Channels 3 & 4)
- 111.010 dB
Crosstalk (Channels 3 & 4)
- -90.991 dB
Line inputs
- Connection system: 4x 6.35 mm TRS jacks
Input impedance (Line inputs)
- 20 kΩ
Max input level @ min gain (Line inputs)
- +16.2 dBu
Frequency response (Line inputs)
- +/- 0.025 dB
THD + N (Line inputs)
- 0.00187%
Dynamic range (Line inputs)
- 111.412 dB
Crosstalk (Line inputs)
- -117.026 dB
Line outputs - Main outputs
- Connections: 2x Jack 6.35 mm TRS, Output impedance: 47 Ω, Max output level: +16 dBu
Frequency response (main outputs)
- +/- 0.095 dB
THD + N (Main outputs)
- 0.00081%
Dynamic range (main outputs)
- 109.225 dB
Outputs 3 & 4
- Connections : 2x Jack 6,35 mm TRS, Output impedance : 200 Ω, Max output level : +16 dBu
Frequency response (Outputs 3 & 4)
- +/- 0.095 dB
THD + N (Outputs 3 & 4)
- 0.00081%
Dynamic range (Outputs 3 & 4)
- 109.225 dB
Instrument inputs
- Input impedance: 1 MΩ, Gain range: 59.2415 dB
Frequency response (Instrument inputs)
- +/- 0.051 dB
THD + N (Instrument inputs)
- 0.00491%
Dynamic range (Instrument inputs)
- 106.135 dB
Crosstalk (Instrument inputs)
- -98.017 dB
Headphone outputs
- Connections: 3x 6.35 mm TRS jack, Output impedance: 20 Ω, Max output level: 2.652 Vrms
Frequency response (Headphone outputs)
- +/- 0.116 dB
