Chauvet dj

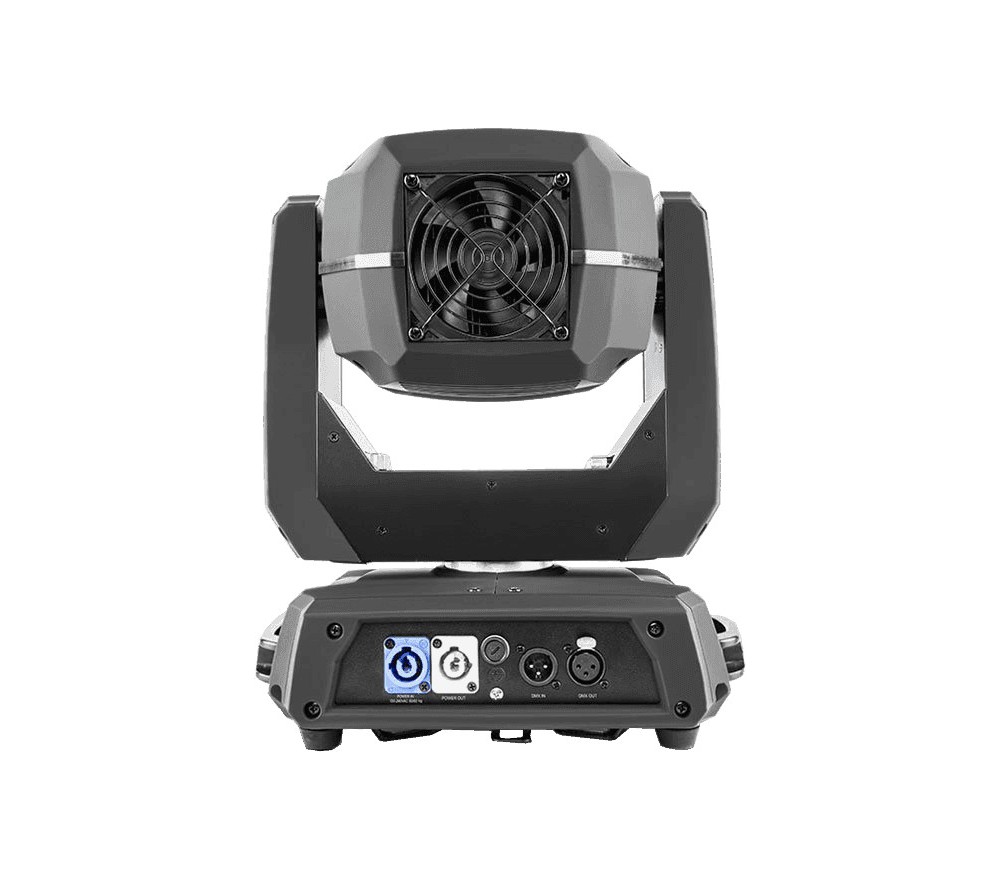

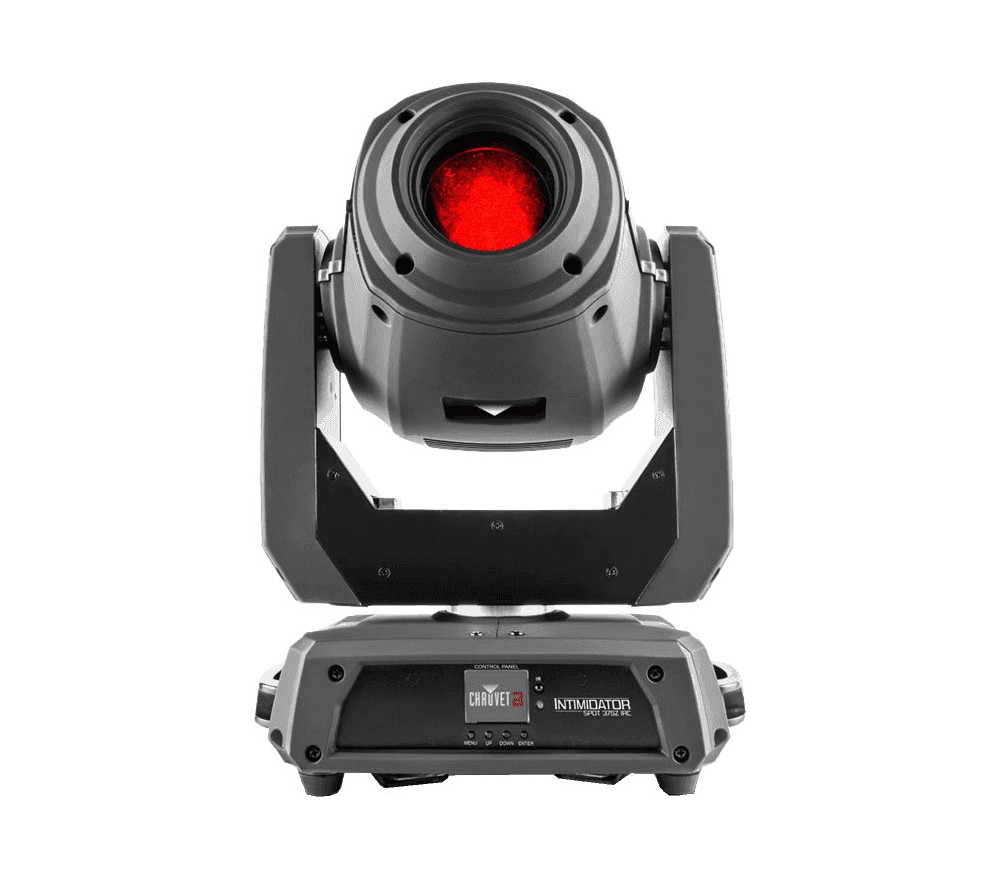

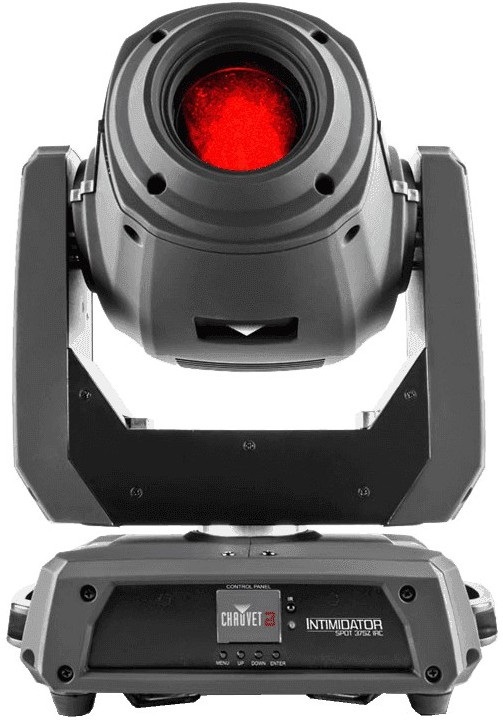

Intimidator Spot 375ZIRC
Lyre
See other versions for this article
Description
Intimidator Spot 375Z IRC is an exceptionally bright, 150 W LED moving head spot designed for large events. It features motorized zoom for short-throw or long-throw applications and dual rotating prisms split the beam for great effects and to cover a larger area. The motorized focus ensures crisp projections at almost any distance and the built-in Totem mode keeps the beams exactly where you want them. Intimidator Spot 375Z IRC includes built-in, automated and sound-activated programs or it can be controlled in DMX or Master/Slave mode. The powerCON®-compatible power input/output connections for power linking are also onboard.
Characteristics
Ref : 86015
- Dmx compatible : yes
- DMX Channels: 9 or 15
- DMX Connectors: 3-pin XLRPan and Tilt: 540°/270°Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
- Colors: 7 + white, split colors, continuous scroll at variable speeds
- Gobos: 7 + open (6 aluminum + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Light Source: 1 LED (white) 150 W, (12.3 A), 50,000 hours life expectancyStrobe
- Rate: 0 to 20 HzPWM Frequency: 1.8 kHz
- Illuminance: (10°): 38,000 lux @ 2 m
(23°): 19,850 lux @ 2 mPower Linking: 3 units @ 120 V; 5 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 277 W, 2.5 A @ 120 V, 60 Hz
268 W, 1.3 A @ 230 V, 50 Hz
(10°) 4,180 lux @ 8 m (23°) 2,523 lux @ 5 mGobo Size: 24 mm outside, 20 mm image, 1 mm max thicknessZoom Angle: (motorized): 10° to 23°Weight: 27.2 lb (12.4 kg)Size: 8.6 x 12.7 x 18.3 in (220 x 322 x 466 mm)
- Approvals: CE, METOptional Controllers: IRC - 6Prism: (1): 6-facet round, bidirectional rotation at variable speedsPrism: (2): 5-facet linear, bidirectional rotation at variable speeds
- Dmx compatible : yes
- DMX Channels: 9 or 15
- DMX Connectors: 3-pin XLRPan and Tilt: 540°/270°Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
- Colors: 7 + white, split colors, continuous scroll at variable speeds
- Gobos: 7 + open (6 aluminum + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Light Source: 1 LED (white) 150 W, (12.3 A), 50,000 hours life expectancyStrobe
- Rate: 0 to 20 HzPWM Frequency: 1.8 kHz
- Illuminance: (10°): 38,000 lux @ 2 m
(23°): 19,850 lux @ 2 mPower Linking: 3 units @ 120 V; 5 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 277 W, 2.5 A @ 120 V, 60 Hz
268 W, 1.3 A @ 230 V, 50 Hz
(10°) 4,180 lux @ 8 m (23°) 2,523 lux @ 5 mGobo Size: 24 mm outside, 20 mm image, 1 mm max thicknessZoom Angle: (motorized): 10° to 23°Weight: 27.2 lb (12.4 kg)Size: 8.6 x 12.7 x 18.3 in (220 x 322 x 466 mm)
- Approvals: CE, METOptional Controllers: IRC - 6Prism: (1): 6-facet round, bidirectional rotation at variable speedsPrism: (2): 5-facet linear, bidirectional rotation at variable speeds
