Chauvet dj Obsession HP

  • Read reviews (0)
  • Similar products

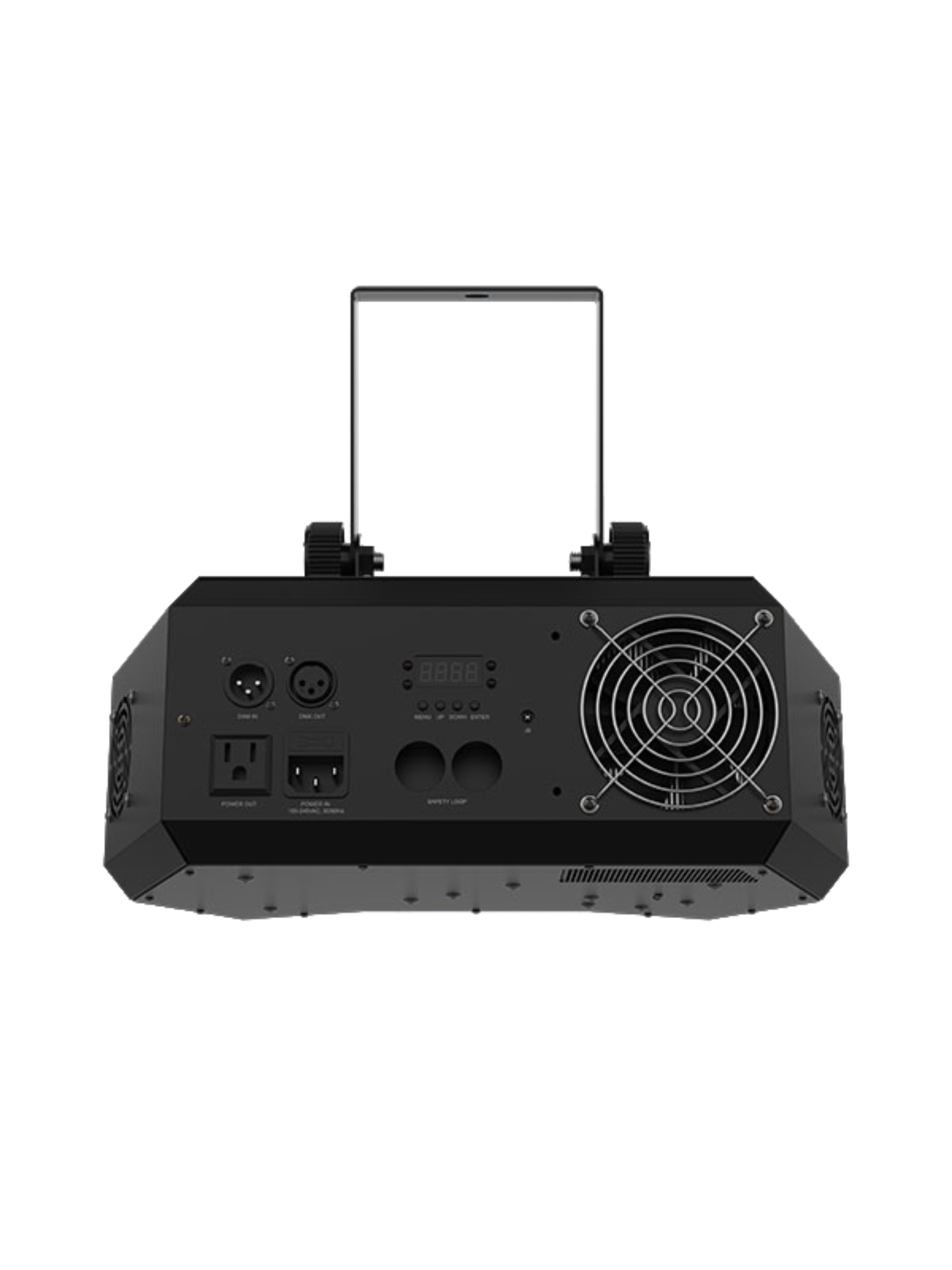

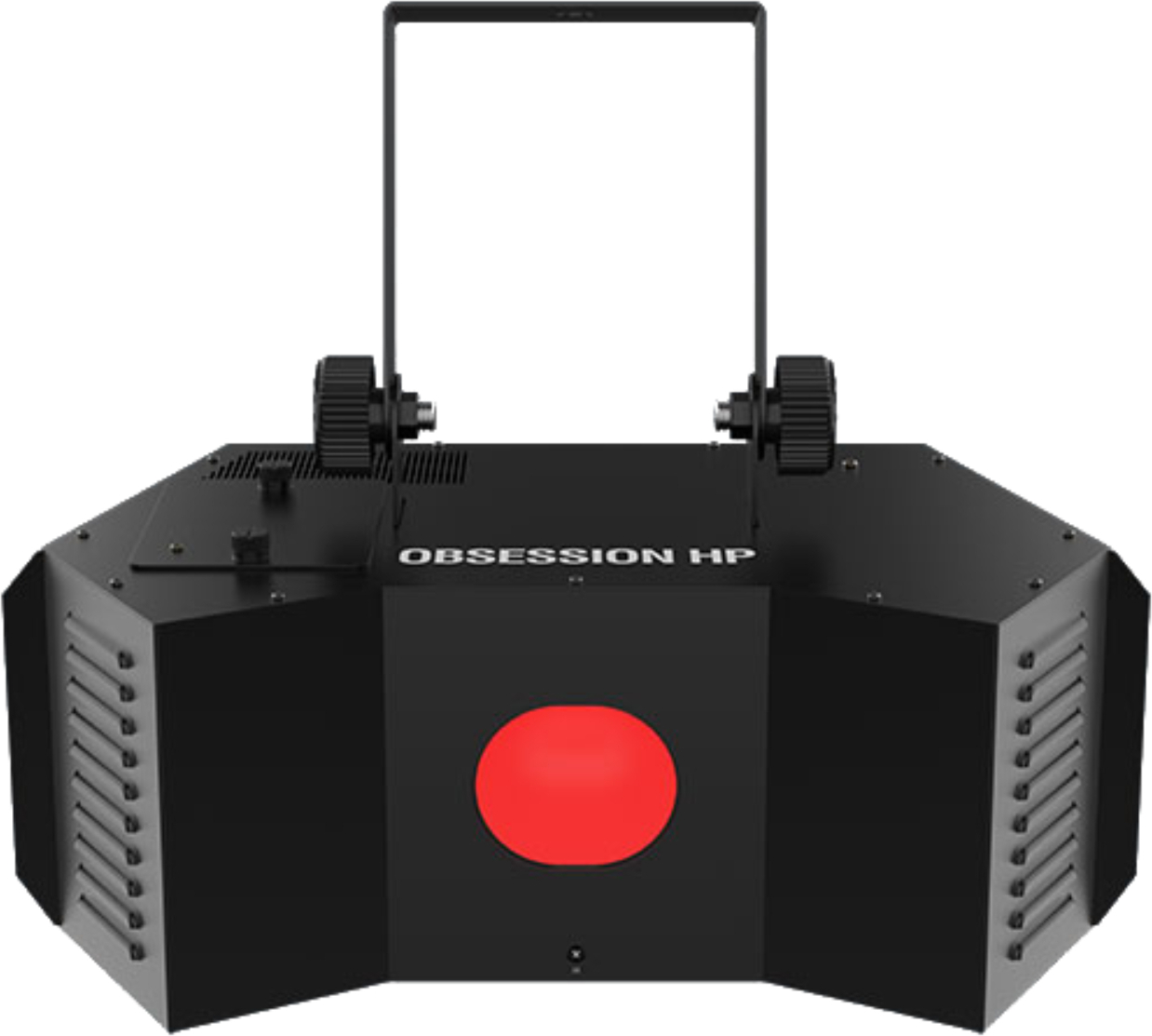

  • Chauvet Dj Obsession Hp -  - Main picture
  • Chauvet Dj Obsession Hp -  - Variation 1
280,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
  • Ref : 111295
In stock
shipped under 8/10 days
Stock in store
Not available in store

The brand Chauvet dj

Learn more about the Chauvet dj brand and discover the entire catalog.

How to choose your DJ Lights Buying guide

Lighting as a whole includes many devices such as projectors, effects machines, moving heads,LED scanners ... Each of them has a very precise use, and we will try, through this guide, to enlighten you

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Description

Create stunning animated gobo light shows with Obsession HP, a compact LED effect light equipped with a 100W LED that projects rotating multicolored gobos. The power and design flexibility of Obsession HP reach new heights. Indeed, the gobos are interchangeable, and the integrated mirror dish along with separate color and gobo wheels easily generate complex lighting effects. Generate a synchronized show in Master/Slave mode with up to 2 units and save time by daisy-chaining multiple units with cables and extensions. Obsession HP is compatible with the IRC-6 remote for flexible control over all functions and can be transported using the VIP CHS-40 carrying bag.
Lire la suite

Technical sheet

  • DMX Channels: 2 or 8
  • DMX Connectors: 3-pin XLR
  • Colors: 6+ white, split colors, continuous scroll at variable speeds
  • Gobos: (7 metal), rotating, indexing, interchangeable, continuous scroll at variable speeds
  • Light Source: 1 LED (cool white) 100W, (4A), 50,000 hours lifespan
  • Strobe Rate: 0 to 20 Hz
  • PWM Frequency: 4 KHz
  • Coverage Angle: 116°
  • Power Connection: 3 units @ 120 V; 6 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 176 W, 2.2 A @ 120 V, 60 Hz; 171 W, 1.3 A @ 230 V, 50 Hz
  • Gobo Size: 18 mm outside, 12 mm image, 5 mm max thickness
  • Weight: 4.7 kg
  • Dimensions: 380 x 233 x 305 mm
  • Approvals: CE
  • Optional Remote: IRC-6
