Analog mixing desk

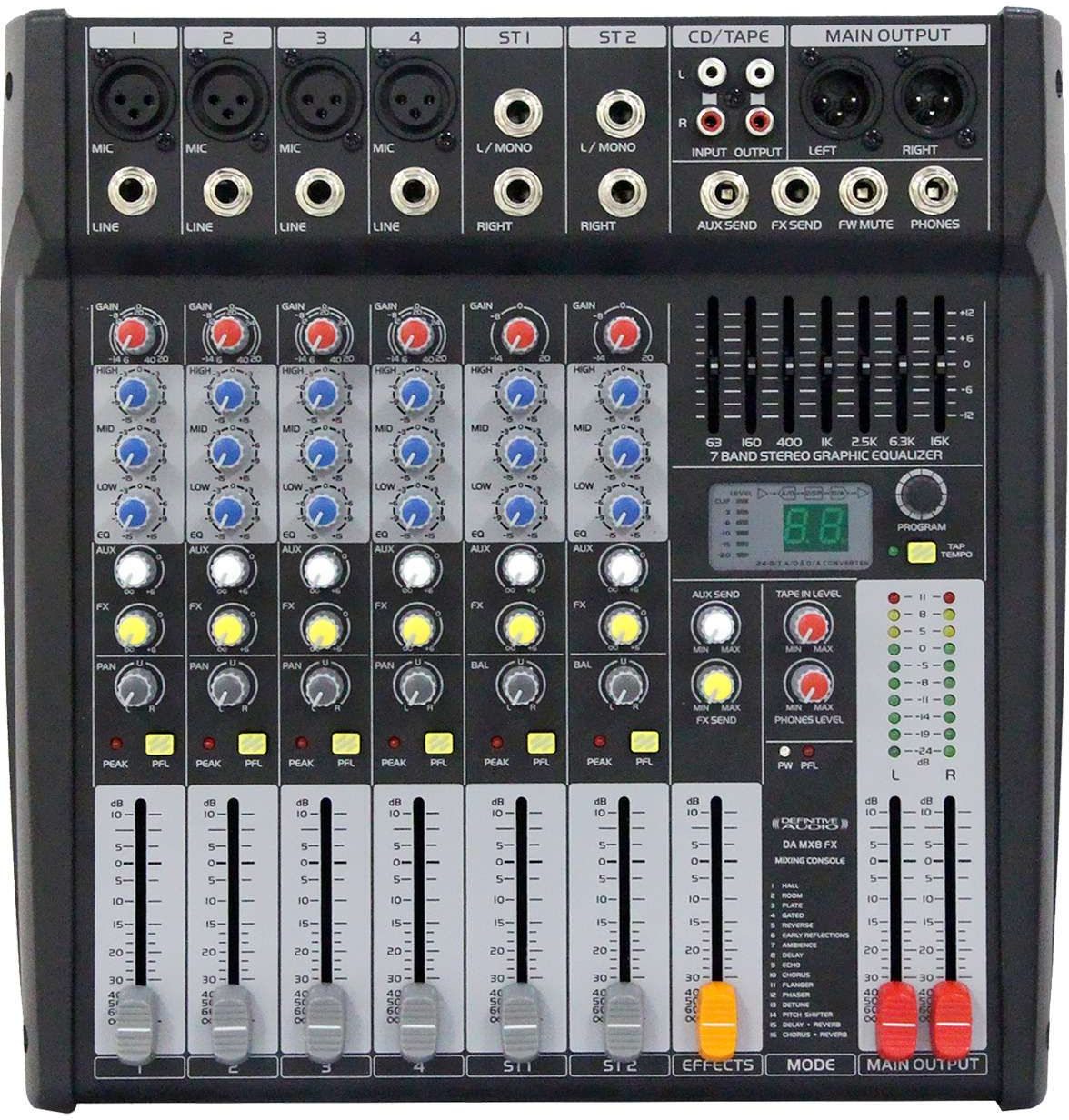

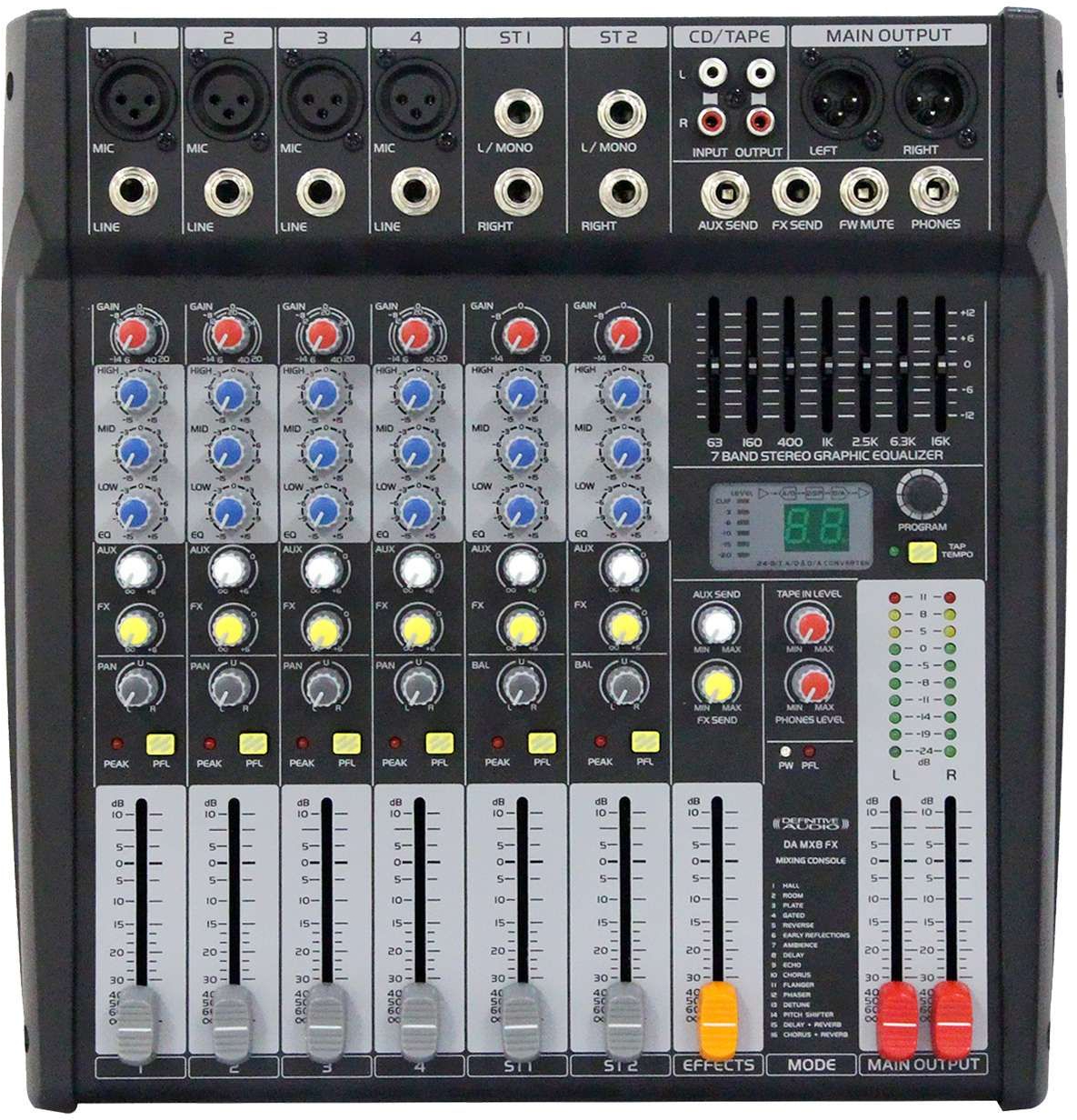

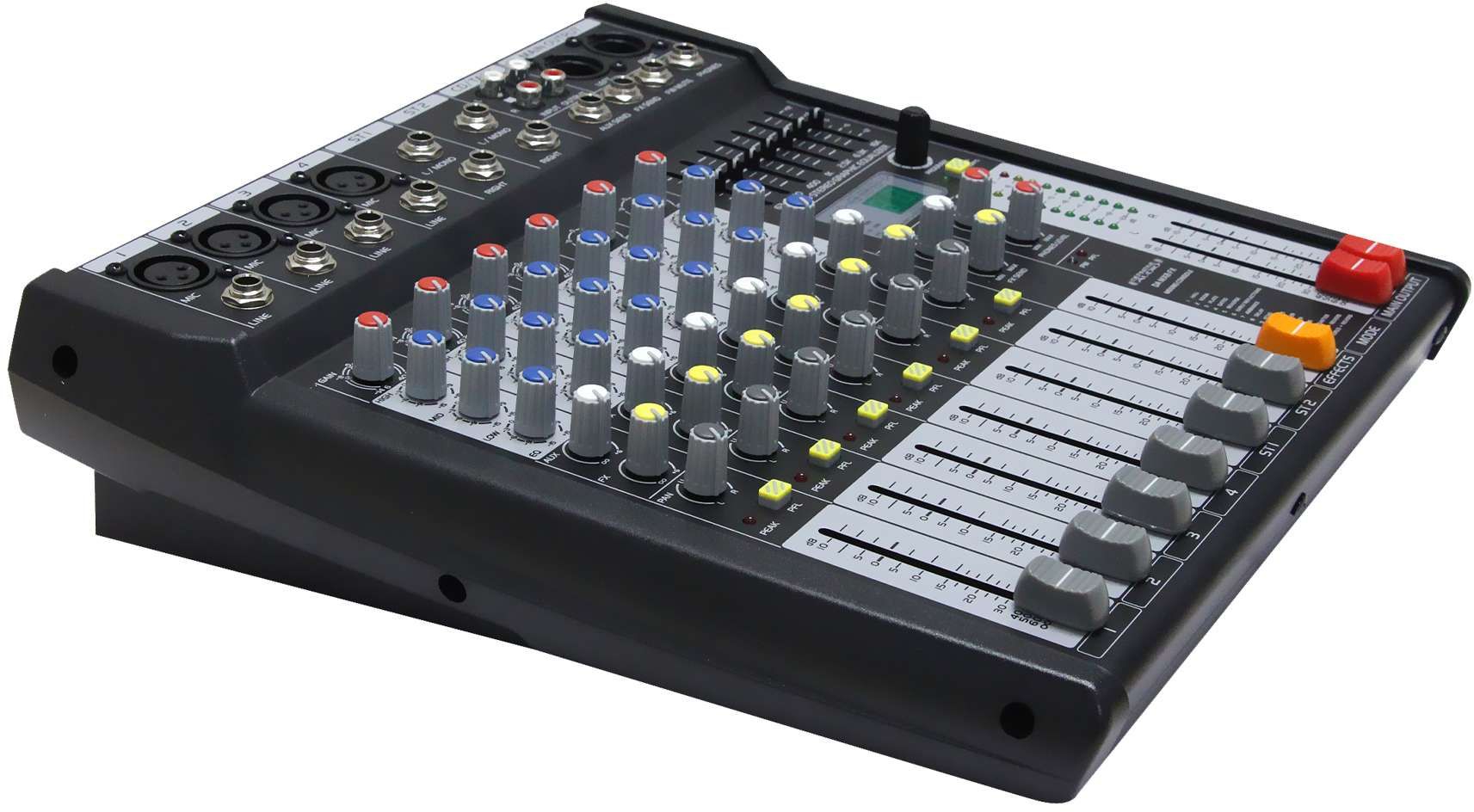

The Definitive Audio DA MX8 FX2 is an 8 channel mixer.

The DA MX FX2 range contains a host of features, two AUX sends, two main channel outputs, a DSP digital effects processor, a 7-band graphic equalizer, a high quality, high precision 60mm long fader for fine tuning the channel level. These mixers offer superior sonic performance with a high cost/performance ratio. Rack mounting brackets included for maximum flexibility.

Technical sheet

Mixer connectivity Without computer connection
Number of channel mixing desk 6 and 8 channels
Number of channels 8 channels

Phantom power supplied
Maximum input level: Mic input: +22dBu; other inputs: +20dBu
Maximum output level: XLR: +28 dBu; other outputs: +22 dBu
Sensitivity: 0VU=+4dBu
Main measurement: 10 segments; -24dB + 11dB
Frequency response: +/- 1 dB, 20 Hz 30KHz
Mic CMRR 1kHz: >75dB
T.H.D + n at 140dBu at 1kHz: Mic to output: <0.01
Interference: (@1kHz) Progressive attenuation > 80dB
Noise: Mic E.I.N input (maximum gain) : -122 dBu
Linear volume faders
EQ (mono/stereo input): HF: 12 KHz +/- 15 dB, MF: +/-15 dB, 2.5 KHz, LF: +/-15 dB, 80 Hz
DSP processor: 24bit converter - 40 kHz sampling
Power supply: 230 VAC, 50-60Hz
Dimensions: 317 x 322 x 153 mm
Weight: 5,0 Kge.
