Analog mixing desk

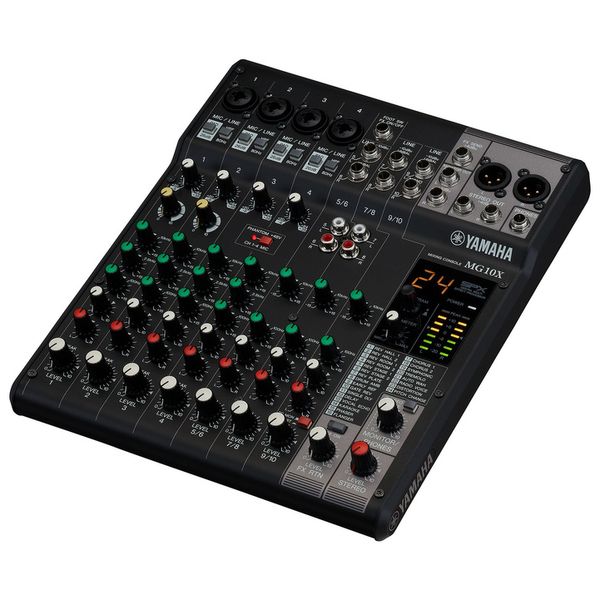

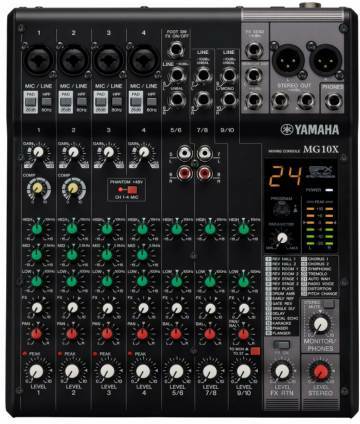

The MG10X is a 10-channel mixing console from Yamaha.
MG10X highlights
- Yamaha's SPX effects processors have been recognized for their excellence in audio multi-effects since 1985.
- There is strong customer demand in the conference and corporate event markets for compact mixers with high-quality SPX effects, but without the USB. The MG10X model has been launched to meet this demand.
- This product also features a master section in a contemporary new gray color, which blends in perfectly with the equipment while providing instant visual reference for quick location of master controls.
MG10X Key Features
SPX effects and an innovative compressor
The MG-X's SPX effects combine perfectly with the D-PRE discrete mic preamplifiers and custom-built MG01 operational amplifiers to produce stunning sound quality, easily adaptable to any space. What's more, the one-button compressor gives users instant access to optimized compression settings for speech, vocals and instruments with a single rotary control.
Advanced installation
All three MG-X models feature a robust metal chassis and can be installed quickly and easily wherever required. The MG10X can be mounted on a microphone stand with the optional BMS-10A adapter.
Expert opinions
- The Yamaha MG10X is a compact yet powerful mixer, ideal for small recording studios, modest live setups, or even as a portable solution for musicians and DJs. Equipped with high-quality D-PRE mic preamps, it delivers clear, faithful sound reproduction that captures every nuance of the performance.
- Its intuitive interface and simple, well-arranged controls make navigation and level setting easy, even for novice users.
- The Yamaha MG10X stands out for its unique combination of professional sound quality, robust features and exceptional user-friendliness. Whether you're a budding musician or a seasoned sound engineer, this mixer will enable you to create impeccable mixes in any context. It represents a wise investment for those seeking a reliable, high-performance solution for their audio needs.
Lire la suite
Technical sheet
- Mixer connectivity Without computer connection
- Number of channel mixing desk 6 and 8 channels
- Number of channels 8 channels
- Microphone inputs
- 4
- Microphone preamplifier
- "D-PRE with inverted Darlington circuit (XLR/jack)
- Phantom power supply
- +48V
- Channels 1-2
- With built-in compressor
- Equalizer
- 3-band
- High-pass filter and pad switch
- +26 dB
- Stereo inputs
- 3 (jack) with 2-band equalizer
- Main outputs
- XLR
- Group bus output
- Auxiliary channel
- 1 for all channels
- Effects unit
- 1 with 24 different effects
- Dimensions (W x H x D)
- 244 x 71 x 294 mm
- Weight
- 2.1 kg
More specifications
Fewer specifications
