Yamaha MG10XU

Name: MG10XU
Brand: Yamaha
SKU: 34659
Availability: InStock
Rating: 4.3 (4 reviews)

Read reviews (4)
Version Pack
Related accessories
Similar products

392.40 €

273,00 €

Free delivery
Low prices guaranteed
Satisfied or refunded
3-years warranty
Ref : 34659

In stock

deliverable in 24 hours

Stock in store

See availability. Store

•

Star's Music Bordeaux

•

Star's Music Bruxelles

•

Star's Music Lille

•

Star's Music Lyon

•

Star's Music Paris

•

Star's Music Toulouse

Other version(s) or associated product(s)

The brand Yamaha

Learn more about the Yamaha brand and discover the entire catalog.

Discover

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

find out more

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

Analog mixing desk

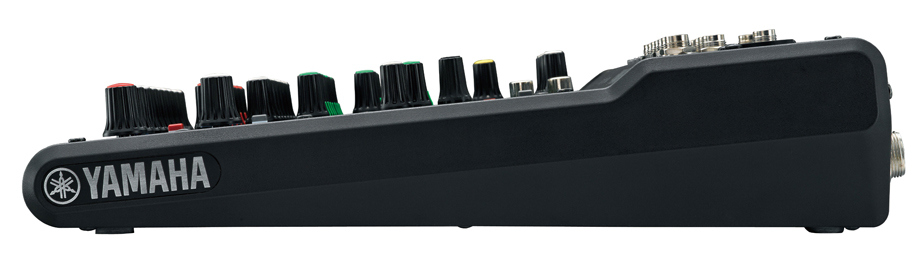

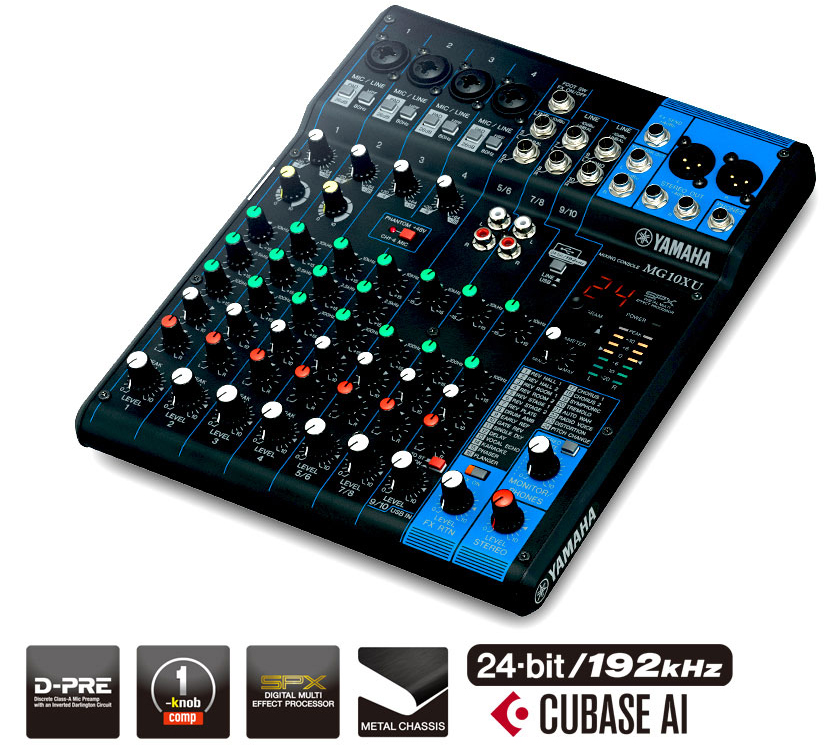

Here comes the third generation of MG series with the Yamaha MG10XU mixing console, with 10 channels and 4 Mic inputs, this table is most versatile for its size.

Intuitive and easy-to-use, the solid design and capacities of those tables allows you to deliver top-notch performance.
Use the USB interface 2.0 with 24-bit/192kHz sampling to record in stereo high-res.

With its high quality D-PRE preamp, its outstanding durability, and compressors coupled to the first channels for a better sound dynamic, this mixing console will satisfy every musician.

Technical sheet

Mixer connectivity Without computer connection
Number of channel mixing desk 10 to 22 channels

I/O
Phantom power : +48 V
Digital I/O
USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input Channels
Mono[MIC/LINE] : 4
Stereo[LINE]: 3
Output Channels
STEREO OUT : 2
MONITOR OUT : 1
PHONES : 1
AUX SEND : 1
Bus
Stereo: 1, AUX[FX]: 1
Input Channel
Function :
PAD : 26 dB (Mono)
HPF : 80 Hz, 12 dB/oct (Mono)
COMP :1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH : Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID : Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOW : Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED : LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter : 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
General specifications
Total harmonic distortion : 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response : +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level
Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk : -83 dB
Power requirements : PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power consumption : 22.9 W
Dimensions
W: 244 mm (9.6")
H : 71 mm (2.8")
D : 294 mm (11.6")
Net weight : 2.1 kg (4.63 lbs.)
Accessories :
Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5
Others
Operating Temperature: 0 to +40?C

More specifications

Fewer specifications

Available in pack

OFFER PACK no.1 YAMAHA Mg10Xu + 2x Xts12 + Xlr Xlr 6M+ Stand

6 products

1032.00 €
