Description

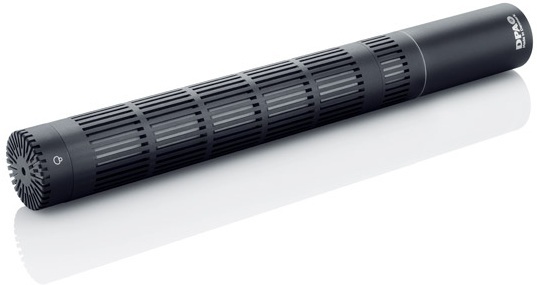

This DPA 4017c shotgun microphone is designed for situations where directional accuracy and sonic clarity are paramount. Thanks to its very narrow pick-up pattern, it effectively isolates the main source while reducing ambient noise.
Versatile, it's ideal for use with camera systems, in fixed positions in stadiums and sports halls, or in cinema/TV shoots with a boom. It is ideal for broadcast, ENG (Electronic News Gathering) and outdoor sound recording applications.
Versatile, it's ideal for use with camera systems, in fixed positions in stadiums and sports halls, or in cinema/TV shoots with a boom. It is ideal for broadcast, ENG (Electronic News Gathering) and outdoor sound recording applications.
Lire la suite
Technical sheet
- Microphone type
- Compact, pre-polarized condenser shotgun microphone
- Directivity
- Supercardioid (lobe-shaped)
- Operating principle
- Pressure gradient with interference tube
- Frequency response
- 20 Hz - 20 kHz
- ±2 dB: 40 Hz - 18 kHz at 60 cm, with 3 dB boost around 15 kHz
- Sensitivity
- 19 mV/Pa; -34.4 dB re. 1 V/Pa at 1 kHz
- Equivalent noise level
- Typ. 13 dB(A) re. 20 µPa (max. 15 dB(A))
- ITU-R BS.468-4 : Typ. 25 dB (max. 26 dB)
- Signal-to-noise ratio
- Typ. 80 dB(A) weighted at 1 Pa (94 dB SPL)
- Maximum SPL
- 146 dB SPL peak before clipping
- Dynamic range
- Typ. 119 dB
- Total harmonic distortion (THD)
- < 1% up to 133 dB SPL peak
- Output impedance
- 100 Ω
- Power supply
- Phantom 48 V (±4 V)
- Power consumption: 2.8 mA
- Connection
- XLR 3-pin (XLR-3M)
- Available versions: Microdot, Lemo 3-pin, Mini-XLR
- Dimensions
- Length: 154 mm
- Diameter: 19 mm
- Weight
- 70 g
- Polar diagram
- Supercardioid
