Description

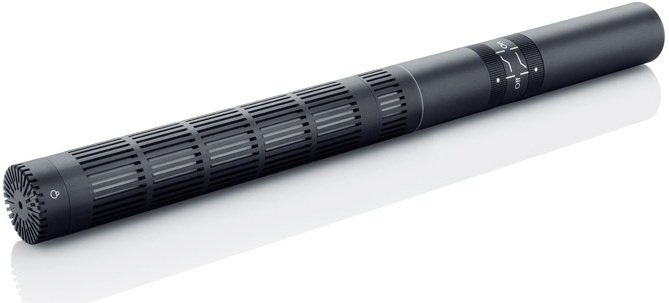

This DPA 4017b shotgun microphone is designed for situations where directional accuracy and sonic clarity are paramount. Thanks to its very narrow pick-up pattern, it effectively isolates the main source while reducing ambient noise.
Versatile, it's ideal for use with camera systems, in fixed positions in stadiums and sports halls, or in cinema/TV shoots with a boom. It's ideal for broadcast, ENG (Electronic News Gathering), and outdoor or indoor sound recording applications.
Versatile, it's ideal for use with camera systems, in fixed positions in stadiums and sports halls, or in cinema/TV shoots with a boom. It's ideal for broadcast, ENG (Electronic News Gathering), and outdoor or indoor sound recording applications.
Lire la suite
Technical sheet
- Microphone type
- Short, modular, lightweight shotgun microphone
- Static condenser (pre-polarized)
- Operating principle
- Pressure gradient
- Supercardioid with interference tube
- Directivity
- Supercardioid, lobe-shaped
- Excellent off-axis rejection
- Frequency response
- 20 Hz - 20 kHz
- ±2 dB : 70 Hz - 20 kHz
- Permanent low-cut at 50 Hz (3? order)
- Sensitivity
- 19 mV/Pa at 1 kHz; -34 dB re. 1 V/Pa
- Other value: 30 mV/Pa
- Equivalent noise level
- Typ. 14 dB(A) re. 20 µPa (max. 15 dB(A))
- ITU-R BS.468-4 : Typ. 25 dB (max. 26 dB)
- Signal-to-noise ratio
- Typ. 80 dB(A) weighted at 1 Pa (94 dB SPL)
- Maximum SPL
- 132 dB SPL for THD < 0.5
- Other values: 138 dB SPL
- Dynamic range
- 119 dB
- Filters and settings
- Treble boost: +4 dB at 8 kHz (shelving)
- High-pass filter: 1st order below 120 Hz
- Permanent low-cut: 50 Hz, 6 dB/octave
- Power supply
- 48 V Phantom
- Power consumption: 4.5 mA
- Connector
- XLR 3-pin (XLR-3M)
- Dimensions
- Length: 210 mm (21 cm)
- Diameter: 19 mm
- Weight
- 71 g
- Polar diagram
- Supercardioid
