Description

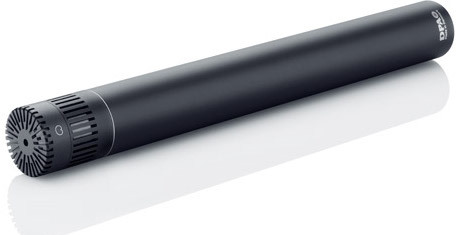

The DPA 4011A cardioid reference microphone is recognized worldwide for its outstanding performance, both in the recording studio and on stage. Popular with sound engineers and artists alike, it stands out for its sonic neutrality, high precision and extreme reliability.
Every component has been meticulously selected to guarantee faithful, distortion-free sound reproduction with absolute transparency. It captures the slightest nuances with exceptional clarity, while ensuring excellent rejection of off-axis sound thanks to its perfectly controlled cardioid polar pattern.
Every component has been meticulously selected to guarantee faithful, distortion-free sound reproduction with absolute transparency. It captures the slightest nuances with exceptional clarity, while ensuring excellent rejection of off-axis sound thanks to its perfectly controlled cardioid polar pattern.
Lire la suite
Technical sheet
- Directivity
- Cardioid
- Operating principle
- Pressure gradient
- Capsule type
- Pre-polarized condenser
- Frequency response
- 20 Hz - 20 kHz
- Effective range (±2 dB at 30 cm)
- 40 Hz - 20 kHz
- Sensitivity (nominal, ±2 dB at 1 kHz)
- 10 mV/Pa; -40 dB re. 1 V/Pa
- Equivalent noise level (A-weighted)
- Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
- Equivalent noise level (ITU-R BS.468-4)
- Typ. 25 dB (valid with attenuator at 0 dB or -20 dB)
- Distortion (THD < 1%)
- 136 dB SPL RMS, 139 dB SPL peak
- Dynamic range
- Typ. 121 dB
- Max. SPL level (THD 10%)
- 159 dB SPL peak
- Switchable attenuator / filters
- 0 dB / -20 dB
- Nominal output impedance
- 200 Ω
- Minimum load impedance
- 2 kΩ
- Cable capacity
- 100 m (328 ft)
- Balanced output principle
- Impedance balancing with active control
- Common-mode rejection ratio (CMRR)
- > 60 dB
- Power supply (for full performance)
- P48 (phantom power)
- Current consumption
- 2.8 mA
- Connector
- XLR-3M (Pin 1: ground, Pin 2: signal + phase, Pin 3: - phase)
- Weight
- 158 g (5.6 oz)
- Microphone diameter
- 19 mm (0.75 in)
- Capsule diameter
- 19 mm (0.75 in)
- Microphone length
- 170 mm (6.7 in)
- Maximum output voltage (RMS)
- > 5 V
- Polarity
- +V on pin 2 for positive acoustic pressure
- Temperature range
- -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH)
- Up to 90% RH
- Matching tolerance (frequency response and sensitivity)
- ±1 dB
- Phase deviation (stereo kit)
- < 10°
- Polar diagram
- Cardioid
