Dpa 6060-OC-U-C90

599,00 €

Not available at this moment

Stock in store

Not available in store

INFORM ME OF ITS ENTRY IN STOCK

I want to be notified by email

Variation(s) of this product.

The brand Dpa

Learn more about the Dpa brand and discover the entire catalog.

Discover

Find all the information on our superstores and our specialized boutiques.

find out more

Our musician and enthusiast tele-consultants are here to answer all your questions.

+33 181 930 900 email

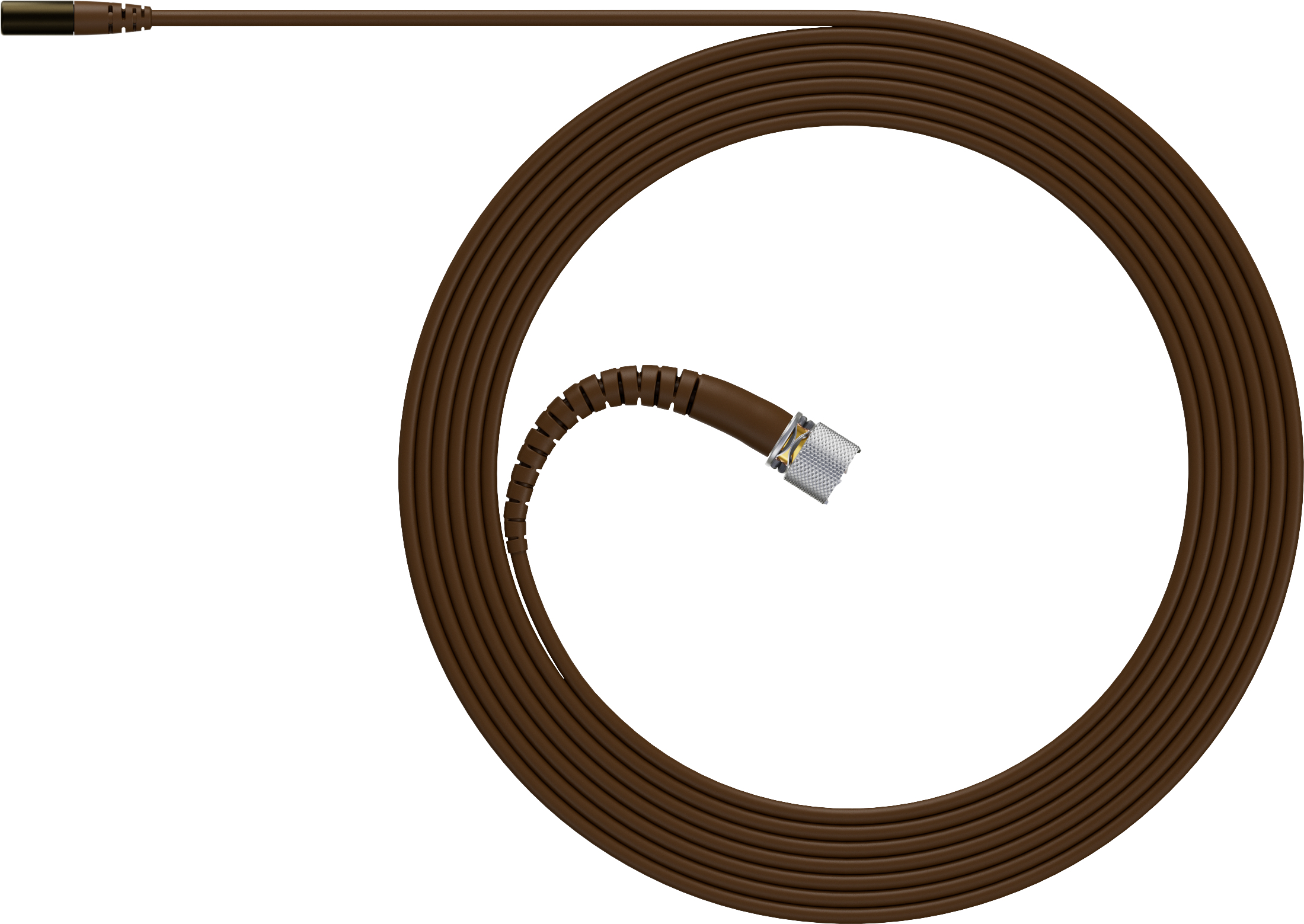

omni microphone Submini CORE 6060, Normal SPL, Brown, MicroLock

Directivity
- Omnidirectional
Operating principle
- Pressure
Capsule type
- Pre-polarized capacitor
Frequency response
- 20 Hz - 20 kHz
Effective range ±2 dB
- 40 Hz - 20 kHz with 4 dB soft boost between 8 and 20 kHz
Nominal sensitivity (±2.4 dB at 1 kHz)
- 20 mV/Pa
- -34 dB re. 1 V/Pa
Equivalent noise level (A-weighted)
- Typ. 24 dB(A) re. 20 µPa (max. 26 dB(A))
Harmonic distortion (THD)
- < 0.5% at 120 dB SPL RMS, 123 dB SPL peak
- < 1% at 123 dB SPL RMS, 126 dB SPL peak
Dynamic range
- Typ. 102 dB
Max. SPL level (THD 10%)
- 134 dB SPL (peak)
Output impedance
- From MicroDot: 30 - 40 Ω
- With DAD6001-BC: 100 Ω
Cable length capacity
- Up to 300 m with DAD6001-BC XLR adapter
Power supply
- For wireless systems: 5 V to 10 V via DPA adapter
- With DAD6001-BC: P48 phantom power (works from 12 V)
Power consumption
- Typ. 1.5 mA (microphone)
- 3.5 mA with XLR adapter DAD6001-BC
Connectors
- MicroLock, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
Dimensions and weights
- Microphone head (H x W x D): 3.4 / 14.4 mm
- Capsule diameter: 3 mm
- Weight: 8 g (incl. cable and MicroDot connector)
Cable
- Length: 1.8 m (5.9 ft)
Polarity
- Increasing sound pressure produces positive voltage on MicroDot pin
Environmental conditions
- Temperature: -40°C to 45°C (-40°F to 113°F)
- Relative humidity: up to 90%.
