Analog mixing desk

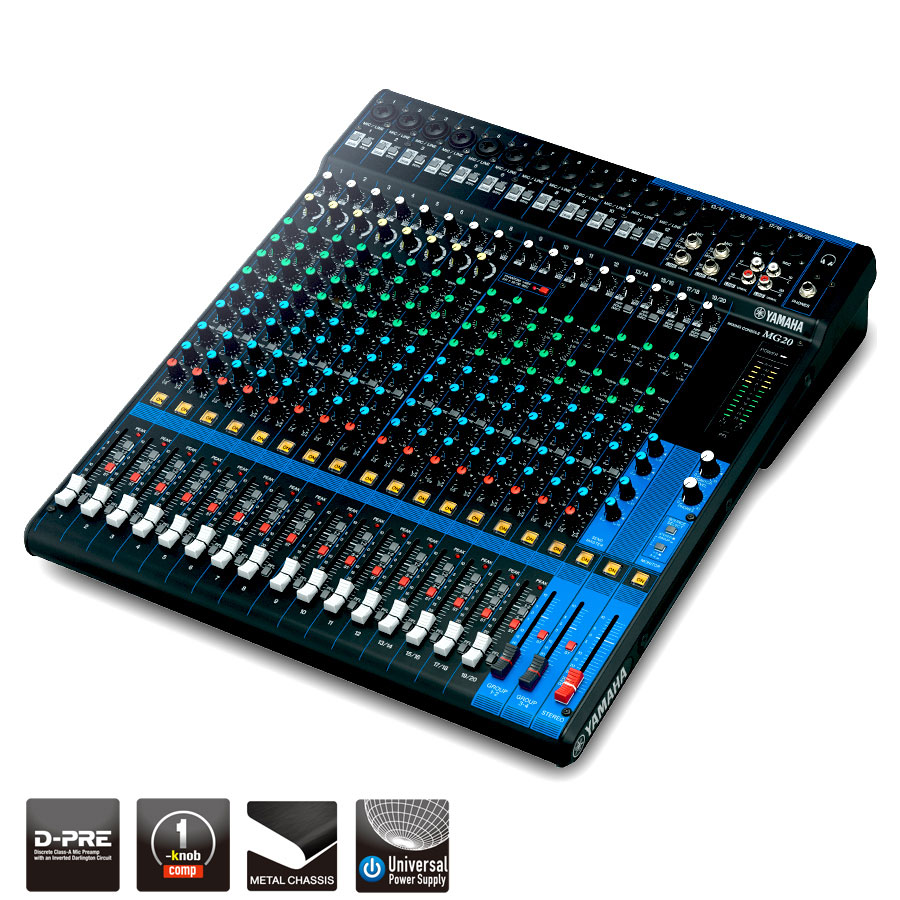

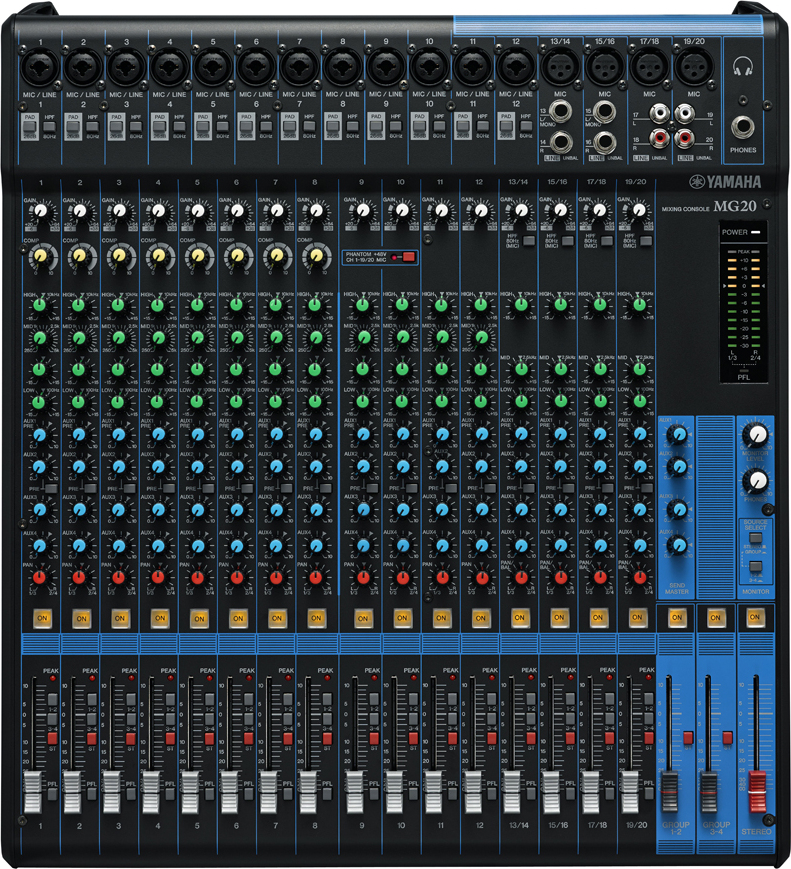

Unveiling the third generation of Yamaha MG series with the Yamaha MG20 mixing console, the largest model from the Yamaha MG standard series.
16 Microphones can be connected at the same time and it is also possible to connect a stereo source to the last channels, instead of microphones.
Combined with 4 auxiliaries, you have a mixing console with a lot of options and possibilites accounting for its size.
16 Microphones can be connected at the same time and it is also possible to connect a stereo source to the last channels, instead of microphones.
Combined with 4 auxiliaries, you have a mixing console with a lot of options and possibilites accounting for its size.
Technical sheet
- Mixer connectivity Without computer connection
- Number of channel mixing desk 10 to 22 channels
- Number of channels 20 channels
- I/O
- Phantom power: +48V
- Input Channels
- Mono[MIC/LINE] 12
- Mono/Stereo[MIC/LINE] 4

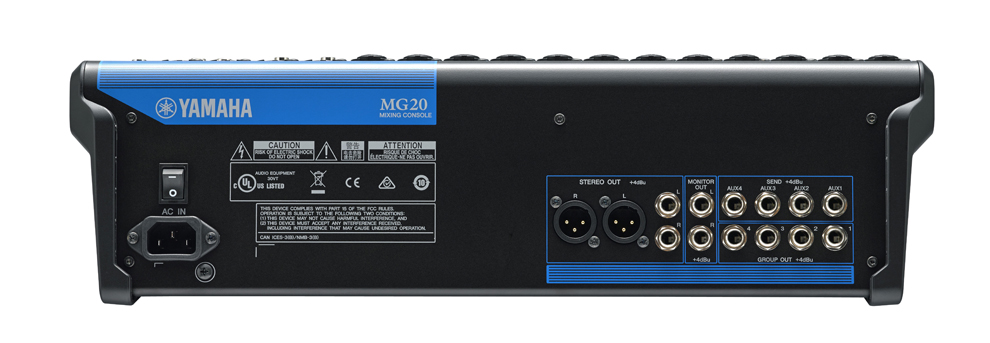

- Output Channels
- STEREO OUT : 2
- MONITOR OUT: 1
- PHONES: 1
- AUX SEND: 4
- GROUP OUT: 4
- Bus
- Stereo: 1, GROUP: 4, AUX: 4
- Input Channel Function
- PAD : 26 dB(Mono)
- HPF: 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
- COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
- EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
- EQ MID: Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
- EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
- PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping(Mono)
- Level Meter: 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
- General specifications
- Total harmonic distortion : 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
- Frequency response: +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
- Hum & noise level
- Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
- Residual output noise: -102 dBu (STEREO OUT, STEREO master fader: Min)
- Crosstalk: -78 dB
- Power requirements : AC 100 – 240 V, 50 / 60 Hz
- Power consumption : 36 W
- Dimensions
- W: 444 mm (17.5")
- H: 130 mm (5.1")
- D: 500 mm (19.7")
- Net weight : 6.9kg (15.2 lbs.)
- Accessories : Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Rack-mount kit
- Others
- Operating Temperature: 0 to +40?C
More specifications
