Yamaha MG20XU

  • Read reviews (4)
  • Related accessories
  • Similar products

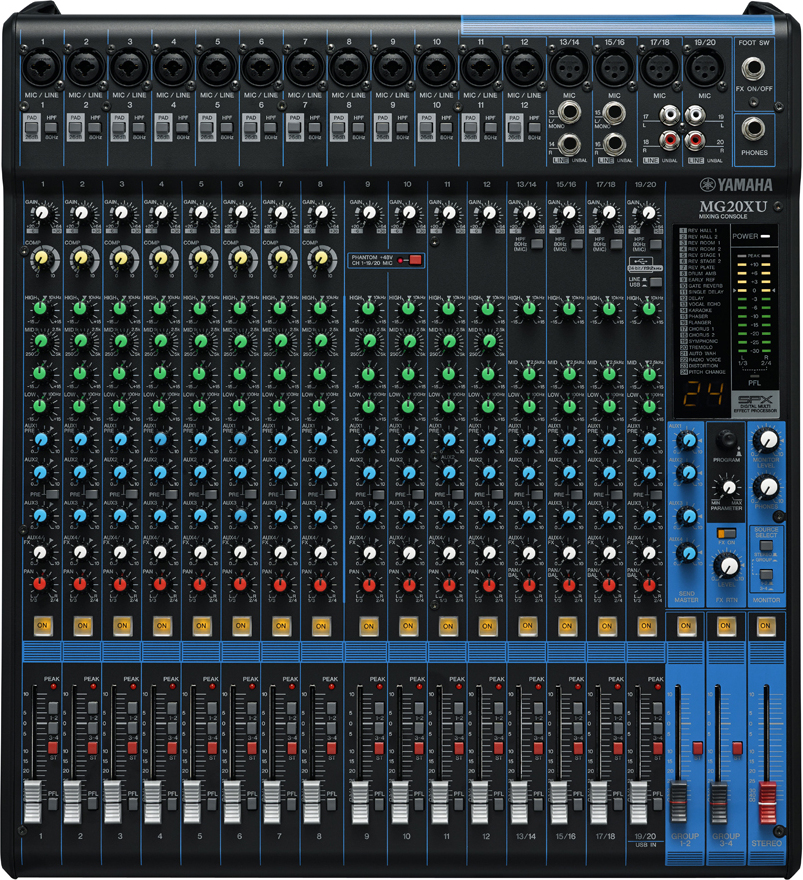

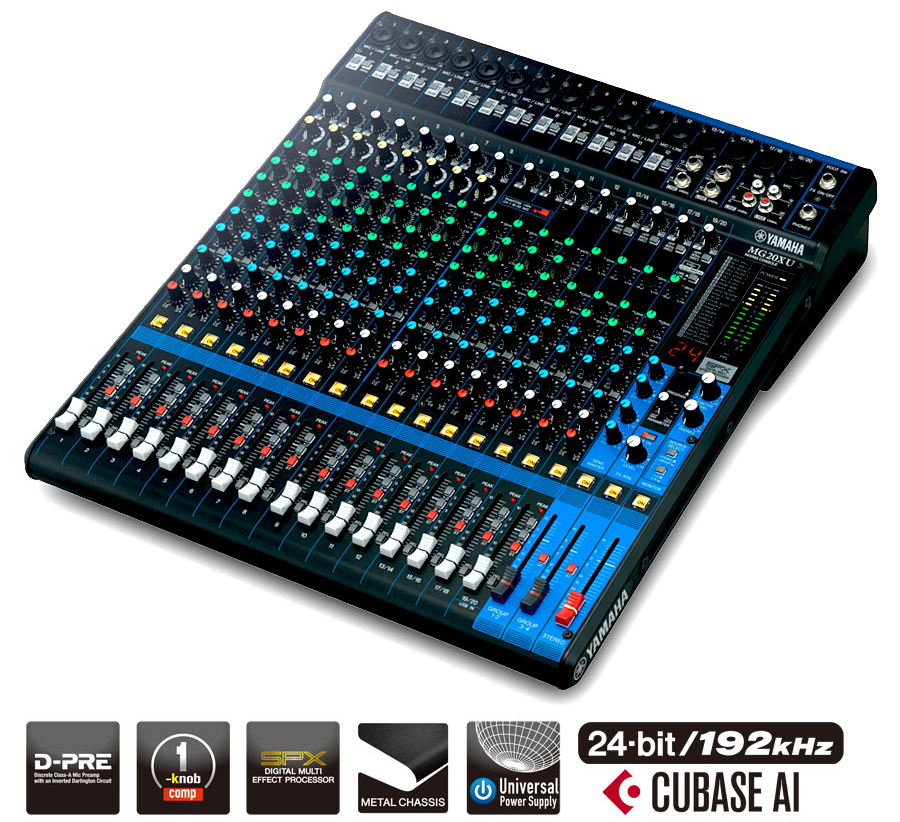

  • Yamaha Mg20xu - Analog mixing desk - Main picture

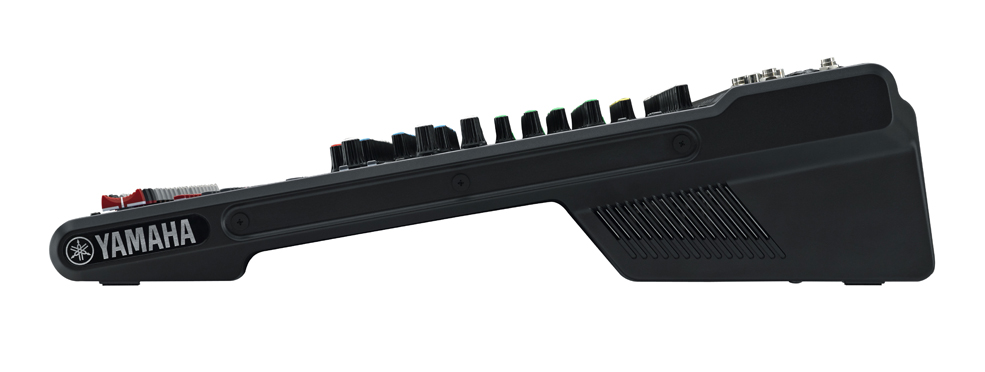

  • Yamaha Mg20xu - Analog mixing desk - Variation 1
  • Yamaha Mg20xu - Analog mixing desk - Variation 2
  • Yamaha Mg20xu - Analog mixing desk - Variation 3
  • Ref : 34664
825,00 €
  • Free delivery
  • Low prices guaranteed
  • Satisfied or refunded
  • 3-years warranty
In stock
deliverable in 24 hours
Stock in store
See availability. Store
•
Star's Music Lille
•
Star's Music Paris

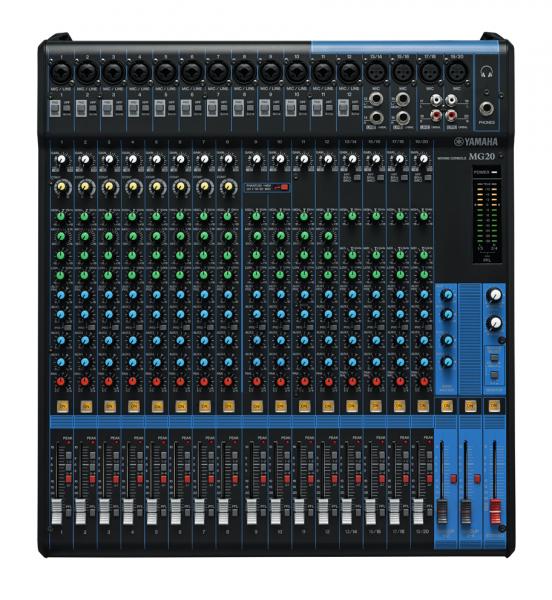

Variation(s) of this product.

The brand Yamaha

Learn more about the Yamaha brand and discover the entire catalog.
Logo Yamaha

The largest network of stores in France

Find all the information on our superstores and our specialized boutiques.

Contact an expert

Our musician and enthusiast tele-consultants are here to answer all your questions.

Analog mixing desk

Here's the third generation of Yamaha MG Series: Analog mixer 20 channels with 16 Mic / 20 Line Inputs (12 mono + 4 stereo) / 4 GROUP Buses and 1 Stereo Bus / 4 AUX (incl. FX).

Its USB 2.0 interface allows 24-bit/192kHz sampling for high-res stero recording.

The MG16XU boasts an intuitive interface with capacities suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence
Lire la suite

Technical sheet

  • Mixer connectivity Without computer connection
  • Number of channel mixing desk 10 to 22 channels
  • Number of channels 20 channels
  • Mixing capability
  • On-board processors: SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
  • I/O: Phantom power +48 V
  • Digital I/O: USB Audio Class 2.0 compliant
  • Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
  • Input Channels
  • Mono[MIC/LINE] : 12
  • Mono/Stereo[MIC/LINE] : 4
  • Output Channels
  • STEREO OUT : 2
  • MONITOR OUT : 1
  • PHONES: 1
  • AUX SEND: 4
  • GROUP OUT: 4
  • Bus: Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)
  • Input Channel Function
  • PAD: 26 dB (Mono)
  • HPF: 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
  • COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
  • EQ HIGH : Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
  • EQ MID: Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
  • EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
  • PEAK LED : LED turns on when post EQ signal reaches 3 dB below clipping
  • Level Meter : 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
  • General specifications
  • Total harmonic distortion : 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
  • Frequency response : +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
  • Hum & noise level
  • Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
  • Residual output noise : -102 dBu (STEREO OUT, STEREO master fader: Min)
  • Crosstalk: -78 dB
  • Power requirements : AC 100 – 240 V, 50 / 60 Hz
  • Power consumption : 36 W
  • Dimensions
  • W : 444 mm (17.5")
  • H : 130 mm (5.1")
  • D : 500mm (19.7")
  • Net weight : 7.1kg (15.7 lbs.)
  • Accessories:
  • Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5
  • Others
  • Operating Temperature: 0 to +40?C
More specifications
Fewer specifications

User reviews : 4 notice

4,3 5
  • Ease of Use
  • Sound Quality
  • Build Quality
  • Effect Quality
Leave review
posted 2022/03/04 09:55:49 KHAMSOUK H. Certified purchase
Livraison rapide, Super produit, le prix est très raisonnable, à recommander !
  • Global mark
  • Ease of Use
  • Sound Quality
  • Build Quality
  • Effect Quality
posted 2020/07/04 16:23:57 MATHIEU B. Certified purchase
Etant pianiste indépendant, mais nul en ce qui concerne la sono et les branchements, je recherchais une table SIMPLE d'utilisation permettant de brancher 4 périphériques maxi. J'ai trouvé dans cette table l'appareil idéal, c'est ultra simple il n'y a pas à se poser de question. Autre atout : l'appareil semble robuste (plus que ses concurrents du même prix). Trouvaille bien pratique : les orifices des lignes 1 et 2 qui permettent de mettre soit un jack ordinaire, soit un XLR. Attention ce modèle est dépourvu d'effets (pour cela voir le modéle "X").
  • Global mark
  • Ease of Use
  • Sound Quality
  • Build Quality
posted 2019/09/03 09:29:11 CLAUDE M.
Excellent produit. Très fiable et facile et logique dans son utilisation.
  • Global mark
  • Ease of Use
  • Sound Quality
  • Build Quality
  • Effect Quality
posted 2019/01/04 13:06:08 OLIVIER P. Certified purchase
Cette table de mixage couplée avec la console DJ apporte un véritable plus en termes de puissance et d'effets. Excellent matériel.
  • Global mark
  • Ease of Use
  • Sound Quality
  • Build Quality
  • Effect Quality
