Mixing Desk & Controller

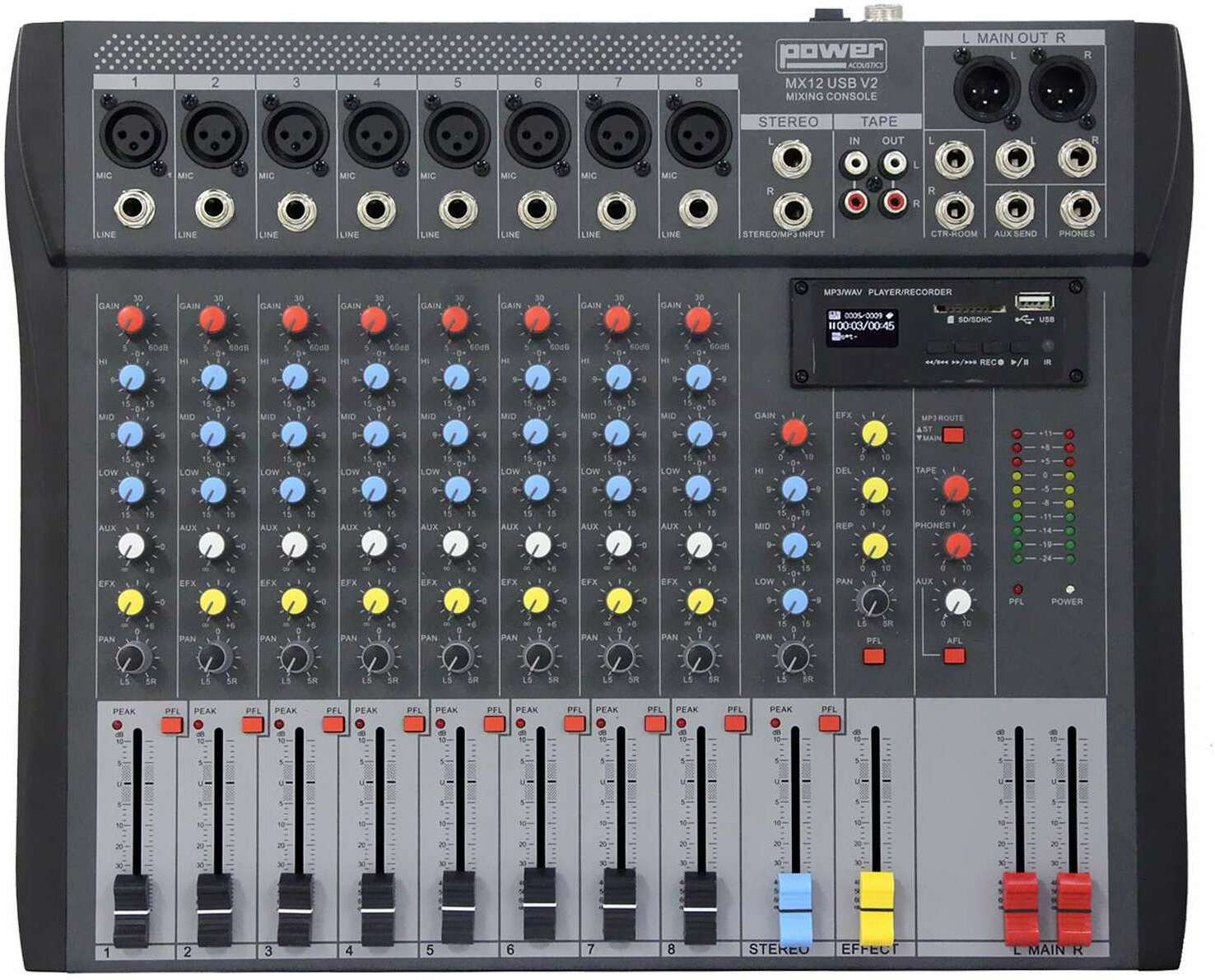

Power acoustics MX12 USB V2

Read reviews (0)
  • Power Acoustics Mx12 Usb V2 - Analog mixing desk - Main picture
  • Power Acoustics Mx12 Usb V2 - Analog mixing desk - Variation 1
255,00 €
Free delivery
Low prices guaranteed
Satisfied or refunded
3-years warranty
In stock
shipped under 5/7 days
Stock in store
Not available in store
Other version(s)
MX8 USB V2
Contact an expert
+33 181 930 900 email

Analog mixing desk

The Power Acoustics MX12 USB v2 is a 12-channel analog mixer.

They integrate a very complete multimedia player with recording function, microphone preamps with very low noise.
For Mic/line inputs a 3-band equalizer is present. The range is composed of four models: 8, 10, 14 and 18 inputs which will be adapted to all types of occasions.
Ultra-lightweight, ultra-fine and easy to carry for mobile performance, the USB V2 MXs will satisfy even the most demanding users.

SPECIFICATIONS

  • Ref : 87385
  • - Mixer connectivity : without computer connection
  • - Number of channel mixing desk : 10 to 22 channels
  • - 8 XLR microphone inputs
  • - 8 unbalanced 6.35 mm line inputs
  • - 2 balanced 6.35 mm line jack inputs
  • - RCA TAPE inputs/outputs
  • - XLR x 2 and 6.35mm x 2 outputs
  • - AUX send
  • - Control Room
  • - Very low noise preamplifier
  • - Adjustable Echo Type Effect
  • - 3-way correction per channel
  • - Clipping LED
  • - Linear volume faders per channel
  • - LED meters
  • - Headphone jack
  • - TAPE input and output
  • - Frequency response: Mic/Line input to any output: +/- 0.5 dB, 20 Hz 20KHz
  • - T.H.D : Mic sensitivity -30 dBu, +14 dBu @ Mix Output <0.007%
  • - Noise: Mic E.I.N. input (maximum gain): -128 dBu (source150 ?)
  • - Aux, Mix and Master (@0 dB, progressive attenuation) < -85 dBu
  • - Channel mute: >96 dB
  • - Aux Send Pots Offness: >86 dB
  • - Input and output impedances: Mic input: 2.4 k?, Line input: 11 k? and Stereo input: 100k?
  • - Input and output levels: Mic input: +17 dBu max, Line input: +30 dBu max, Stereo input: +30dBu max and Mix output: +20 dBu
  • - Headset (@ 200?) 300 mW
  • - EQ (mono/stereo input): HF : 12 KHz +/- 15 dB, MF : 140 Hz - 3 KHz, +/-15 dB, LF: 80 Hz +/-15 dB
  • - Dimensions (H x W x D): 350 x 376 x 74 mm
  • - Weight: 5,0 Kg
